Fuel Pump Ballast Resistor: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE COOL AIR INTAKE DUCT SEAL
3. REMOVE ENGINE ROOM RH SIDE COVER
4. REMOVE FUEL PUMP RESISTOR

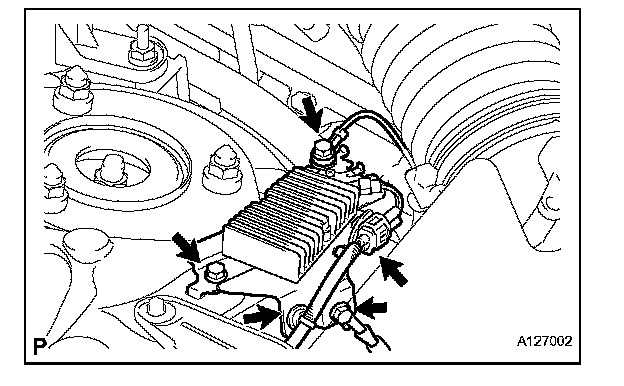

a. Disconnect the connector and clamp from the fuel pump resistor.
b. Remove the 3 bolts and fuel pump resistor, and disconnect the ground wires.
INSTALLATION
1. INSTALL FUEL PUMP RESISTOR
a. Install the fuel pump resistor with the bolt.
Torque: 5.0 N.m(51 kgf.cm, 44 in.lbf)
b. Install the ground wires with the 2 bolts.
Torque: 8.0 N.m (80 kgf.cm, 69 in.lbf)
c. Connect the connector with the clamp.
2. INSTALL ENGINE ROOM RH SIDE COVER
3. INSTALL COOL AIR INTAKE DUCT SEAL
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
a. Perform initialization.
HINT: Certain systems need to be initialized after reconnecting the cable to the negative (-) battery terminal.
