Cold Start Injector: Testing and Inspection

INSPECTION

1. INSPECT COLD START INJECTOR

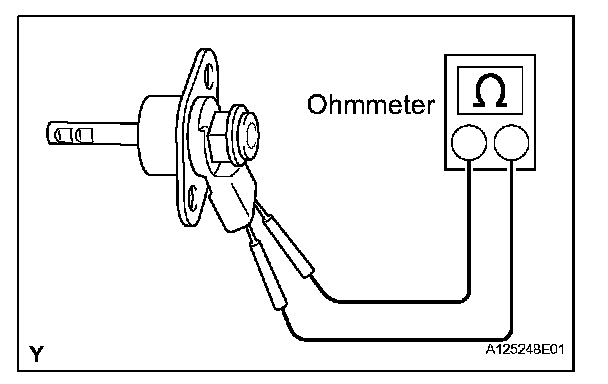

a. Check the cold start injector resistance.

Standard resistance: 1.5 to 6.5 ohms at 20 °C (68 °F)
