4WD Control ECU Communication Stop Mode
4WD Control ECU Communication Stop ModeDESCRIPTION

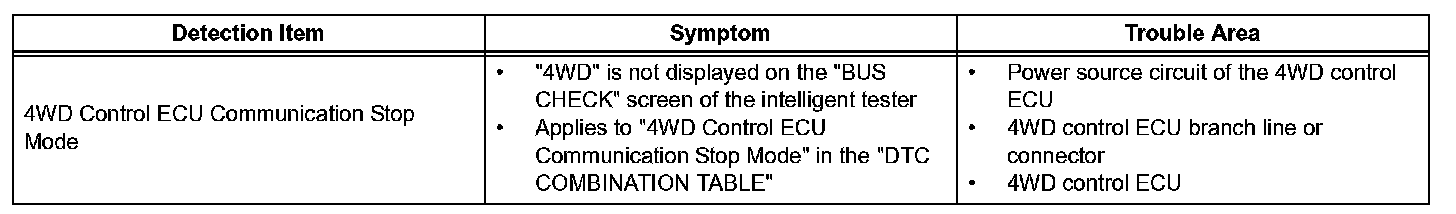

Detection Item:
HINT: "4WD" refers to the circuit that includes the 4WD control ECU.

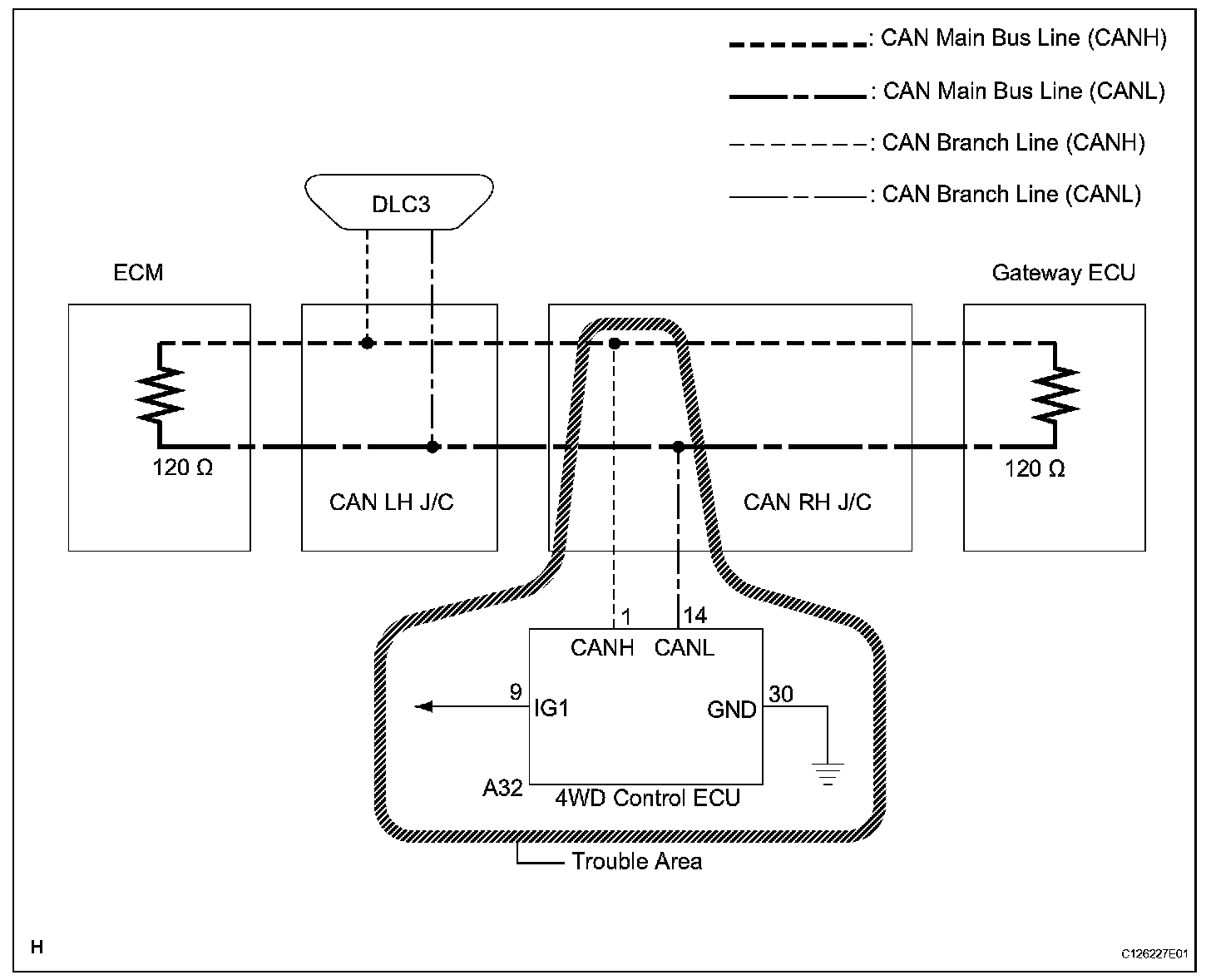

Wiring Diagram:

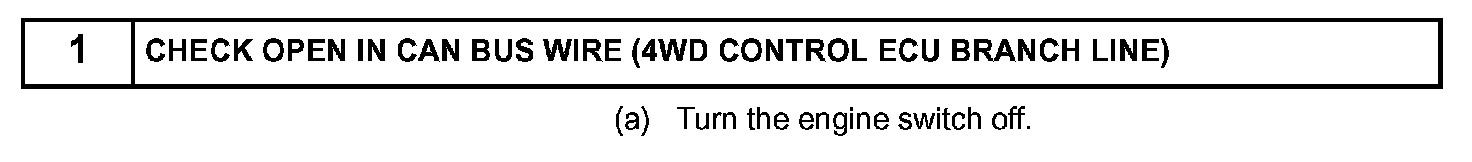

Step 1:

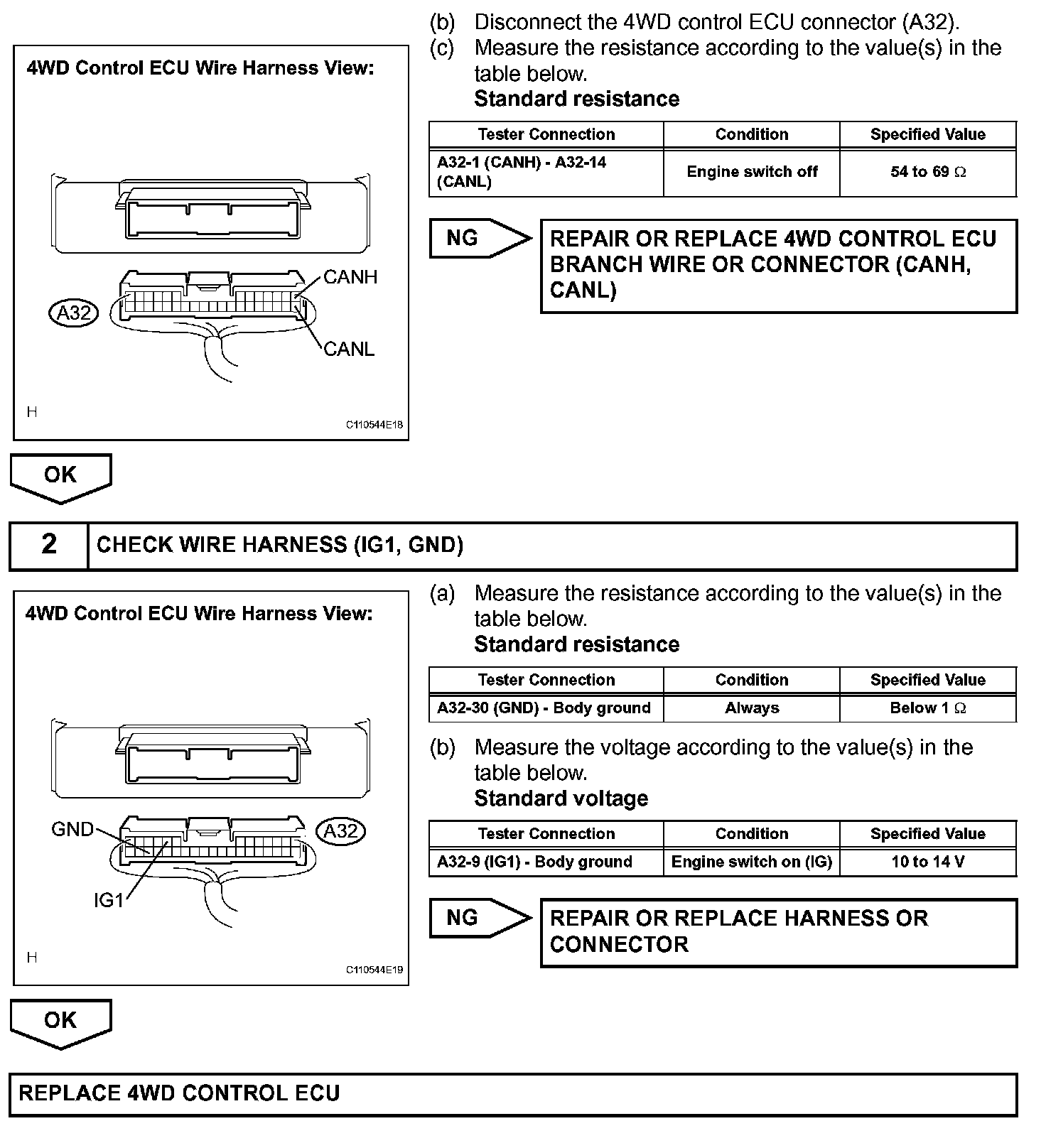

Step 1 (Continued)-2:
INSPECTION PROCEDURE
DESCRIPTION
HINT: "4WD" refers to the circuit that includes the 4WD control ECU.
INSPECTION PROCEDURE
