License Plate Lamp: Testing and Inspection

ON-VEHICLE INSPECTION




1. INSPECT LICENSE PLATE LIGHT ASSEMBLY

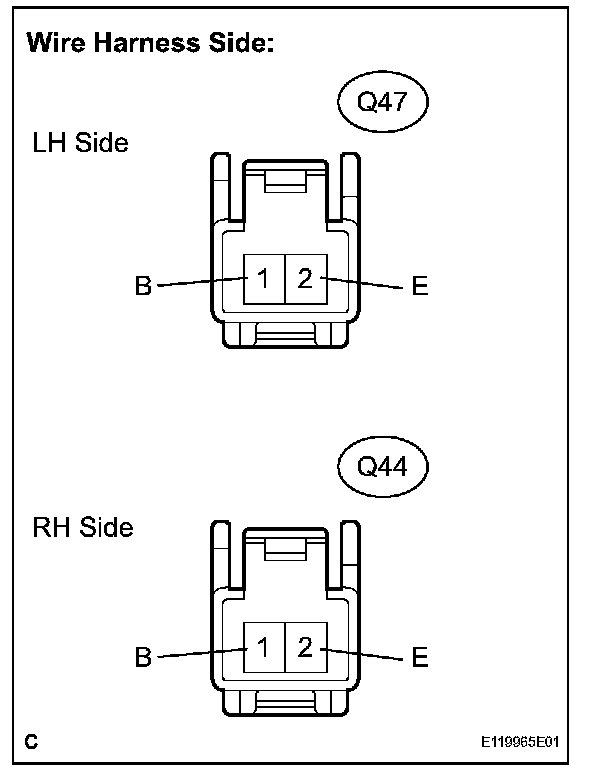

a. Disconnect the connector from the license plate light.

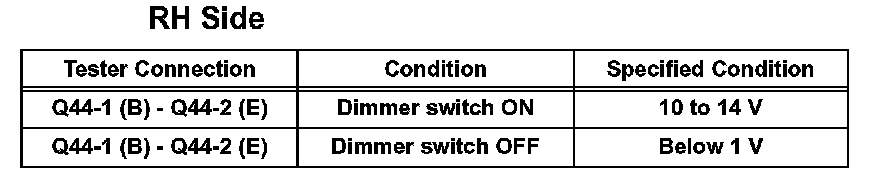

b. Measure the voltage according to the value(s) in the table given.

If the result is not as specified, repair or replace the wire harness or connector.
