FOOTWELL LIGHT

REMOVAL

1. REMOVE NO.1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY




2. REMOVE NO.1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH

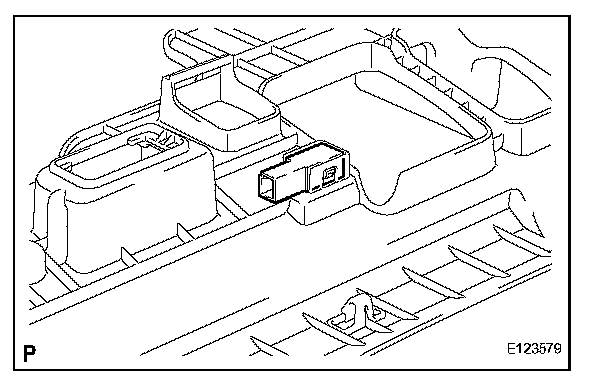

a. Remove the No.1 interior illumination light assembly LH.

3. REMOVE NO.2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY




4. REMOVE NO.1 INTERIOR ILLUMINATION LIGHT ASSEMBLY RH
a. Remove the No.1 interior illumination light assembly RH.

INSTALLATION




1. INSTALL NO.1 INTERIOR ILLUMINATION LIGHT ASSEMBLY RH

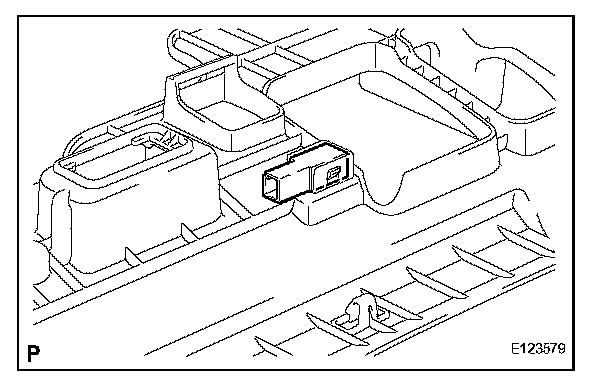

a. Install the No.1 interior illumination light assembly RH.

2. INSTALL NO.2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY




3. INSTALL NO.1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH
a. Install the No.1 interior illumination light assembly LH.

4. INSTALL NO.1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
