Door Mirror Foot Light

Door Mirror Foot Light:

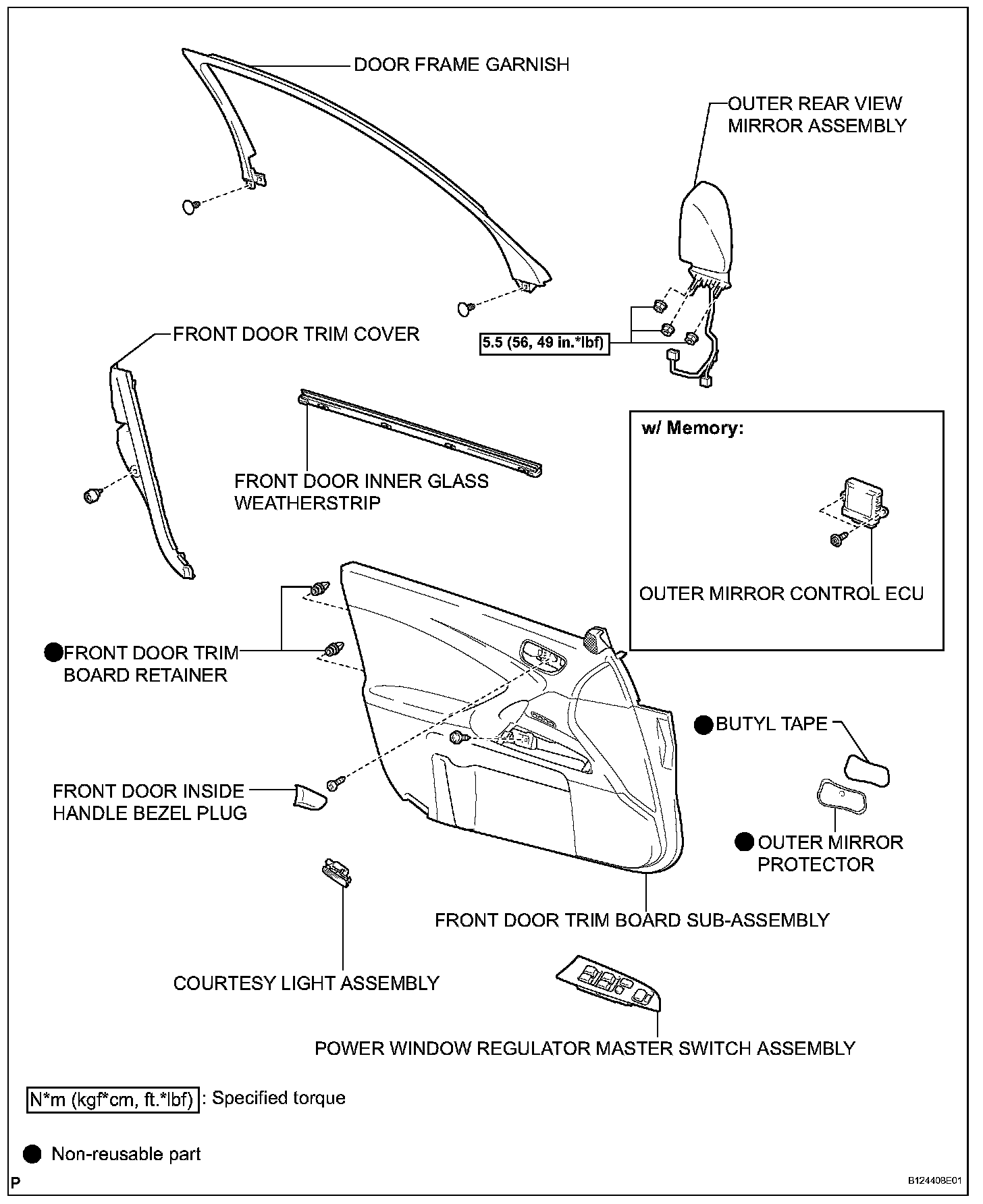

DOOR MIRROR FOOT LIGHT

REMOVAL

1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG
2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
3. REMOVE COURTESY LIGHT ASSEMBLY
4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
5. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP
6. REMOVE FRONT DOOR TRIM COVER
7. REMOVE DOOR FRAME GARNISH
8. REMOVE OUTER MIRROR CONTROL ECU (w/ Memory)
9. REMOVE OUTER MIRROR PROTECTOR
10. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY

INSTALLATION

1. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY
2. INSTALL OUTER MIRROR PROTECTOR
3. INSTALL OUTER MIRROR CONTROL ECU (w/ Memory)
4. INSTALL DOOR FRAME GARNISH
5. INSTALL FRONT DOOR TRIM COVER
6. INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP
7. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
8. INSTALL COURTESY LIGHT ASSEMBLY
9. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
10. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG
11. POWER WINDOW CONTROL SYSTEM INITIALIZATION
