Center Mounted Brake Lamp: Testing and Inspection

ON-VEHICLE INSPECTION




1. INSPECT HIGH MOUNTED STOP LIGHT ASSEMBLY

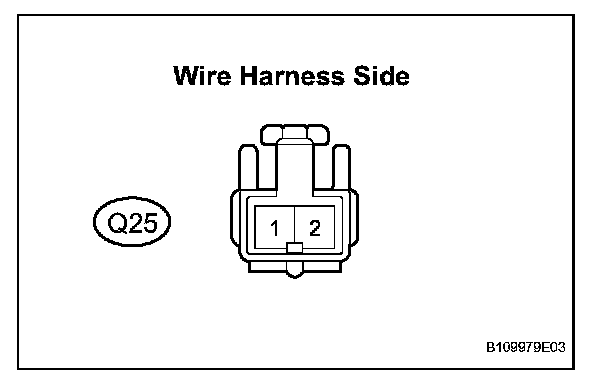

a. Disconnect the high mounted stop light connector.

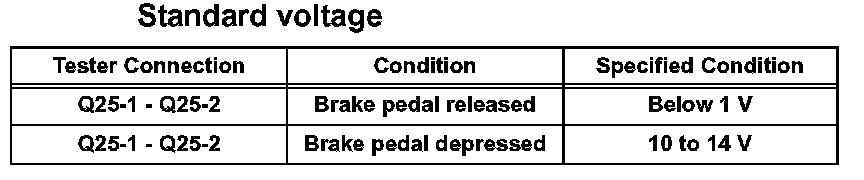

b. Measure the voltage according to the value(s) in the table given.

If the result is not as specified, repair or replace the wire harness or connector.
