Center Mounted Brake Lamp: Service and Repair

High Mounted Stop Light Assembly:

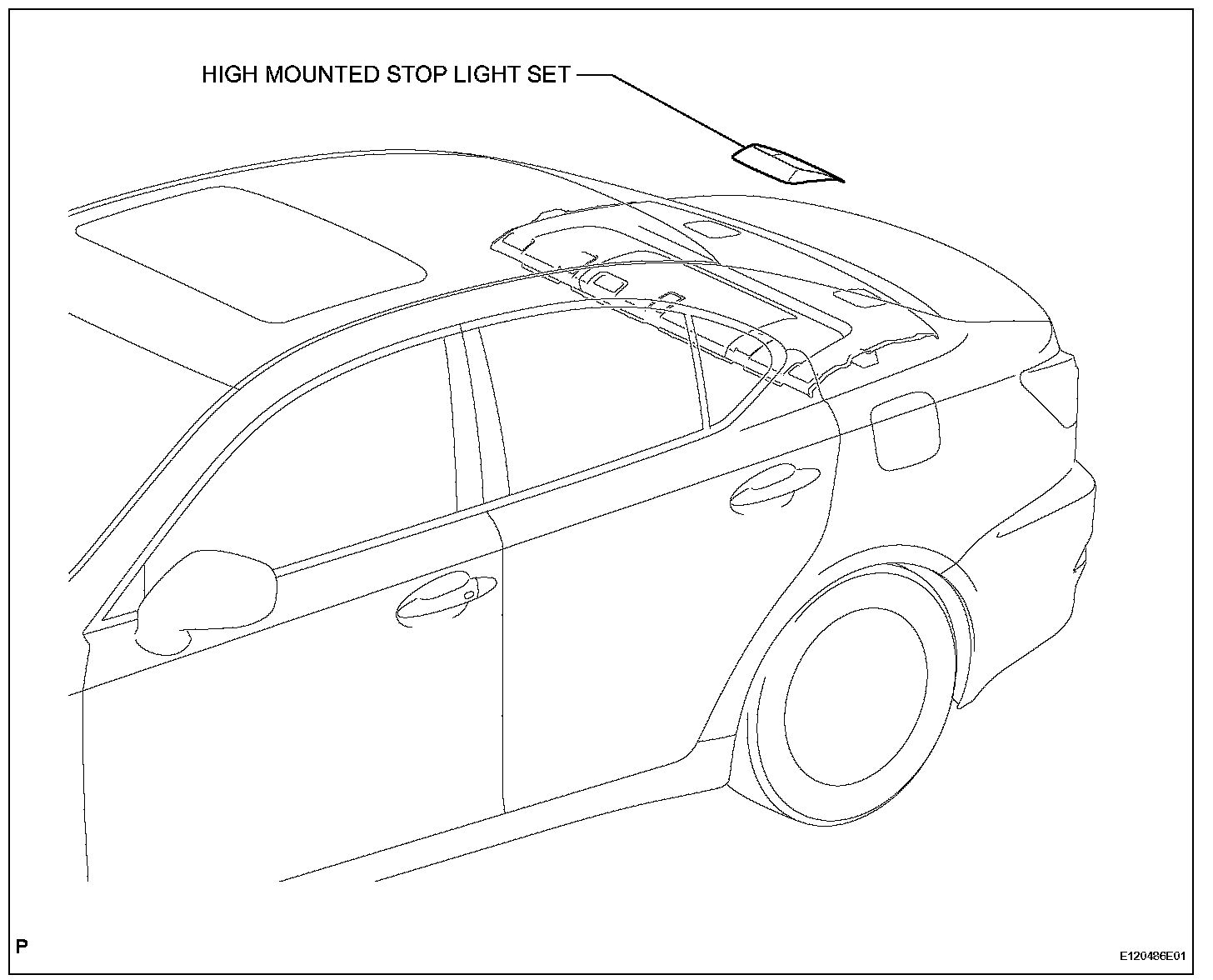

HIGH MOUNTED STOP LIGHT ASSEMBLY

REMOVAL




1. REMOVE HIGH MOUNTED STOP LIGHT SET

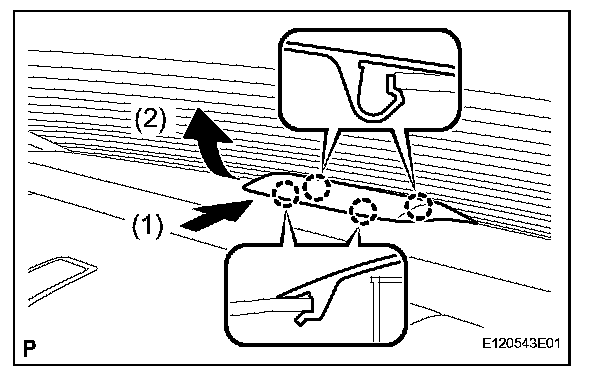

a. Disengage the 4 claws and disconnect the high mounted stop light set as shown in the illustration.
b. Disconnect the connector and remove the high mounted stop light set.

INSTALLATION

1. INSTALL HIGH MOUNTED STOP LIGHT SET
a. Connect the connector.
b. Install the high mounted stop light set with the 4 claws.
