Instrument Panel Bulb: Service and Repair

Register Illumination:

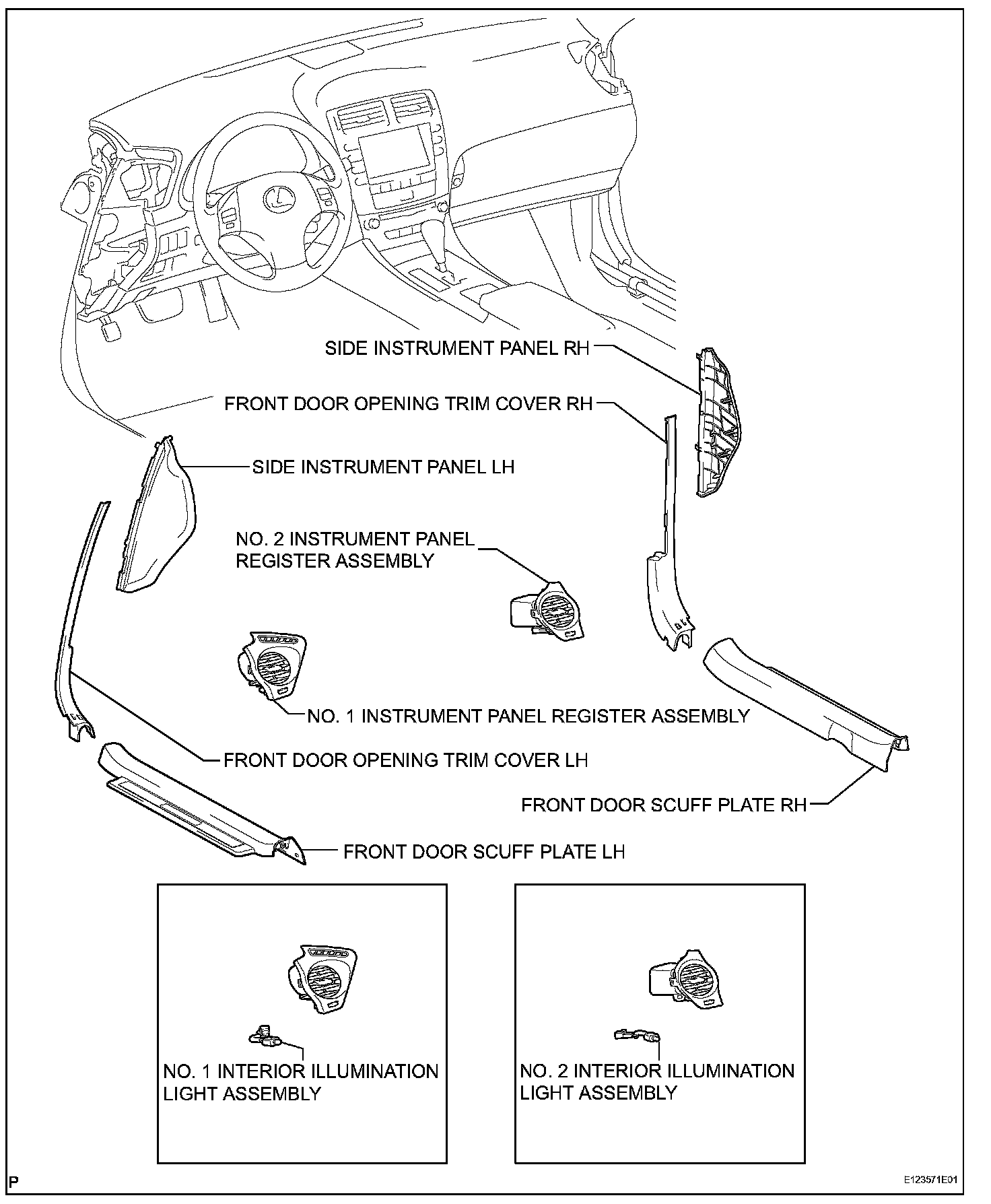

REGISTER ILLUMINATION

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination)
2. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination)
3. REMOVE FRONT DOOR OPENING TRIM COVER LH
4. REMOVE SIDE INSTRUMENT PANEL LH
5. REMOVE NO.1 INSTRUMENT PANEL REGISTER ASSEMBLY




6. REMOVE NO.1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

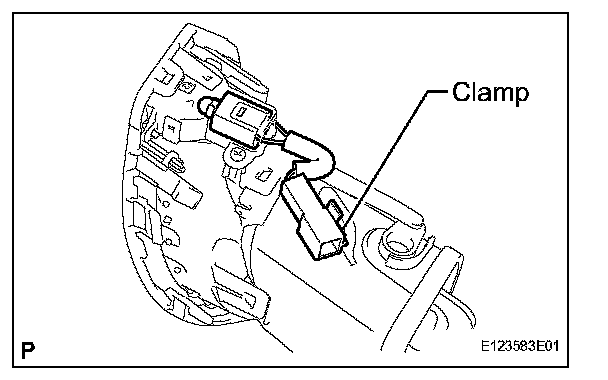

a. Disengage the clamp and remove the No.1 interior illumination light assembly.

7. REMOVE FRONT DOOR SCUFF PLATE RH (w/o Illumination)
8. REMOVE FRONT DOOR SCUFF PLATE RH (w/ Illumination)
9. REMOVE FRONT DOOR OPENING TRIM COVER RH
10. REMOVE SIDE INSTRUMENT PANEL RH
11. REMOVE NO.2 INSTRUMENT PANEL REGISTER ASSEMBLY




12. REMOVE NO.2 INTERIOR ILLUMINATION LIGHT ASSEMBLY

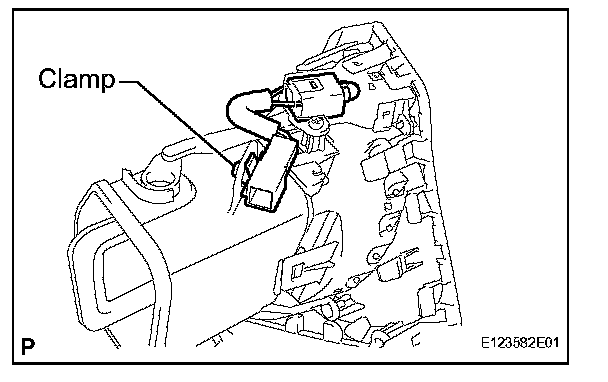

a. Disengage the clamp and remove the No.2 interior illumination light assembly.

INSTALLATION




1. INSTALL NO.2 INTERIOR ILLUMINATION LIGHT ASSEMBLY

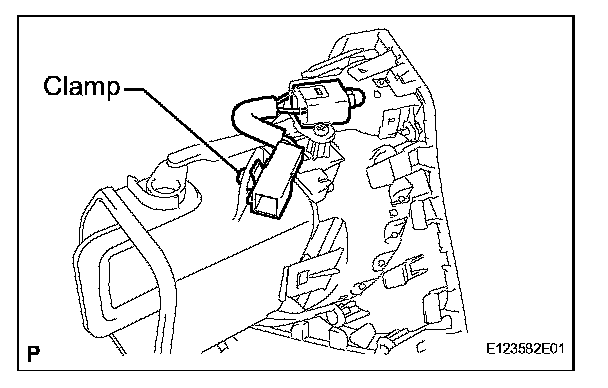

a. Install the No.2 interior illumination light assembly with the clamp.

2. INSTALL NO.2 INSTRUMENT PANEL REGISTER ASSEMBLY
3. INSTALL SIDE INSTRUMENT PANEL RH
4. INSTALL FRONT DOOR OPENING TRIM COVER RH
5. INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)
6. INSTALL FRONT DOOR SCUFF PLATE RH (w/ Illumination)

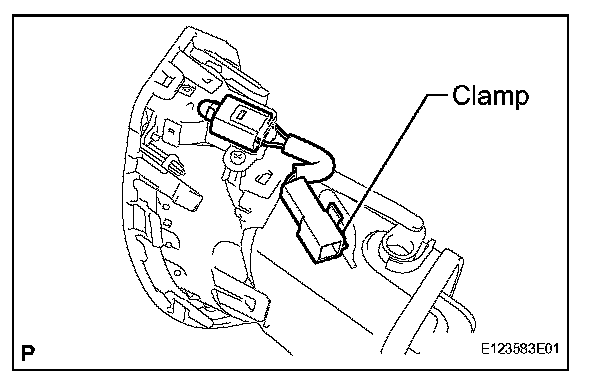

7. INSTALL NO.1 INTERIOR ILLUMINATION LIGHT ASSEMBLY a. Install the No.1 interior illumination light assembly with the clamp.

8. INSTALL NO.1 INSTRUMENT PANEL REGISTER ASSEMBLY
9. INSTALL SIDE INSTRUMENT PANEL LH
10. REMOVE FRONT DOOR OPENING TRIM COVER LH
11. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination)
12. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination)
