Auxiliary Heater Element: Testing and Inspection

INSPECTION




1. INSPECT WATER BY-PASS GLOW PLUG

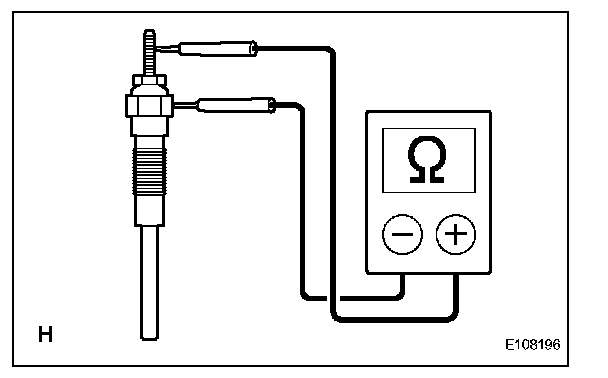

a. Measure the resistance according to the value(s) in the table.

Standard resistance: Below 1 Ohm

If the resistance is not as specified, replace the water by-pass glow plug.
