Climate Control Seat and Seat Heater

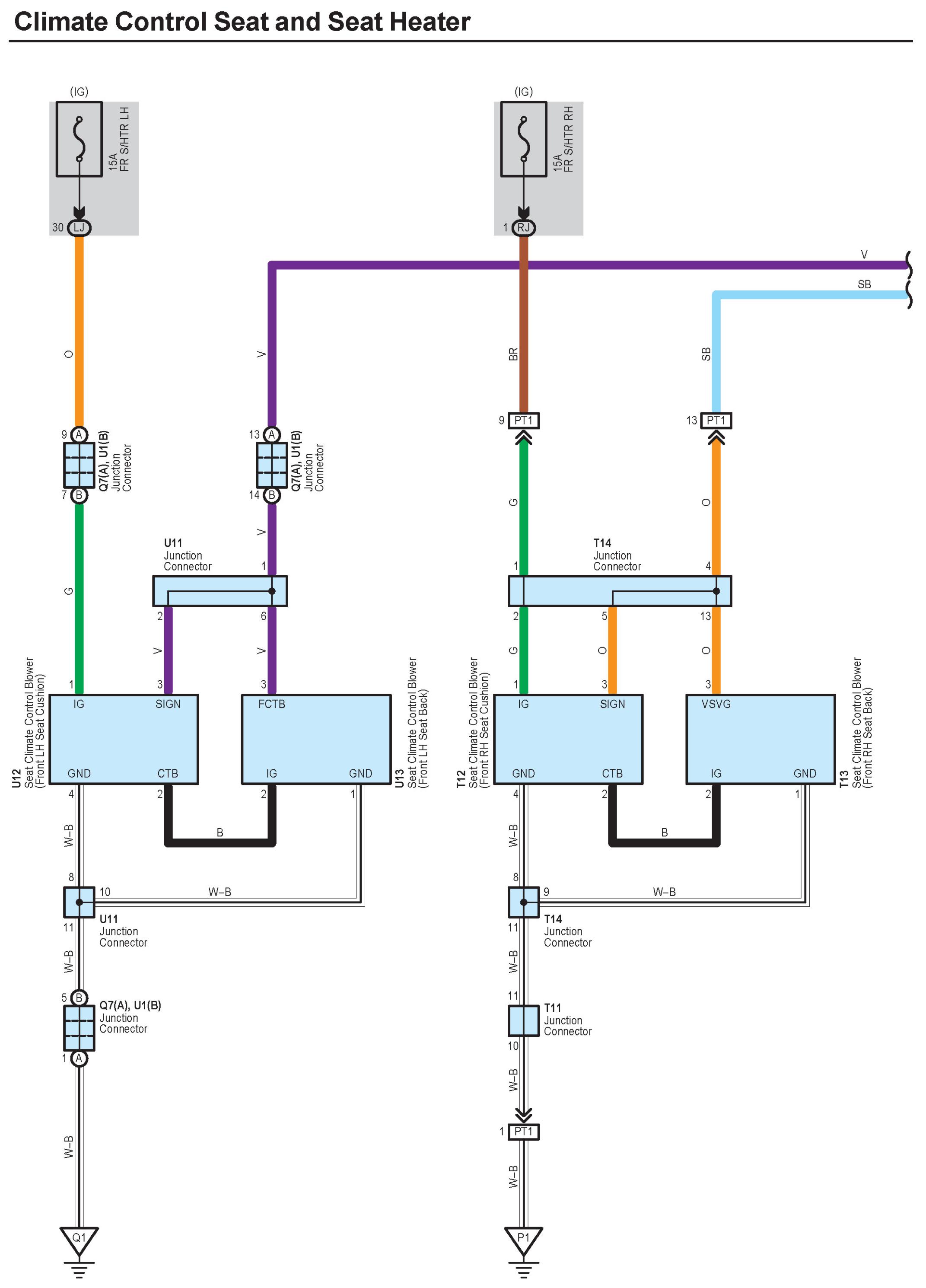

Climate Control Seat And Seat Heater Part 1:

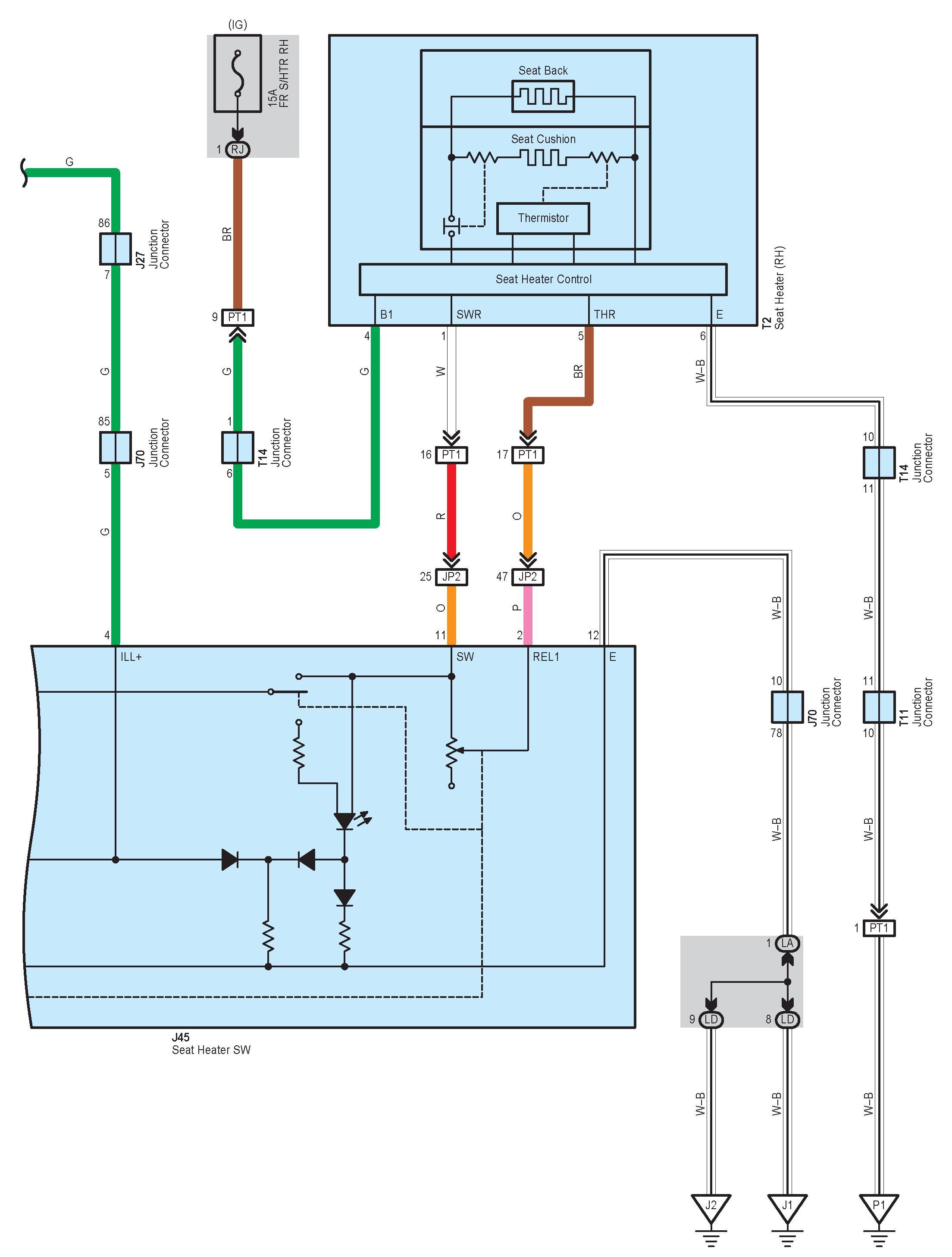

Climate Control Seat And Seat Heater Part 2:

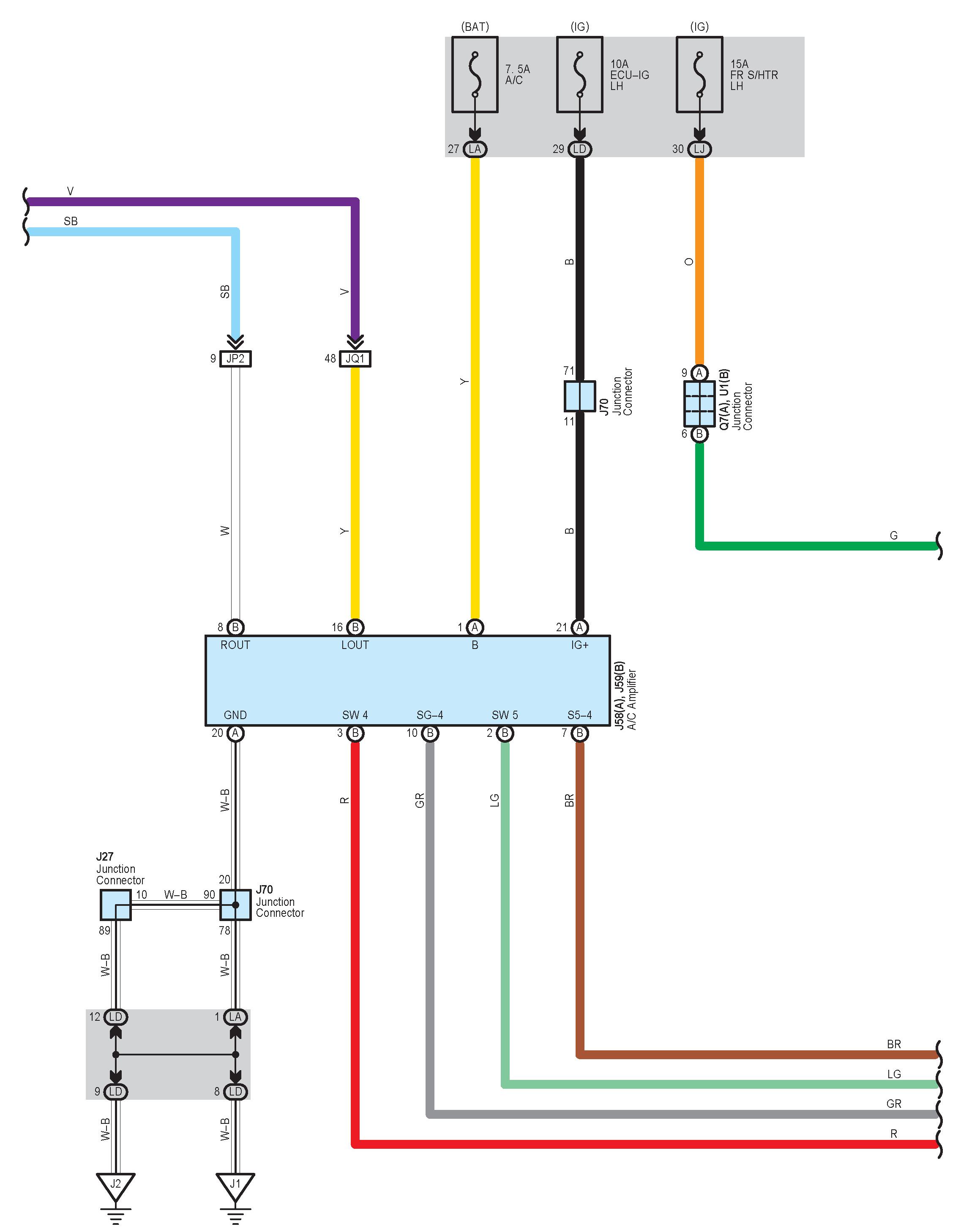

Climate Control Seat And Seat Heater Part 3:

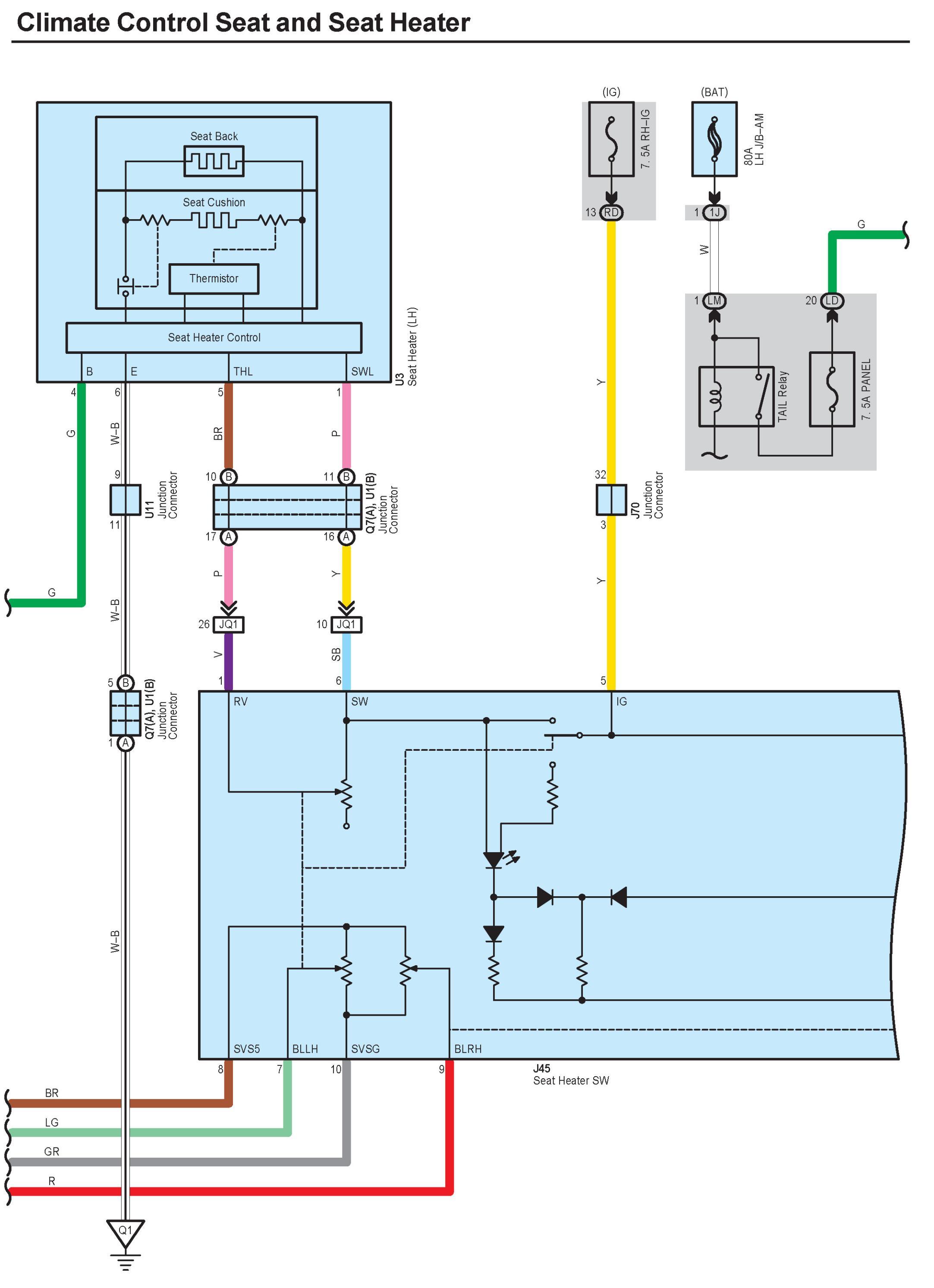

Climate Control Seat And Seat Heater Part 4:

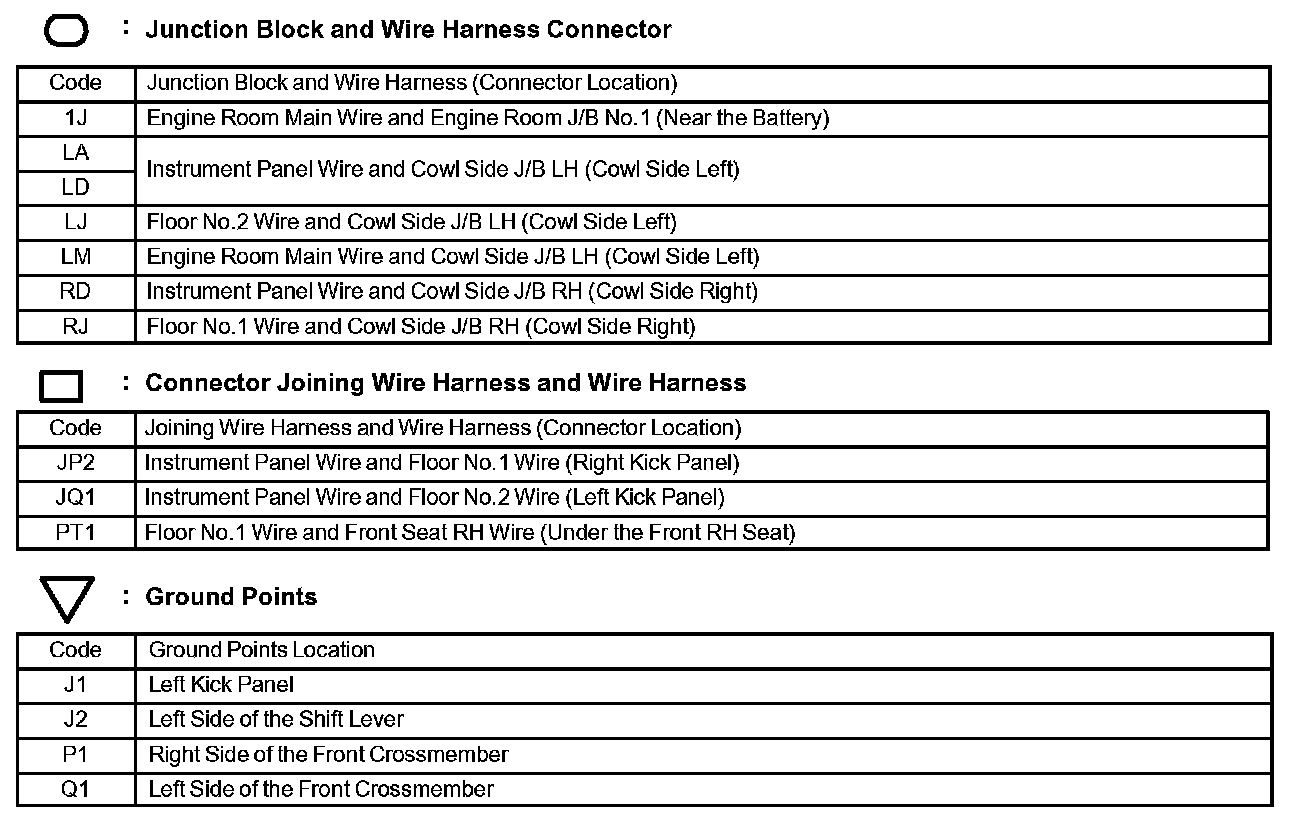

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
