Parking Brake Pedal: Testing and Inspection
PARKING BRAKE PEDALINSPECTION

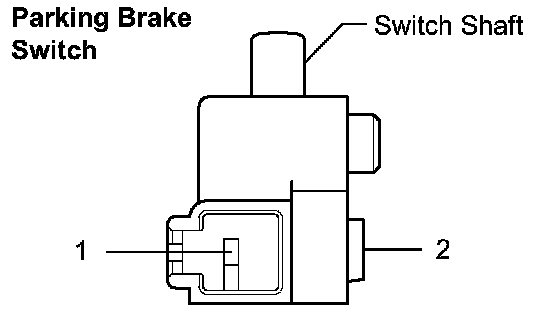

1. INSPECT PARKING BRAKE SWITCH ASSEMBLY

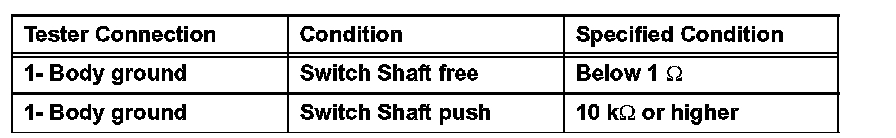

a. Measure the resistance according to the value(s) in the table.
Standard Resistance:
If the value is not as specified, replace the parking brake pedal.
