Brakes - Front Brake Squeak When Stopping Slowly

L-SB-0124-08

Rev2

October 3, 2008

Front Brake Squeak

Service Category
Brake

Section
Brake (front)

Market
USA





Applicability

TSIB REVISION NOTICE

March 9, 2009 Rev2:

^ Applicability has been updated to include 2008 model year vehicles. December 22, 2008 Rev1:

^ Production Change Information has been added.

Any previous printed versions of this service bulletin should be discarded.

The information contained in this TSIB supersedes TSIB No. BR001-07.

The OFP number in the Warranty Information section has been changed from 43512-30310 to 04465-53020.

TSIB No. BR001-07 is Obsolete and any printed versions should be discarded. Be sure to review the entire content of this service bulletin before proceeding.

Introduction

Some customers may experience front brake squeak noise when slowly coming to a stop. Updated front disc brake pads grease and a fitting kit are available to improve this condition. Use the following repair procedure to address this concern.

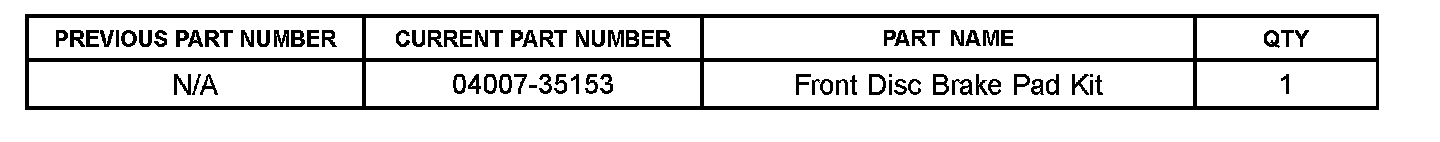

Parts Information

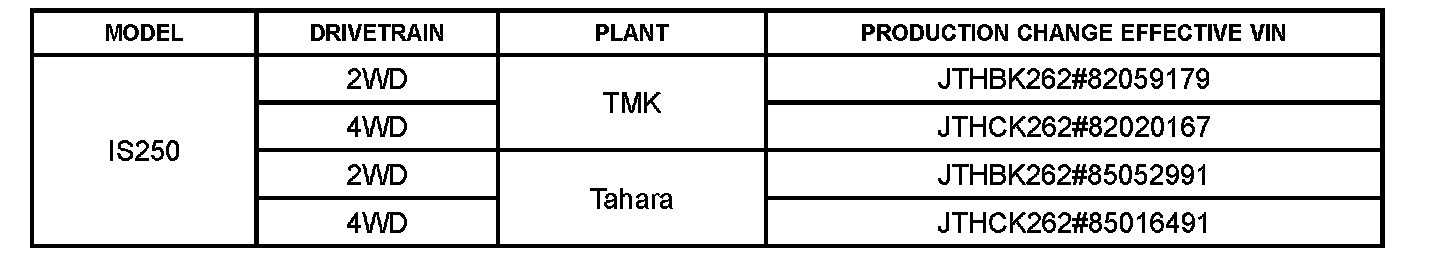

Production Change Information





This TSIB applies to vehicles produced BEFORE the Production Change Effective VINs shown.

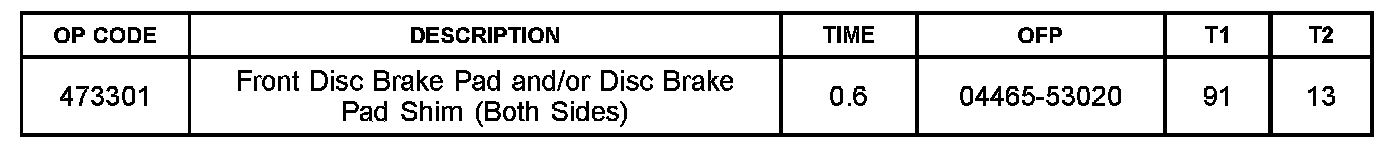

Warranty Information

APPLICABLE WARRANTY

^ This repair is covered under the Lexus Comprehensive Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.

^ Warranty application is limited to correction of a problem based upon a customer's specific complaint.

Repair Procedure

1. Conduct a road test to verify the noise condition - noise usually occurs when slowly coming to a stop with light pressure applied to the brake pedal.

2. Remove and replace the front disc brake pads and fitting kit.

NOTE
This procedure is for the LH side. Perform the same procedure for the RH side.

A. Remove the front wheel.

B. Remove the top caliper mounting bolt.

C. Remove the front brake pads (qty 2) with the front disc brake anti-squeal shims No.1 (qty 2) and No.2 (qty 2) and the brake pad wear indicator plates (qty 2) from the caliper assembly.

D. Remove the lower inner and outer No.1 front disc brake pad support clips (qty 2) and the upper inner and outer No.2 front disc brake pad support clips (qty 2) from the caliper assembly.

E. Clean the surface on the caliper assembly where the lower and upper inner and outer No.1 and No.2 front disc brake pad support clips are installed.

F. Install the new lower and upper inner and outer No.1 (qty 2) and No.2 (qty 2) front disc brake pad support clips onto the caliper assembly.

NOTE
The new lower inner No.1 front disc brake pad support clip is insulated with bonding tape, and it is important that it is installed in the lower inner caliper assembly.

G. Clean the No.1 (qty 2) and No.2 (qty 2) anti-squeal shims.

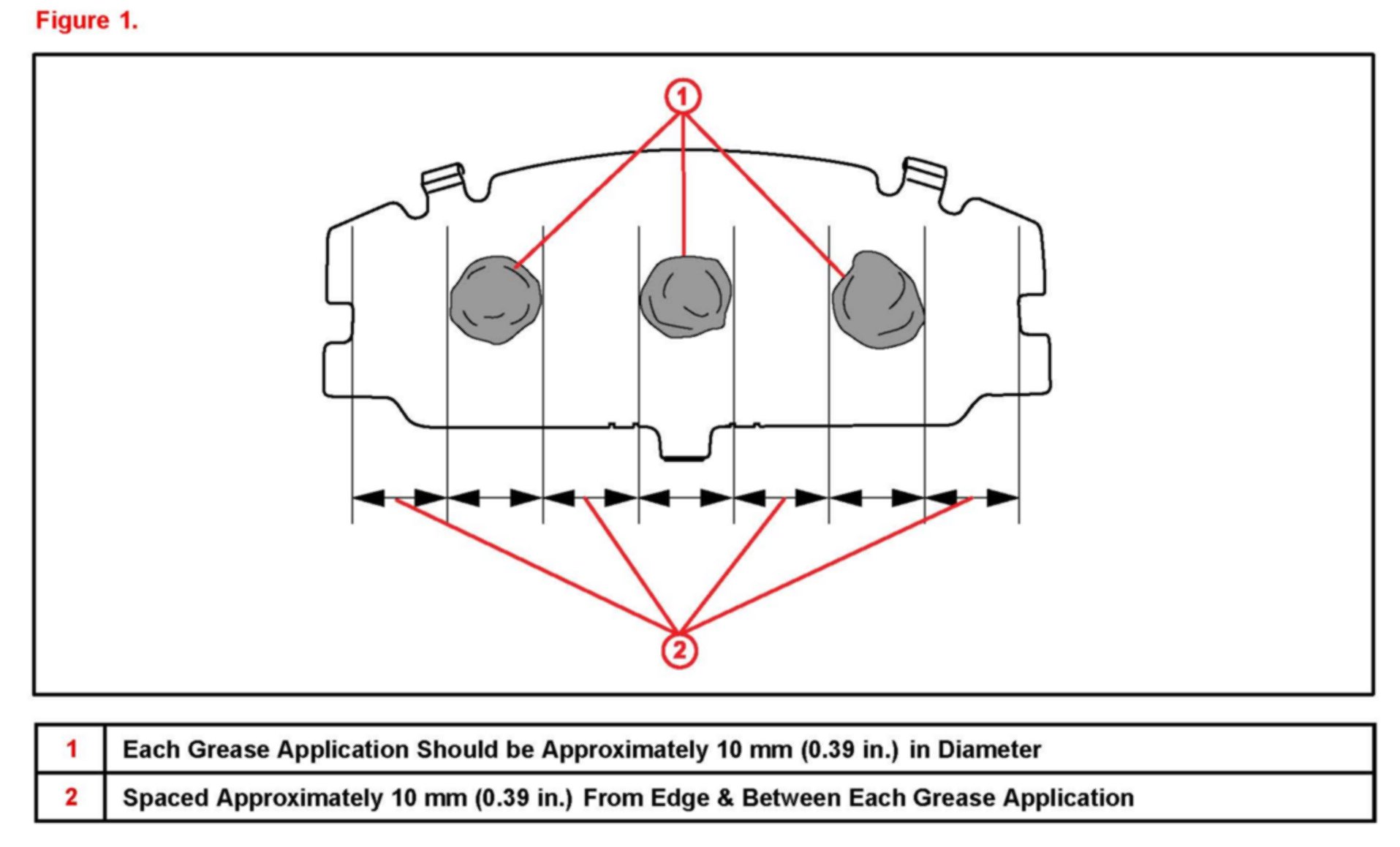

H. Apply disc brake grease to the back of the No.2 (qty 2) anti-squeal shims.

I. Install the anti squeal shims No.1 (qty 2) and No.2 (qty 2) and the NEW pad wear indicator plates onto the NEW brake pads.

J. Install the NEW brake pads onto the caliper assembly.

K. Reinstall the caliper assembly and torque the upper mounting bolt.

Torque: 34 N*m (350 kgf*cm, 25 ft*lbf)

L. Press the brake pedal 3 to 5 times to spread the grease between the shims once all components have been installed.

3. Road test the vehicle to confirm the front brake "squeak" is NO longer present.
