Brake Warning Indicator: Service and Repair

REMOVAL

1. PRECAUTION

CAUTION: Be sure to read "PRECAUTION, refer to Restraint Systems Service Precautions" thoroughly before servicing" thoroughly before servicing.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

3. REMOVE SIDE INSTRUMENT PANEL LH
4. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
5. REMOVE LOWER INSTRUMENT FINISH PANEL SUBASSEMBLY
6. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY




7. REMOVE SKID CONTROL BUZZER ASSEMBLY

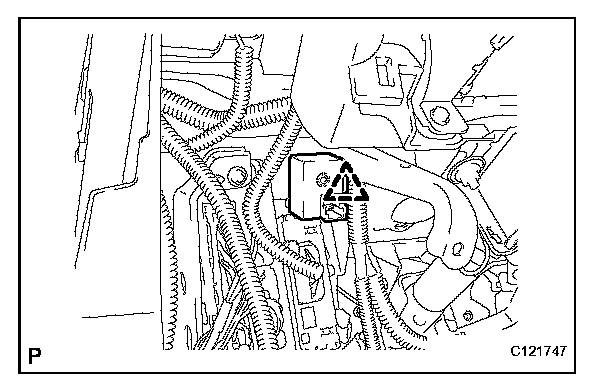

a. Remove the clip and skid control buzzer assembly.

INSTALLATION




1. INSTALL SKID CONTROL BUZZER ASSEMBLY

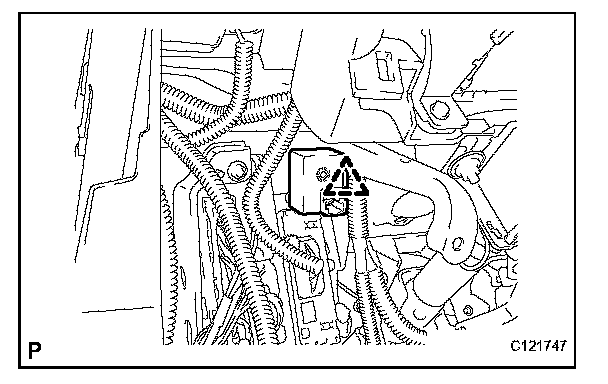

a. Attach the claw and install the skid control buzzer assembly.
b. Connect the skid control buzzer assembly connector.

2. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
3. INSTALL LOWER INSTRUMENT FINISH PANEL SUBASSEMBLY
4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
5. INSTALL SIDE INSTRUMENT PANEL LH
6. CONNECT BATTERY NEGATIVE TERMINAL
7. INSPECT SRS WARNING LIGHT

8. PERFORM INITIALIZATION
Some system need initialization after reconnecting the cable to the negative battery cable.
