Body - Front Spoiler Installation Instructions

PRE-DELIVERY SERVICE
PD034-06

Title:
FRONT SPOILER INSTALLATION
DURING PDS

Models:
'07 IS 250 & IS 350

August 1, 2006

Introduction

The front spoiler set (right and left spoilers, 1 self-tapping screw, 1 spring nut, and 2 clips) is loaded in the luggage compartment at the assembly plant to avoid damage in transit.

Install the front spoiler on the vehicle at the dealership during Pre-Delivery Service (PDS) prior to delivery to the customer.

Applicable Vehicles

^ 2007 model year IS 250 and IS 350 vehicles.

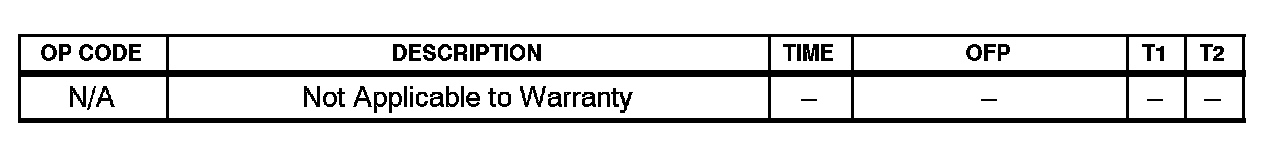

Warranty Information

Installation Procedure

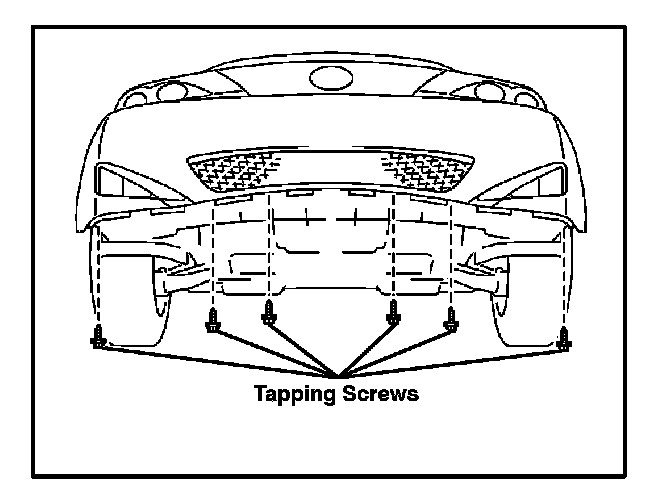

1. Remove the 6 tapping screws from the front bumper cover.

NOTE:
These 6 removed tapping screws are reused when installing the front spoiler.

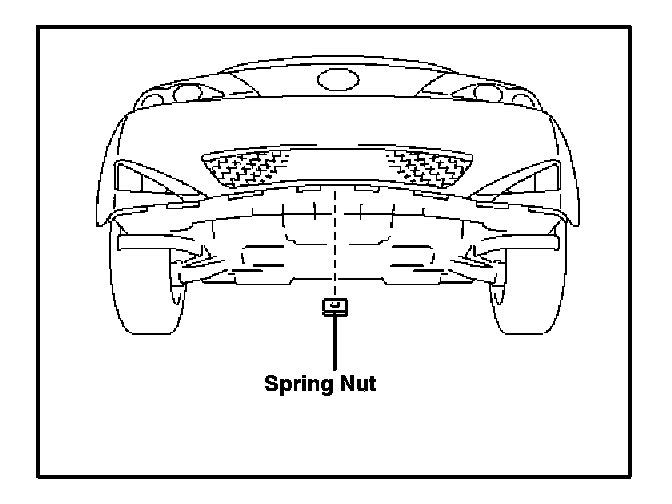

2. Install the 1 spring nut to the front bumper cover.

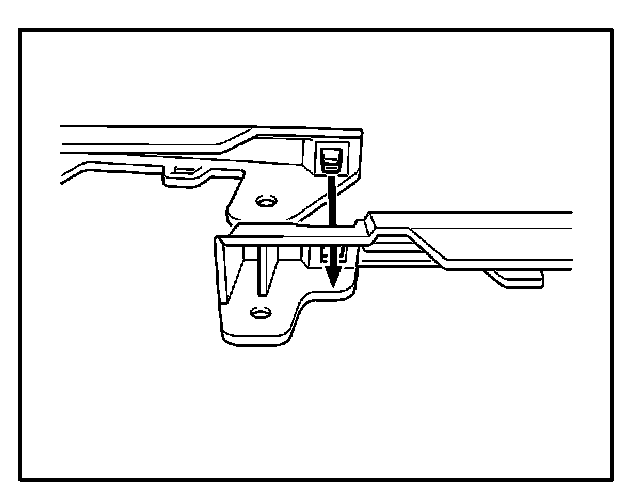

3. Connect the left and right front spoilers by inserting the clip of the right front spoiler to the hole of the left front spoiler.

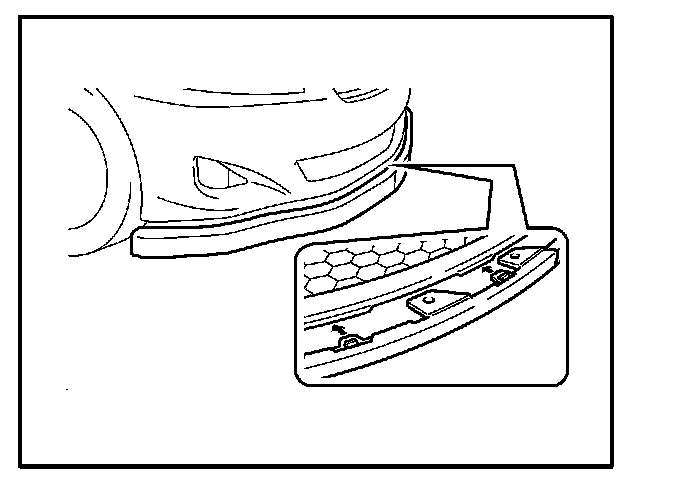

4. Temporarily install the front spoiler to the front bumper by inserting the clips of the front spoiler to the grooves on the underside of the front bumper.

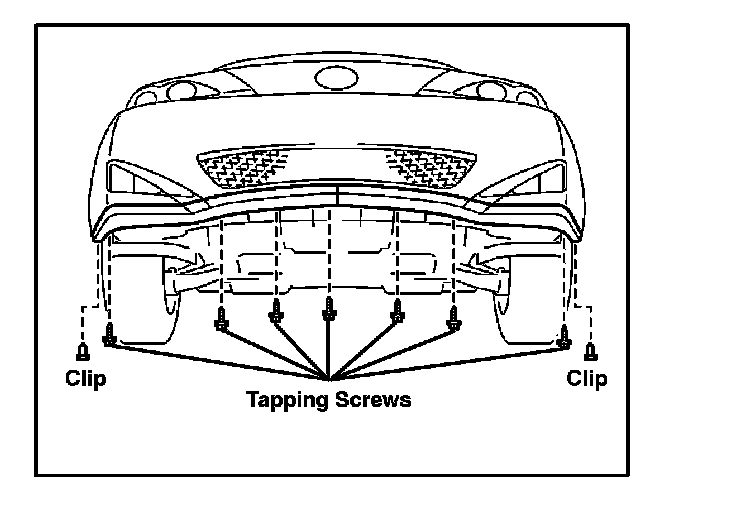

5. Temporarily tighten the 7 self-tapping screws from the center to the outside, as shown in the illustration, and install the 2 clips. Then fully tighten the 7 self-tapping screws.
