Home >> Lexus >> 2007 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Front Power Seat Control System (W/ Seat Position Memory System)

Front Power Seat Control System (W/ Seat Position Memory System)

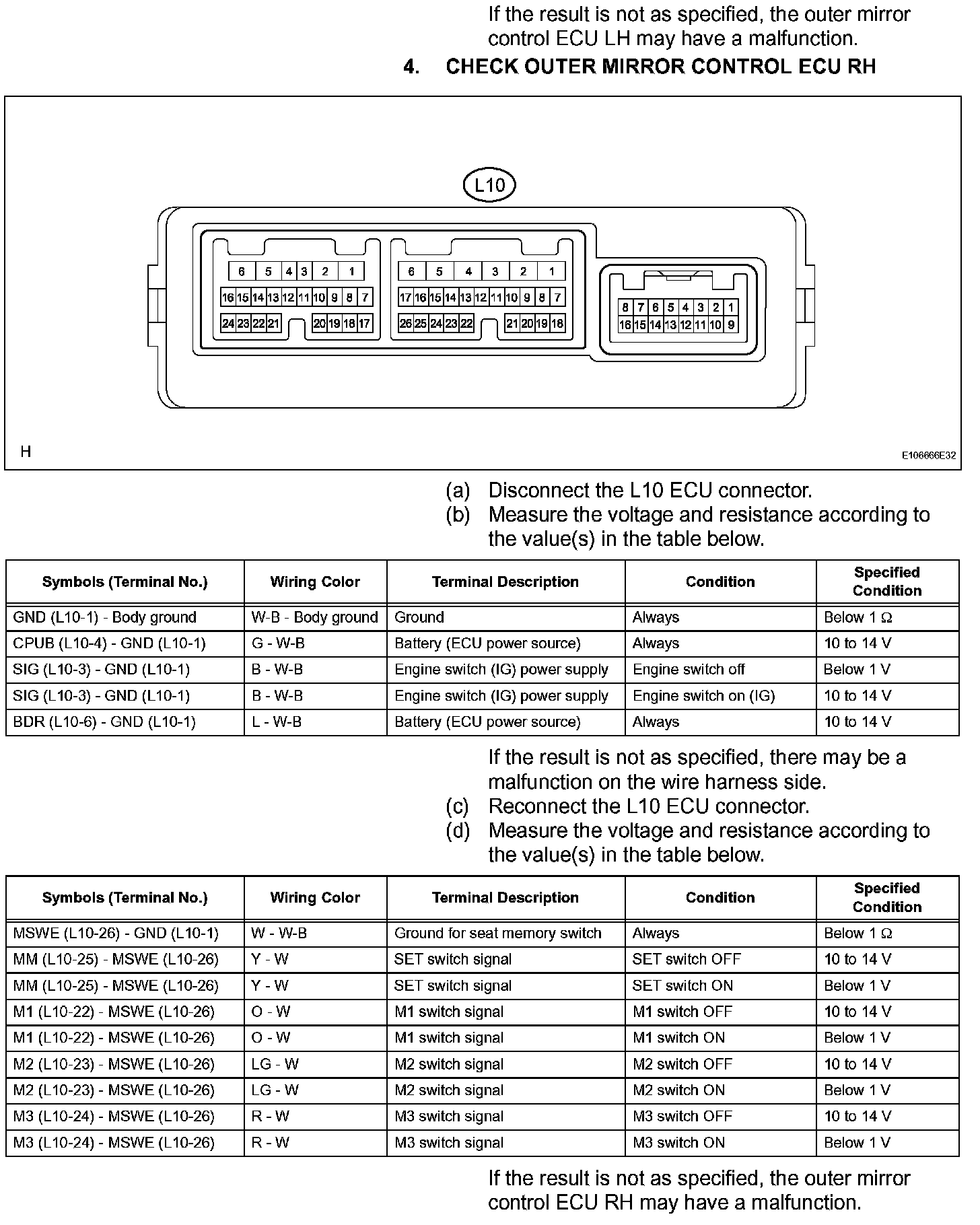

Terminals Of Control Module/Pinouts (Part 1):

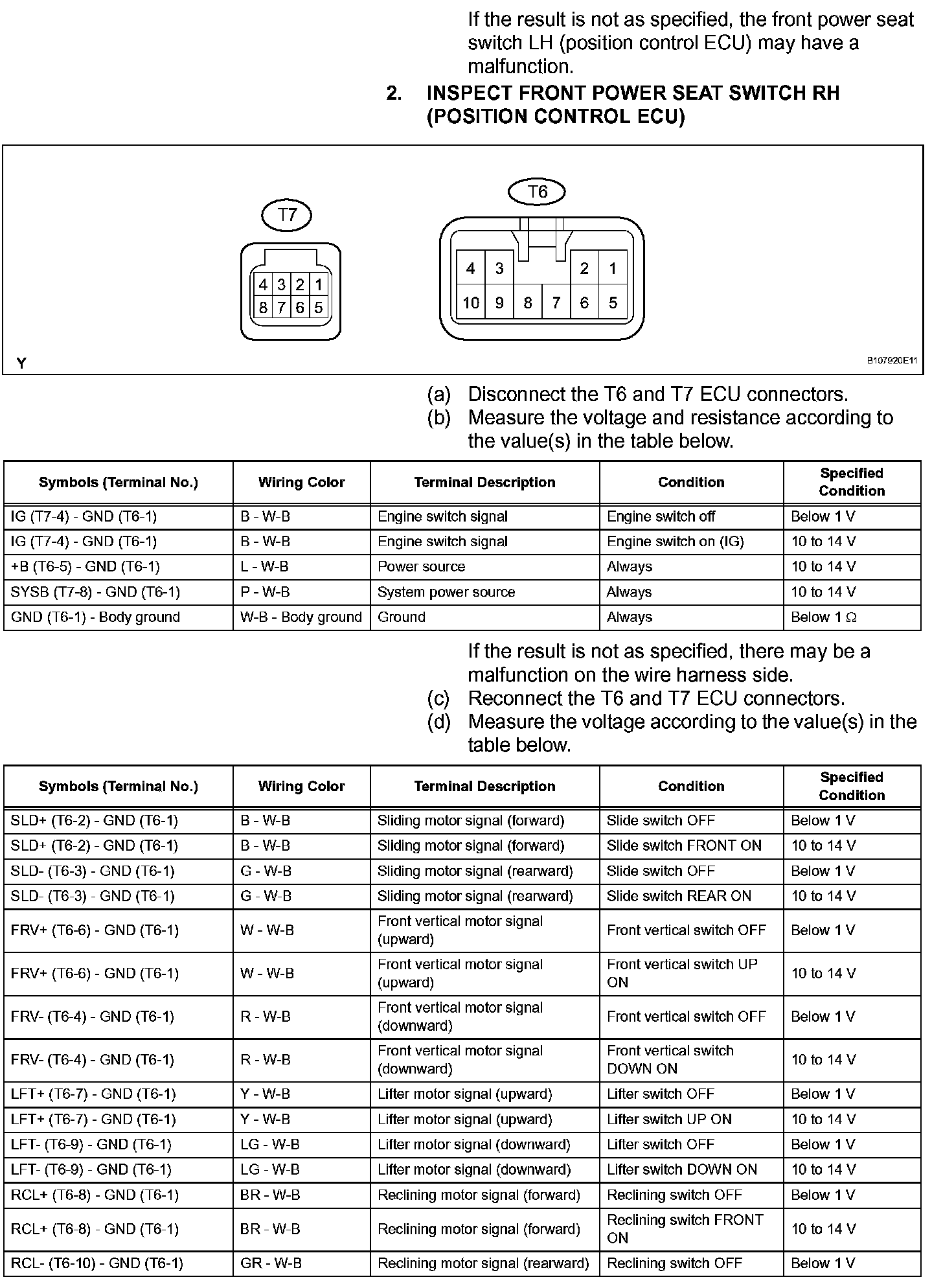

Terminals Of Control Module/Pinouts (Part 2):



Terminals Of Control Module/Pinouts (Part 3):



Terminals Of Control Module/Pinouts (Part 4):
