Front Seat Cushion Heater

FRONT SEAT CUSHION HEATER

Front Seat Cushion Heater:

REMOVAL

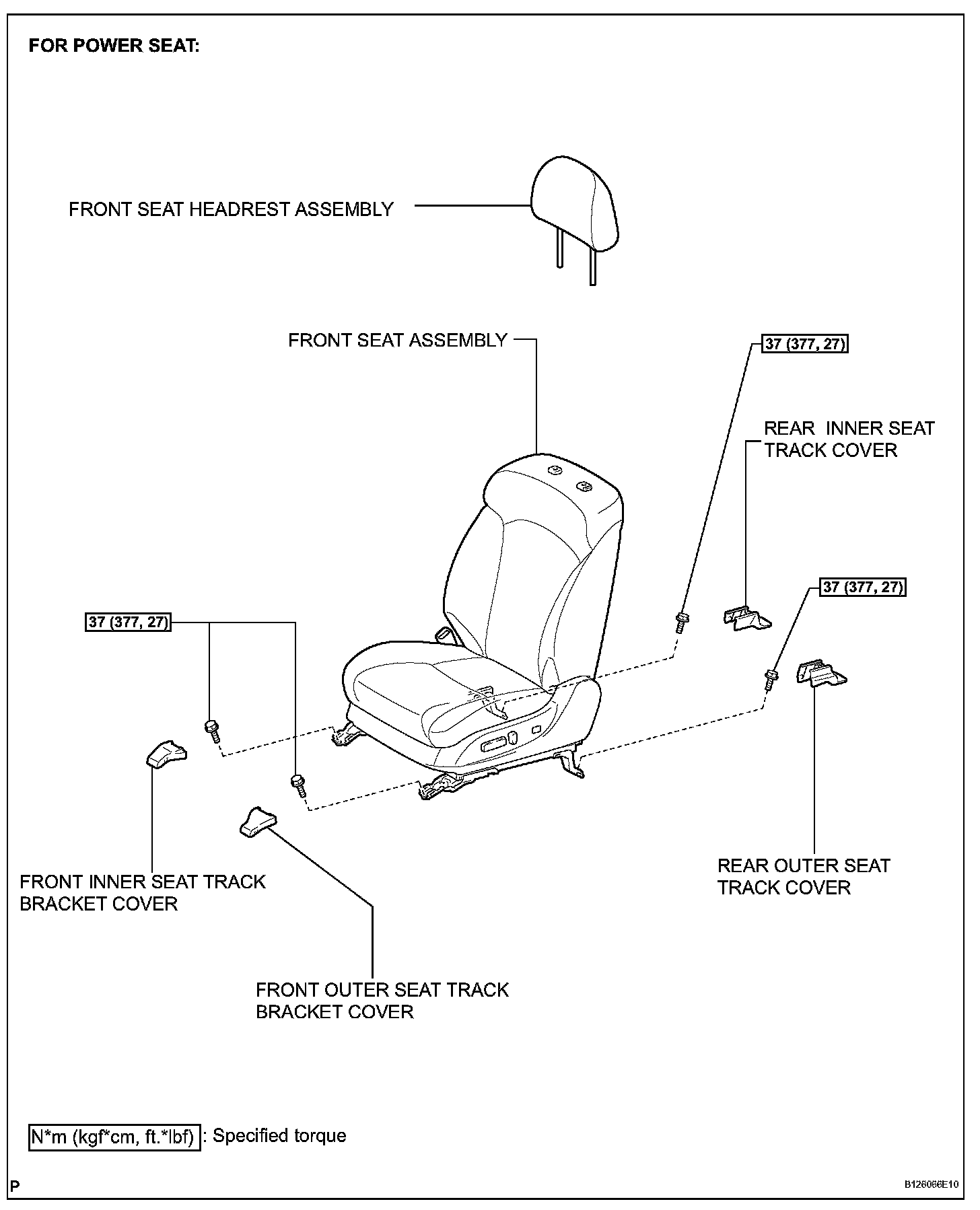

1. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Power Seat)
2. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER (for Power Seat)
3. REMOVE FRONT INNER SEAT TRACK BRACKET COVER (for Power Seat)
4. REMOVE REAR OUTER SEAT TRACK COVER (for Power Seat)
5. REMOVE REAR INNER SEAT TRACK COVER (for Power Seat)
6. REMOVE FRONT SEAT ASSEMBLY (for Power Seat)
7. REMOVE FRONT INNER SEAT BELT ASSEMBLY (for Power Seat)
8. REMOVE RECLINING POWER SEAT SWITCH KNOB (for Power Seat)
9. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB (for Power Seat)

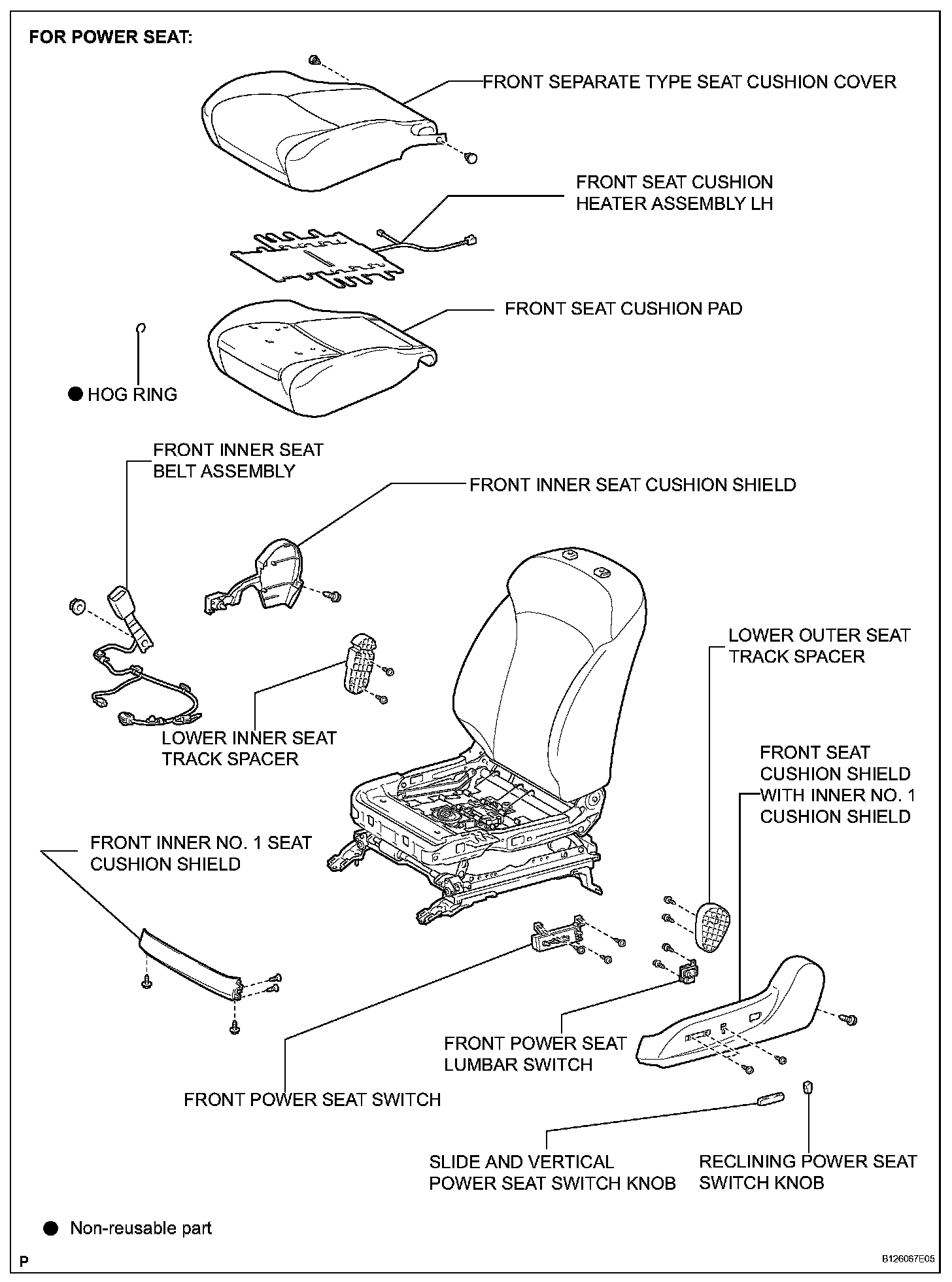

10. REMOVE FRONT SEAT CUSHION SHIELD WITH INNER NO. 1 CUSHION SHIELD (for Power Seat)
11. REMOVE FRONT SEPARATE TYPE SEAT CUSHION ASSEMBLY LH (for Power Seat)
12. REMOVE FRONT SEPARATE TYPE SEAT CUSHION COVER (for Power Seat)

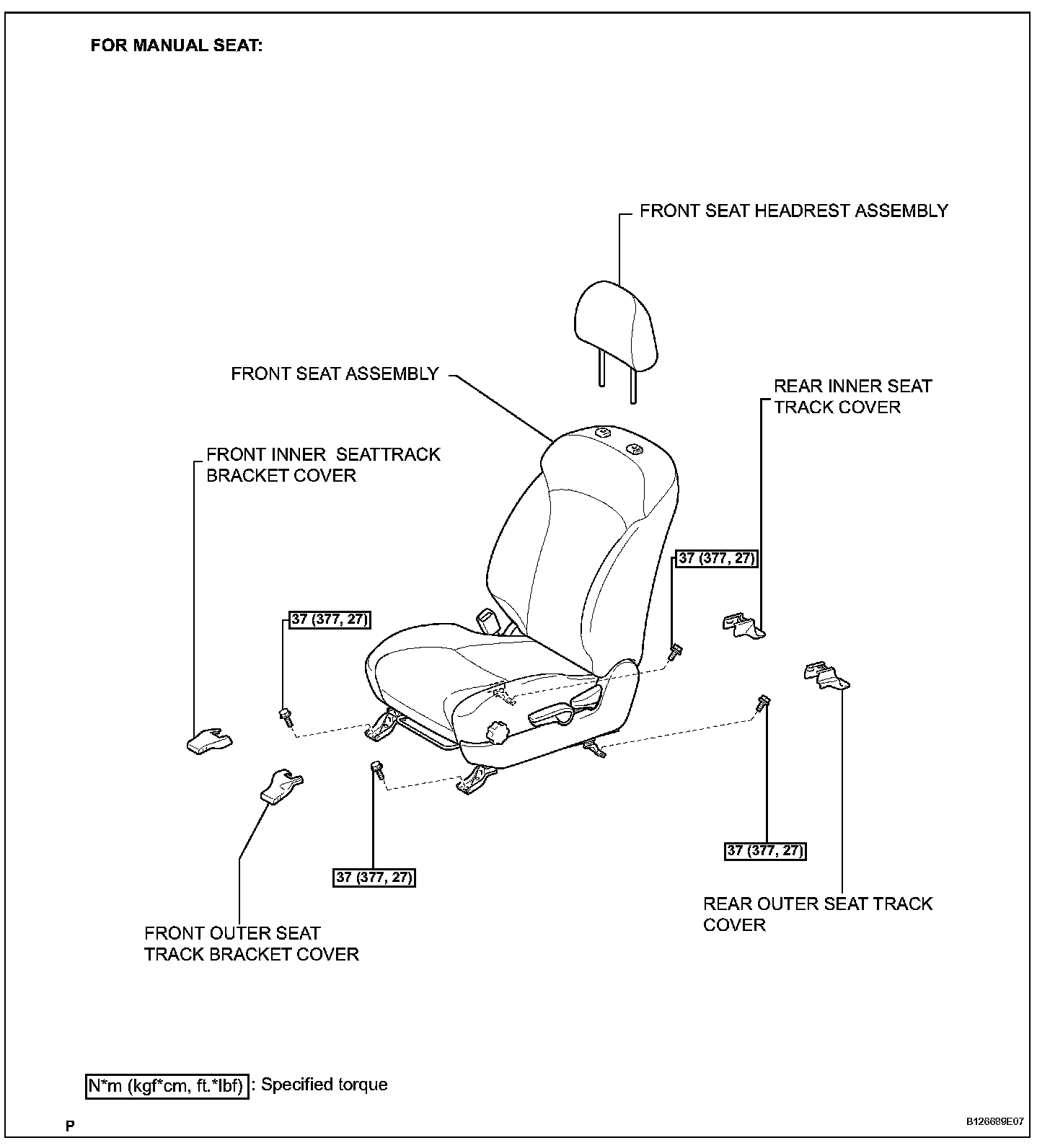

13. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Manual Seat)
14. REMOVE FRONT INNER SEAT TRACK BRACKET COVER LH (for Manual Seat)
15. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER LH (for Manual Seat)
16. REMOVE REAR OUTER SEAT TRACK COVER (for Manual Seat)
17. REMOVE REAR INNER SEAT TRACK COVER (for Manual Seat)
18. REMOVE VERTICAL SEAT ADJUSTER KNOB (for Manual Seat)
19. REMOVE VERTICAL SEAT ADJUSTER KNOB CAP (for Manual Seat)
20. REMOVE VERTICAL ADJUSTING HANDLE (for Manual Seat)
21. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH (for Manual Seat)
22. REMOVE FRONT SEAT CUSHION SHIELD LH (for Manual Seat)
23. REMOVE FRONT INNER SEAT BELT ASSEMBLY (for Manual Seat)
24. REMOVE FRONT INNER SEAT CUSHION SHIELD LH (for Manual Seat)
25. REMOVE FRONT SEAT CUSHION COVER WITH PAD (for Manual Seat)
26. REMOVE FRONT SEPARATE TYPE SEAT CUSHION COVER (for Manual Seat)
27. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY

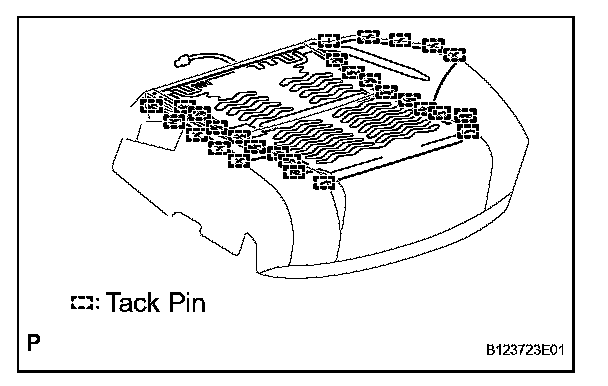

a. Cut off the tack pins that fasten the seat heater, and then remove the front seat cushion heater assembly from the seat cushion cover.

INSTALLATION

1. INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY

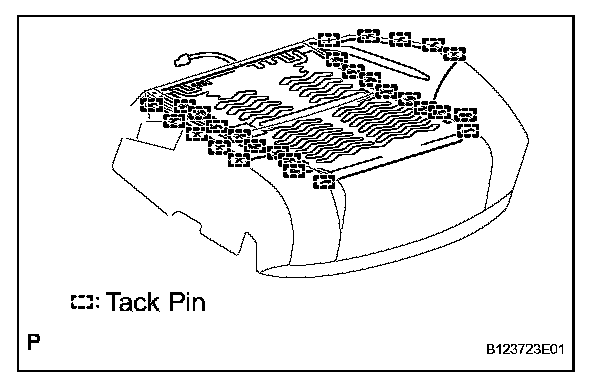

a. Using a tacker, install the front seat cushion heater to the end of the seat cover with the tack pins.

2. INSTALL FRONT SEPARATE TYPE SEAT CUSHION COVER (for Manual Seat)
3. INSTALL FRONT SEAT CUSHION COVER WITH PAD (for Manual Seat)
4. INSTALL FRONT INNER SEAT CUSHION SHIELD LH (for Manual Seat)
5. INSTALL FRONT INNER SEAT BELT ASSEMBLY (for Manual Seat)
6. INSTALL FRONT LOWER SEAT CUSHION SHIELD RH (for Manual Seat)
7. INSTALL FRONT SEAT CUSHION SHIELD LH (for Manual Seat)
8. INSTALL RECLINING ADJUSTER RELEASE HANDLE LH (for Manual Seat)
9. INSTALL VERTICAL ADJUSTING HANDLE (for Manual Seat)
10. INSTALL VERTICAL SEAT ADJUSTER KNOB CAP (for Manual Seat)
11. INSTALL VERTICAL SEAT ADJUSTER KNOB LH (for Manual Seat)
12. INSTALL FRONT SEAT ASSEMBLY LH (for Manual Seat)
13. INSTALL REAR INNER SEAT TRACK COVER (for Manual Seat)
14. INSTALL REAR SEAT OUTER TRACK COVER (for Manual Seat)
15. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER (for Manual Seat)
16. INSTALL FRONT INNER SEAT TRACK BRACKET COVER (for Manual Seat)
17. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Manual Seat)
18. INSTALL FRONT SEPARATE TYPE SEAT CUSHION COVER (for Power Seat)
19. INSTALL FRONT SEPARATE TYPE SEAT CUSHION ASSEMBLY LH (for Power Seat)
20. INSTALL FRONT INNER NO. 1 SEAT CUSHION SHIELD LH (for Power Seat)
21. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB (for Power Seat)
22. INSTALL RECLINING POWER SEAT SWITCH KNOB (for Power Seat)
23. INSTALL FRONT INNER SEAT BELT ASSEMBLY (for Power Seat)
24. INSTALL FRONT SEAT ASSEMBLY (for Power Seat)
25. INSTALL REAR INNER SEAT TRACK COVER (for Power Seat)
26. INSTALL REAR OUTER SEAT TRACK COVER (for Power Seat)
27. INSTALL FRONT INNER SEAT TRACK BRACKET COVER (for Power Seat)
28. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER (for Power Seat)
29. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Power Seat)
