Mirrors: Locations

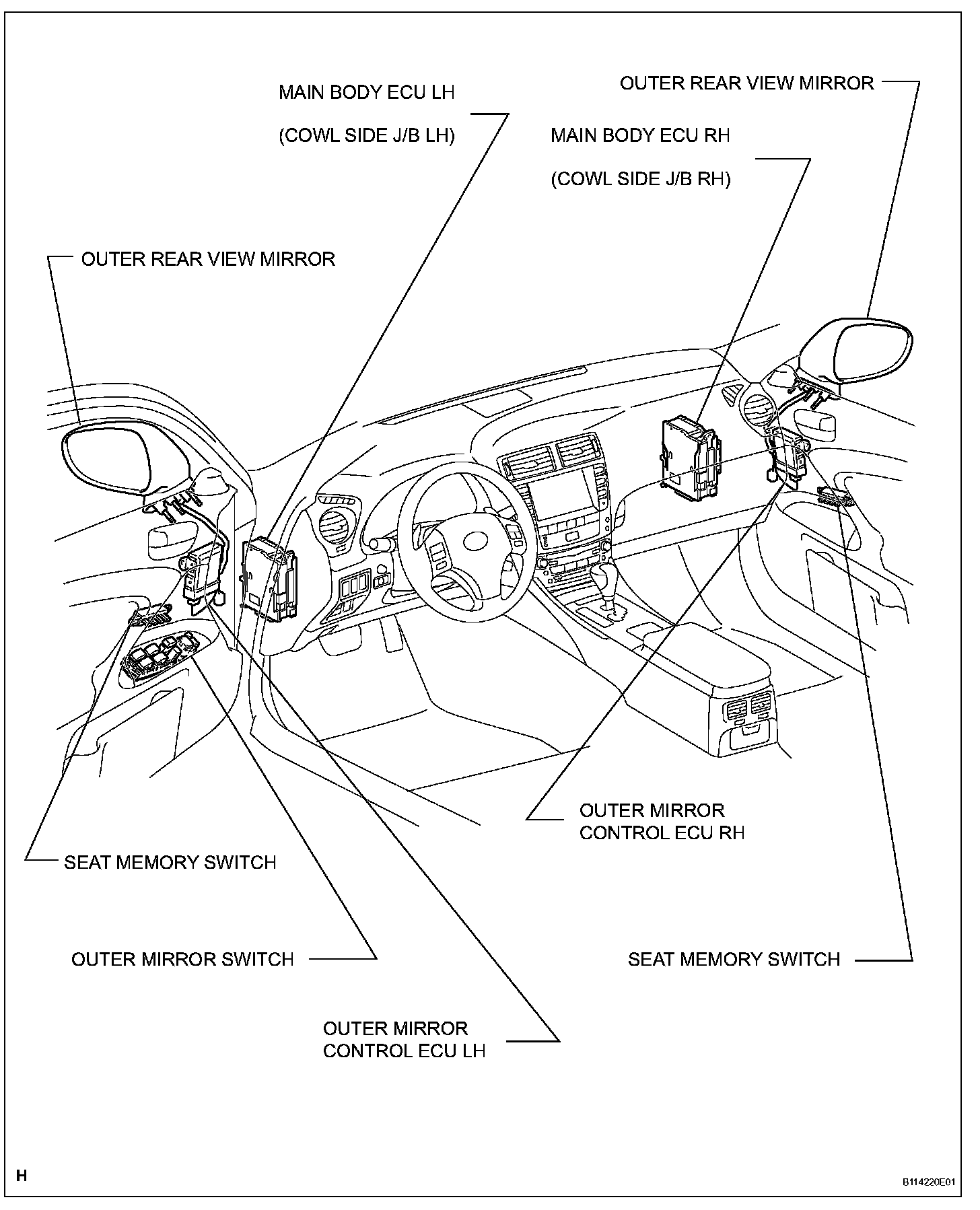

Power Mirror Control System (w/ Memory):

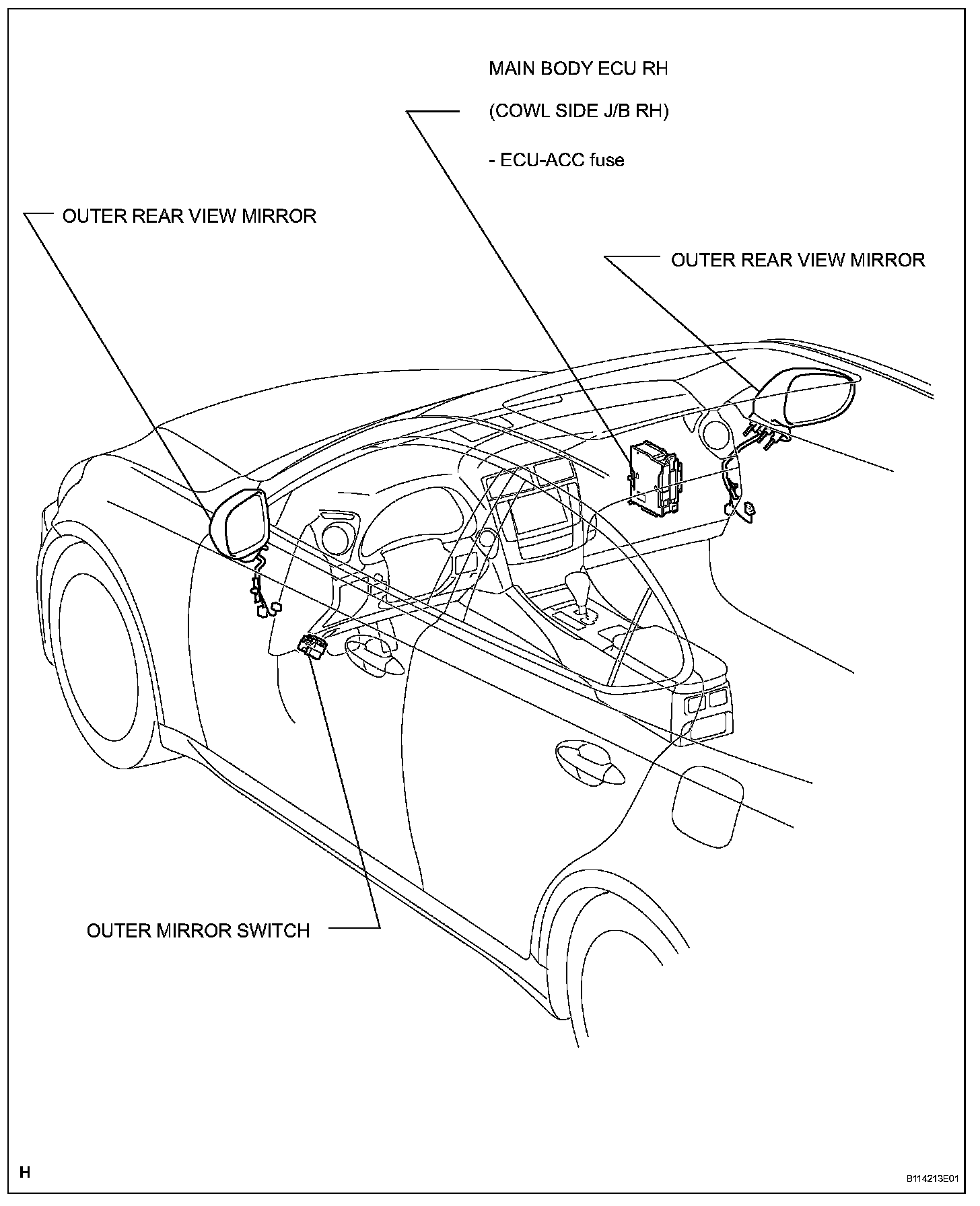

Power Mirror Control System (w/o Memory):

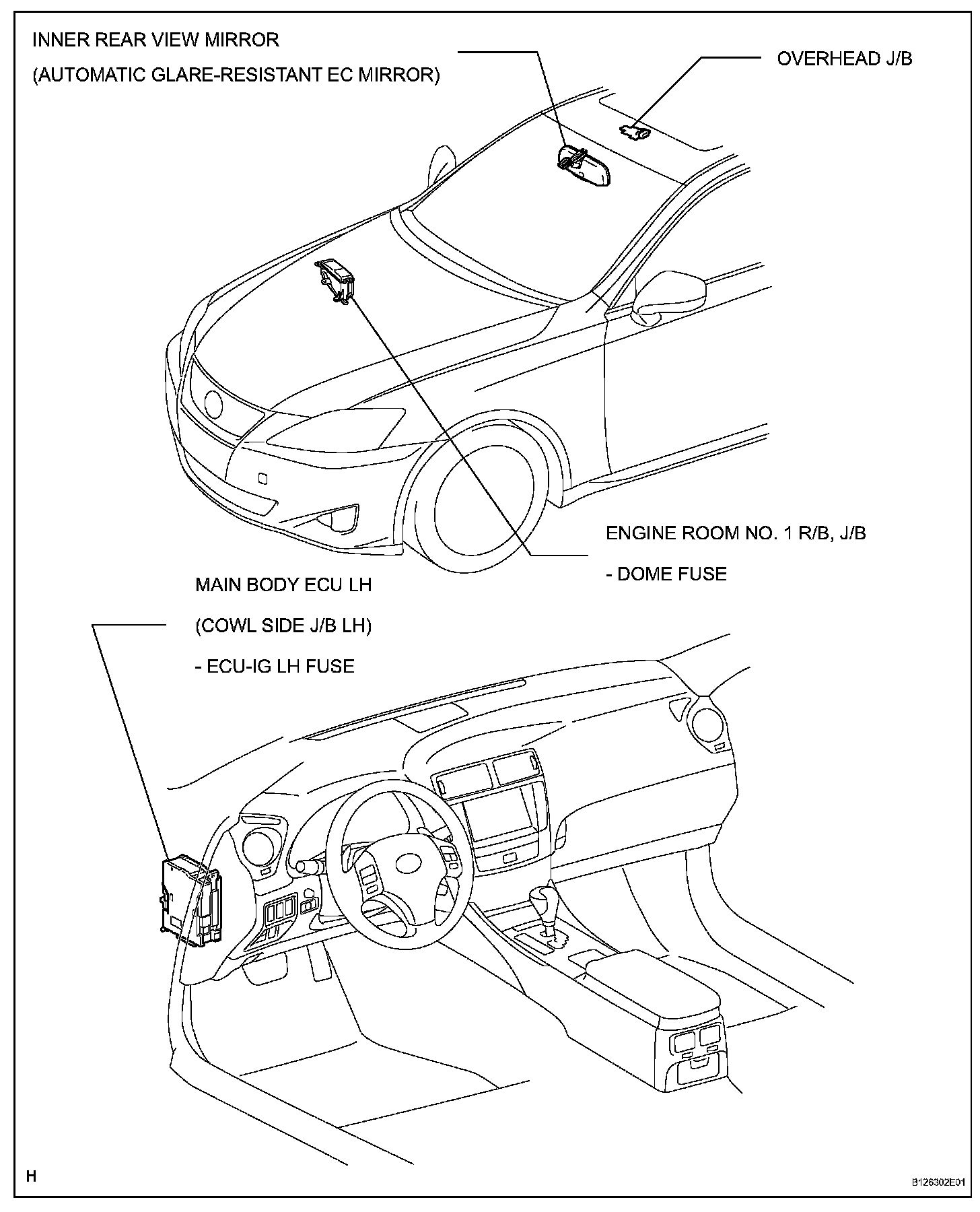

Inner Rear View Mirror:
