Installation

ROOF HEADLINING

Roof Headlining (Power Seat):




Roof Headlining (Manual Seat):




Roof Headlining:




Roof Headlining (Automatic Transmission):




Roof Headlining (Manual Transmission):




Roof Headlining:




Roof Headlining:




Roof Headlining:




Roof Headlining:




Roof Headlining (Automatic Transmission / 2WD):




Roof Headlining (Automatic Transmission / 4WD):




Roof Headlining (Manual Transmission):




Roof Headlining:




Roof Headlining:




Roof Headlining:




Roof Headlining (Without Sliding Roof):




Roof Headlining (With Sliding Roof):




Roof Headlining:






INSTALLATION

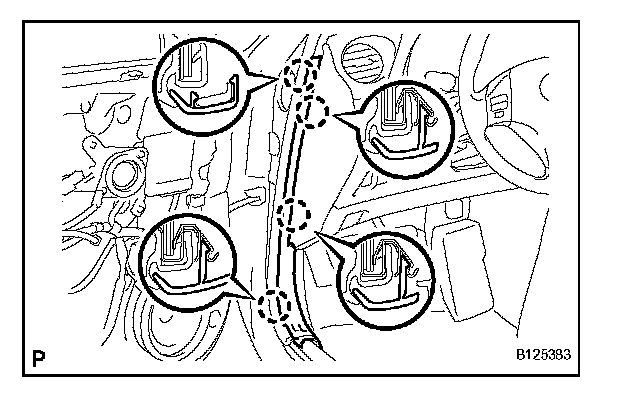

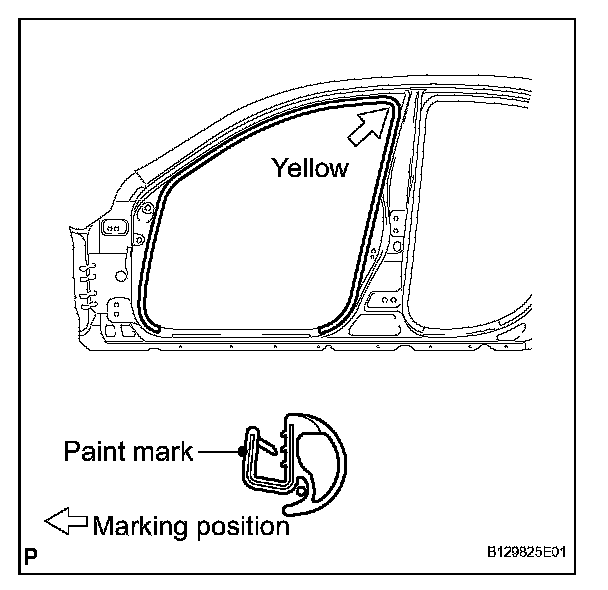

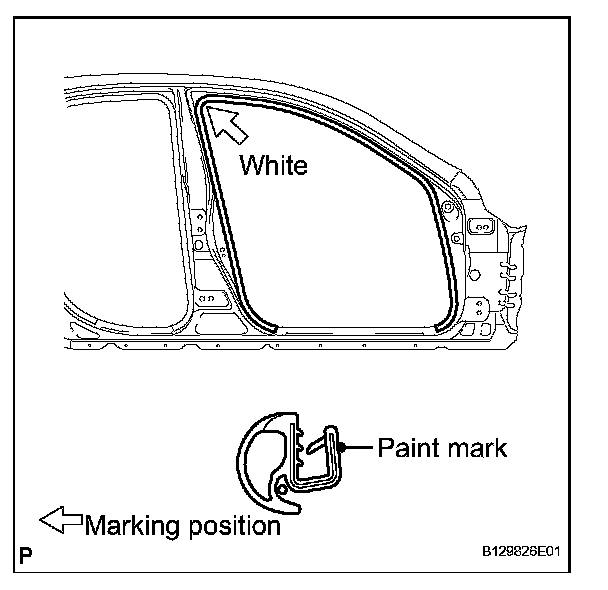

1. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH





a. Install the front door opening trim weatherstrip LH as shown in the illustration.

2. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH





a. Install the front door opening trim weatherstrip RH as shown in the illustration.

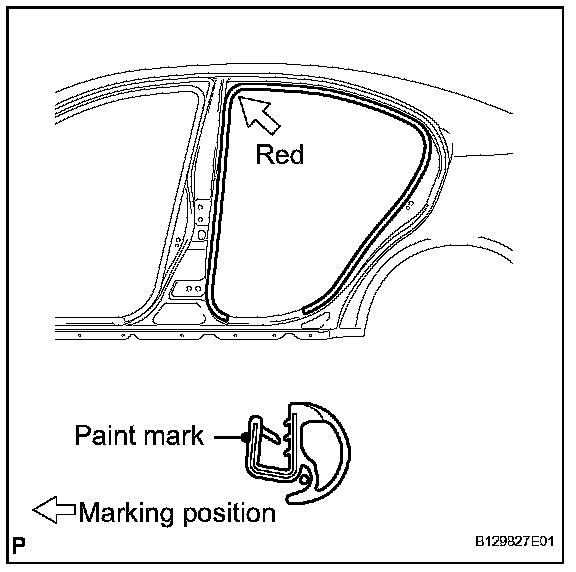

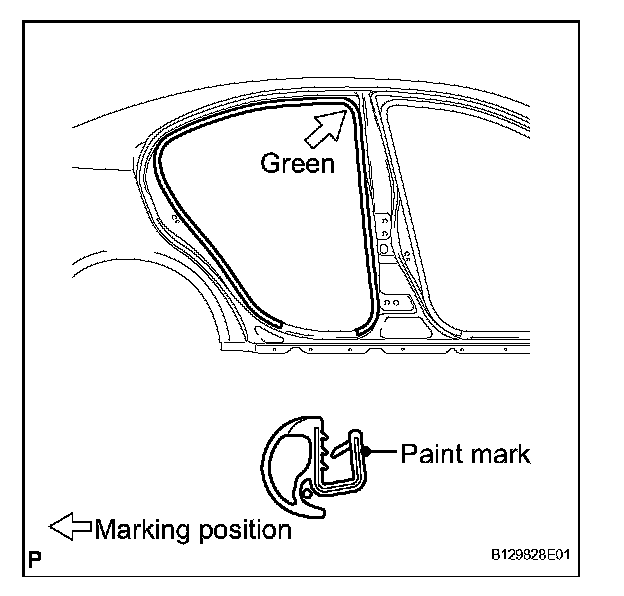

3. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH





a. Install the rear door opening trim weatherstrip LH as shown in the illustration.

4. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH





a. Install the rear door opening trim weatherstrip RH as shown in the illustration.

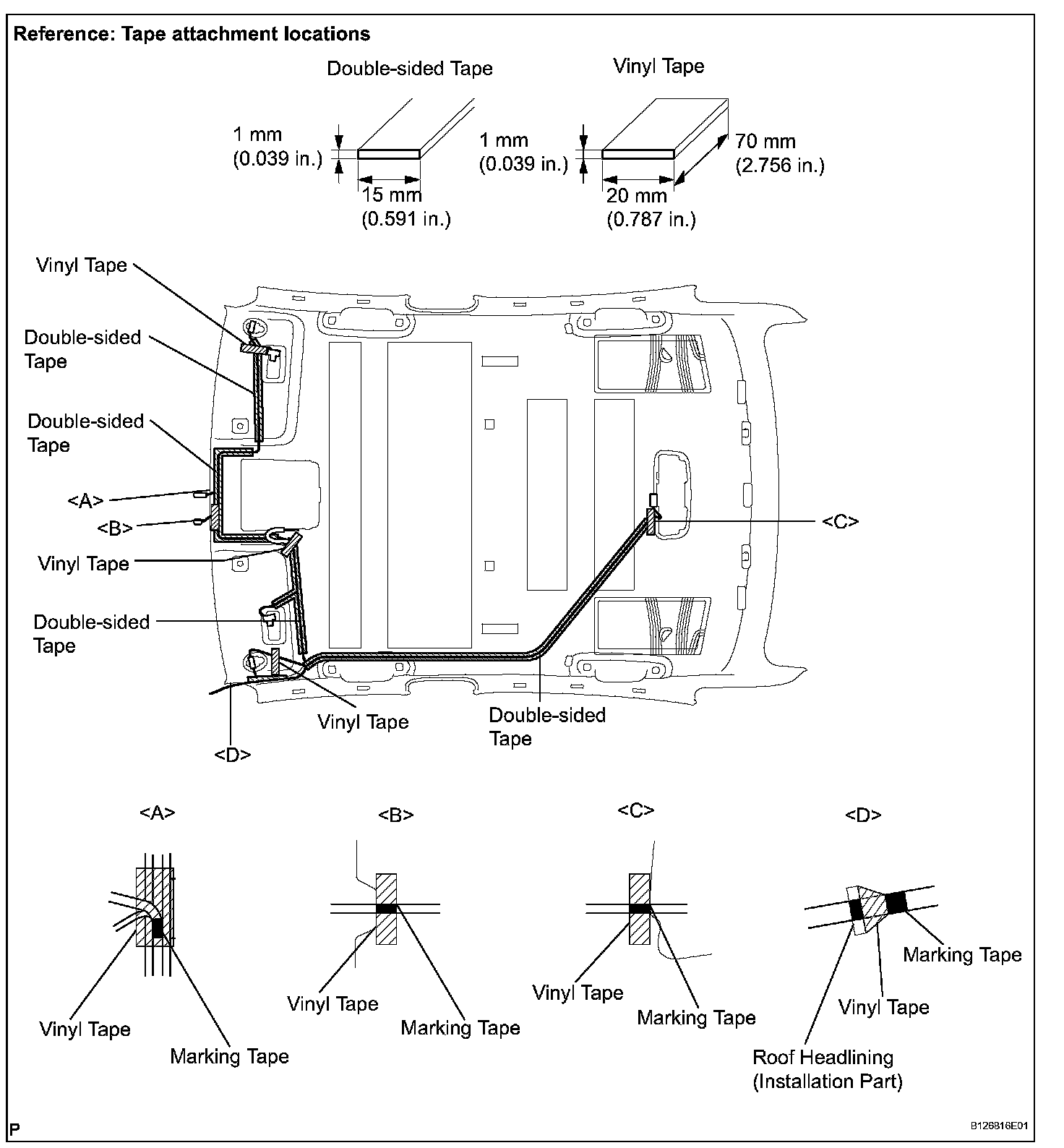

5. INSTALL NO. 1 ROOF WIRE (w/o Sliding Roof)
a. Install the roof wire.





1. Remove the peeling paper from one side of double-sided tape.
2. Attach double-sided tape to the marks on the roof headlining, as shown in the illustrations below above.
3. Remove peeling paper from the other side of double-sided tape.
4. Align the wire harness to double-sided tape. Also, align the marking tape areas of the wire harness to the marks on the roof headlining. Temporarily attach the wire harness to the roof headlining. Secure the wire harness to the roof headlining with vinyl tape.

NOTICE: Securely install the No. 1 roof wire. If the wire is not secure, noise will occur.

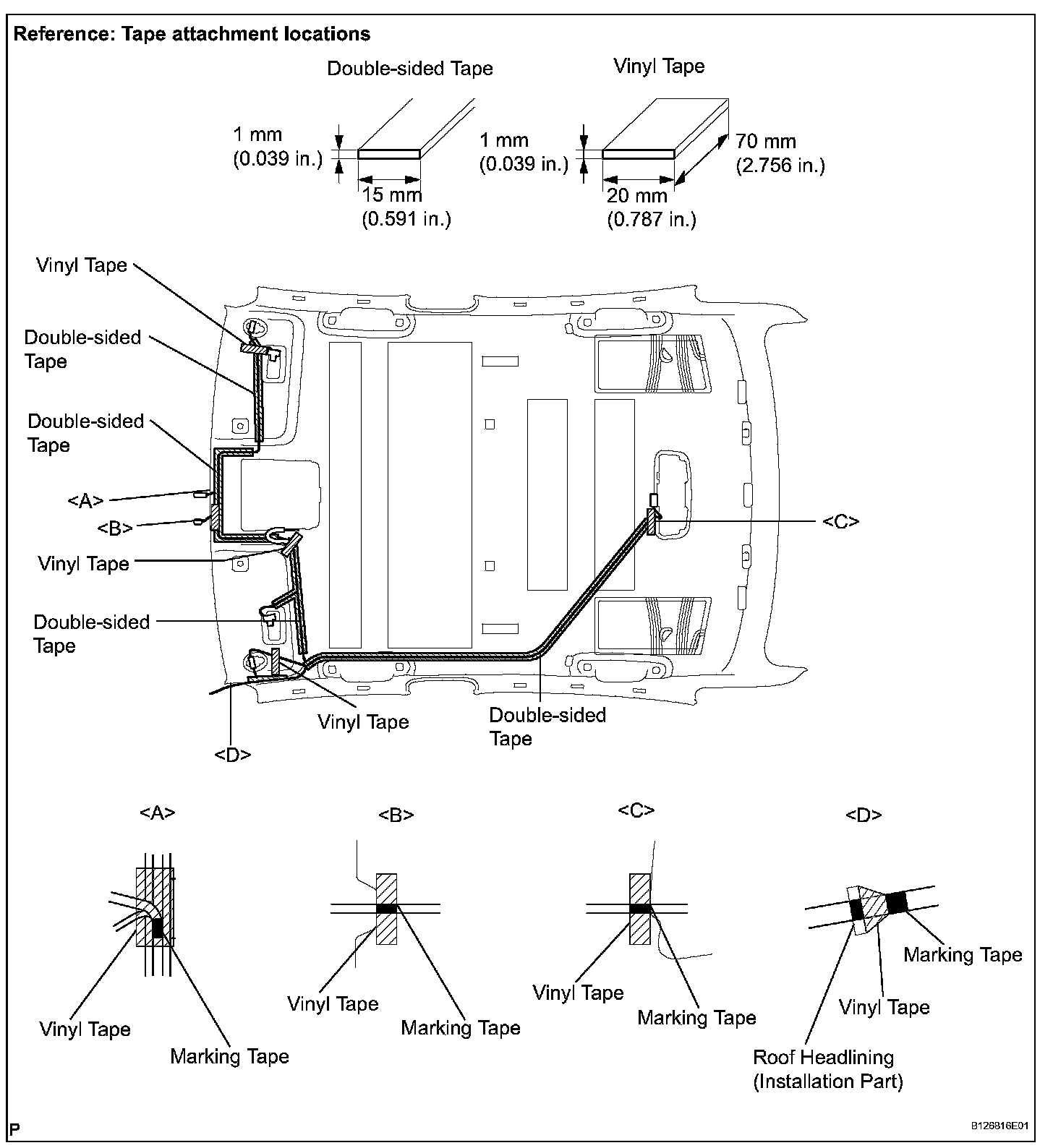

6. INSTALL NO. 1 ROOF WIRE (w/ Sliding Roof)
a. Install the roof wire.





1. Remove the peeling paper from one side of double-sided tape.
2. Attach double-sided tape to the marks on the roof headlining, as shown in the illustrations above.
3. Remove peeling paper from the other side of double-sided tape.
4. Align the wire harness to double-sided tape. Also, align the marking tape areas of the wire harness to the marks on the roof headlining. Temporarily attach the wire harness to the roof headlining. Secure the wire harness to the roof headlining with vinyl tape.

NOTICE: Securely install the No. 1 roof wire. If the wire is not secure, noise will occur.

7. INSTALL VANITY LIGHT ASSEMBLY

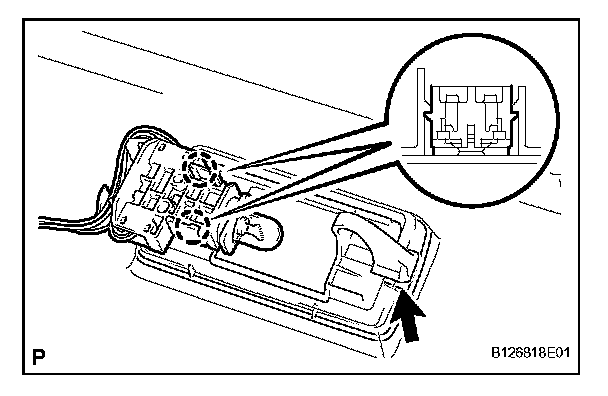

a. Engage the 3 claws and install the vanity light assembly.

HINT: Use the same procedure to install the light on the other side.

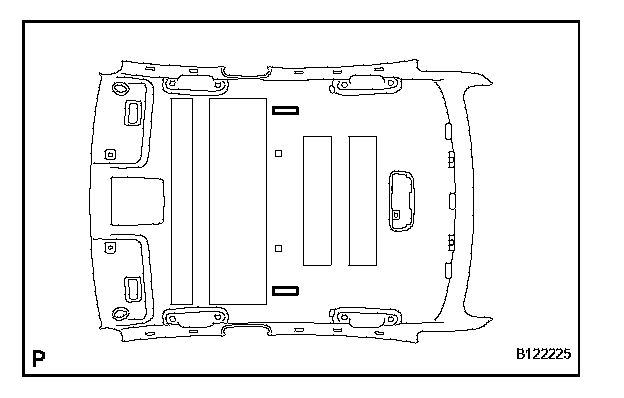

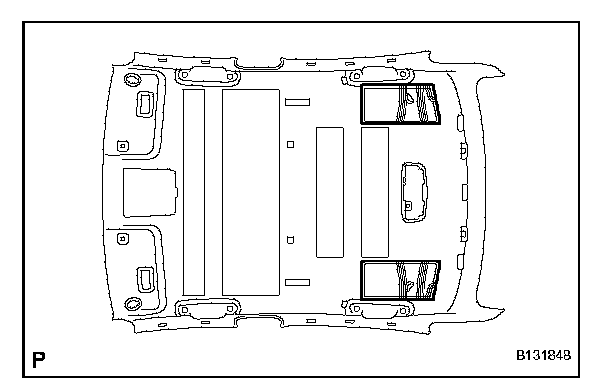

8. INSTALL ROOF SILENCER PAD (w/o Sliding Roof)





a. Align the markings on the roof headlining assembly with the roof silencer pads and install the pads using double-sided tape as shown in the illustration.

9. INSTALL REAR SIDE RAIL SPACER (w/o Sliding Roof)





a. Align the markings on the roof headlining assembly with the rear side rail spacer and install the spacers using double-sided tape as shown in the illustration.

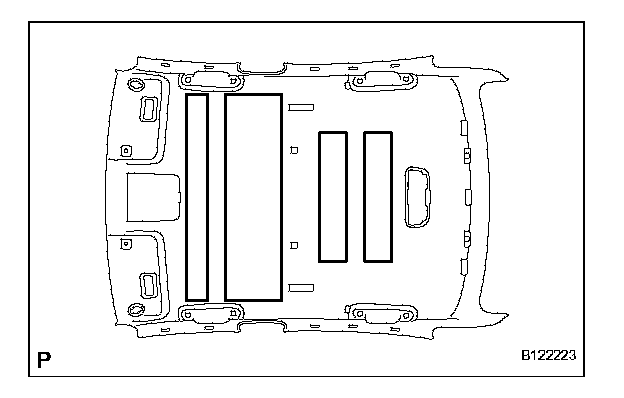

10. INSTALL ROOF HEADLINING PAD (w/o Sliding Roof)





a. Align the markings on the roof headlining assembly with the roof headlining pad and install the pads using double-sided tape as shown in the illustration.

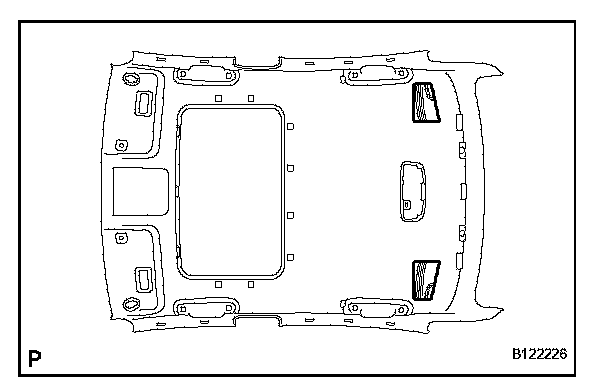

11. INSTALL REAR SIDE RAIL SPACER (w/ Sliding Roof)





a. Align the markings on the roof headlining assembly with the rear side rail spacer and install the spacers using double-sided tape as shown in the illustration.

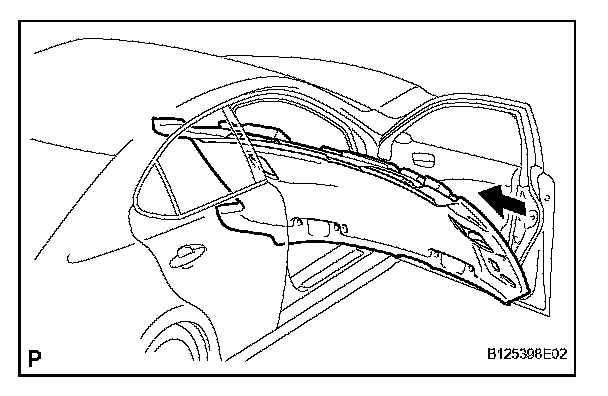

12. INSTALL ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)

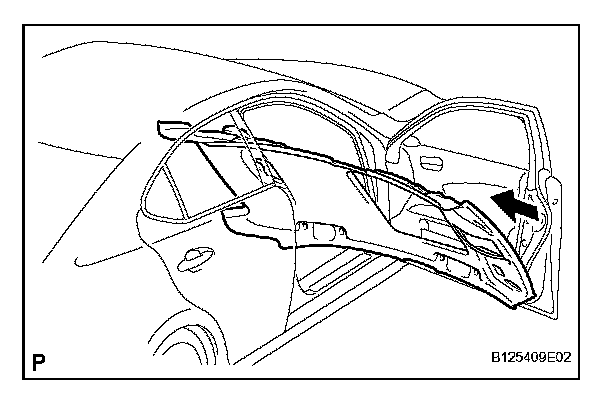

a. Place the roof headlining in the vehicle from the front right door.

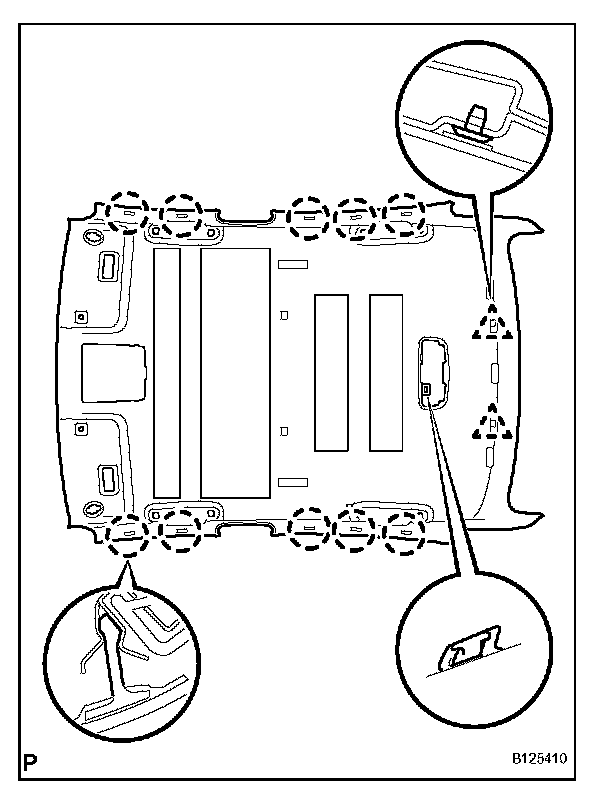

b. Engage the hook, 10 claws and 2 clips, and install the roof headlining assembly.

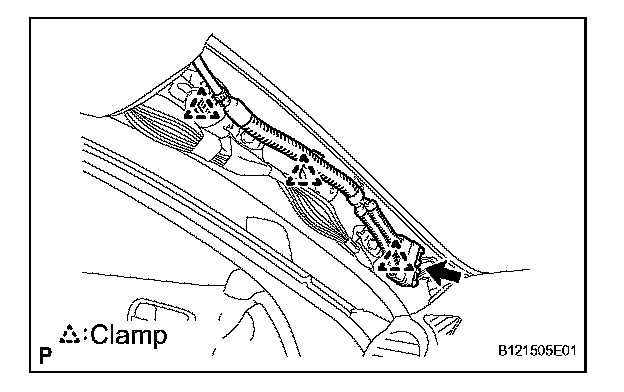

c. Connect the roof wire connector and engage each clamp.
d. Connect each connector to the map light assembly.

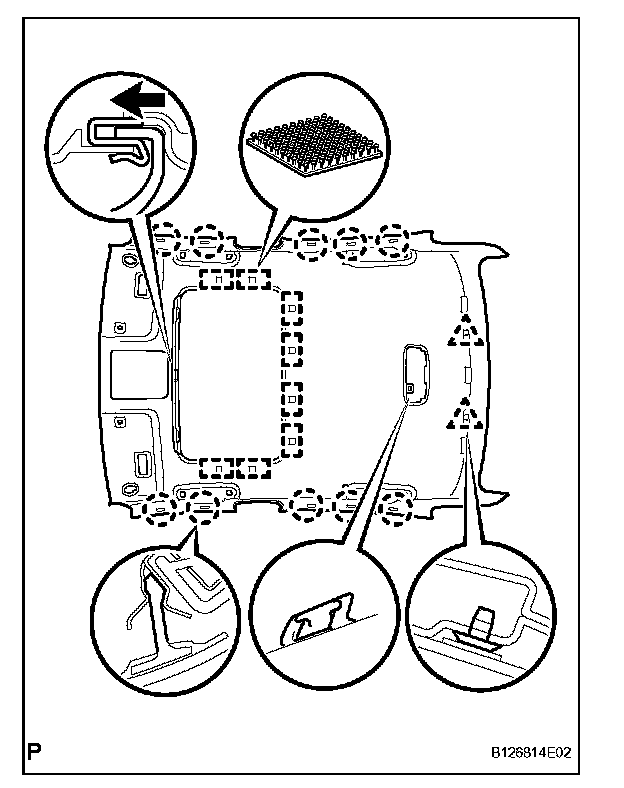

13. INSTALL ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)





a. Place the roof headlining in the vehicle from the front right door.





b. Engage the hook, 10 claws, 8 fasteners and 2 clips, and install the roof headlining assembly.

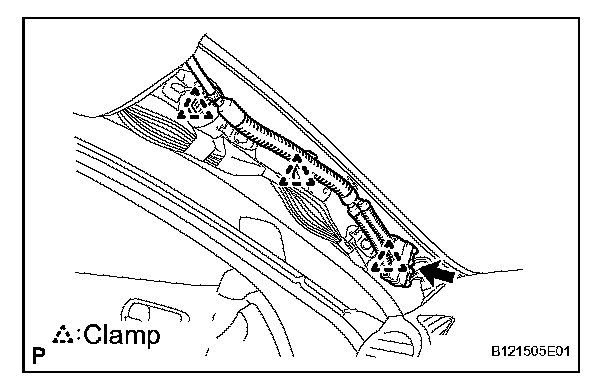

c. Connect the roof wire connector and engage each clamp.
d. Connect each connector to the map light assembly.

14. INSTALL VISOR HOLDER

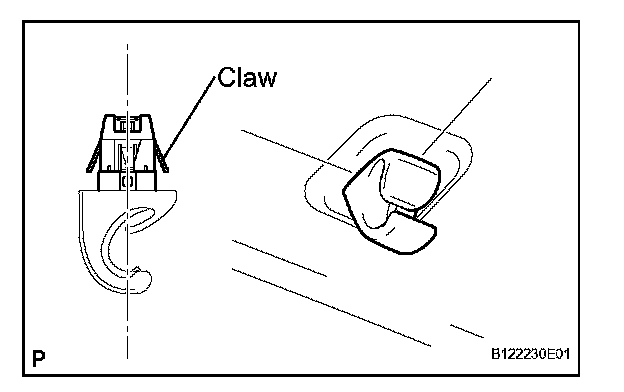

a. Set the claws of the visor holder as shown in the illustration
b. Engage the claws and install the visor holder.

HINT: Use the same procedure to install the holder on the other side.

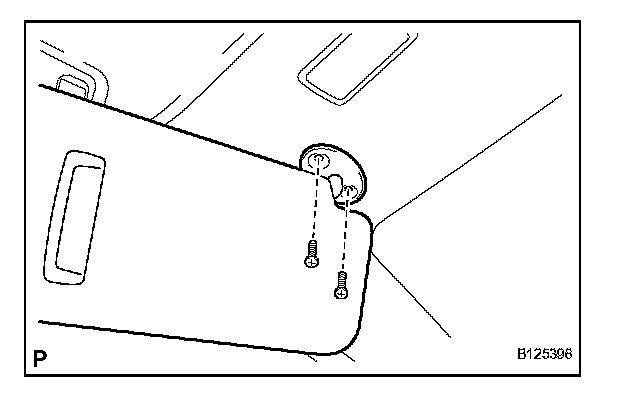

15. INSTALL VISOR ASSEMBLY LH





a. Install the visor assembly LH with the 2 screws.

16. INSTALL VISOR ASSEMBLY RH
17. INSTALL VISOR BRACKET COVER





a. Engage the 4 claws and install the visor bracket cover.

HINT: Use the same procedure to install the cover on the other side.

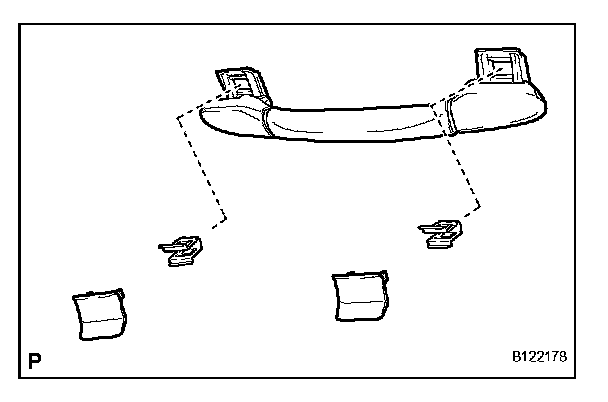

18. INSTALL ASSIST GRIP SUB-ASSEMBLY





a. Put an assist grip sub-assembly together as shown in the illustration.
b. Install the assist grip sub-assembly.

HINT: Use the same procedure for the other 3 assist grips.

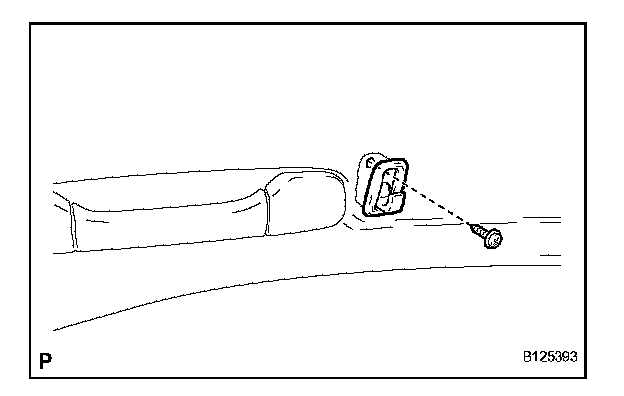

19. INSTALL COAT HOOK





a. Install the coat hook with the screw.

HINT: Use the same procedure to install the hook on the other side.

20. INSTALL SPOT LIGHT ASSEMBLY





a. Connect the connector.
b. Engage the 2 clips and install the spot light assembly.

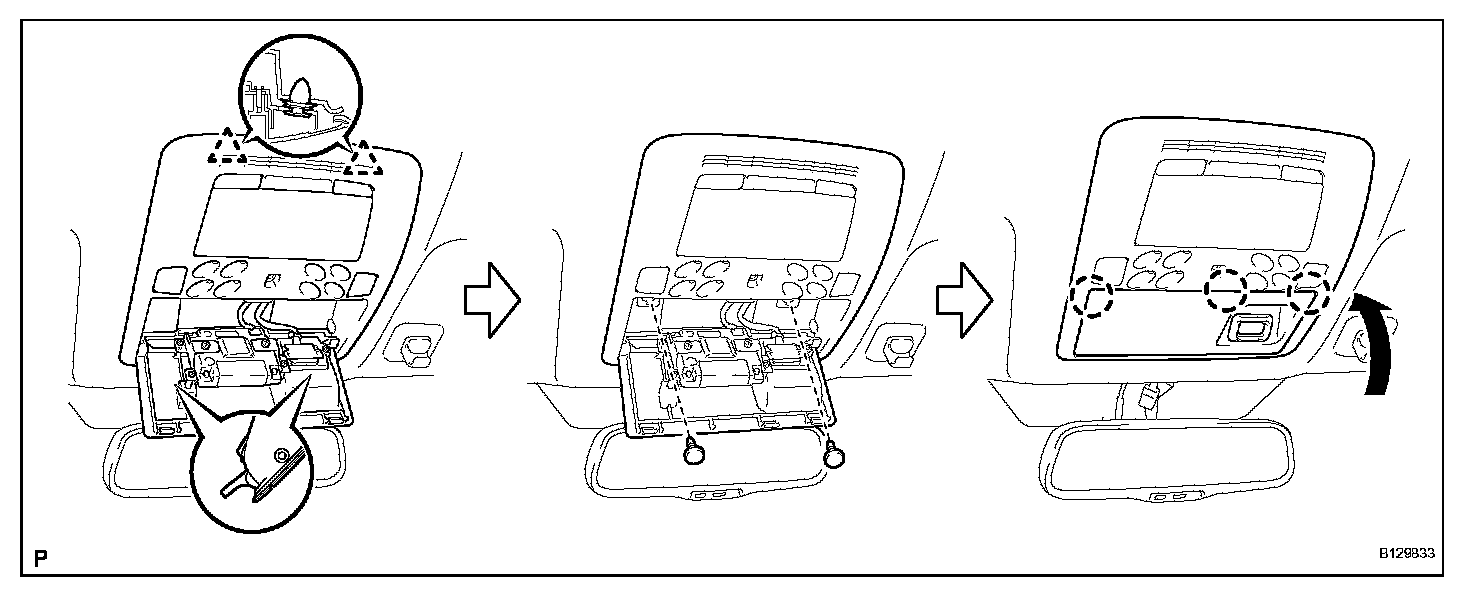

21. INSTALL MAP LIGHT ASSEMBLY (w/o Sliding Roof)
a. Connect the connector.

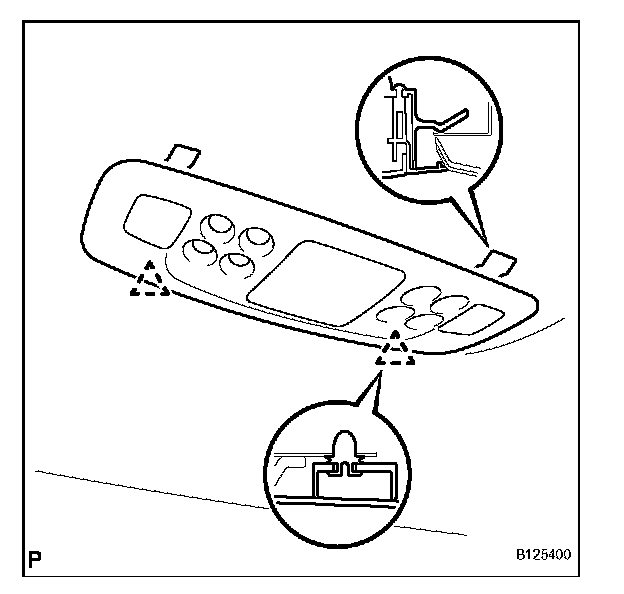

b. Engage the 2 clips and install the map light assembly.
c. Install the 2 screws.
d. Engage the 3 claws and close the cover.

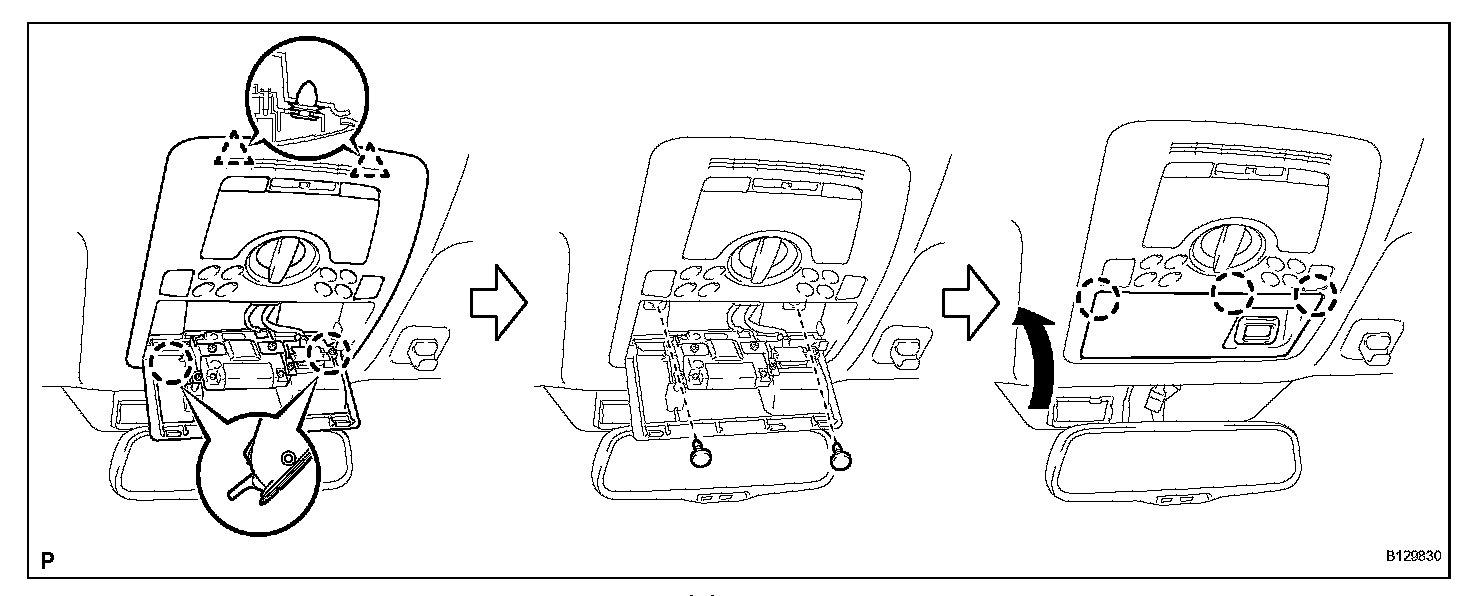

22. INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof)
a. Connect the connector.





b. Engage the 2 clips and install the map light assembly.
c. Install the 2 screws.
d. Engage the 3 claws and close the cover.

23. INSTALL RAIN SENSOR TAPE
24. INSTALL RAIN SENSOR
25. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER

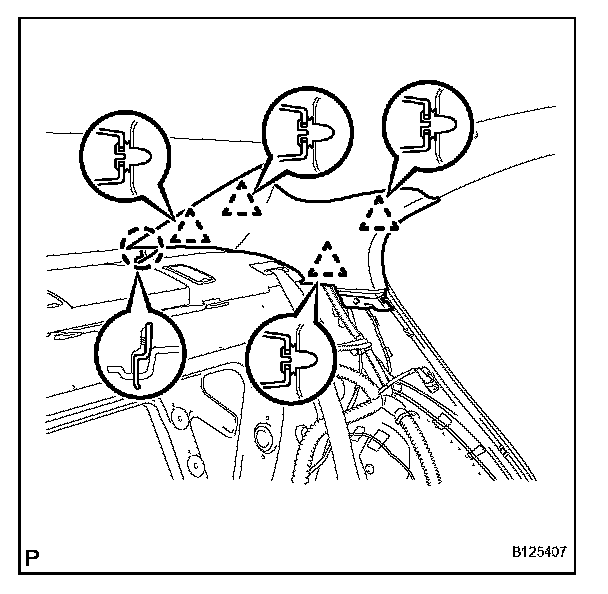

26. INSTALL ROOF SIDE INNER GARNISH LH





a. Engage the claw and 4 clips, and install the roof side garnish inner LH.

27. INSTALL ROOF SIDE INNER GARNISH RH
28. INSTALL REAR SEAT SIDE GARNISH LH





a. Engage the 5 claws and install the rear seat side garnish LH.

29. INSTALL REAR SEAT SIDE GARNISH RH

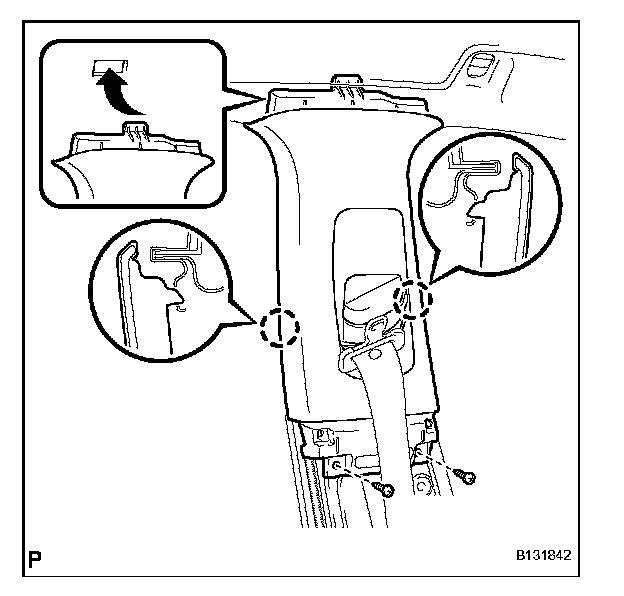

30. INSTALL CENTER PILLAR GARNISH LH





a. Engage the 2 claws and install the center pillar garnish LH.
b. Install the 2 screws.

31. INSTALL CENTER PILLAR GARNISH RH

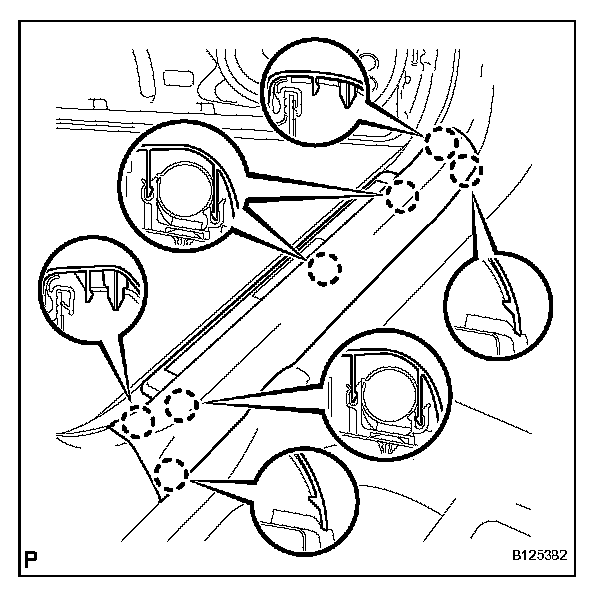

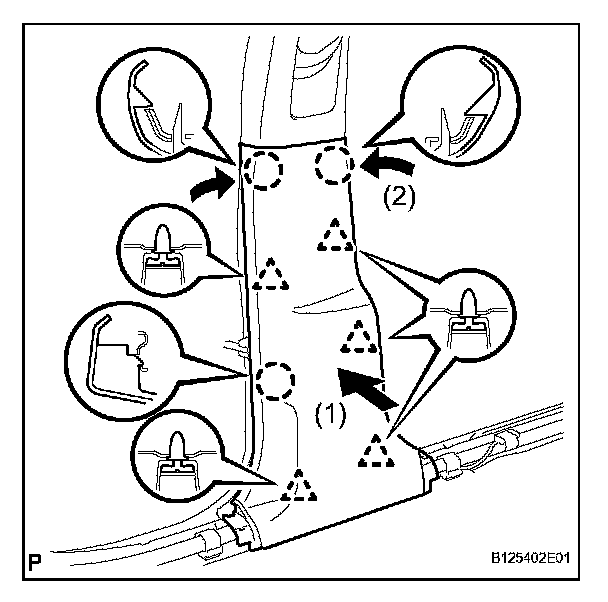

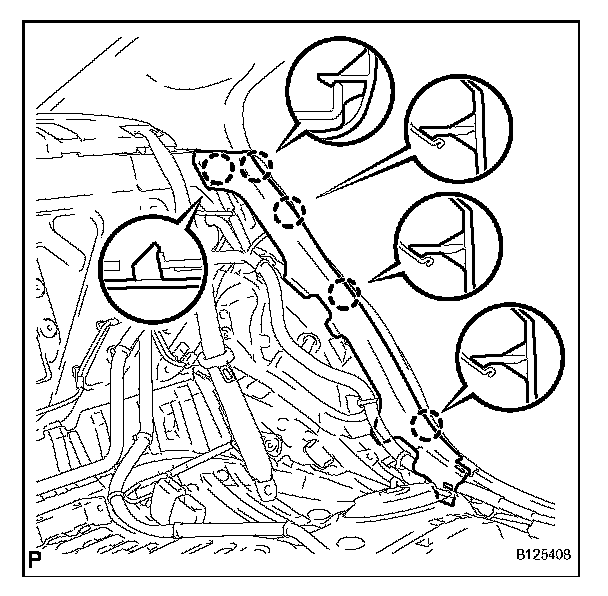

32. INSTALL LOWER CENTER PILLAR GARNISH LH





a. Engage the 5 clips and 3 claws, and install the lower center pillar garnish LH.

33. INSTALL LOWER CENTER PILLAR GARNISH RH

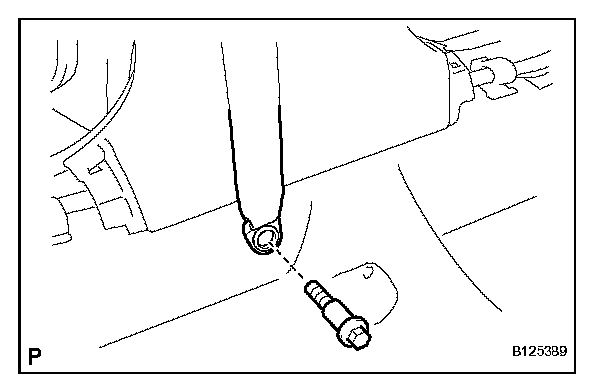

34. INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH





a. Install the front seat outer belt assembly LH with the bolt.

Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

35. INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH

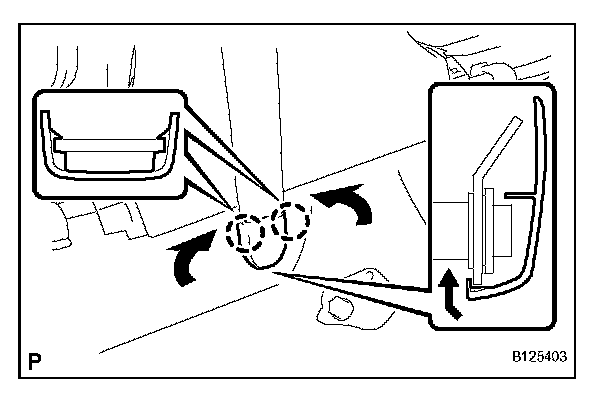

36. INSTALL LAP BELT OUTER ANCHOR COVER





a. Engage the 2 claws and install the lap belt outer anchor cover as shown in the illustration.

HINT: Use the same procedure to install the cover on the other side.

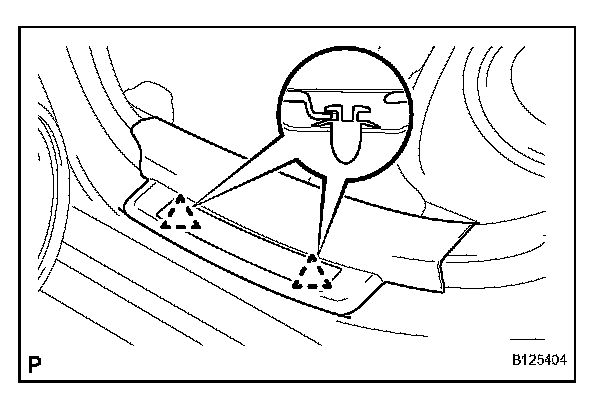

37. INSTALL REAR DOOR SCUFF PLATE LH





a. Engage the 2 clips.

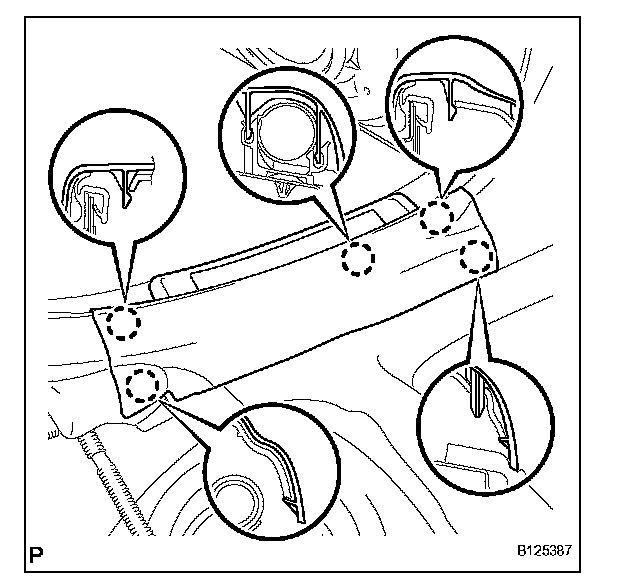

b. Engage the 5 claws and install the rear door scuff plate LH.

38. INSTALL REAR DOOR SCUFF PLATE RH
39. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY (for 2GR-FSE)
40. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 2GR-FSE)
41. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR (for2GR-FSE)
42. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 2GR-FSE)
43. INSTALL OXYGEN SENSOR (for 2GR-FSE)
44. INSTALL FRONT CENTER FLOOR BRACE (for 2GR-FSE)
45. INSTALL REAR NO. 1 FLOOR PANEL BRACE (for 2GR-FSE)
46. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY (for 4GR-FSE 2WD)
47. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 4GR-FSE 2WD)
48. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR (for 4GR-FSE 2WD)
49. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 4GR-FSE 2WD)
50. INSTALL OXYGEN SENSOR (for 4GR-FSE 2WD)
51. INSTALL FRONT CENTER FLOOR BRACE (for 4GR-FSE 2WD)
52. INSTALL REAR NO. 1 FLOOR PANEL BRACE (for 4GR-FSE 2WD)
53. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY (for 4GR-FSE 4WD)
54. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 4GR-FSE 4WD)
55. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR (for 4GR-FSE 4WD)
56. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 4GR-FSE 4WD)
57. INSTALL OXYGEN SENSOR (for 4GR-FSE 4WD)
58. INSTALL FRONT CENTER FLOOR BRACE (for 4GR-FSE 4WD)
59. INSTALL REAR NO. 1 FLOOR PANEL BRACE (for 4GR-FSE 4WD)
60. INSTALL FLOOR SHIFT LEVER ASSEMBLY (for Manual Transmission)
61. INSTALL SHIFT LEVER CAP (for Manual Transmission)
62. INSTALL NO. 1 SHIFT AND SELECT LEVER BOOT (for Manual Transmission)
63. INSTALL INSTALL INSTRUMENT PANEL STAY
64. INSTALL INSTRUMENT PANEL CLIP
65. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY
66. CONNECT PASSENGER AIRBAG CONNECTOR
67. INSTALL NO. 2 CONSOLE BOX DUCT (for Manual Transmission)
68. INSTALL NO. 1 CONSOLE BOX DUCT (for Automatic Transmission)
69. INSTALL NO. 2 CONSOLE BOX DUCT (for Automatic Transmission)
70. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)
71. INSTALL NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
72. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
73. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
74. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
75. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
76. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
77. INSTALL SIDE INSTRUMENT PANEL RH
78. INSTALL COMBINATION METER ASSEMBLY
79. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
80. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
81. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
82. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
83. INSTALL SIDE INSTRUMENT PANEL LH

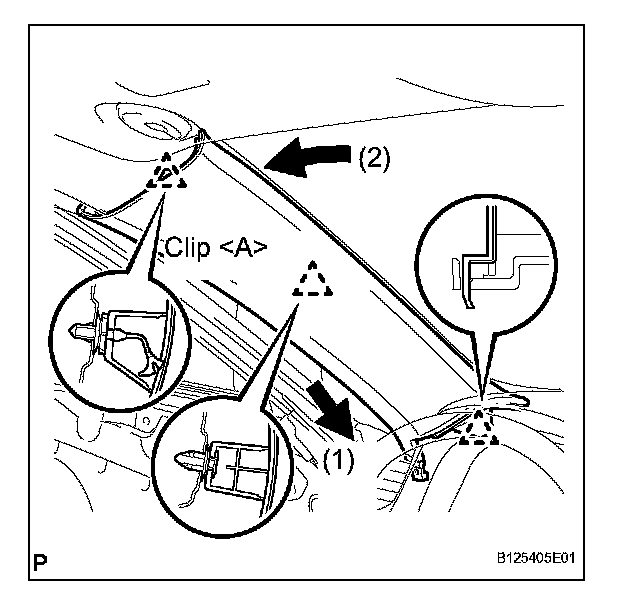

84. INSTALL FRONT PILLAR GARNISH LH





a. Install a new clip on the front pillar garnish LH.
b. Engage the claw and 2 clips, and install the front pillar garnish LH.

85. INSTALL FRONT PILLAR GARNISH RH
86. INSTALL FRONT DOOR OPENING TRIM COVER LH





a. Engage the 4 claws and install the front door opening trim cover LH.

87. INSTALL FRONT DOOR OPENING TRIM COVER RH

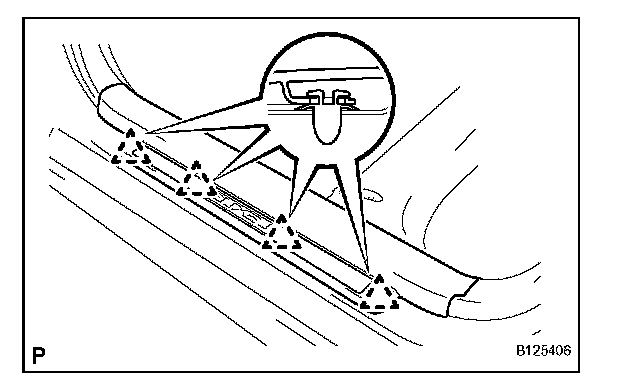

88. INSTALL FRONT DOOR
SCUFF PLATE LH (w/o Illumination)





a. Engage the 4 clips.

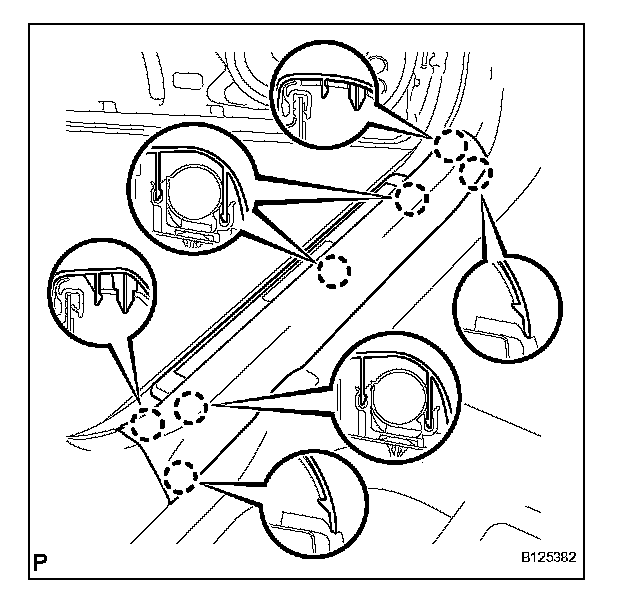

b. Engage the 7 claws, and install the front door scuff plate LH.

89. INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)
90. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination)
a. Connect the connector.





b. Engage the 4 clips.





c. Engage the 7 claws, and install the front door scuff plate LH.

91. INSTALL FRONT DOOR SCUFF PLATE RH (w/ Illumination)
92. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
93. INSTALL STEERING COLUMN COVER (for Manual Tilt and Telescopic)
94. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic)
95. ADJUST SPIRAL CABLE SUB-ASSEMBLY
96. INSTALL STEERING WHEEL ASSEMBLY
97. INSTALL STEERING PAD
98. INSTALL LOWER NO. 3 STEERING WHEEL COVER
99. INSTALL LOWER NO. 2 STEERING WHEEL COVER
100. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)
101. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)
102. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
103. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
104. INSTALL CONSOLE BOX
105. INSTALL CONSOLE BOX REGISTER ASSEMBLY
106. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY
107. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
108. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
109. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
110. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)
111. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)
112. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
113. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
114. INSTALL FRONT SEAT ASSEMBLY LH (for Power Seat)
115. INSTALL REAR INNER SEAT TRACK COVER LH (for Power Seat)
116. INSTALL REAR OUTER SEAT TRACK COVER LH (for Power Seat)
117. INSTALL FRONT INNER SEAT TRACK BRACKET COVER LH (for Power Seat)
118. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER LH (for Power Seat)
119. INSTALL FRONT SEAT ASSEMBLY RH (for Power Seat)
120. INSTALL REAR INNER SEAT TRACK COVER RH (for Power Seat)
121. INSTALL REAR OUTER SEAT TRACK COVER RH (for Power Seat)
122. INSTALL FRONT INNER SEAT TRACK BRACKET COVER RH (for Power Seat)
123. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER RH (for Power Seat)
124. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Power Seat)
125. INSTALL FRONT SEAT ASSEMBLY LH (for Manual Seat)
126. INSTALL REAR INNER SEAT TRACK COVER LH (for Manual Seat)
127. INSTALL REAR OUTER SEAT TRACK COVER LH (for Manual Seat)
128. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER LH (for Manual Seat)
129. INSTALL FRONT INNER SEAT TRACK BRACKET COVER LH (for Manual Seat)
130. INSTALL FRONT SEAT ASSEMBLY RH (for Manual Seat)
131. INSTALL REAR INNER SEAT TRACK COVER RH (for Manual Seat)
132. INSTALL REAR OUTER SEAT TRACK COVER RH (for Manual Seat)
133. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER RH (for Manual Seat)
134. INSTALL FRONT INNER SEAT TRACK BRACKET COVER RH (for Manual Seat)
135. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Manual Seat)
136. INSTALL REAR SEATBACK ASSEMBLY
137. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
138. INSTALL REAR SEAT HEADREST ASSEMBLY
139. INSTALL REAR SEAT CUSHION ASSEMBLY
140. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
141. PERFORM INITIALIZATION

NOTICE: Some systems need initialization after reconnecting the cable to the negative battery terminal.

142. CHECK SRS WARNING LIGHT
143. CHECK FOR EXHAUST GAS LEAKS
If exhaust gas is leaking, tighten the related parts to stop the leak. Replace damaged parts as necessary.

144. INSPECT FRONT SEAT ASSEMBLY (for Power Seat)
145. INSPECT SLIDE ADJUSTER LOCK (for Manual Seat)
146. ADJUST SHIFT LEVER POSITION
147. INSPECT SHIFT LEVER POSITION
