Dashboard / Instrument Panel: Service Precautions

INSTRUMENT PANEL SAFETY PAD

PRECAUTION

1. PRECAUTION FOR VEHICLE WITH SRS AIRBAG AND SEAT BELT PRETENSIONER
a. Some operations in this section may affect the SRS airbags. Prior to performing the corresponding operations, read the SRS airbag NOTE at Restraint Systems; Service Precautions.

2. TABLE OF BOLT, SCREW AND NUT

HINT: The bolts, screws and nuts necessary for installation and removal of the instrument panel, are illustrated and coded alphabetically.

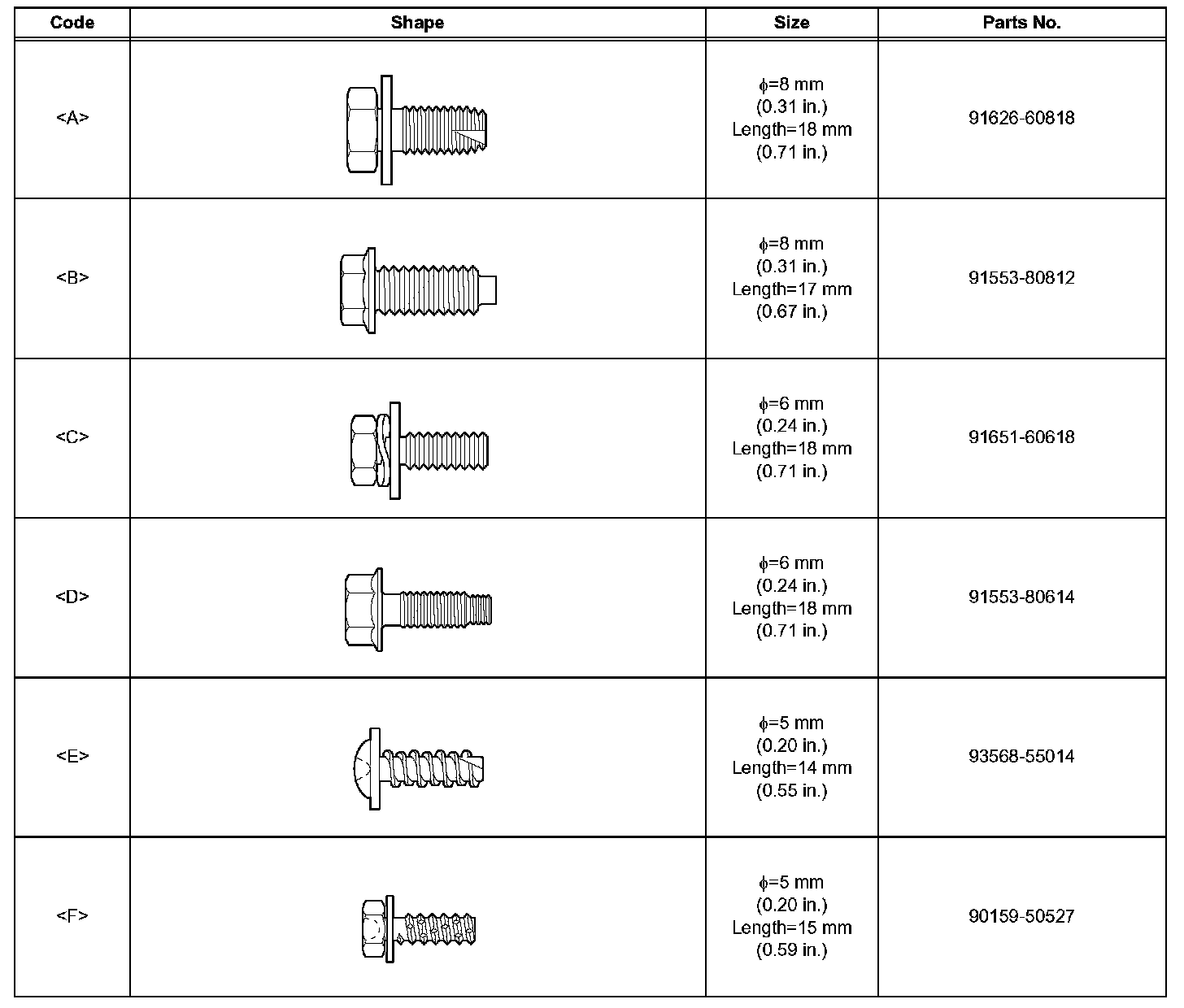

Part 1:

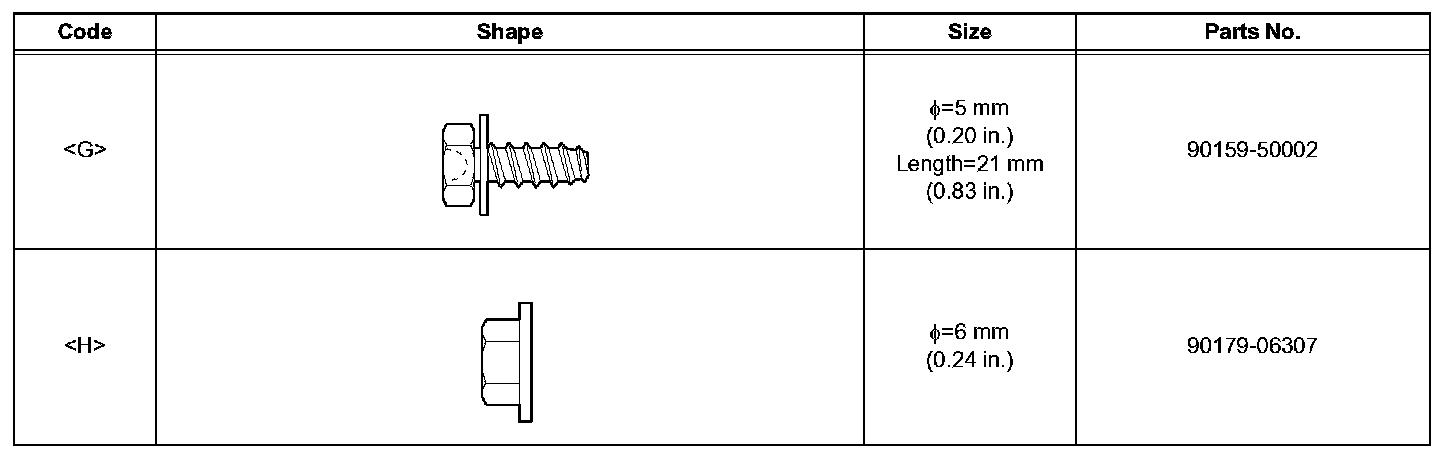

Part 2:
