Fuel Door Release Actuator: Service and Repair

FUEL LID OPENER MOTOR ASSEMBLY

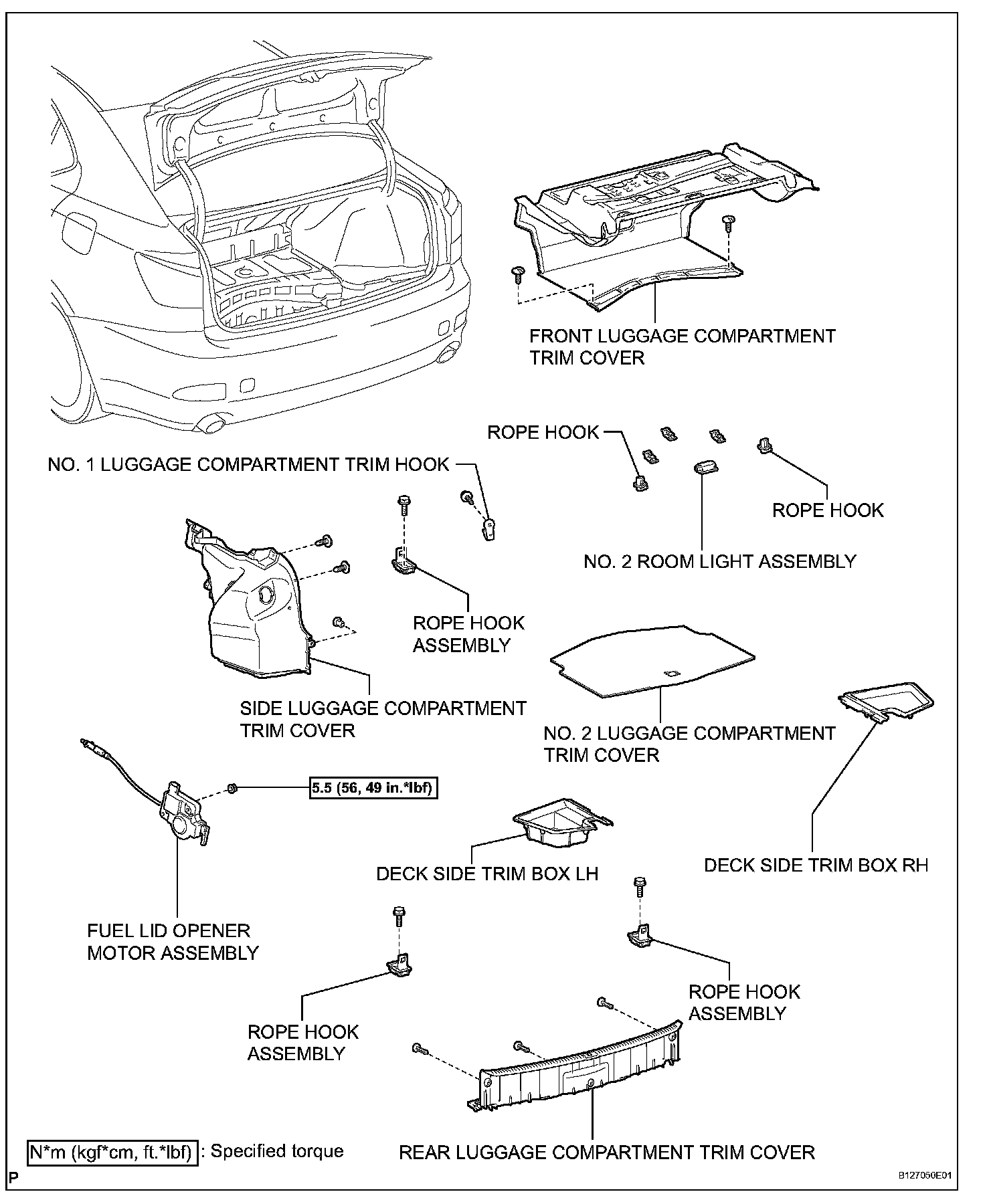

Fuel Lid Opener Motor Assembly:

REMOVAL

1. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM COVER
2. REMOVE DECK SIDE TRIM BOX LH
3. REMOVE DECK SIDE TRIM BOX RH
4. REMOVE ROPE HOOK ASSEMBLY
5. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER
6. REMOVE NO. 2 ROOM LIGHT ASSEMBLY
7. REMOVE ROPE HOOK
8. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER
9. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
10. REMOVE SIDE LUGGAGE COMPARTMENT TRIM COVER

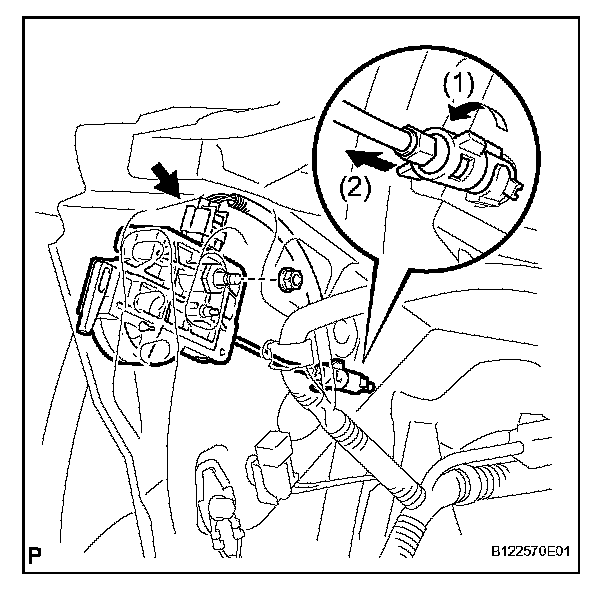

11. REMOVE FUEL LID OPENER MOTOR ASSEMBLY





a. Disconnect the connector.
b. Remove the lock and nut as shown in the illustration.
c. Remove the fuel lid opener motor assembly.

INSTALLATION

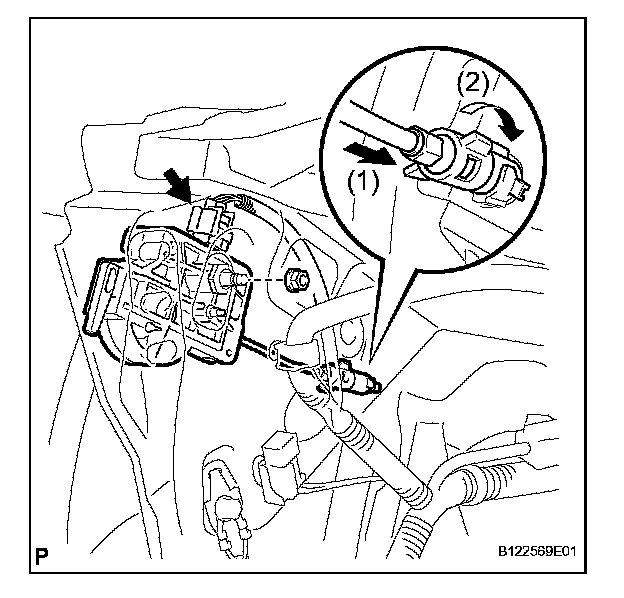

1. INSTALL FUEL LID OPENER MOTOR ASSEMBLY





a. Install the lock and nut as shown in the illustration.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

b. Connect the connector.

2. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER
3. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
4. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
5. INSTALL ROPE HOOK
6. INSTALL NO. 2 ROOM LIGHT ASSEMBLY
7. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER
8. INSTALL ROPE HOOK ASSEMBLY
9. INSTALL DECK SIDE TRIM BOX RH
10. INSTALL DECK SIDE TRIM BOX LH
11. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM COVER
