Illumination Circuit

Illumination Circuit

DESCRIPTION

Power is supplied to the radio receiver, integration control & panel assembly and steering pad switch assembly illumination when the light control switch is in the TAIL or HEAD position.

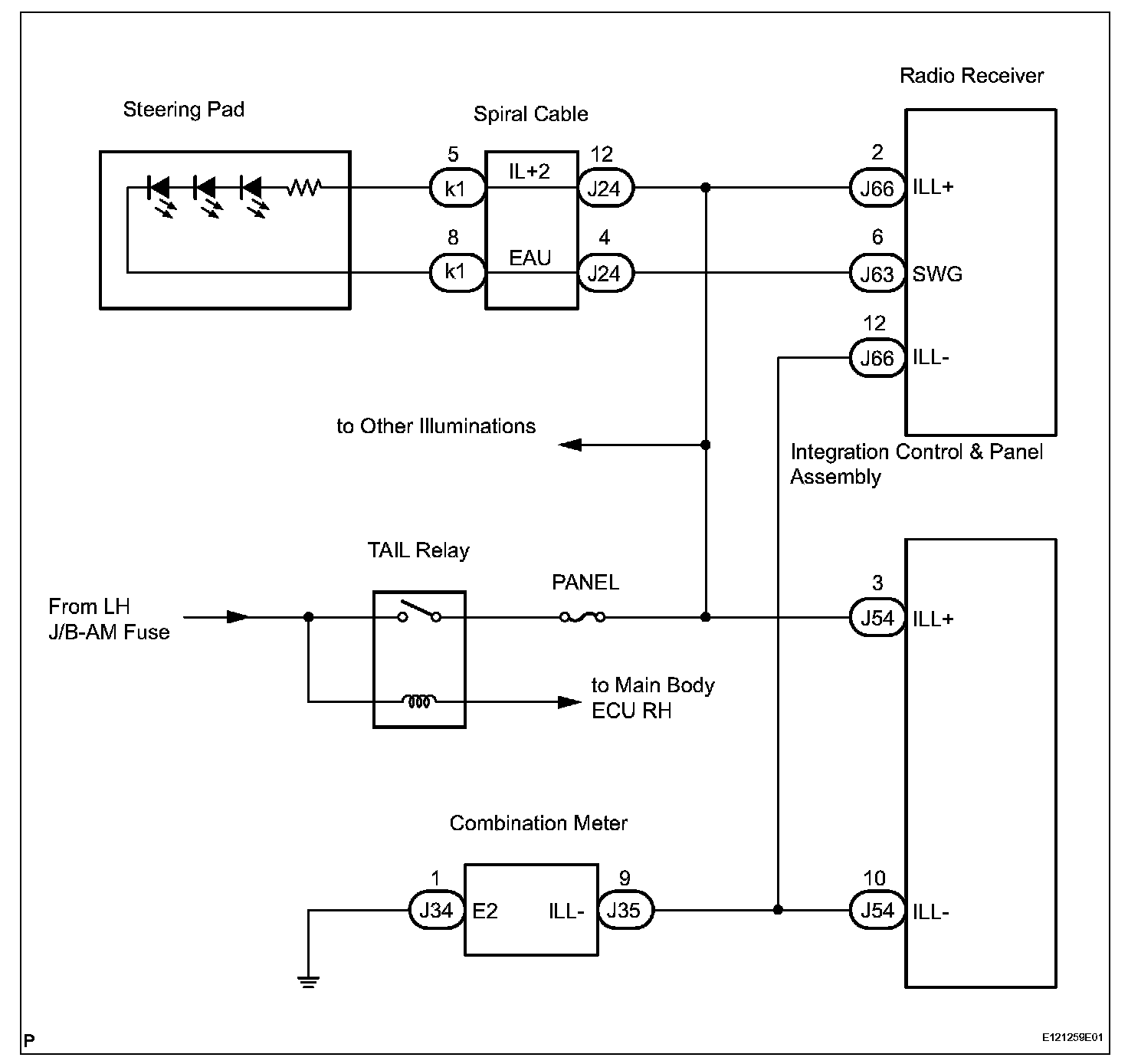

Wiring Diagram:

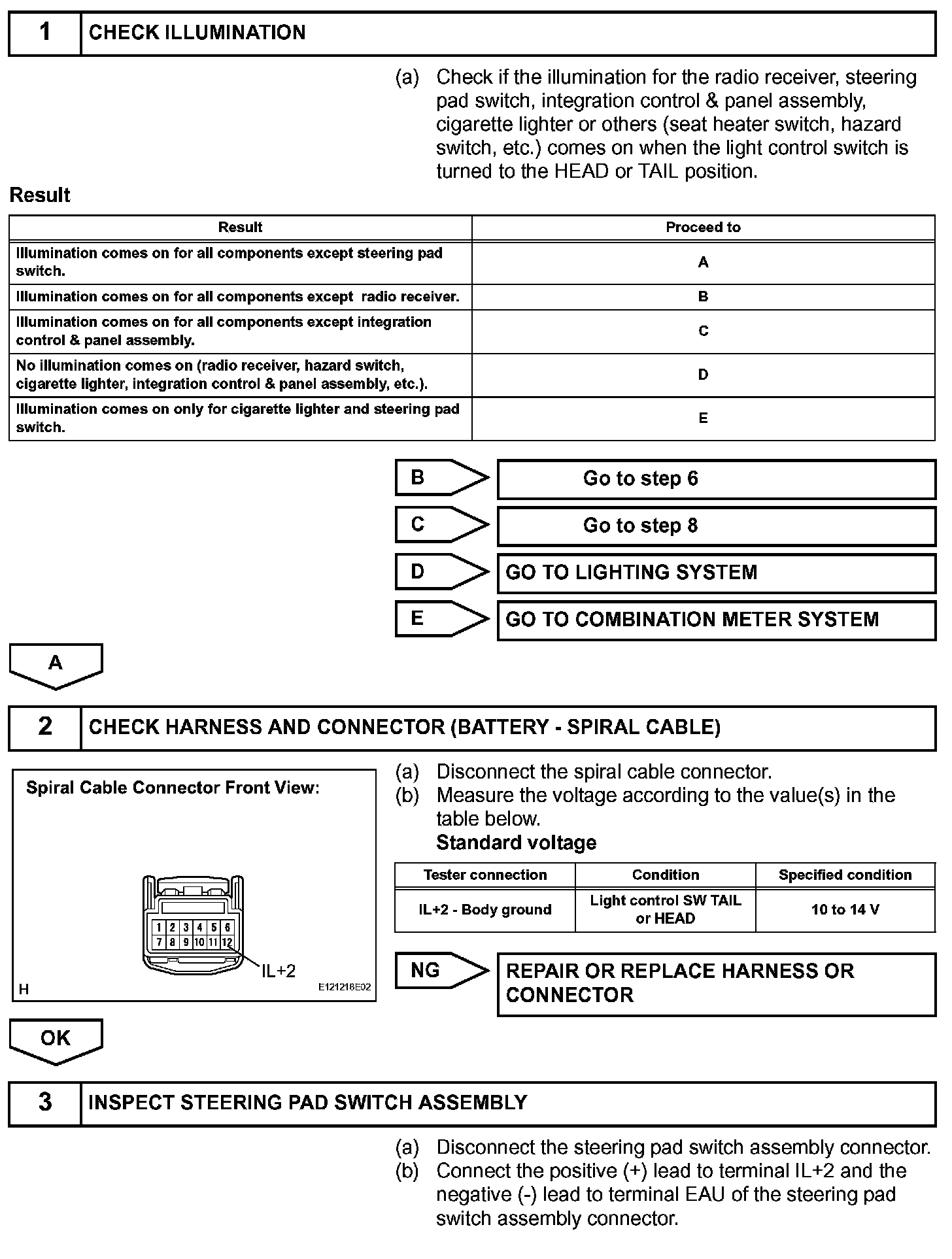

Step 1-3:

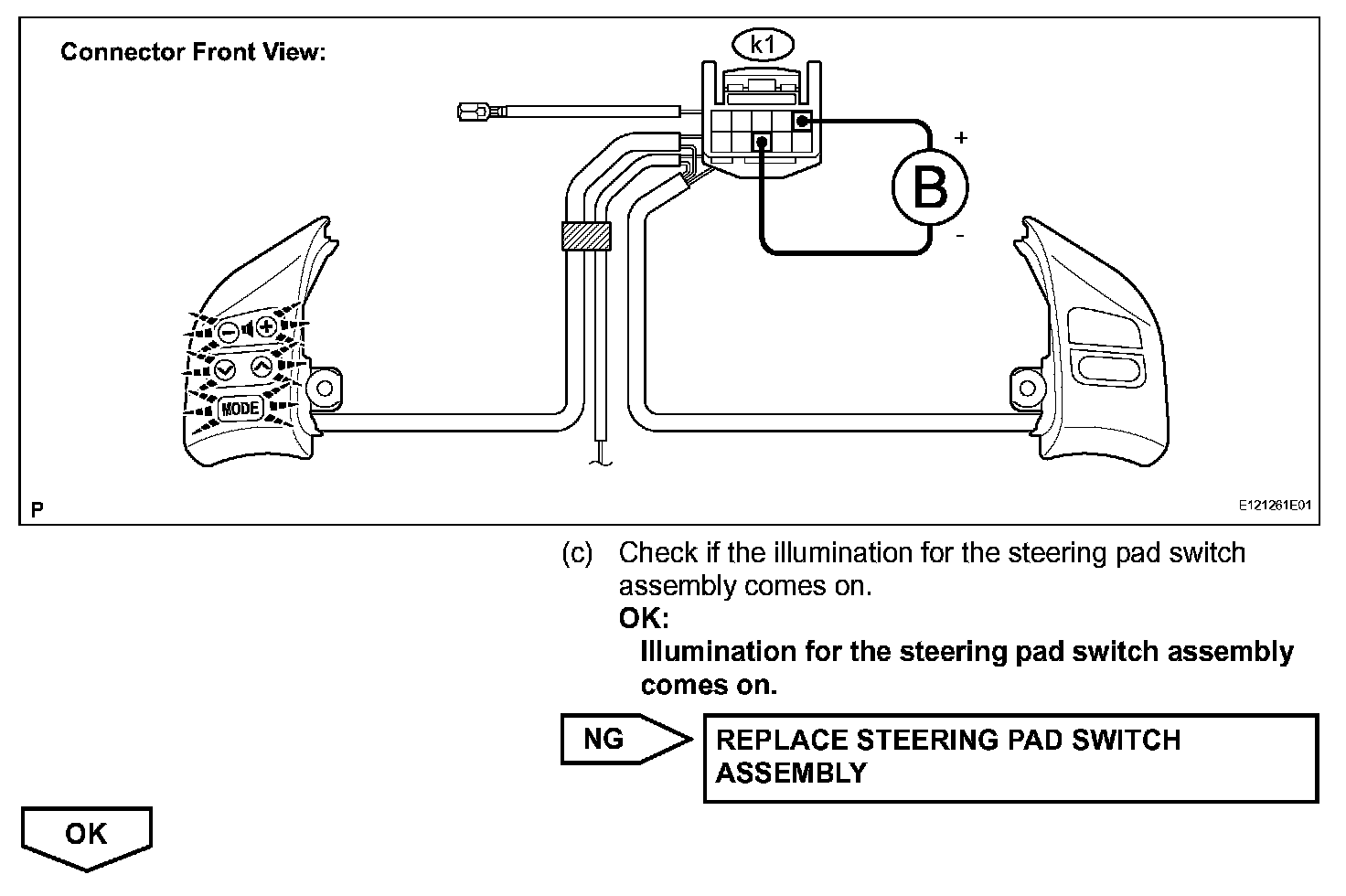

Step 3 (Continued):

Step 4:

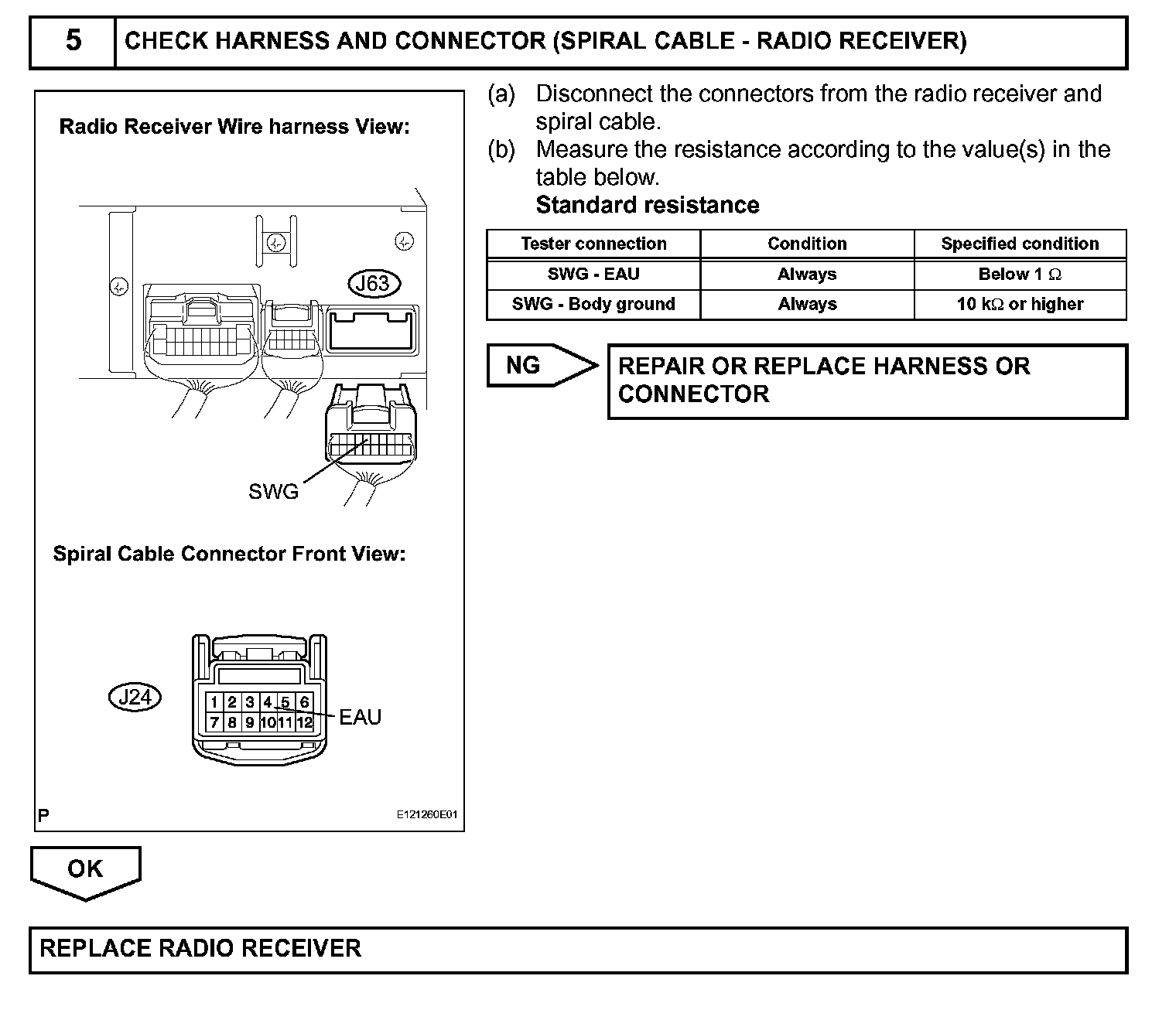

Step 5:

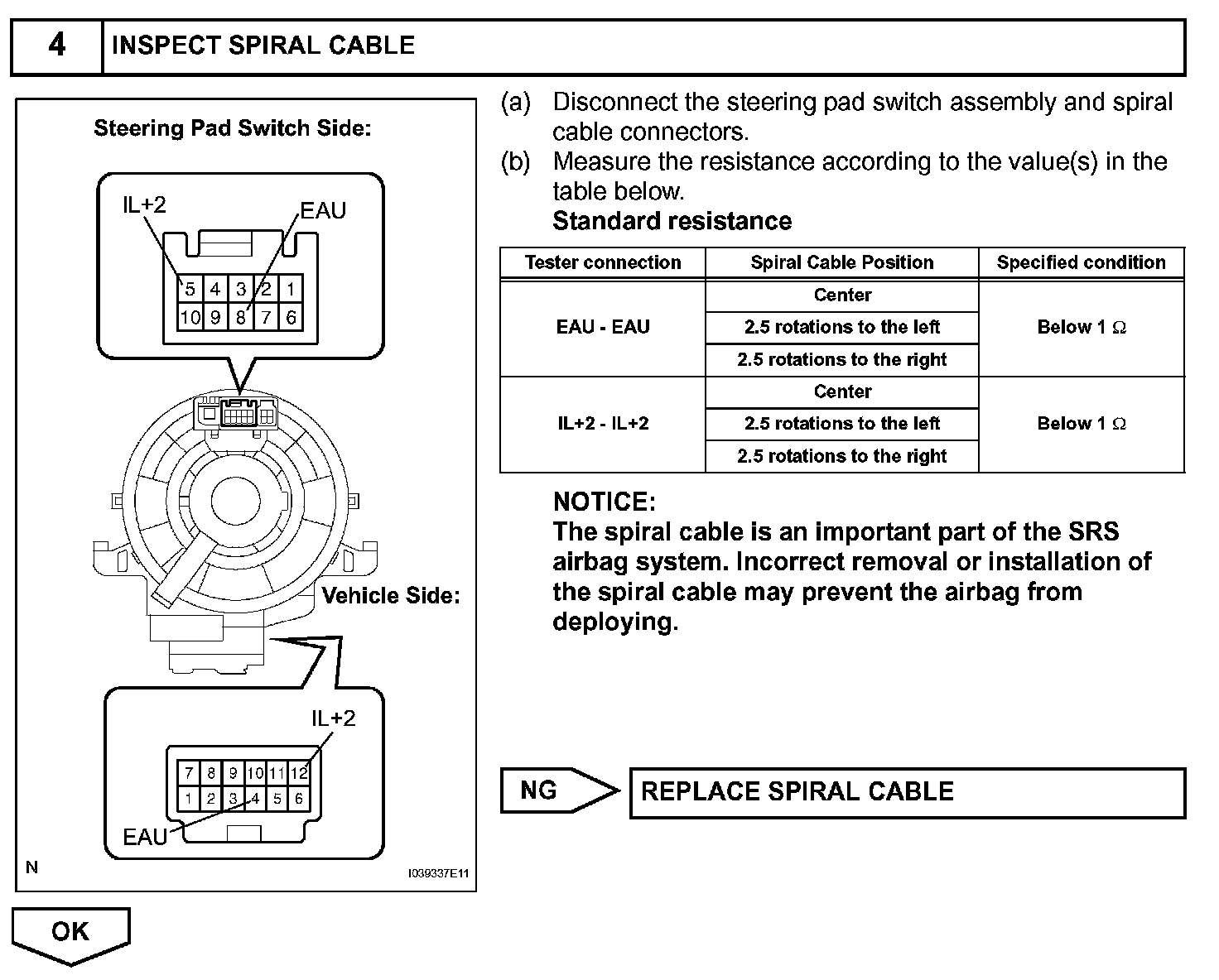

Step 6:

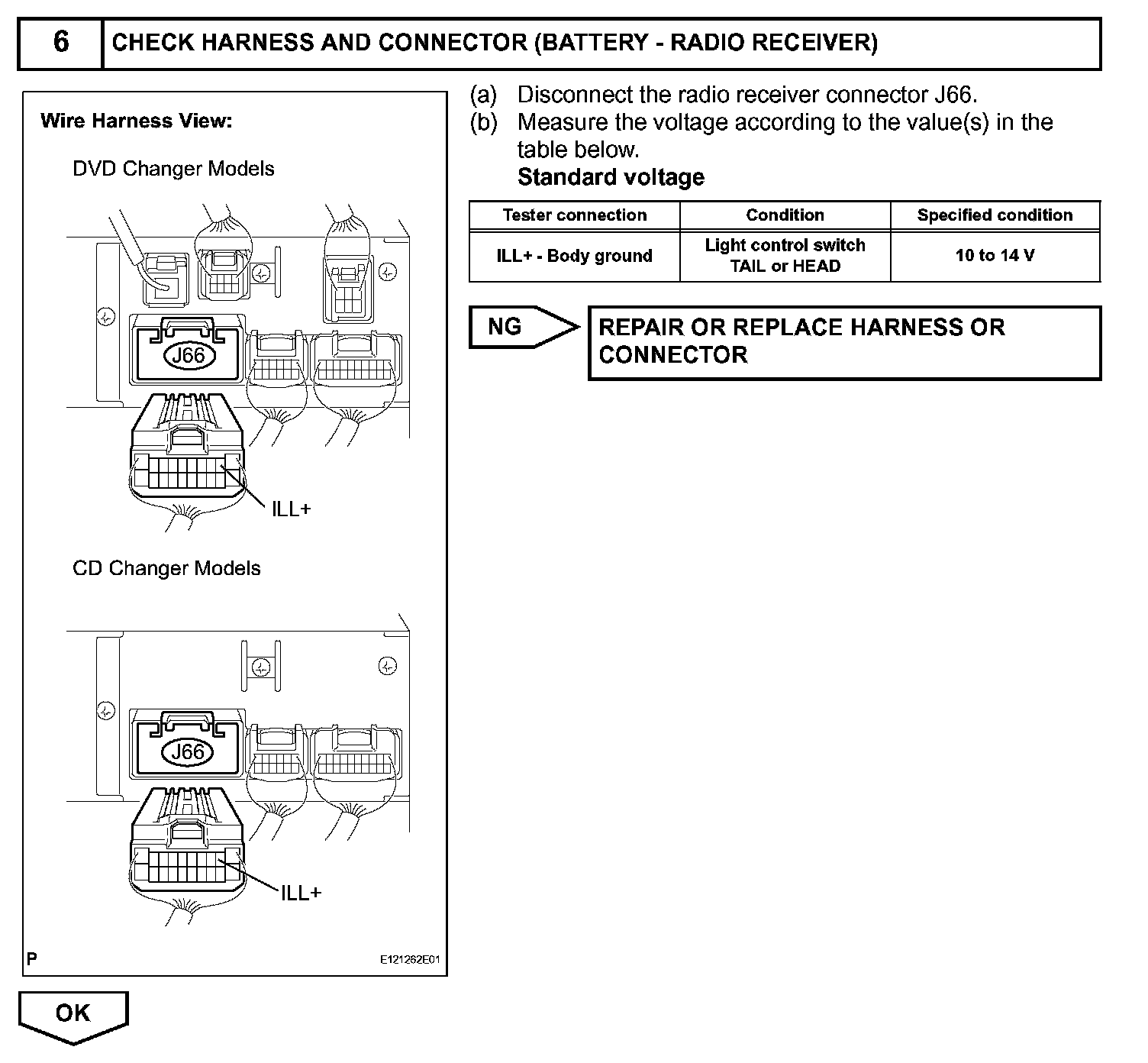

Step 7:

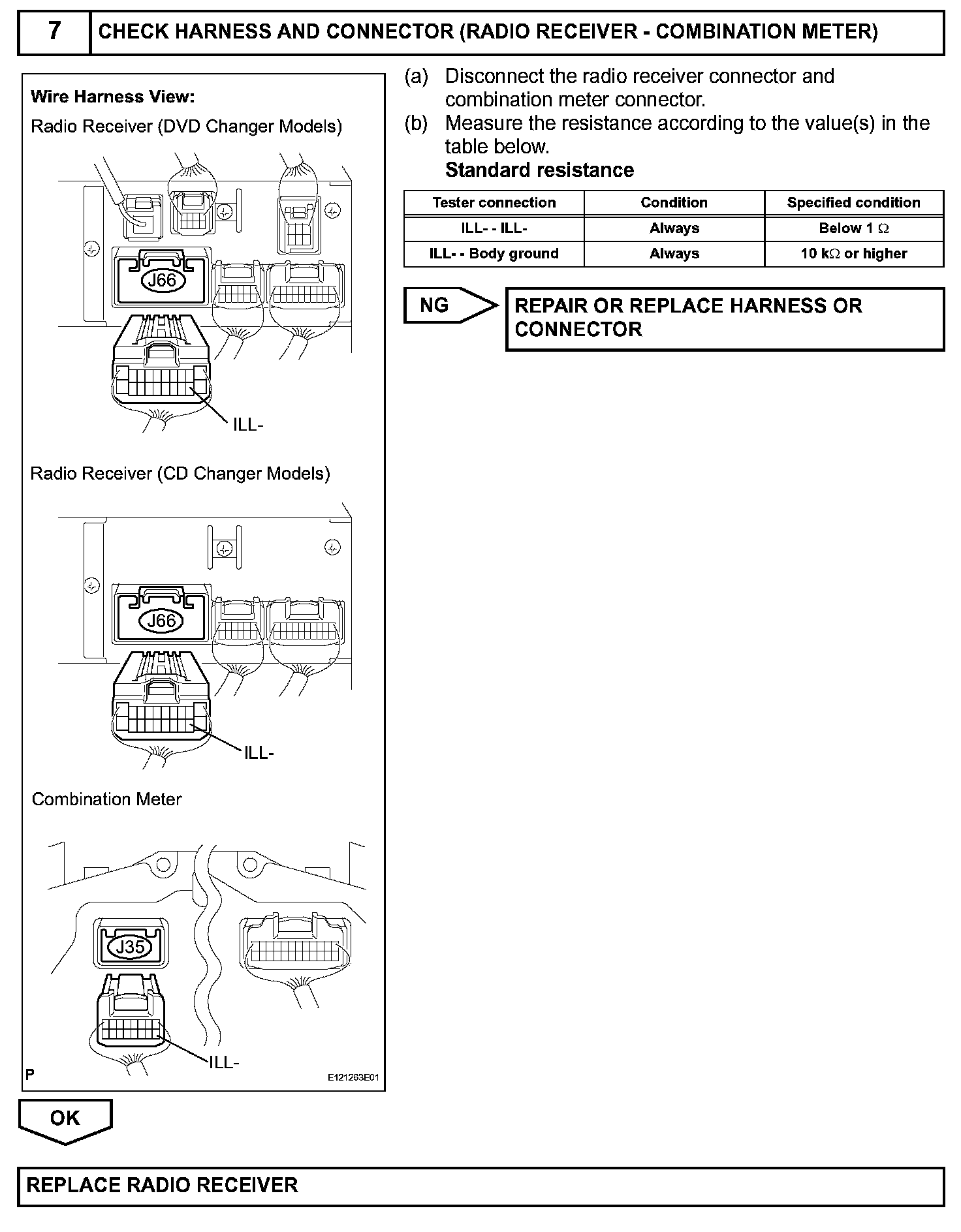

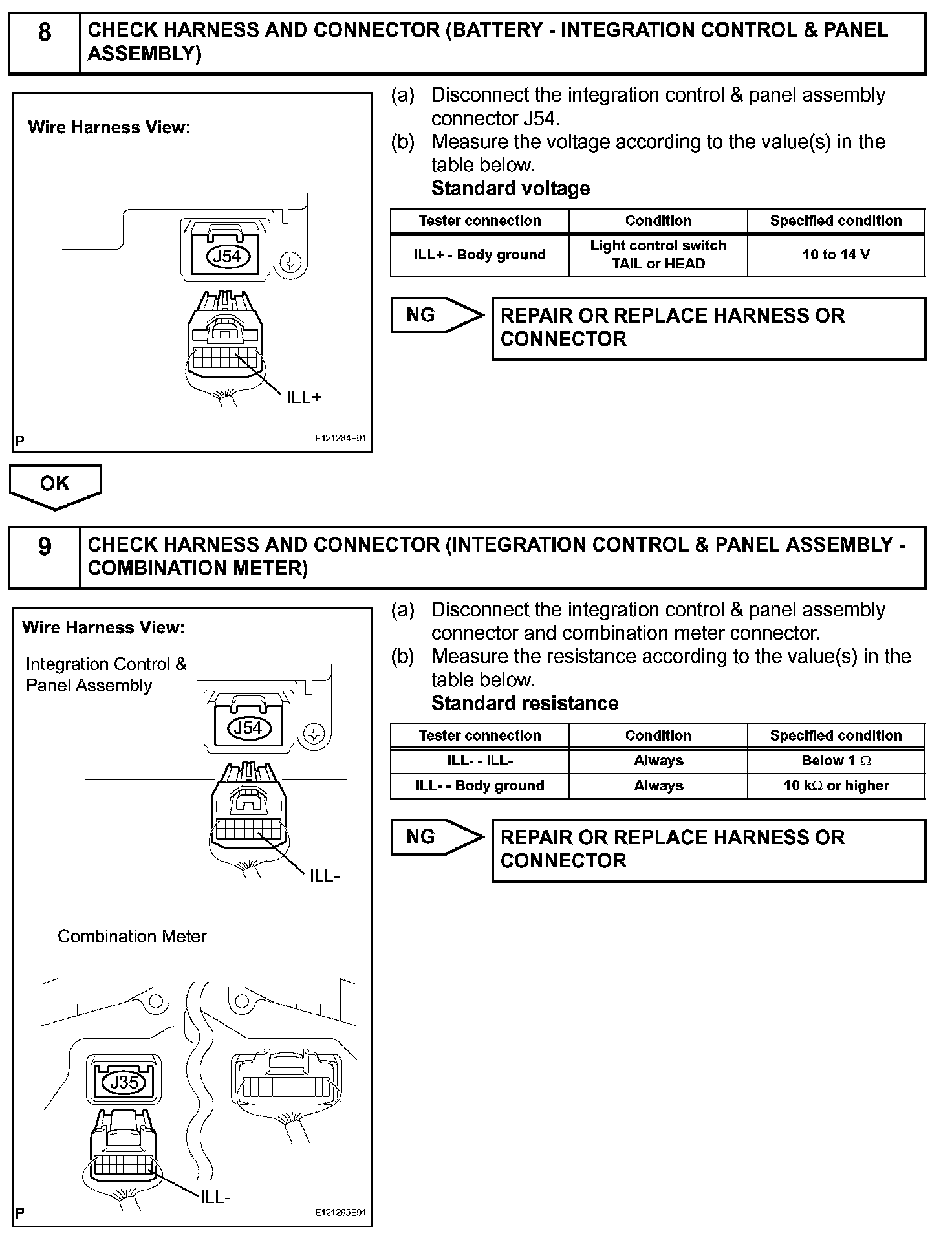

Step 8-9:

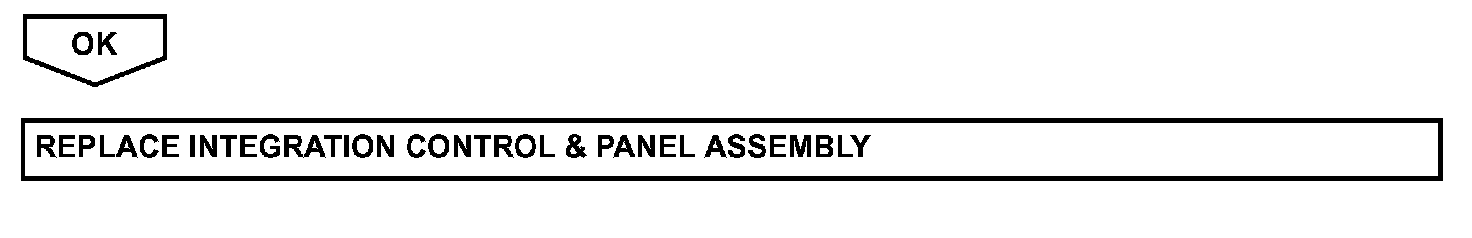

Step 9 (Continued):

INSPECTION PROCEDURE

NOTE: The vehicle is equipped with an SRS (Supplemental Restraint System) which includes components such as airbags. Before servicing (including removal or installation of parts), Refer to Restraint Systems Service Precautions.
