Front Center Speaker (w/ Front Center Speaker)

Front Center Speaker(w/ Front Center Speaker):

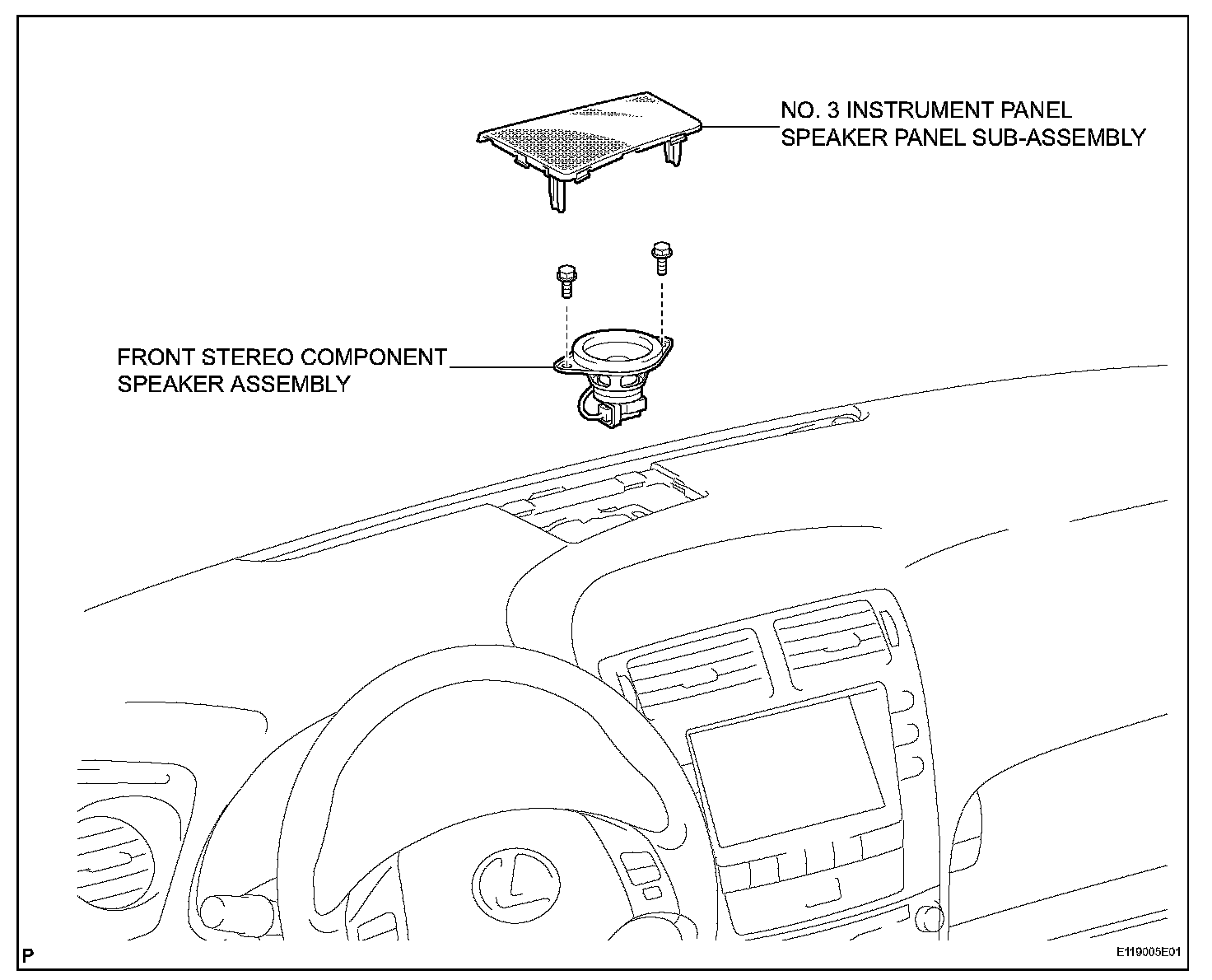

FRONT CENTER SPEAKER (w/ Front Center Speaker)

REMOVAL

1. REMOVE NO.3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY




2. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY

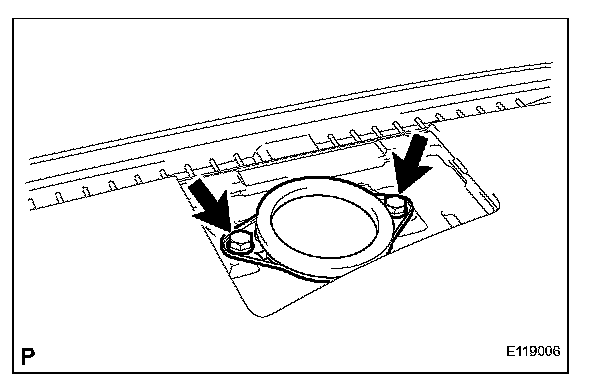

a. Remove the 2 bolts.
b. Lift the front stereo component speaker assembly and disconnect the connector to remove the speaker assembly.

NOTE: Do not touch the cone part of the speaker.

INSTALLATION

1. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY
a. Connect the connector.

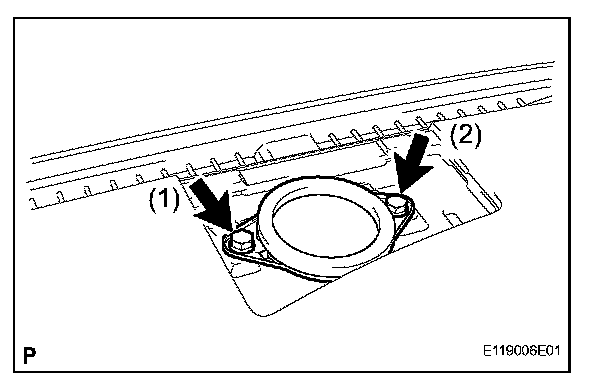

b. Install the front stereo component speaker assembly with the 2 bolts.

HINT: Install the bolts in the order shown in the illustration.

2. INSTALL NO.3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
