Radio, Stereo, and Compact Disc: Service and Repair

Audio Terminal:

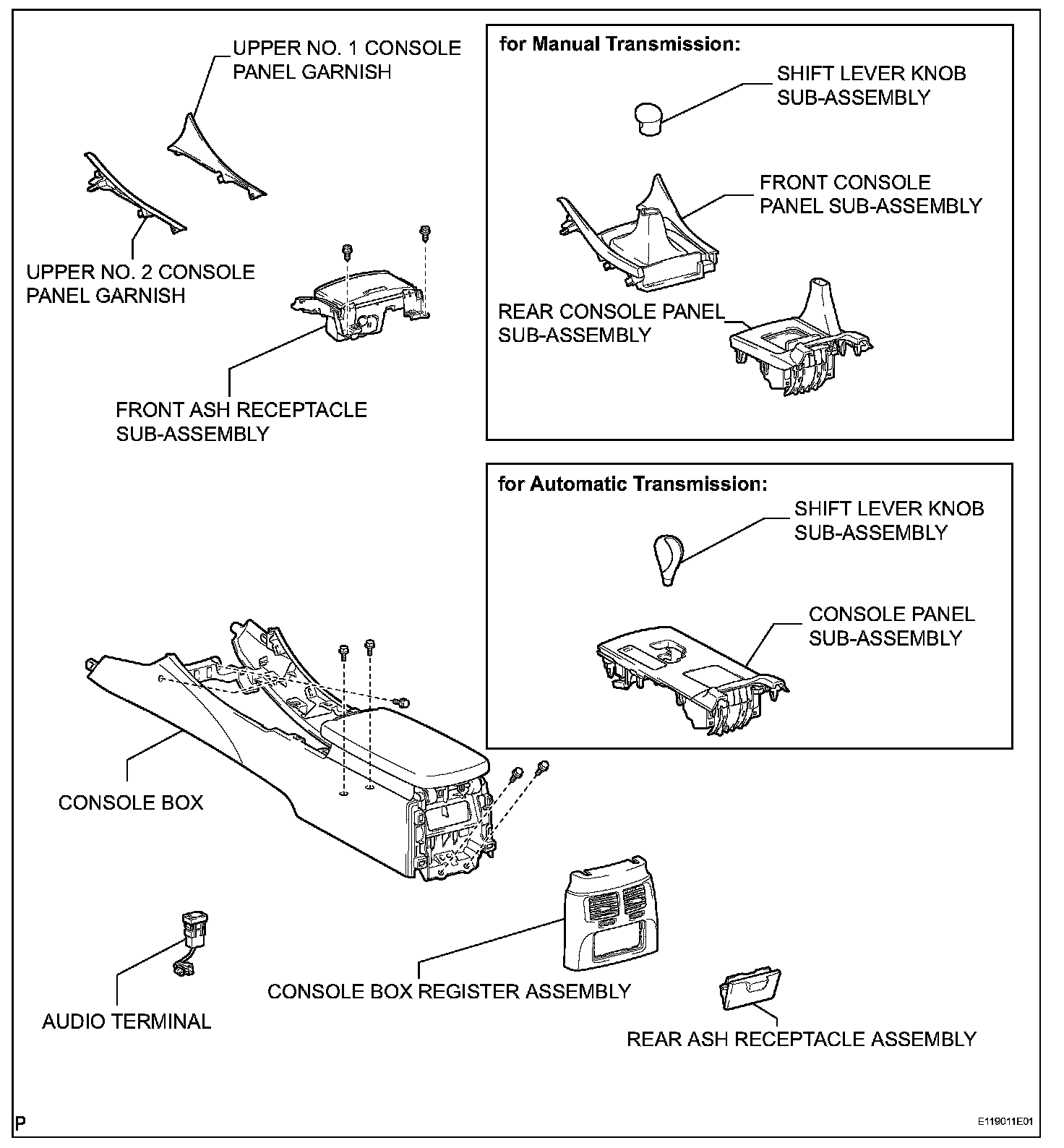

AUDIO TERMINAL

REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
3. REMOVE UPPER NO.1 CONSOLE PANEL GARNISH (for Automatic Transmission)
4. REMOVE UPPER NO.2 CONSOLE PANEL GARNISH (for Automatic Transmission)
5. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
6. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
7. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
8. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY
9. REMOVE CONSOLE BOX REGISTER ASSEMBLY
10. REMOVE CONSOLE BOX




11. REMOVE AUDIO TERMINAL

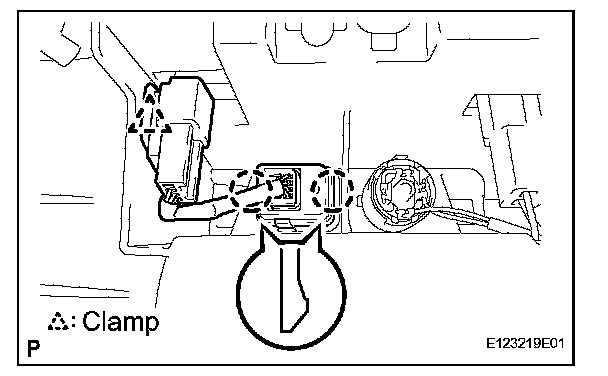

a. Disengage the connector clamp.
b. Disengage the 2 claws and remove the audio terminal.

INSTALLATION




1. INSTALL AUDIO TERMINAL
a. Engage the 2 claws and install the audio terminal.
b. Connect the connector clamp.

2. INSTALL CONSOLE BOX
3. INSTALL CONSOLE BOX REGISTER ASSEMBLY
4. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY
5. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
6. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
7. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
8. INSTALL UPPER NO.2 CONSOLE PANEL GARNISH (for Automatic Transmission)
9. INSTALL UPPER NO.1 CONSOLE PANEL GARNISH (for Automatic Transmission)
10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
