Antenna Cable: Service and Repair

Radio Antenna Cord:

RADIO ANTENNA CORD

REMOVAL

1. PRECAUTION
2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

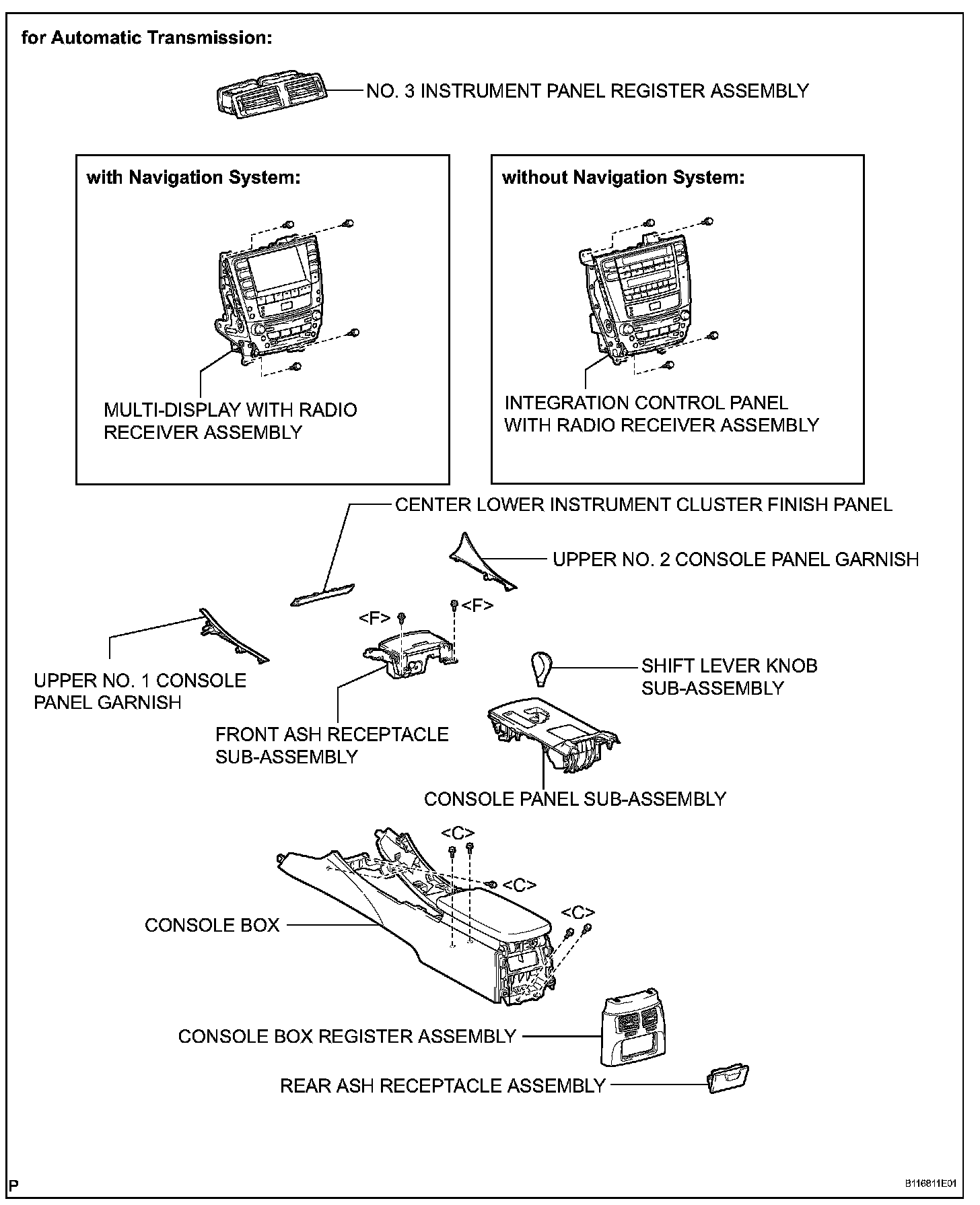

4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
6. REMOVE UPPER NO.1 CONSOLE PANEL GARNISH (for Automatic Transmission)
7. REMOVE UPPER NO.2 CONSOLE PANEL GARNISH (for Automatic Transmission)
8. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
9. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
10. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
11. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY
12. REMOVE CONSOLE BOX REGISTER ASSEMBLY
13. REMOVE CONSOLE BOX
14. REMOVE NO.3 INSTRUMENT PANEL REGISTER ASSEMBLY
15. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
16. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)
17. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)
18. REMOVE LOWER NO.2 STEERING WHEEL COVER
19. REMOVE LOWER NO.3 STEERING WHEEL COVER
20. REMOVE STEERING PAD
21. REMOVE STEERING WHEEL ASSEMBLY
22. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic)
23. REMOVE STEERING COLUMN COVER (for Manual Tilt and Telescopic)
24. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
25. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination)
26. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination)
27. REMOVE FRONT DOOR OPENING TRIM COVER LH
28. REMOVE SIDE INSTRUMENT PANEL LH
29. REMOVE NO.1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
30. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
31. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY
32. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
33. REMOVE COMBINATION METER ASSEMBLY

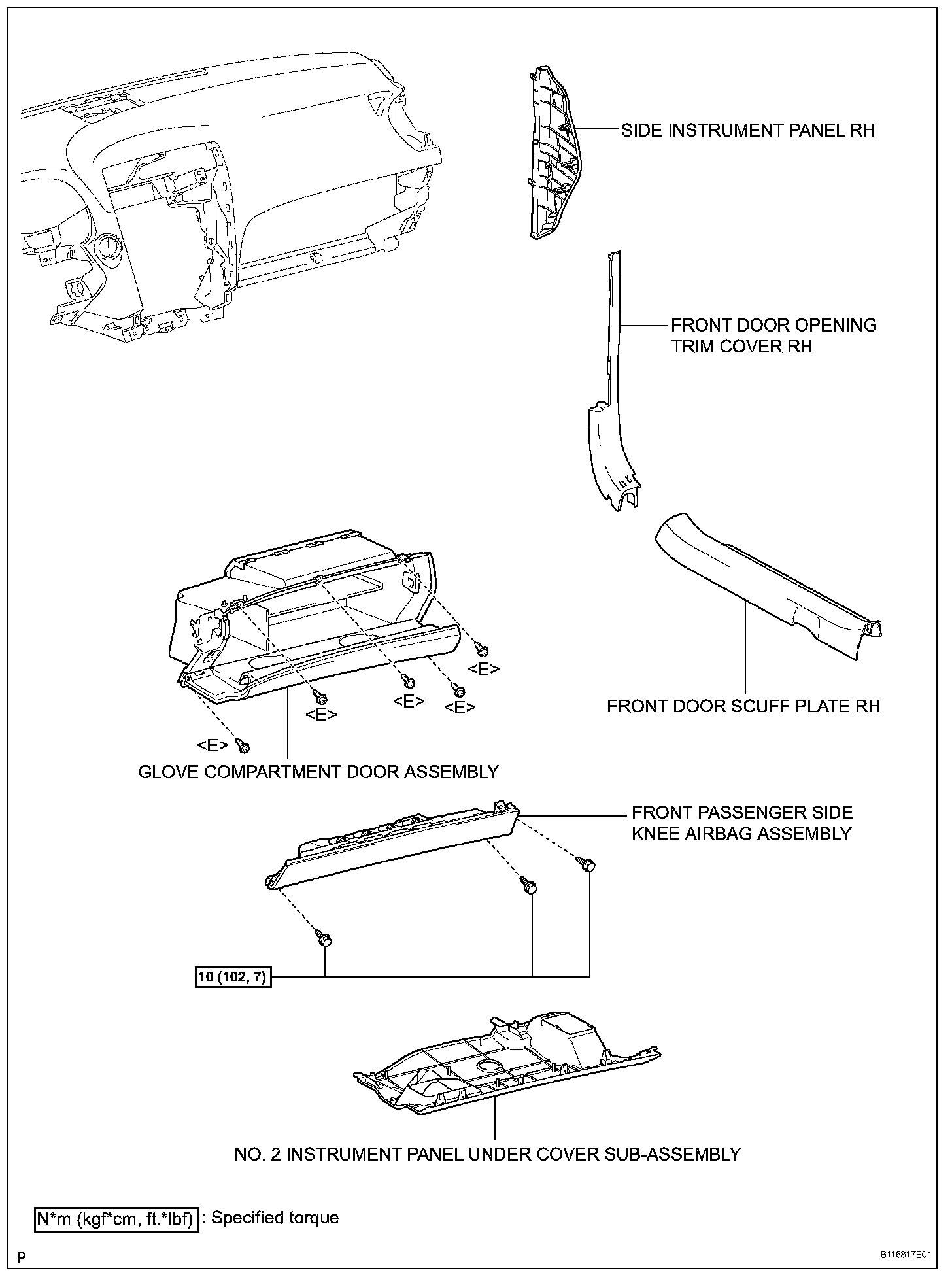

34. REMOVE FRONT DOOR SCUFF PLATE RH (w/o Illumination)
35. REMOVE FRONT DOOR SCUFF PLATE RH (w/ Illumination)
36. REMOVE FRONT DOOR OPENING TRIM COVER RH
37. REMOVE SIDE INSTRUMENT PANEL RH
38. REMOVE NO.2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
39. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
40. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
41. REMOVE FRONT PILLAR GARNISH LH
42. REMOVE FRONT PILLAR GARNISH RH
43. REMOVE NO.1 INSTRUMENT PANEL REGISTER ASSEMBLY
44. REMOVE NO.2 INSTRUMENT PANEL REGISTER ASSEMBLY
45. REMOVE NO.3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
46. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY
47. REMOVE NO.2 CONSOLE BOX DUCT (for Automatic Transmission)
48. REMOVE NO.1 CONSOLE BOX DUCT (for Automatic Transmission)
49. REMOVE NO.2 CONSOLE BOX DUCT (for Manual Transmission)
50. DISCONNECT PASSENGER AIRBAG CONNECTOR
51. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

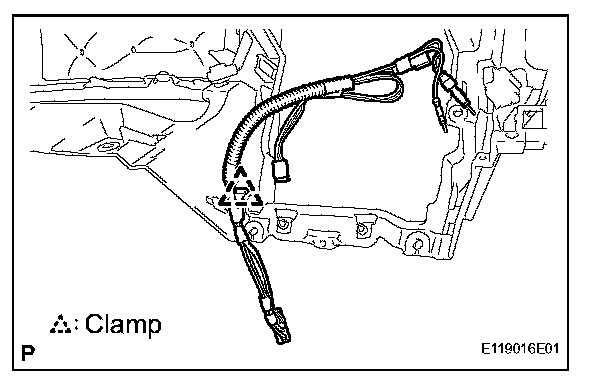

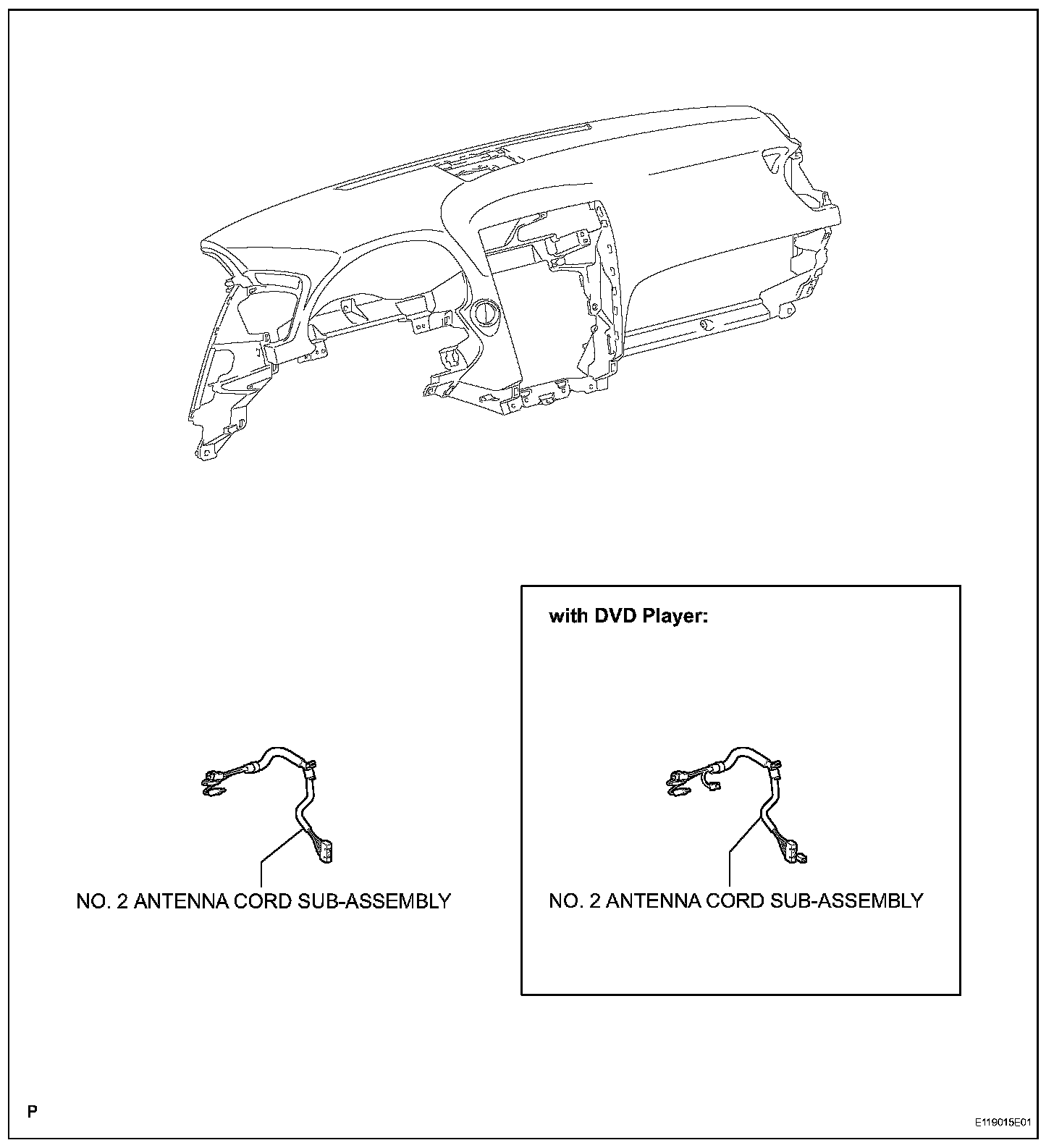

52. REMOVE NO.2 ANTENNA CORD SUB-ASSEMBLY
a. Disengage the clamp and remove the No.2 antenna cord sub-assembly.

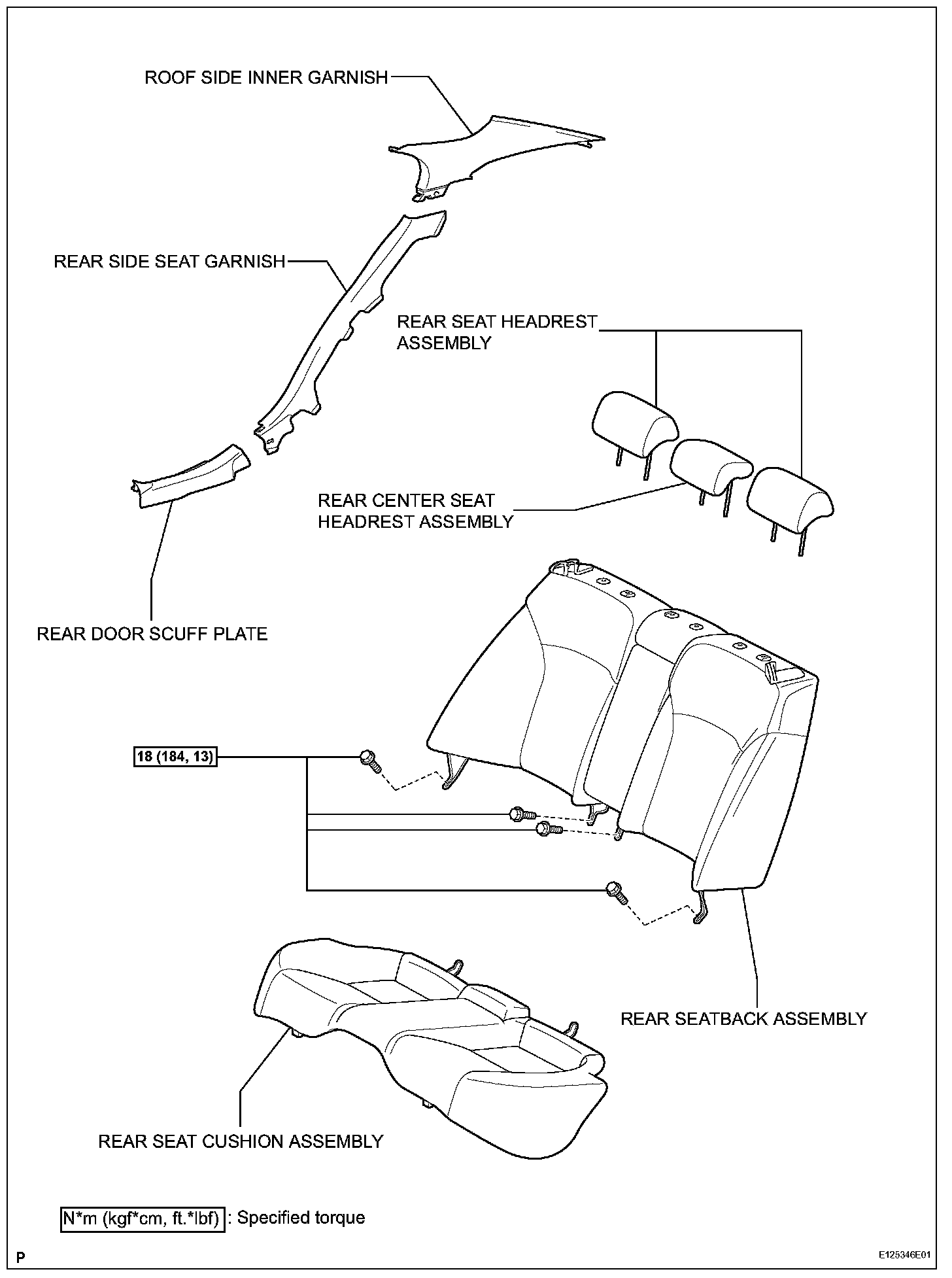

53. REMOVE REAR SEAT CUSHION ASSEMBLY
54. REMOVE REAR SEAT HEADREST ASSEMBLY
55. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
56. REMOVE REAR SEATBACK ASSEMBLY
57. REMOVE REAR DOOR SCUFF PLATE

HINT: Removal procedure of the RH side is the same as that of the LH side.

58. REMOVE REAR SEAT SIDE GARNISH

HINT: Removal procedure of the RH side is the same as that of the LH side.

59. REMOVE ROOF SIDE INNER GARNISH

HINT: Removal procedure of the RH side is the same as that of the LH side.

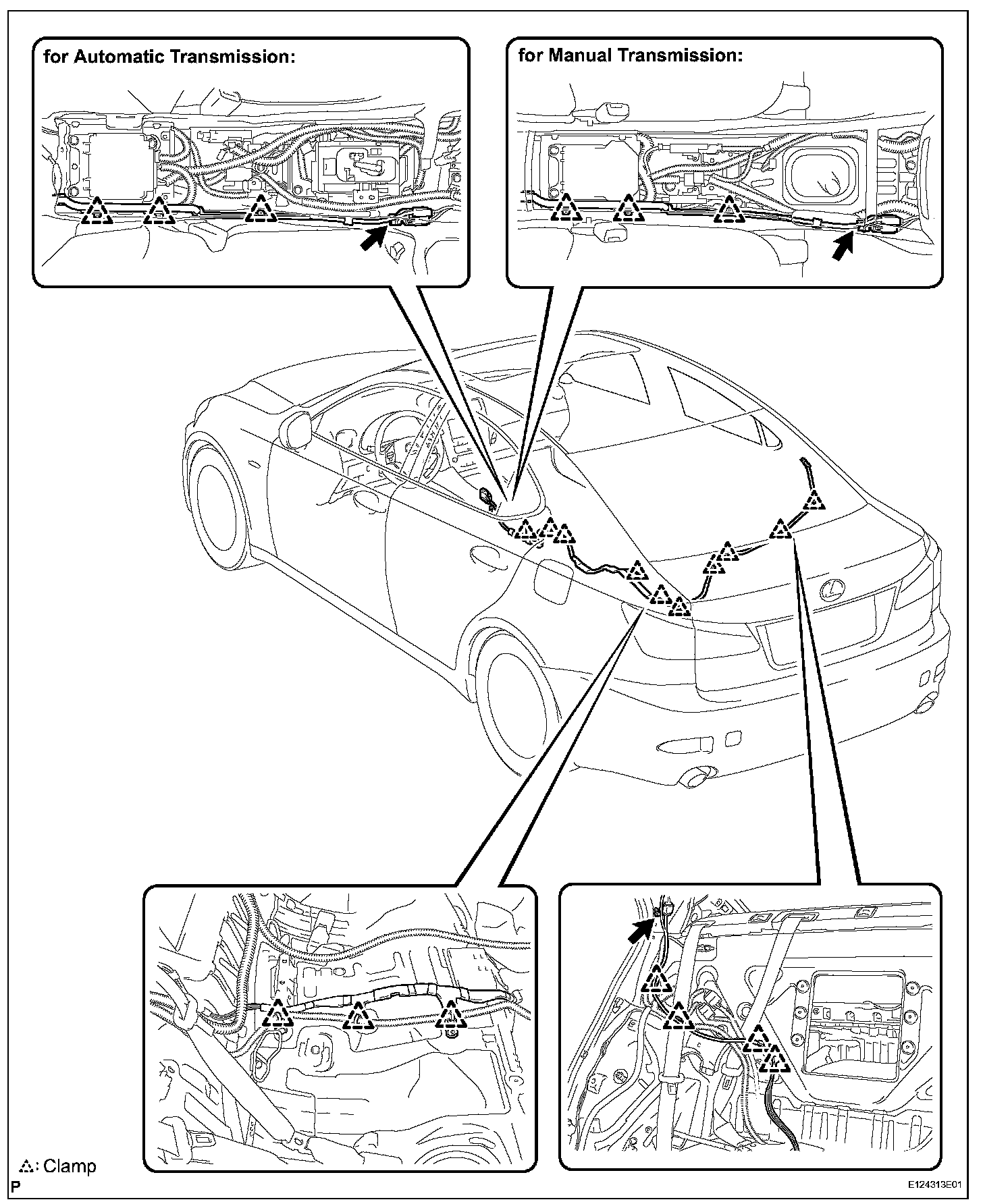

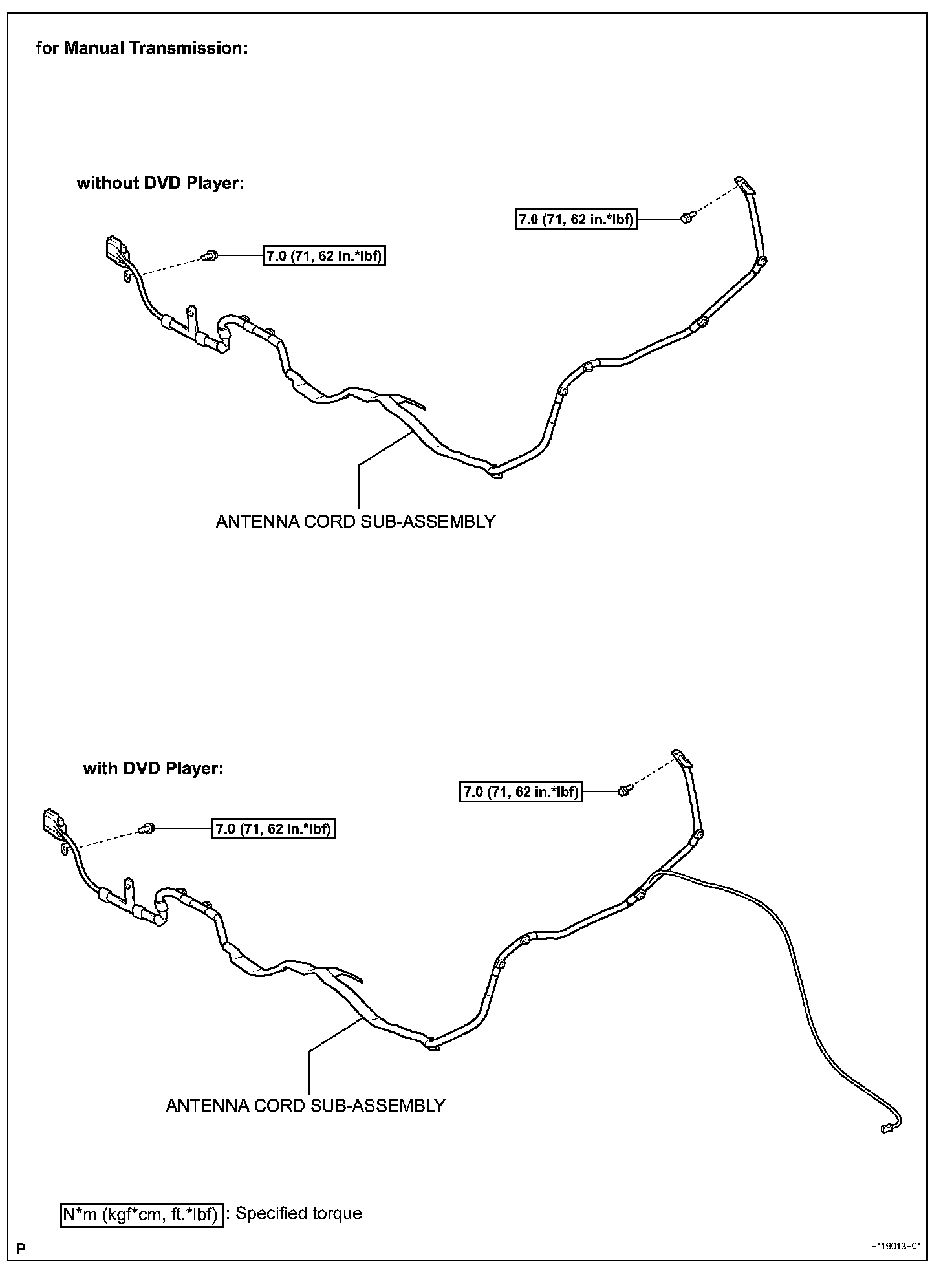

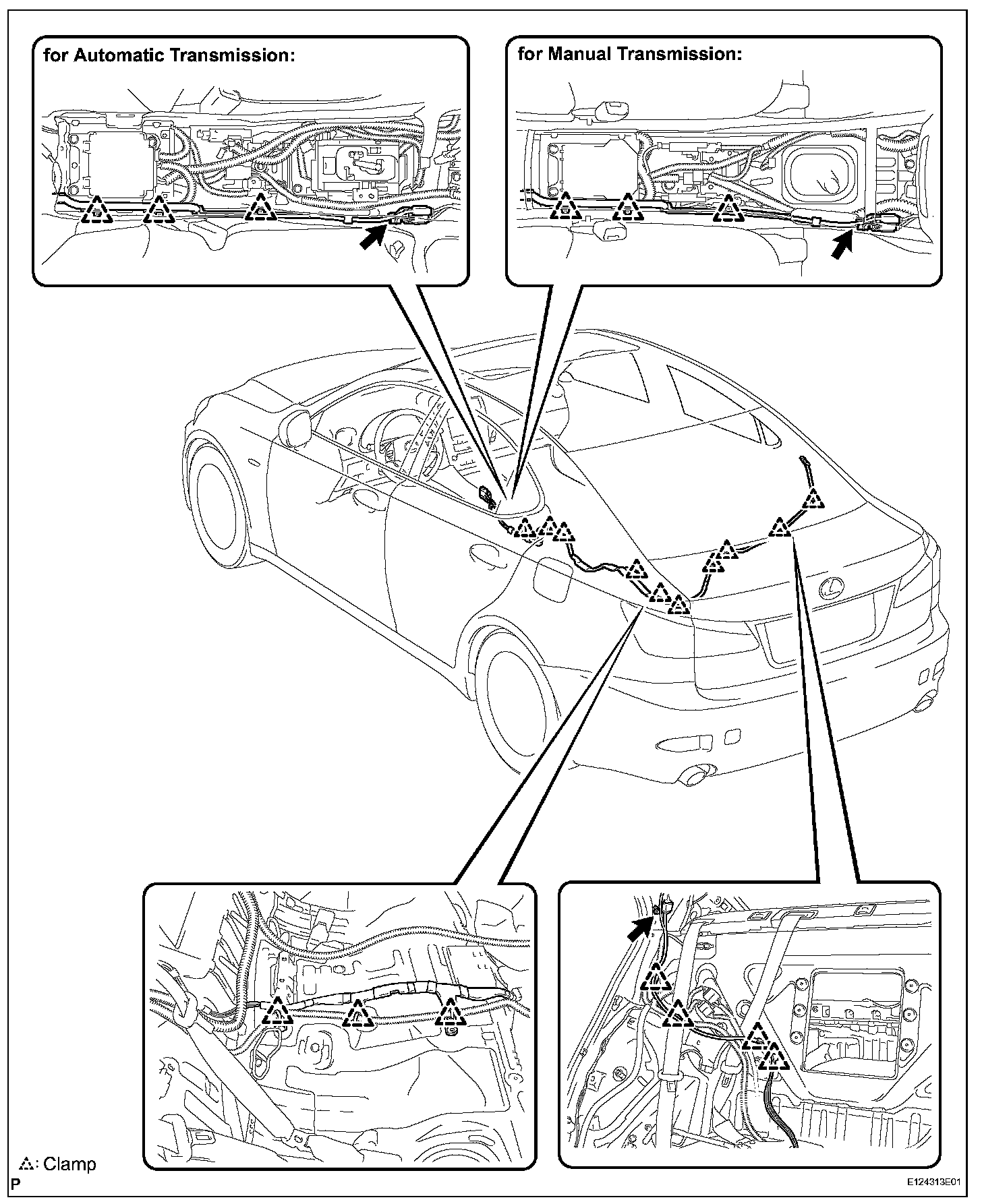

60. REMOVE ANTENNA CORD SUB-ASSEMBLY (w/o DVD Player)

a. Disconnect each connector.
b. Remove the 3 bolts and disengage the 19 clamps.
c. Remove the antenna cord sub-assembly.

61. REMOVE LUGGAGE COMPARTMENT TRIM COVER (w/ DVD Player)
62. REMOVE DECK SIDE TRIM BOX RH (w/ DVD Player)
63. REMOVE DECK SIDE TRIM BOX LH (w/ DVD Player)
64. REMOVE ROPE HOOK ASSEMBLY (w/ DVD Player)
65. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER (w/ DVD Player)
66. REMOVE ROOM LIGHT ASSEMBLY (w/ DVD Player)
67. REMOVE ROPE HOOK (w/ DVD Player)
68. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (w/ DVD Player)
69. REMOVE LUGGAGE COMPARTMENT TRIM HOOK (w/ DVD Player)
70. REMOVE SIDE LUGGAGE COMPARTMENT TRIM COVER (w/ DVD Player)

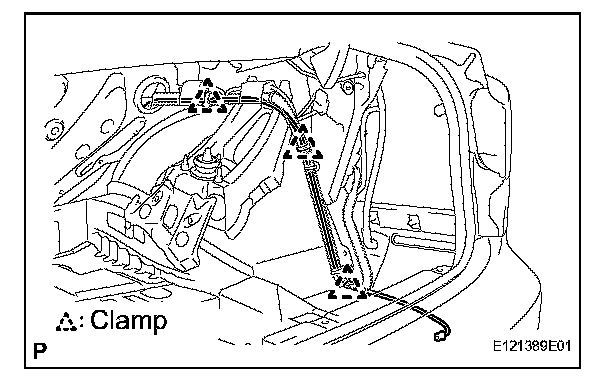

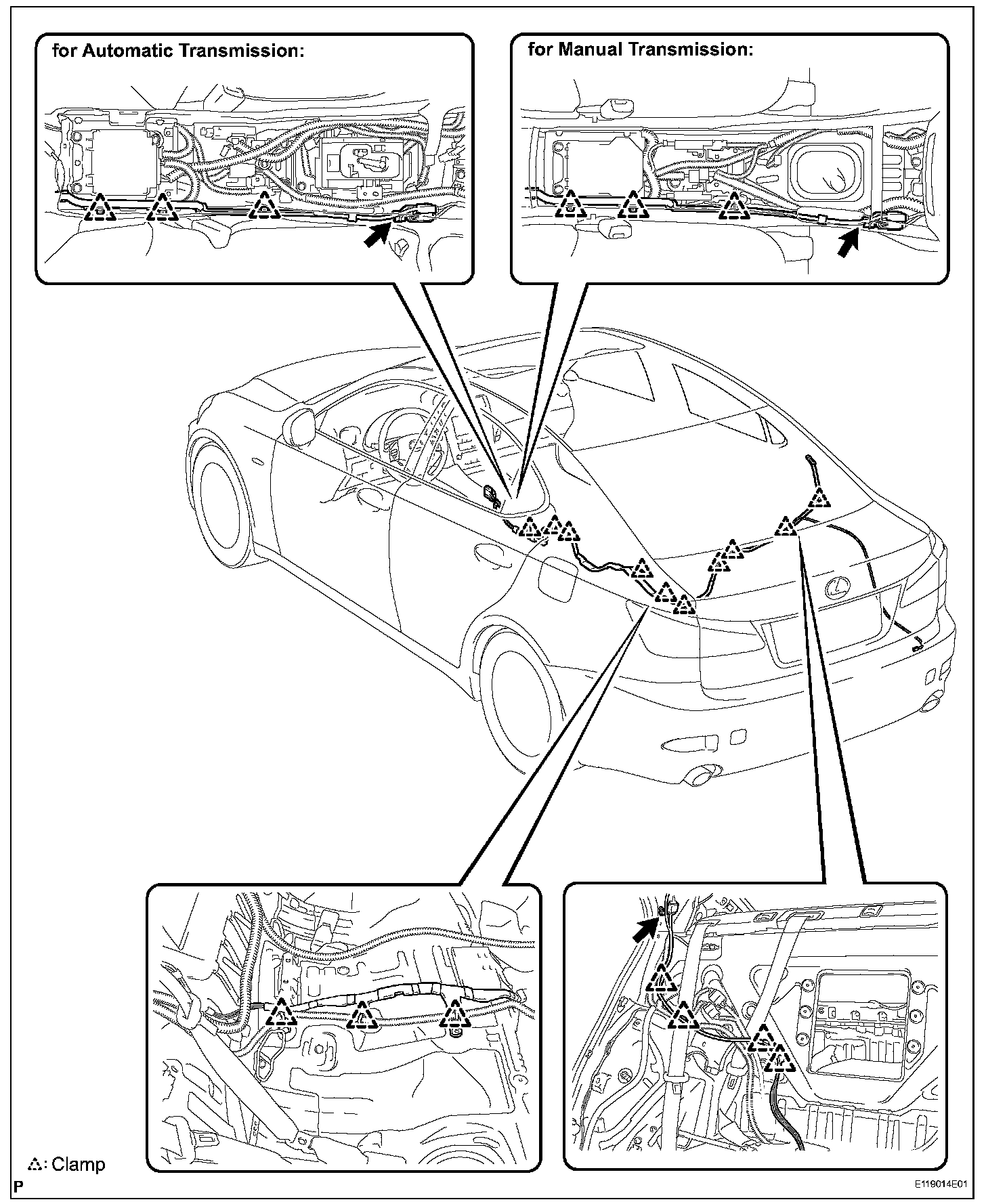

71. REMOVE ANTENNA CORD SUB-ASSEMBLY (w/ DVD Player)
a. Disconnect the connectors.

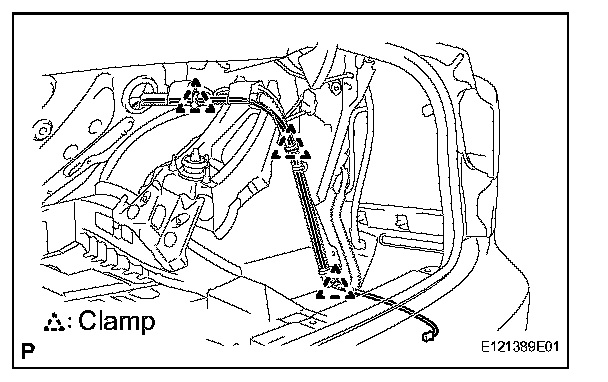

b. Disengage the 3 clamps and separate the antenna cord.

c. Disconnect each connector.
d. Remove the 3 bolts and disengage the 19 clamps.
e. Remove the antenna cord sub-assembly.

INSTALLATION

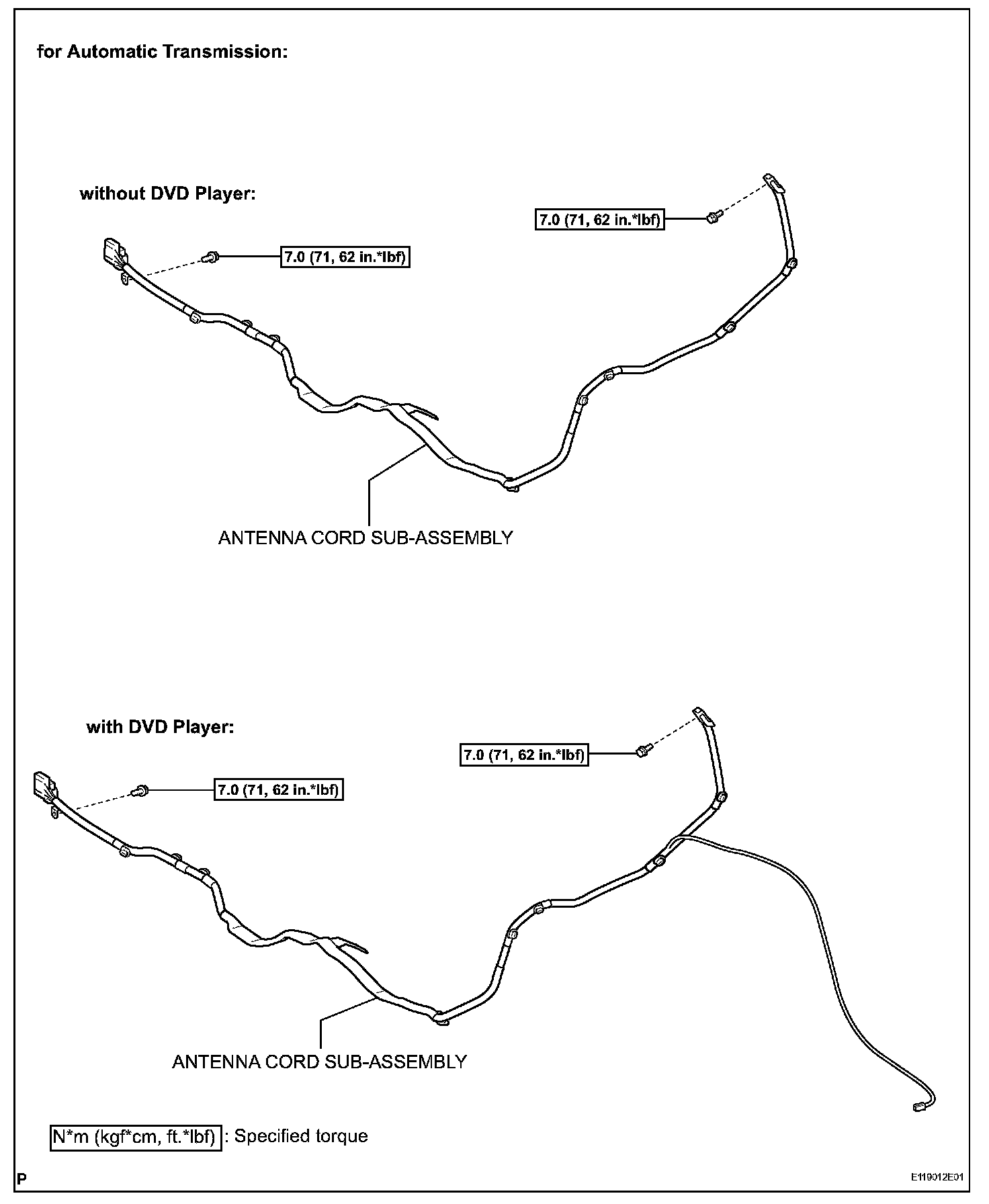

1. INSTALL ANTENNA CORD SUB-ASSEMBLY (w/o DVD Player)

a. Install the antenna cord sub-assembly with the 3 bolts.
b. Engage the 19 clamps.
c. Connect the connectors.

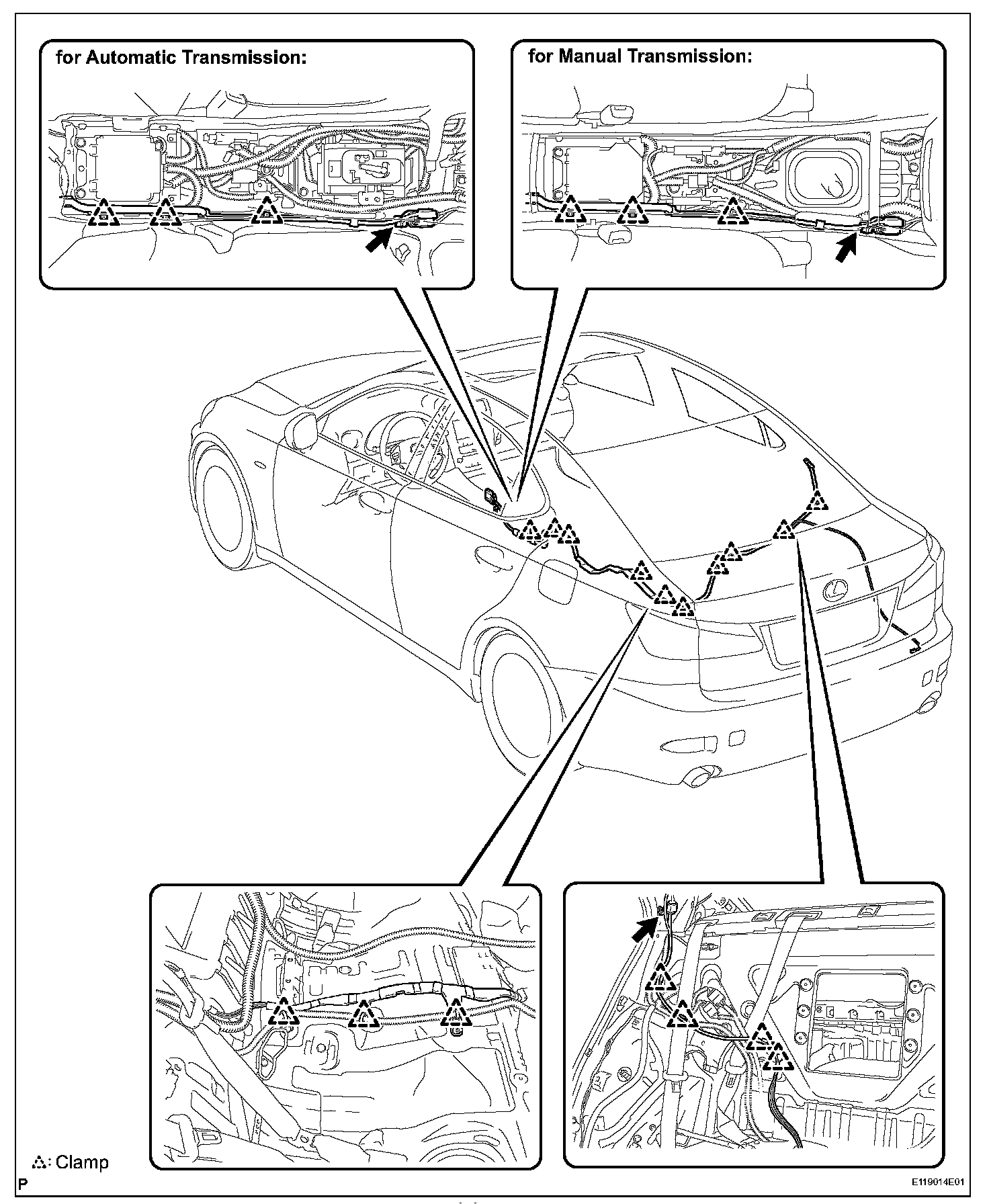

2. INSTALL ANTENNA CORD SUB-ASSEMBLY (w/ DVD Player)

a. Install the antenna cord sub-assembly with the 3 bolts.
b. Engage the 19 clamps.
c. Connect the connectors.

d. Engage the 3 clamps.
e. Connect the connectors.

3. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER (w/ DVD Player)
4. INSTALL LUGGAGE COMPARTMENT TRIM HOOK (w/ DVD Player)
5. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER (w/ DVD Player)
6. INSTALL ROPE HOOK (w/ DVD Player)
7. INSTALL ROOM LIGHT ASSEMBLY (w/ DVD Player)
8. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER (w/ DVD Player)
9. INSTALL ROPE HOOK ASSEMBLY (w/ DVD Player)
10. INSTALL DECK SIDE TRIM BOX LH (w/ DVD Player)
11. INSTALL DECK SIDE TRIM BOX RH (w/ DVD Player)
12. INSTALL LUGGAGE COMPARTMENT TRIM COVER (w/ DVD Player)
13. INSTALL ROOF SIDE INNER GARNISH
14. INSTALL REAR SIDE SEAT GARNISH
15. INSTALL REAR DOOR SCUFF PLATE
16. INSTALL REAR SEATBACK ASSEMBLY
17. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
18. INSTALL REAR SEAT HEADREST ASSEMBLY
19. INSTALL REAR SEAT CUSHION ASSEMBLY

20. INSTALL NO.2 ANTENNA CORD SUB-ASSEMBLY
a. Engage the clamp and install the No.2 antenna cord sub-assembly.

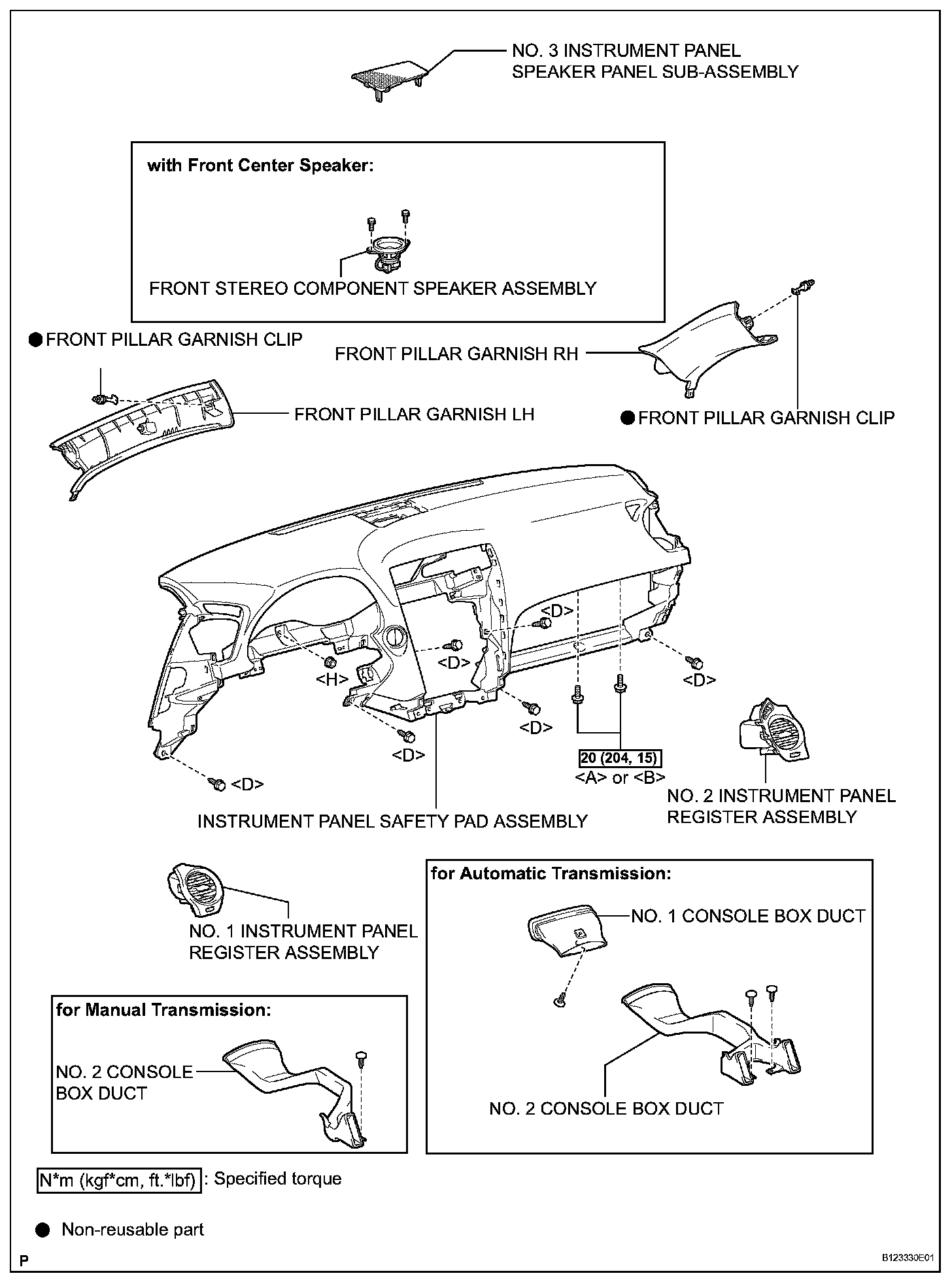

21. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY
22. CONNECT PASSENGER AIRBAG CONNECTOR
23. INSTALL NO.2 CONSOLE BOX DUCT (for Manual Transmission)
24. INSTALL NO.1 CONSOLE BOX DUCT (for Automatic Transmission)
25. INSTALL NO.2 CONSOLE BOX DUCT (for Automatic Transmission)
26. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY
27. INSTALL NO.3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
28. INSTALL NO.2 INSTRUMENT PANEL REGISTER ASSEMBLY
29. INSTALL NO.1 INSTRUMENT PANEL REGISTER ASSEMBLY
30. INSTALL FRONT PILLAR GARNISH LH
31. INSTALL FRONT PILLAR GARNISH RH
32. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
33. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
34. INSTALL NO.2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
35. INSTALL SIDE INSTRUMENT PANEL RH
36. INSTALL FRONT DOOR OPENING TRIM COVER RH
37. INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)
38. INSTALL FRONT DOOR SCUFF PLATE RH (w/ Illumination)
39. INSTALL COMBINATION METER ASSEMBLY
40. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
41. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
42. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
43. INSTALL NO.1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
44. INSTALL SIDE INSTRUMENT PANEL LH
45. INSTALL FRONT DOOR OPENING TRIM COVER LH
46. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination)
47. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination)

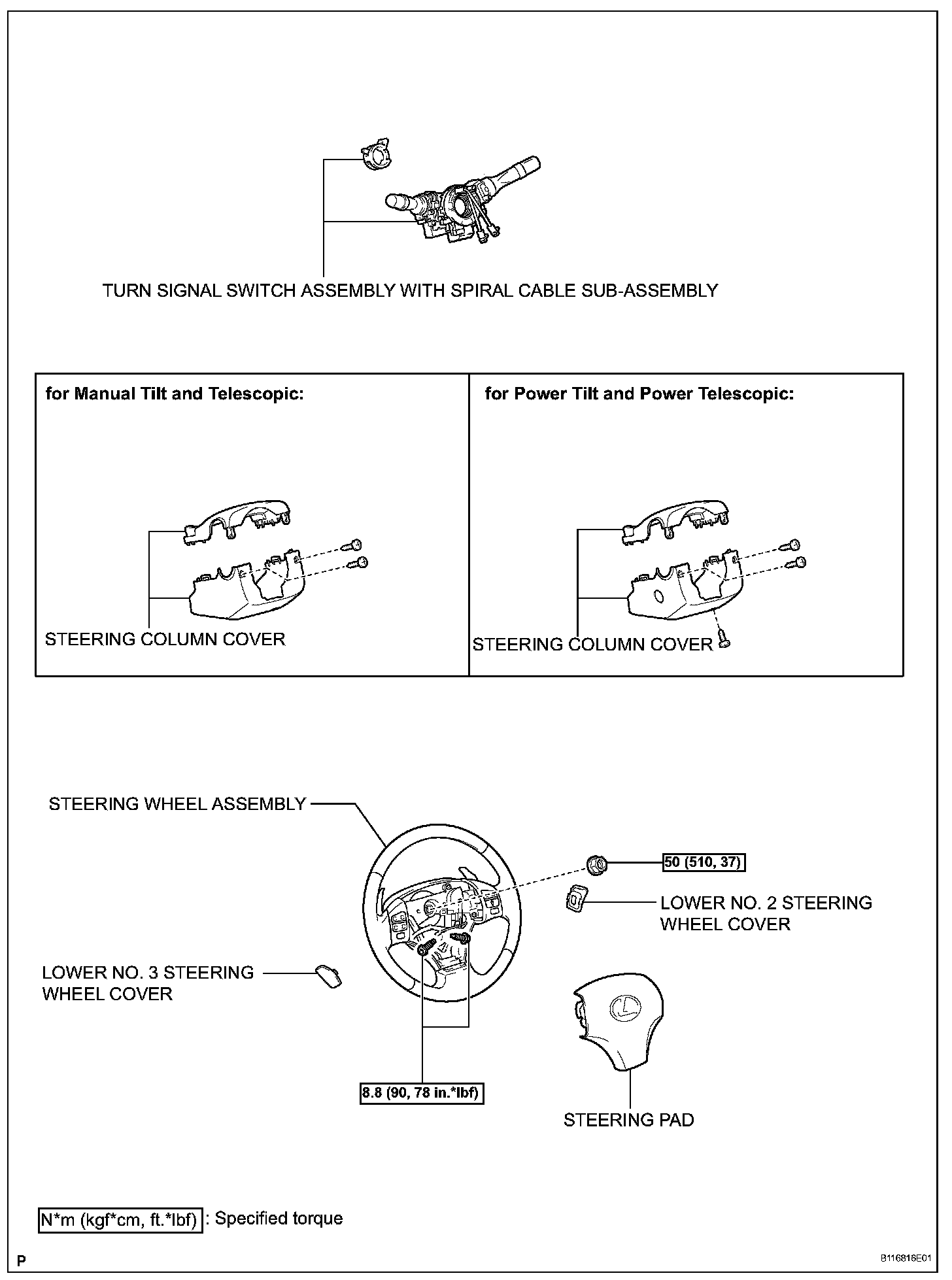

48. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
49. INSTALL STEERING COLUMN COVER (for Manual Tilt and Telescopic)
50. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic)
51. ADJUST SPIRAL CABLE SUB-ASSEMBLY
52. INSTALL STEERING WHEEL ASSEMBLY
53. INSTALL STEERING PAD
54. INSTALL LOWER NO.3 STEERING WHEEL COVER
55. INSTALL LOWER NO.2 STEERING WHEEL COVER

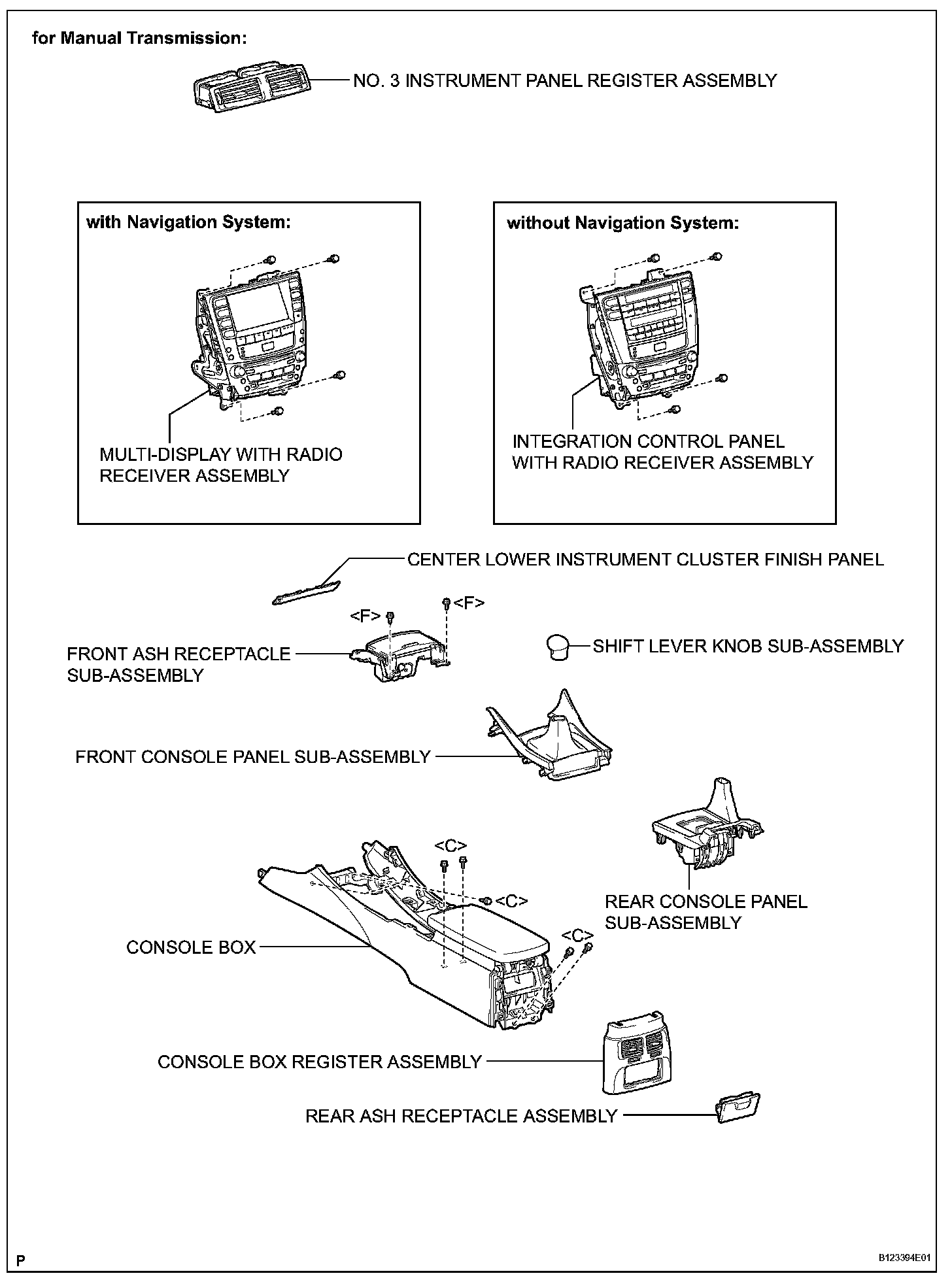

56. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)
57. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)
58. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
59. INSTALL NO.3 INSTRUMENT PANEL REGISTER ASSEMBLY
60. INSTALL CONSOLE BOX
61. INSTALL CONSOLE BOX REGISTER ASSEMBLY
62. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY
63. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
64. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
65. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
66. INSTALL UPPER NO.2 CONSOLE PANEL GARNISH (for Automatic Transmission)
67. INSTALL UPPER NO.1 CONSOLE PANEL GARNISH (for Automatic Transmission)
68. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
69. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
70. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
71. PERFORM INITIALIZATION

NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal.

72. INSPECT STEERING PAD
73. INSPECT SRS WARNING LIGHT
