Part 2

AUTOMATIC TRANSMISSION UNIT

COMPONENTS:

REASSEMBLY (Steps 32 - 63)
32. INSTALL CLUTCH DRUM AND INPUT SHAFT

a. Install the thrust needle roller bearings and thrust washer.
b. Coat the race with petroleum jelly and install it onto the clutch drum and input shaft assembly.

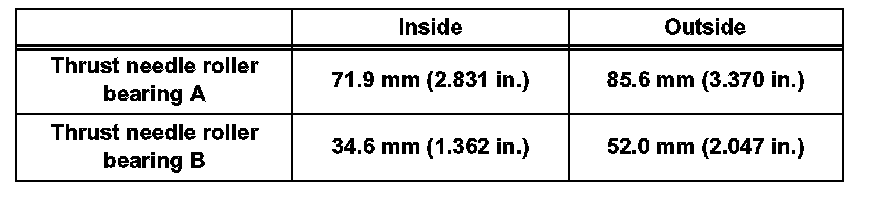

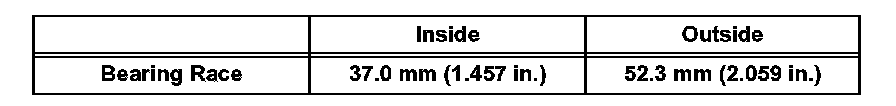

Thrust Needle Roller Bearing And Diameter:

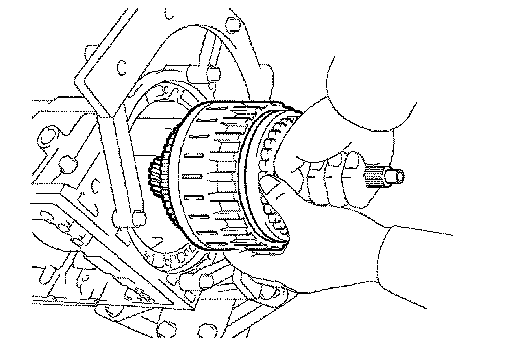

c. Install the clutch drum and input shaft onto the transmission case.

33. INSTALL OIL PUMP ASSEMBLY

a. Install the thrust bearing race No. 1 to the front oil pump.

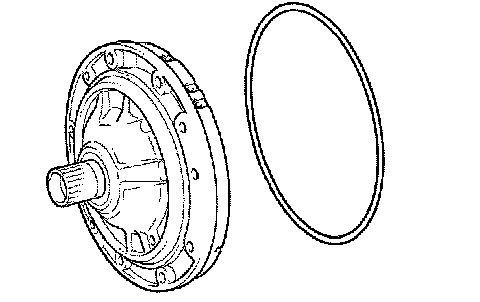

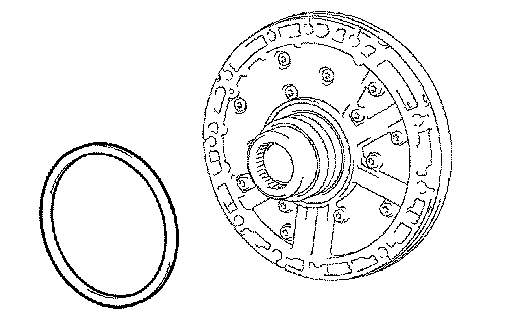

b. Coat a new O-ring with ATF, and install it around the oil pump assembly.
c. Place the oil pump through the input shaft, and align the bolt holes of the oil pump assembly with the transmission case.

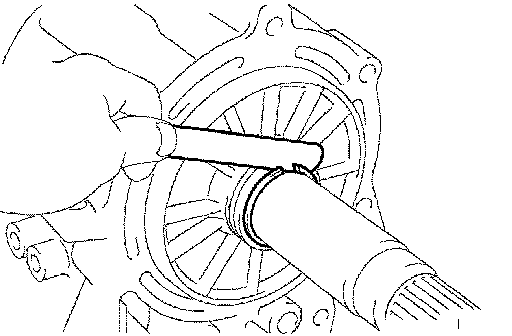

d. Hold the input shaft, and lightly press the oil pump body to slide the oil seal rings into the overdrive direct clutch drum.

e. Install the 10 bolts.
Torque: 21 Nm (214 kgf-cm, 15 ft. lbs.)

34. INSTALL MANUAL VALVE LEVER SHAFT OIL SEAL

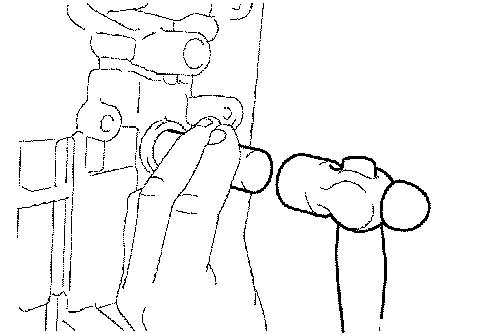

a. Using SST, drive in 2 new oil seals.
SST 09350-30020 (09350-07110)
b. Coat the oil seal lips with MP grease.

35. INSPECT INDIVIDUAL PISTON OPERATION
36. INSTALL MANUAL VALVE LEVER SUB-ASSEMBLY

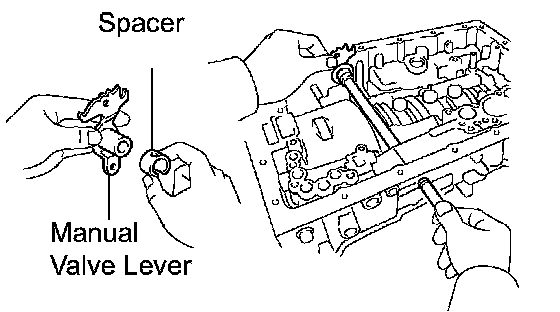

a. Install a new spacer to the manual valve lever.
b. Install the manual valve lever shaft to the transmission case through the manual valve lever.

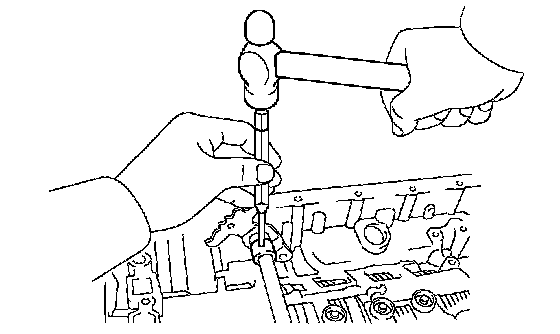

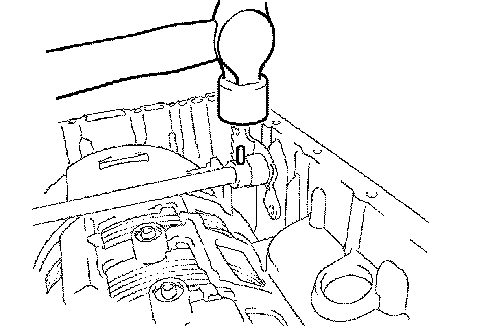

c. Using a hammer, drive in a new spring pin.

d. Align the manual valve lever indentation with the spacer hole, and stake them together with the punch.
e. Make sure that the shaft rotates smoothly.

37. INSTALL PARKING LOCK PAWL SHAFT
a. Install the E-ring to the shaft.

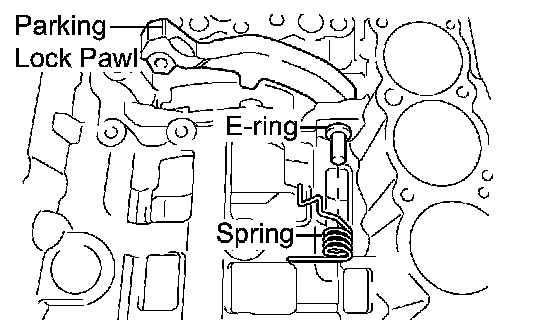

b. Install the parking lock pawl, the shaft and the spring.

38. INSTALL PARKING LOCK ROD SUB-ASSEMBLY
a. Connect the parking lock rod to the manual valve lever.

39. INSTALL PARKING LOCK PAWL BRACKET

a. Place the parking lock pawl bracket onto the transmission case and tighten the 3 bolts.
Torque: 7.4 Nm (75 kgf-cm, 65 inch lbs.)

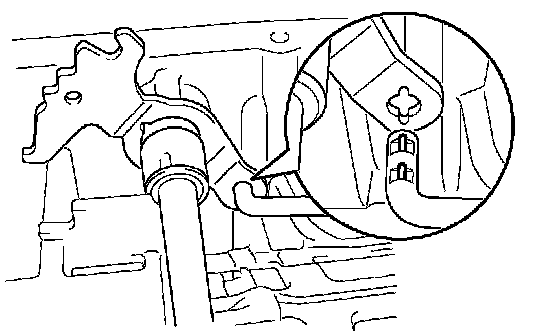

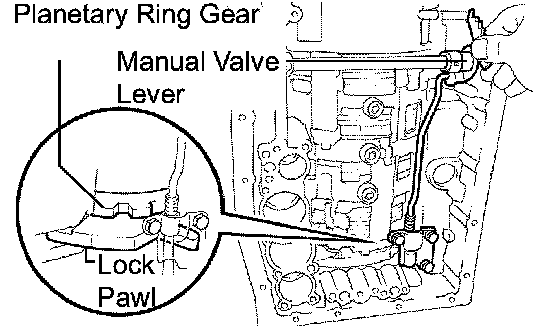

b. Shift the manual valve lever to the P position, and confirm the planetary gear is correctly locked up by the lock pawl.

40. INSTALL B-1 ACCUMULATOR VALVE

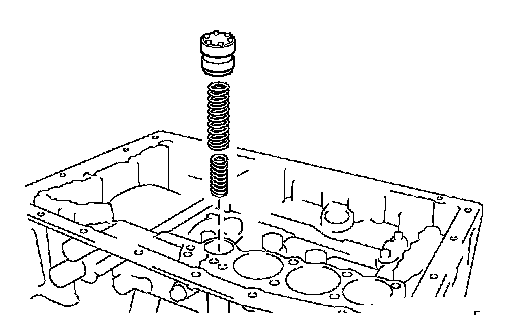

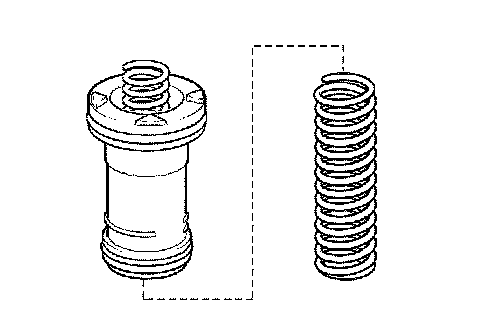

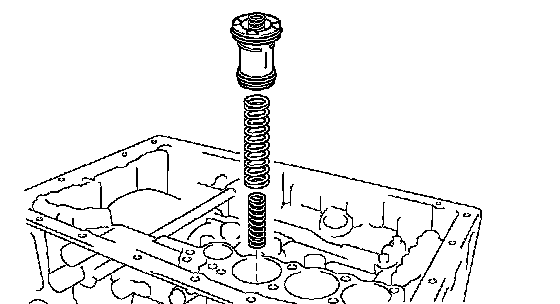

a. Install the 2 springs and the accumulator valve to the hole.

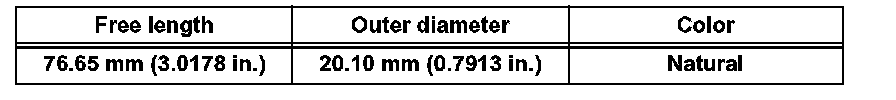

Inner Spring:

Outer Spring:

41. INSTALL C-3 ACCUMULATOR PISTON

a. Coat 2 new O-rings with ATF, and install them to the piston.

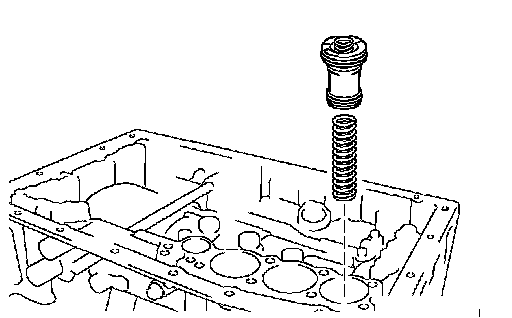

b. Install the 2 springs and the accumulator piston to the hole.

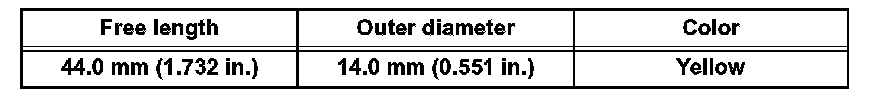

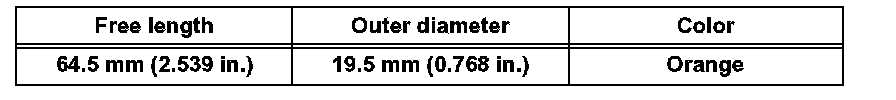

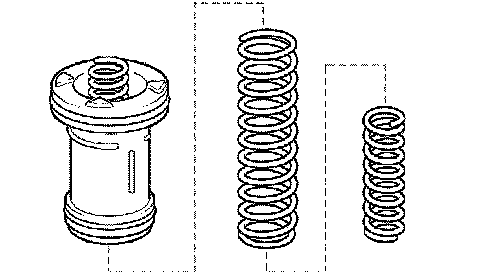

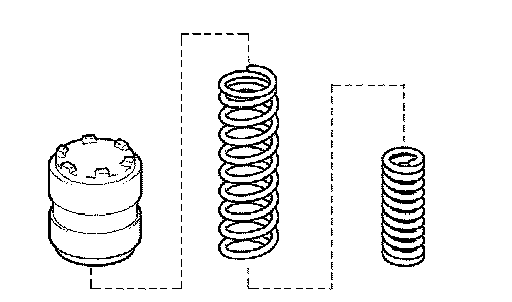

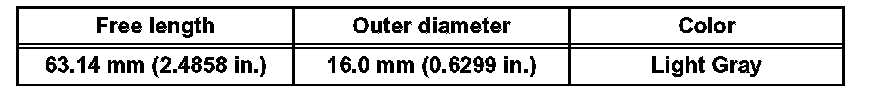

C-3 accumulator spring

Inner Spring:

Outer Spring:

42. INSTALL B-3 ACCUMULATOR PISTON

a. Coat 2 new O-rings with ATF, and install them to the piston.

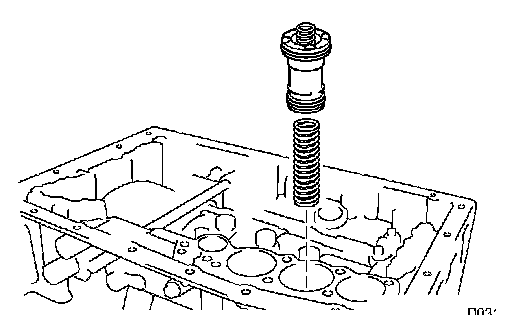

b. Install the spring and the accumulator piston to the hole.

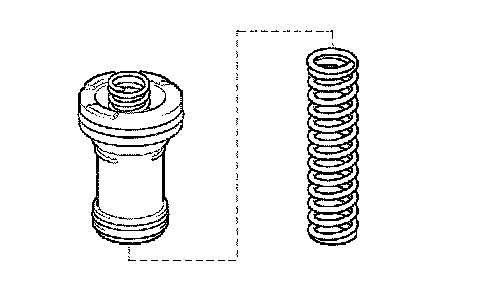

Accumulator Spring:

43. INSTALL C-2 ACCUMULATOR PISTON

a. Coat 2 new O-rings with ATF, and install them to the piston.

b. Install the spring and the accumulator piston to the hole.

Accumulator Spring:

44. INSTALL CHECK BALL BODY

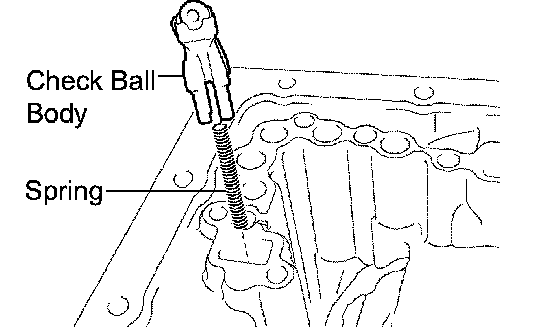

a. Install the check ball body and the spring.

45. INSTALL BRAKE DRUM GASKET

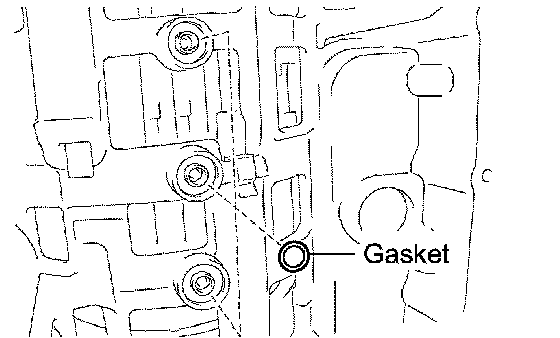

a. Install the 3 brake drum gaskets.

46. INSTALL TRANSAXLE CASE GASKET
a. Install the 3 transaxle case gaskets.

47. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

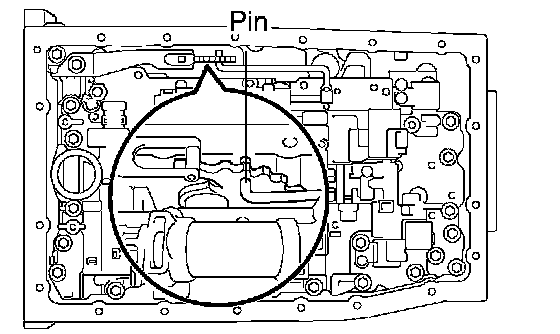

a. Align the groove of the manual valve lever with the pin of the manual valve.

b. Install the 20 bolts.
Torque: 11 Nm (110 kgf-cm, 8 ft. lbs.)

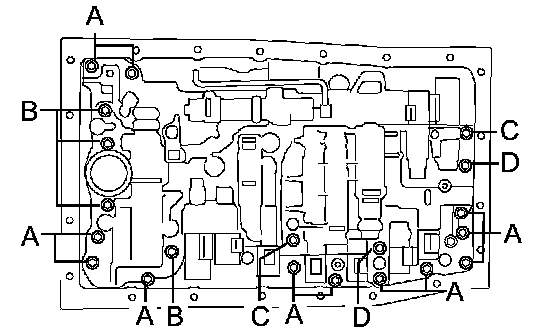

HINT: Each bolt length is indicated below.
Bolt length:
Bolt A: 25 mm (0.98 inch)
Bolt B: 36 mm (1.42 inch)
Bolt C: 45 mm (1.77 inch)
Bolt D: 50 mm (1.97 inch)

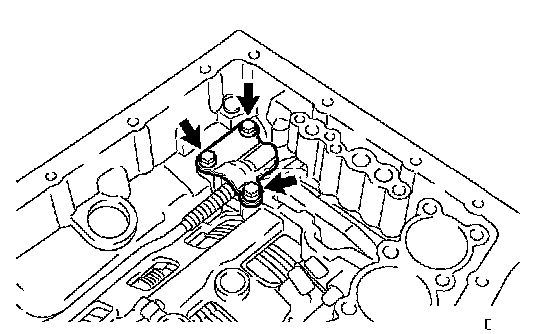

c. Install the detent spring and the detent spring cover with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft. lbs.)

48. INSTALL TRANSMISSION WIRE

a. Install a new O-ring to the transmission wire.
b. Install the transmission wire.
c. Install the bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)

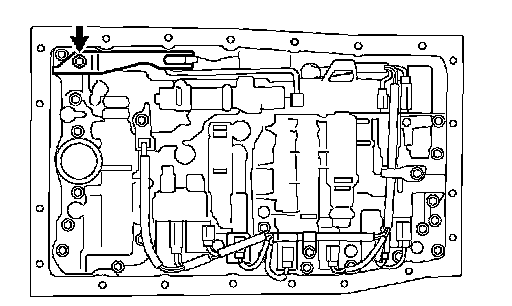

d. Connect the 9 solenoid connectors.

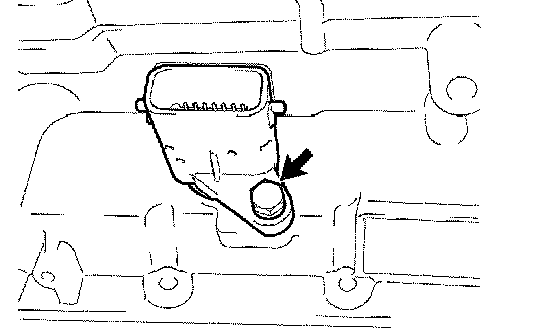

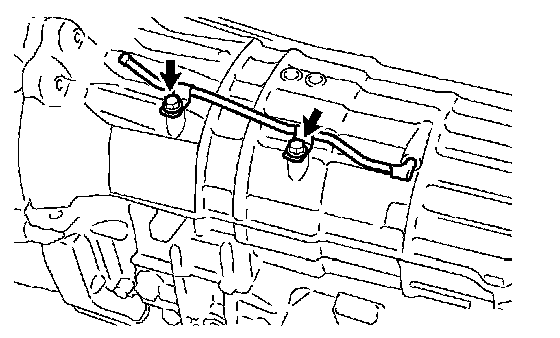

e. Install the ATF temperature sensor and clamp with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft. lbs.)

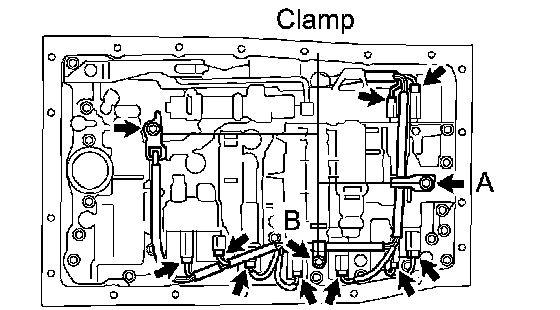

Install the clamps with the 2 bolts.
Torque:
Bolt A 6.4 Nm (65 kgf-cm, 57 inch lbs.)
Bolt B 10 Nm (102 kgf-cm, 7 ft. lbs.)

49. INSTALL VALVE BODY OIL STRAINER ASSEMBLY
a. Coat a new O-ring with ATF, and install it to the valve body oil strainer assembly.

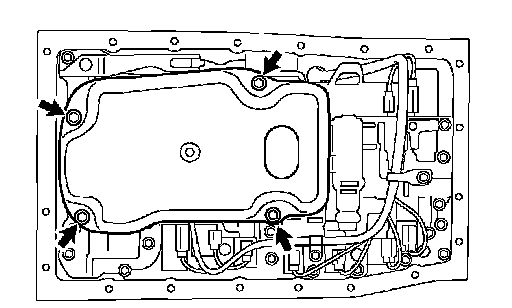

b. Install the oil strainer with the 4 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft. lbs.)

50. INSTALL TRANSMISSION OIL CLEANER MAGNET

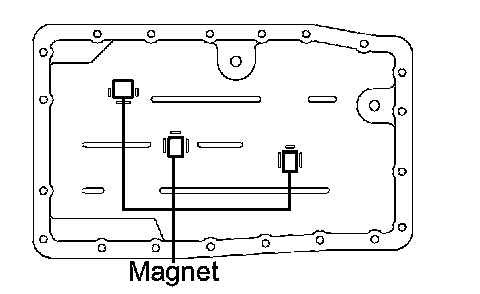

a. Install the 3 transmission oil cleaner magnets.

51. INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
a. Install a new gasket on the oil pan.
b. Install and tighten the 20 bolts.
Torque: 4.4 Nm (45 kgf-cm, 39 inch lbs.)
c. Install a new gasket and the drain plug.
Torque: 20 Nm (204 kgf-cm, 15 ft. lbs.)
d. Install a new gasket and the over flow plug.
Torque: 20 Nm (204 kgf-cm, 15 ft. lbs.)

52. INSTALL AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL

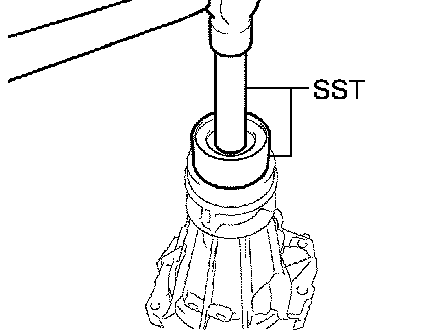

a. Using SST and a hammer, install a new oil seal.
SST 09309-37010

53. INSTALL TRANSMISSION CASE ADAPTOR RADIAL BALL BEARING

54. INSTALL RR COVER SLEEVE

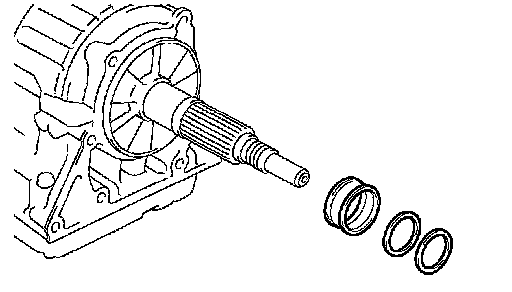

a. Install the 2 washers and RR cover sleeve to the output shaft.

55. INSTALL ALL EXTENSION (ATM) HOUSING SUB-ASSEMBLY

a. Install the thrust needle roller bearing and the 2 bearing races.

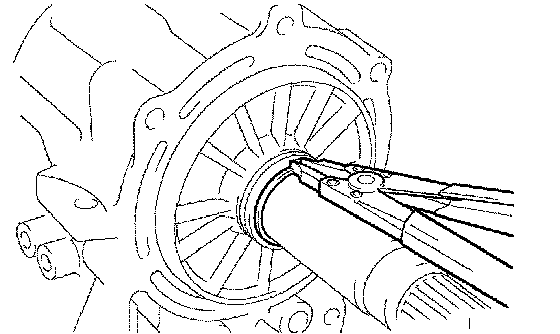

b. Using a snap ring expander, install a new snap ring.

c. Using a feeler gauge, measure the clearance between the snap ring and the race.
Clearance: 0.02 to 0.12 mm (0.0008 to 0.0047 inch)
If the clearance is outside the standard, select another race that brings the clearance within the standard.

HINT:

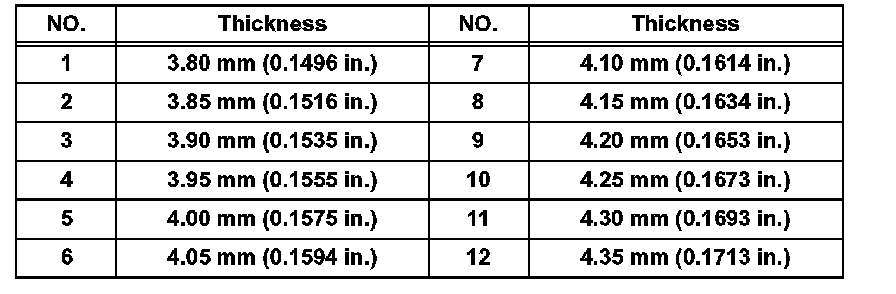

There are 12 different thicknesses for the race.

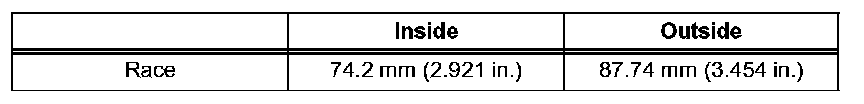

Flange Thickness:

d. Clean the threads of the bolts and the case with solvent.

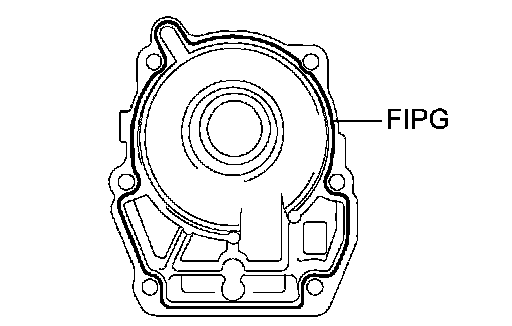

e. Apply FIPG to the extension housing as shown in the illustration.
FIPG: Part No. 08826-00090, THREE BOND 1281 or equivalent

f. Install the extension housing with 6 new bolts.
Torque: 34 Nm (347 kgf-cm, 25 ft. lbs.)

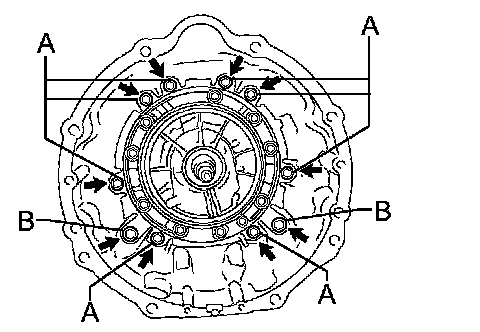

HINT: Each bolt length is indicated below.
Bolt length:
Bolt A: 45 mm (1.772 mm)
Bolt B: 35 mm (1.378 mm)

56. INSTALL AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY

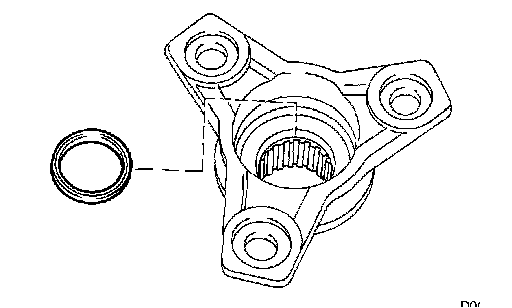

a. Using SST, install a new oil seal to the automatic transmission flange yoke.
SST 09950-60010 (09951-00350), 09950-70010 (09951-07100)
b. Install the automatic transmission flange yoke to the output shaft with a new nut.
Torque: 126 Nm (1,285 kgf-cm, 93 ft. lbs.)
c. Using a hammer and chisel, stake the nut.

57. INSTALL AUTOMATIC TRANSMISSION HOUSING
a. Clean the threads of the bolts and the case with solvent.
b. Install the transmission housing with the 10 bolts.
Torque:

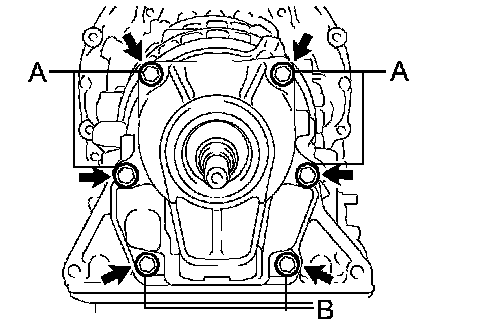

A (14 mm bolt) 34 Nm (347 kgf-cm, 25 ft. lbs.)
B (17 mm bolt) 57 Nm (581 kgf-cm, 42 ft. lbs.)

58. INSTALL AUTOMATIC TRANSMISSION BREATHER TUBE
a. Install the breather tube.
b. Install the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)

59. INSTALL TRANSMISSION REVOLUTION SENSOR
a. Coat 2 new O-rings with ATF, and install them to the transmission revolution sensors.
b. Install the 2 transmission revolution sensors.
c. Install the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)

60. INSTALL OIL COOLER TUBE UNION
a. Coat 2 new O-rings with ATF, and install them to oil cooler tube unions.

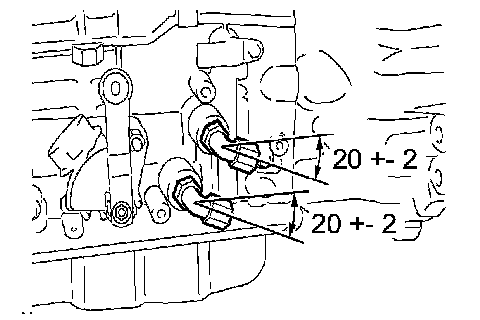

b. Install the oil cooler tube unions as shown in the illustration.
Torque: 29 Nm (296 kgf-cm, 21 ft. lbs.)

61. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY

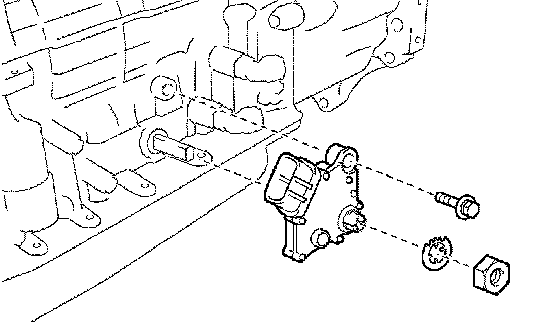

a. Install the park/neutral position switch onto the manual valve lever shaft, and temporarily install the adjusting bolt.
b. Install a new lock washer. Install and tighten the nut.
Torque: 6.9 Nm (70 kgf-cm, 61 inch lbs.)

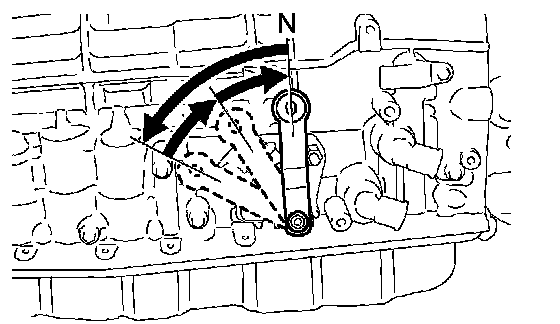

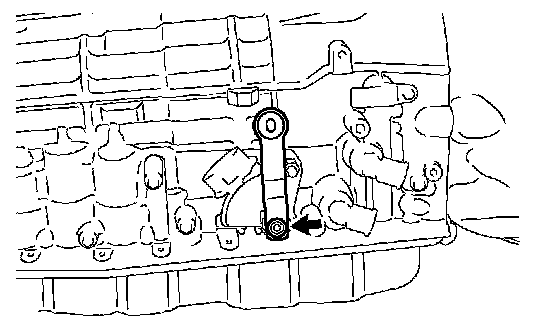

c. Using the control shaft lever, turn the manual lever shaft back all the way and then forward 2 notches. It is now in neutral.

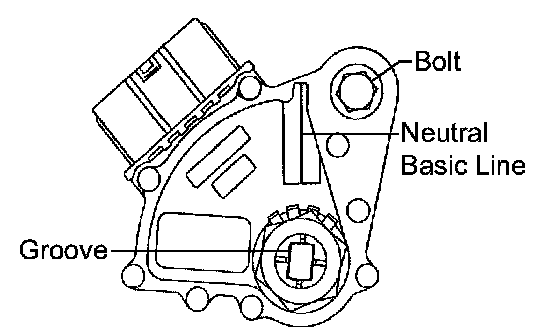

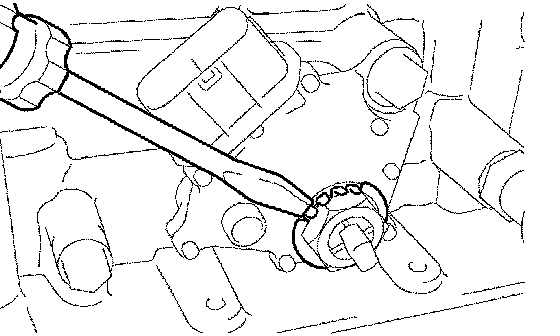

d. Align the neutral basic line with the switch groove as shown in the illustration, and tighten the adjusting bolt.
Torque: 13 Nm (130 kgf-cm, 9 ft. lbs.)

e. Using a screwdriver, bend the tabs of the lock washer.

HINT:
Bend at least 2 of the lock washer tabs.

62. INSTALL TRANSMISSION CONTROL SHAFT LEVER RH
a. Install the control shaft lever RH, spring washer and the nut.
Torque: 16 Nm (163 kgf-cm, 12 ft. lbs.)

63. REMOVE TRANSAXLE CASE COVER UPPER
a. Install the transaxle case cover upper with the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
