GS 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Description and Operation
Fuel Delivery and Air Induction: Description and Operation

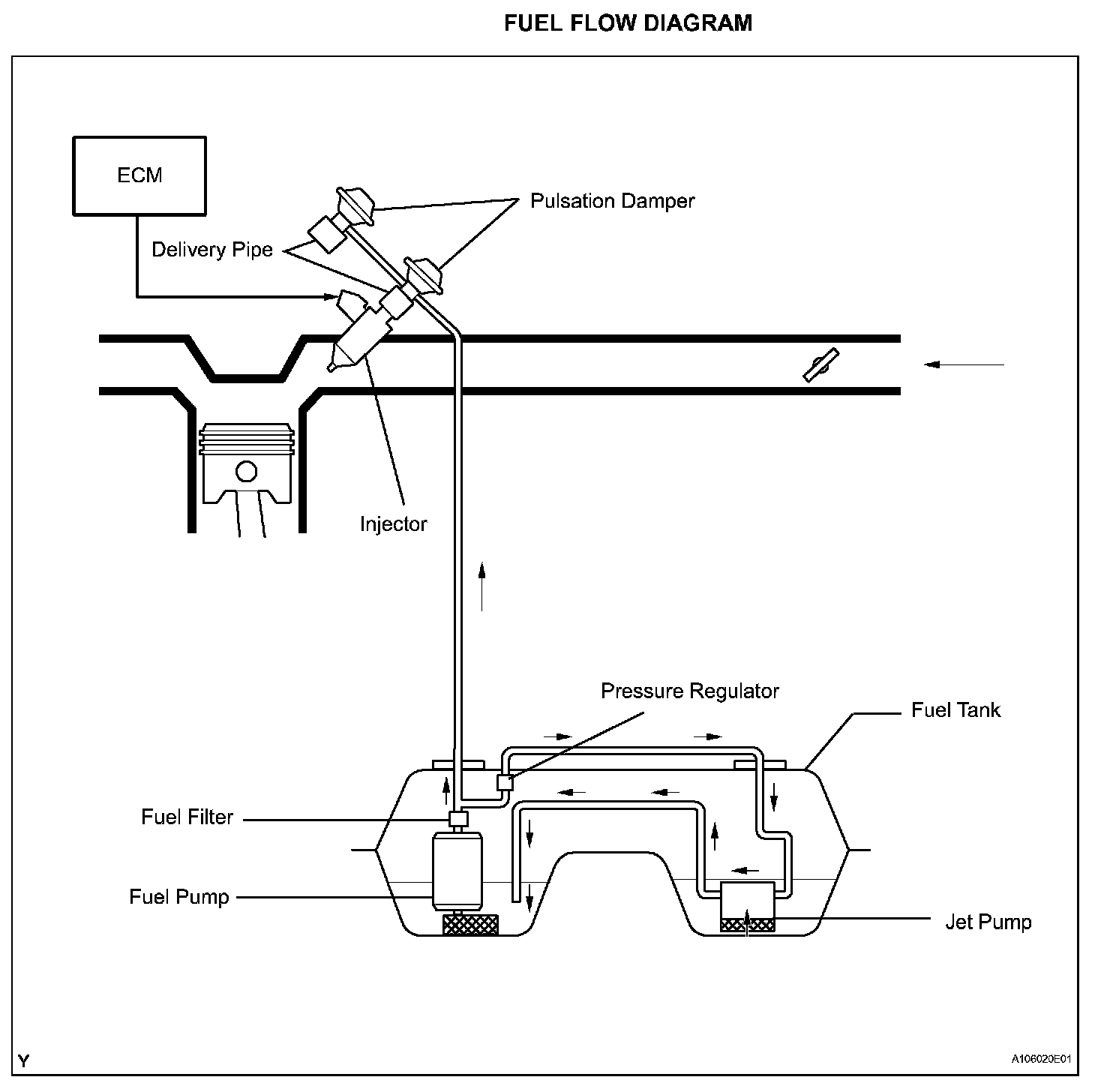

System Diagram-Fuel Flow Diagram:

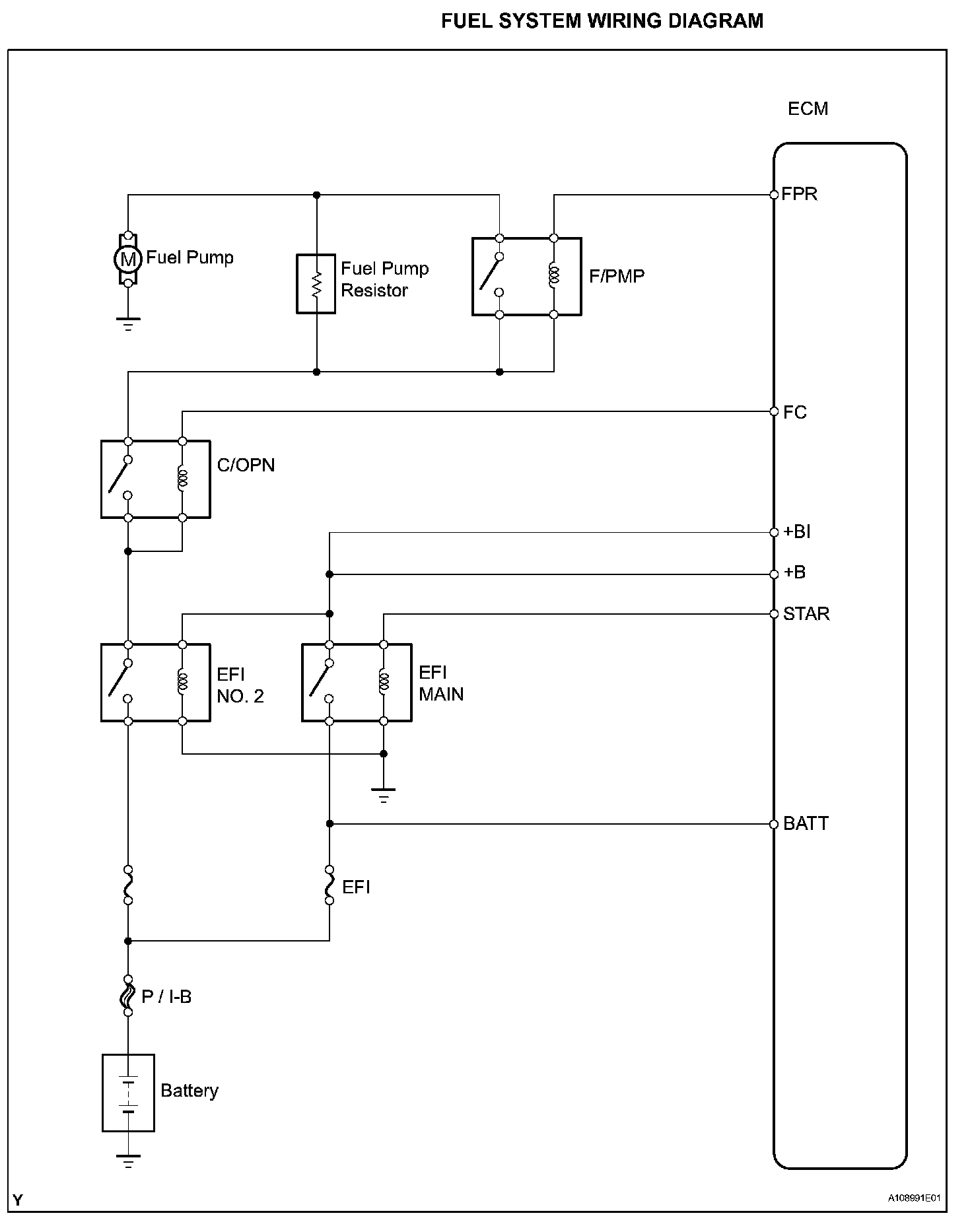

System Diagram-Fuel System Wiring Diagram:

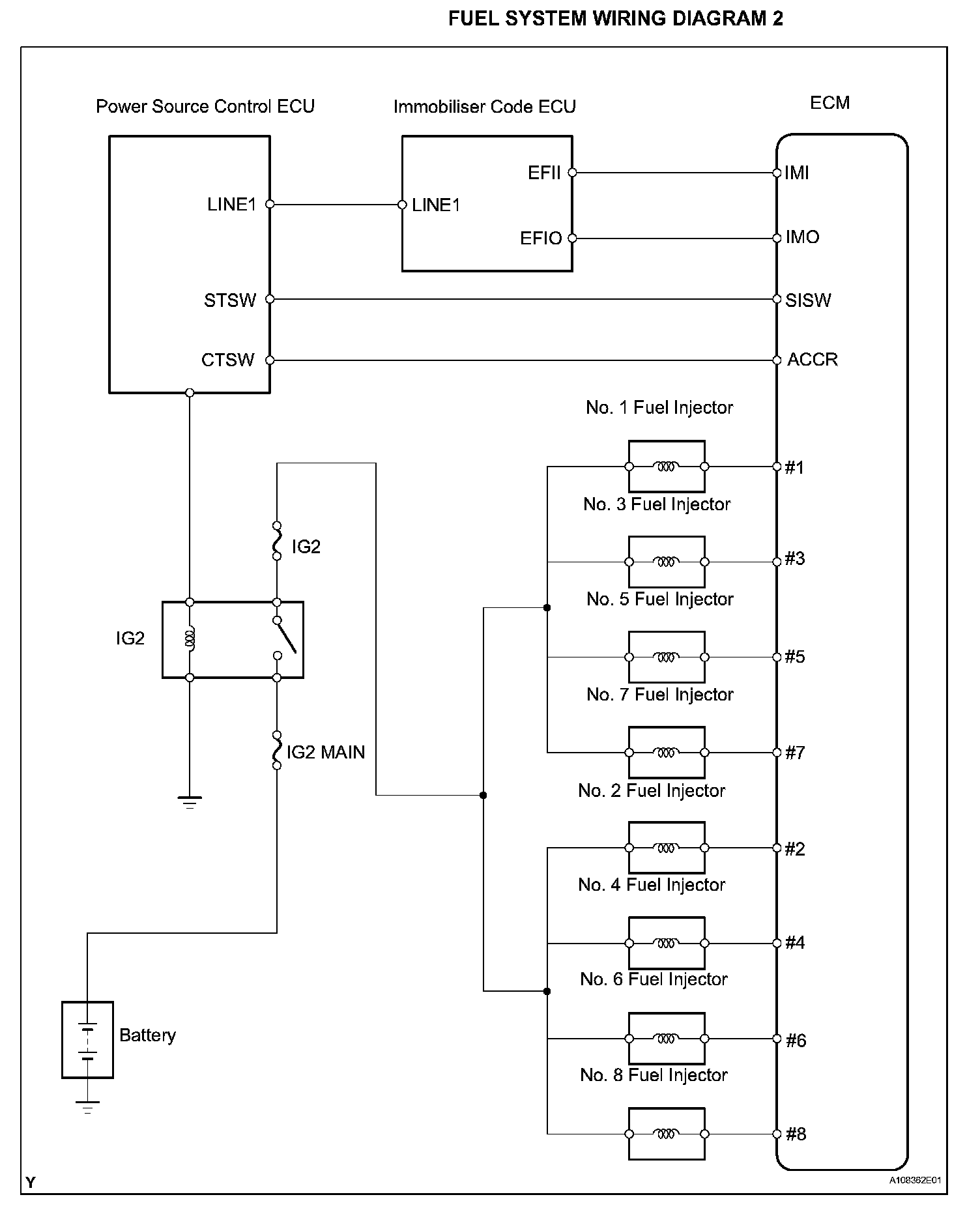

System Diagram-Fuel System Wiring Diagram 2:
