Positive Crankcase Ventilation Valve: Service and Repair
REMOVAL1. REMOVE V-BANK COVER
a. Remove the 2 nuts and cover.
2. REMOVE COOL AIR INTAKE DUCT SEAL
3. REMOVE ENGINE ROOM SIDE COVER RH
4. REMOVE INTAKE AIR CONNECTOR PIPE
a. Disconnect the air hose and ventilation hose.
b. Loosen the 2 hose clamps.
c. Remove the bolt and intake air connector.
5. REMOVE VENTILATION VALVE SUB-ASSEMBLY
a. Disconnect the ventilation hose from the valve.
b. Remove the valve.
INSTALLATION
1. INSTALL VENTILATION VALVE SUB-ASSEMBLY
a. Install the valve.

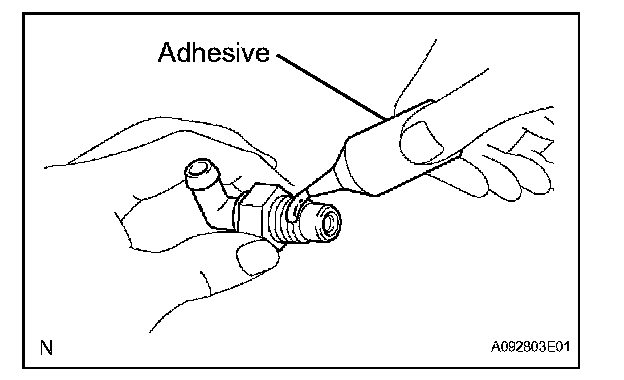

1. Apply adhesive to 2 or 3 threads.
Adhesive: THREE BOND 1324 or equivalent
2. Install the valve.
Torque: 27 N.m (275 kgf.cm, 20 ft.lbf)
b. Connect the hose to the valve.
2. INSTALL INTAKE AIR CONNECTOR PIPE
a. Connect the air hose and ventilation hose.
b. Install the bolt and intake air connector pipe with the bolt.
Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)
c. Tighten the 2 hose clamps.
3. INSTALL ENGINE ROOM SIDE COVER RH
4. INSTALL COOL AIR INTAKE DUCT SEAL
5. INSTALL V-BANK COVER
a. Install the cover with the 2 nuts.
Torque: 5.0 N.m (51 kgf.cm, 44 ft.lbf)
