Windshield Washer Spray Nozzle: Adjustments

ADJUSTMENT

1. REMOVE WASHER NOZZLE SUB-ASSEMBLY

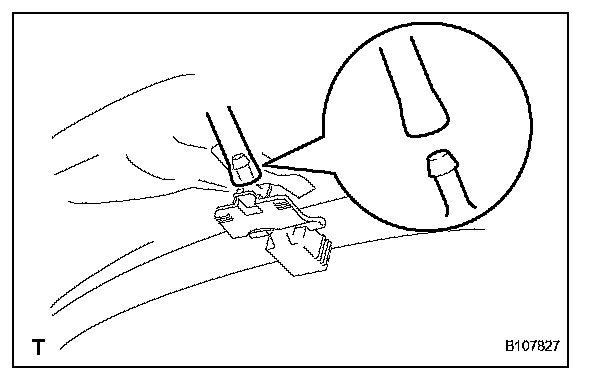

a. Using a screwdriver, detach the 2 claws and separate the washer nozzle.

HINT: Tape the screwdriver tip before use.

NOTE: Be careful not to damage the windshield.




b. Remove the washer nozzle from the washer hose.

NOTE: Washer nozzles cannot be reused.

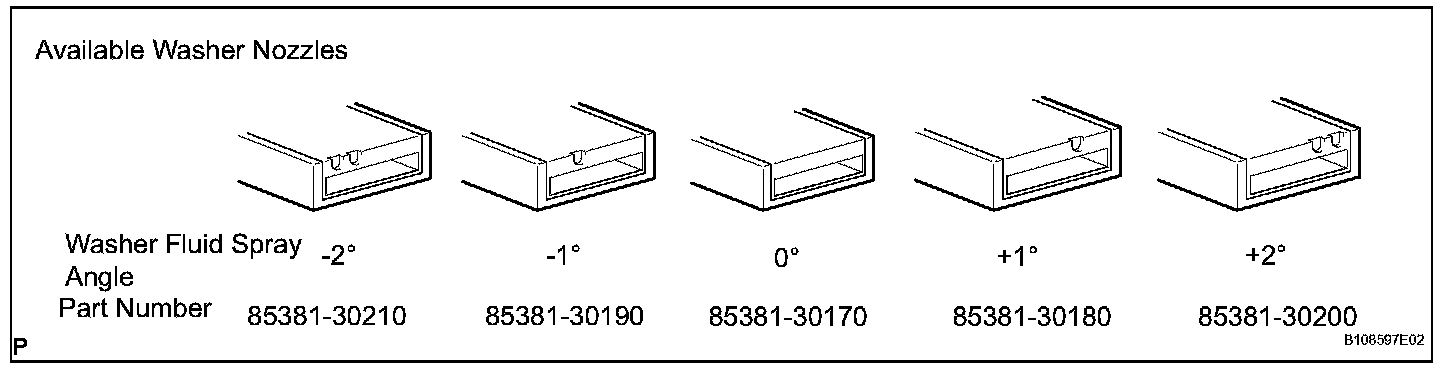

c. Select a washer nozzle so that the contact area is within the standard. Replace the washer nozzle with the selected one.
