Problem Symptoms Table - Axle System
AXLE SYSTEM

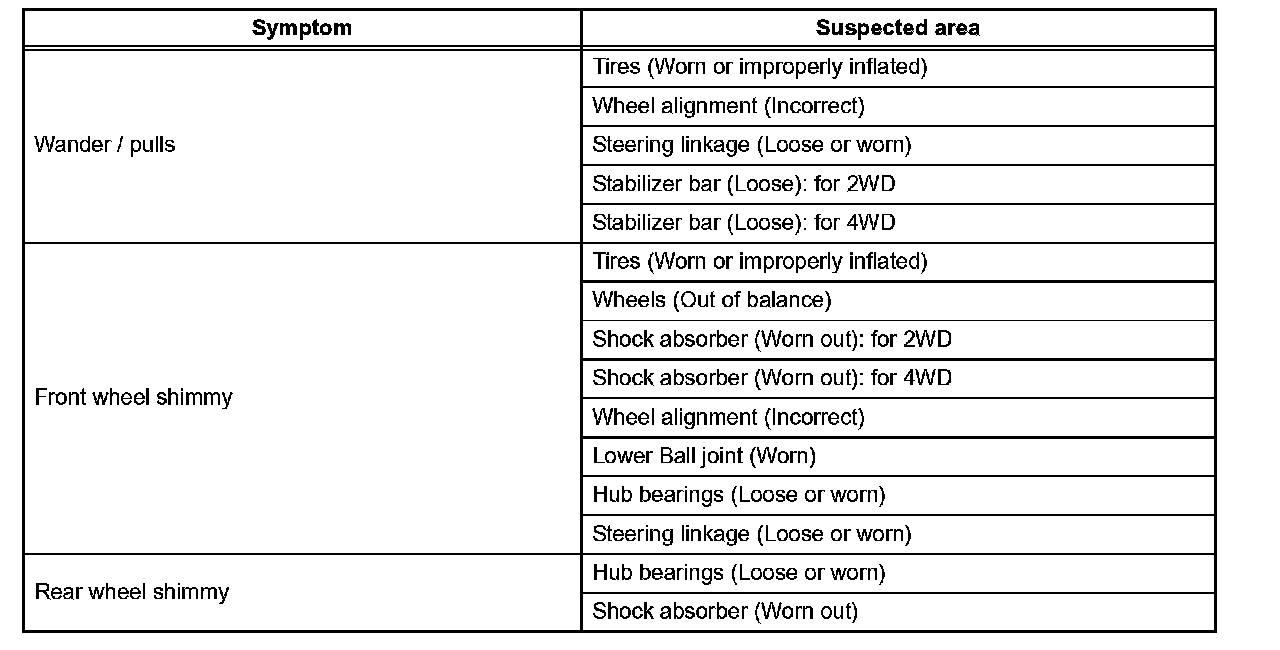

PROBLEM SYMPTOMS TABLE:
Use the table to help find the cause of the problem. Check each part. If necessary, replace these parts.
