Valve Body: Service and Repair

VALVE BODY ASSEMBLY

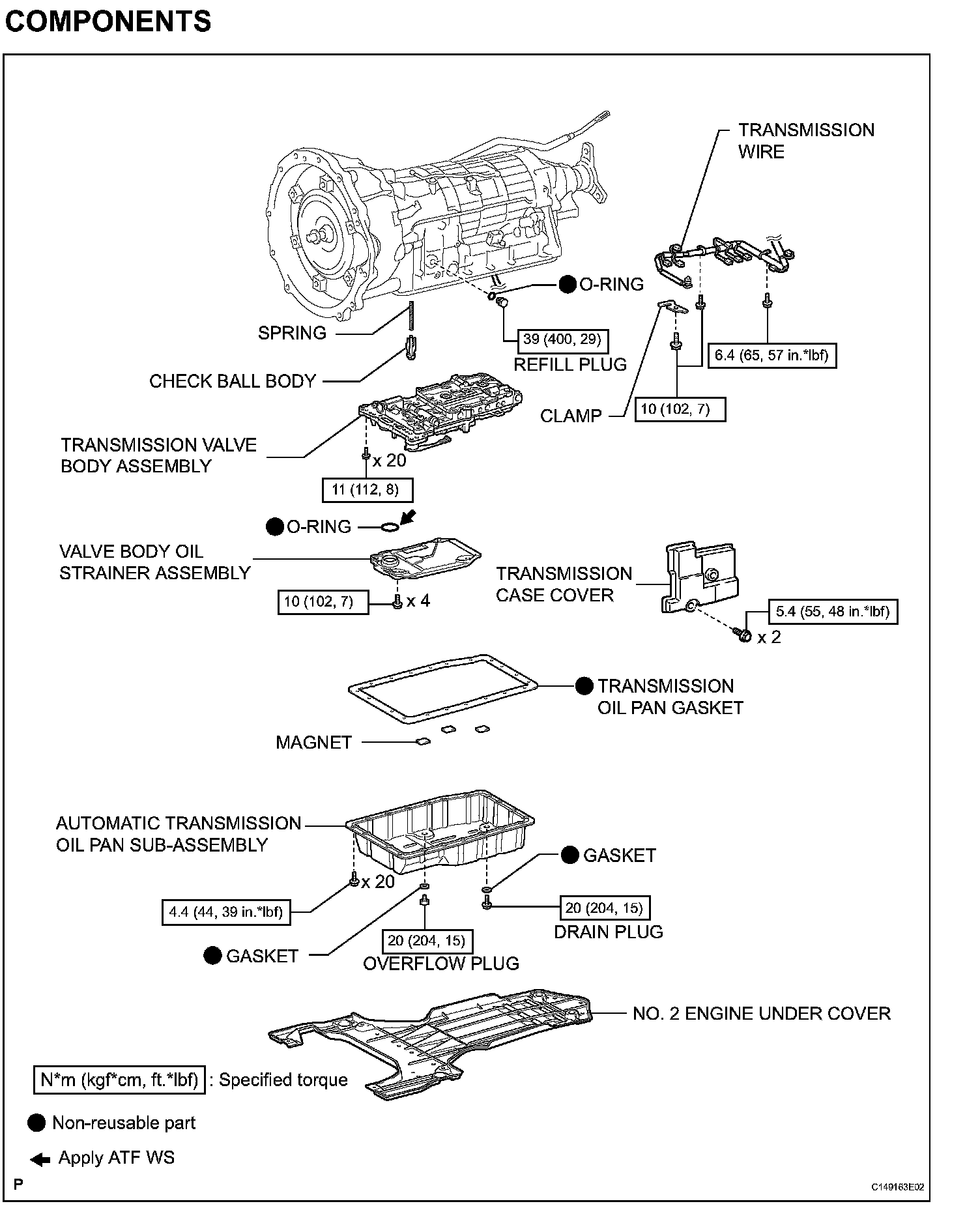

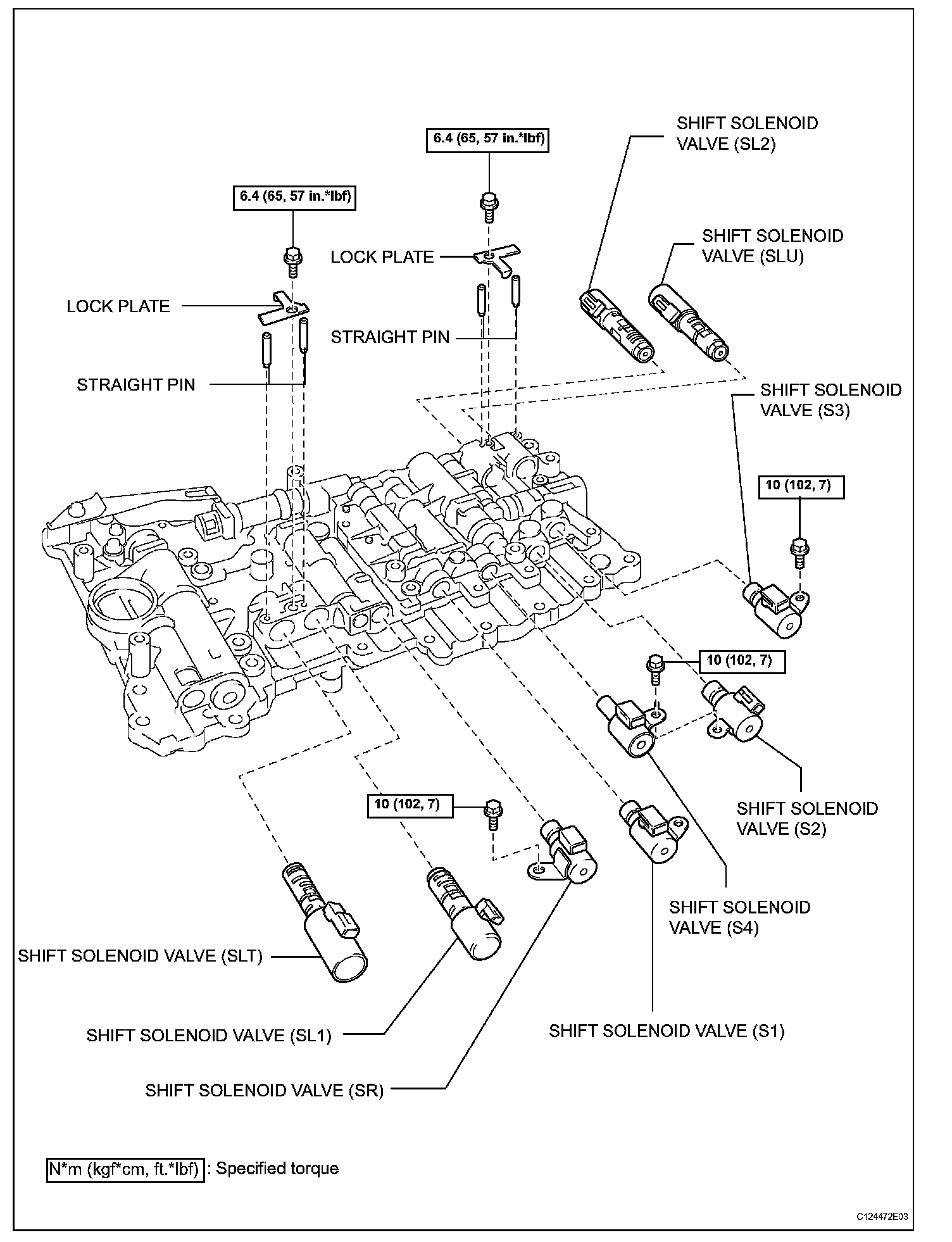

COMPONENTS (Part 1):

COMPONENTS (Part 2):

REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE NO. 2 ENGINE UNDER COVER
3. DRAIN AUTOMATIC TRANSMISSION FLUID
4. REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
5. REMOVE VALVE BODY OIL STRAINER ASSEMBLY
6. DISCONNECT TRANSMISSION WIRE
7. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

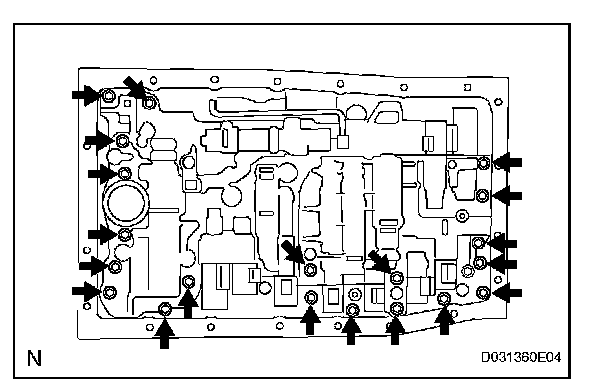

(a) Remove the 20 bolts and valve body.

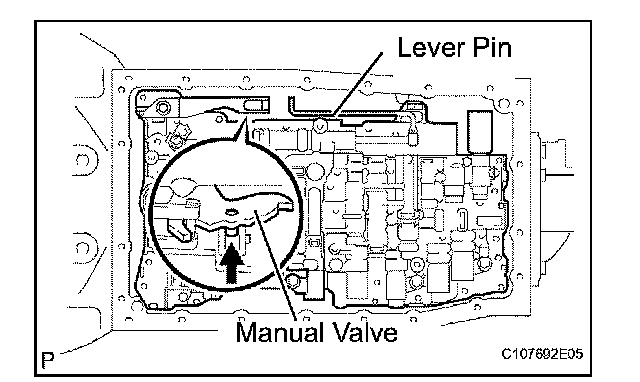

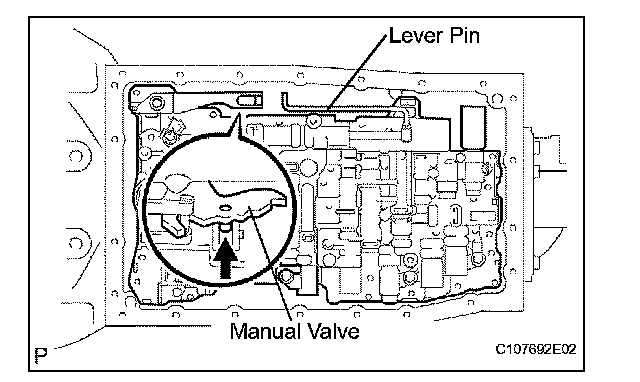

(b) Disconnect the lever pin from the manual valve.

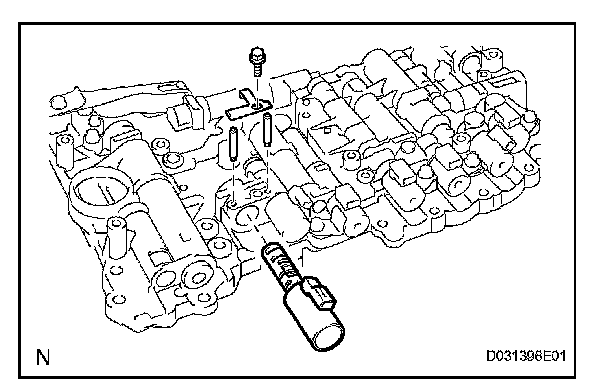

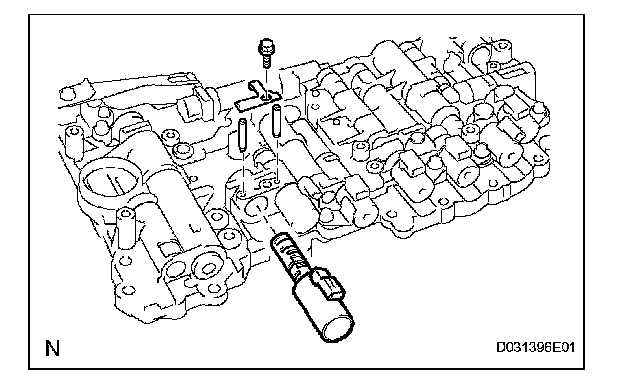

1. REMOVE SHIFT SOLENOID VALVE (SL2)
(a) Remove the bolt, the 2 straight pins, and the lock plate.
(b) Remove the shift solenoid valve.

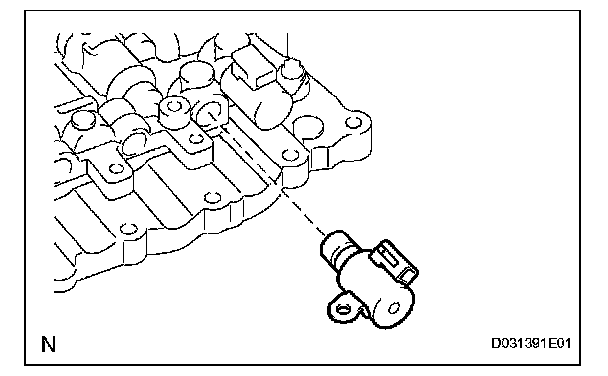

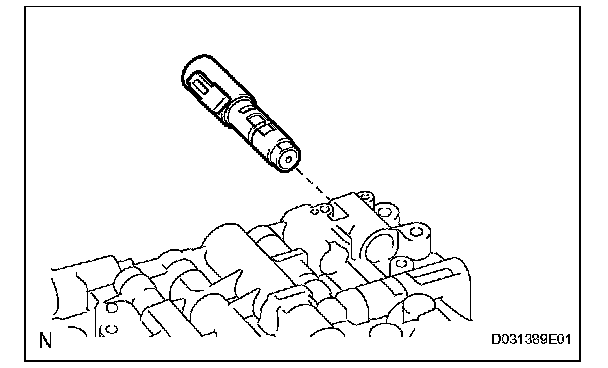

2. REMOVE SHIFT SOLENOID VALVE (SLU)
(a) Remove the shift solenoid valve.

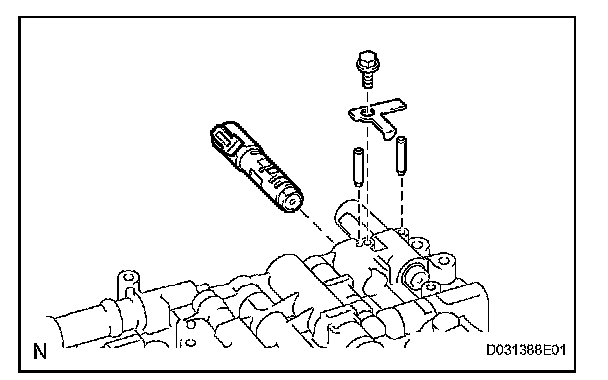

3. REMOVE SHIFT SOLENOID VALVE (SLT)
(a) Remove the bolt, the 2 straight pins, and the lock plate.
(b) Remove the shift solenoid valve.

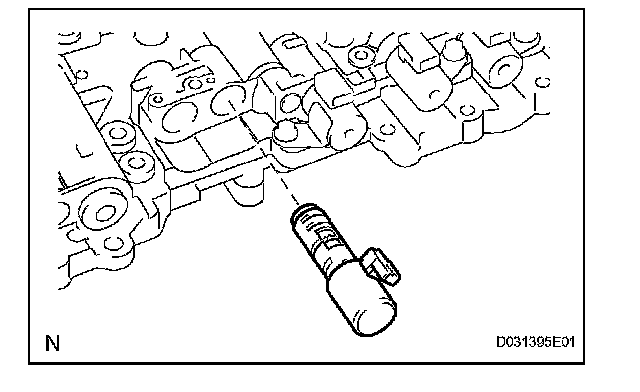

4. REMOVE SHIFT SOLENOID VALVE (SL1)
(a) Remove the shift solenoid valve SL1.

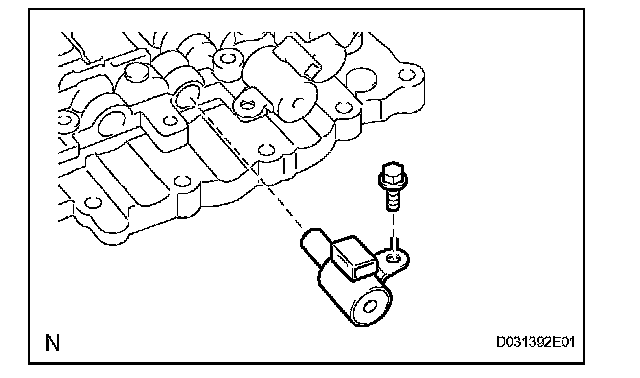

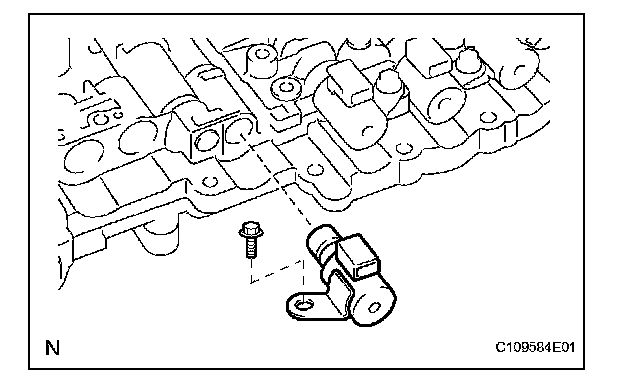

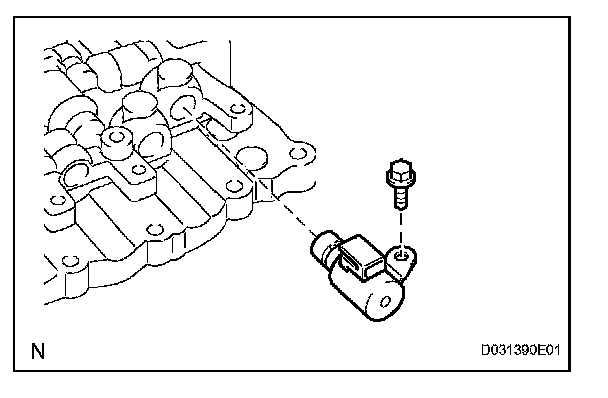

5. REMOVE SHIFT SOLENOID VALVE (SR)
(a) Remove the bolt and shift solenoid valve.

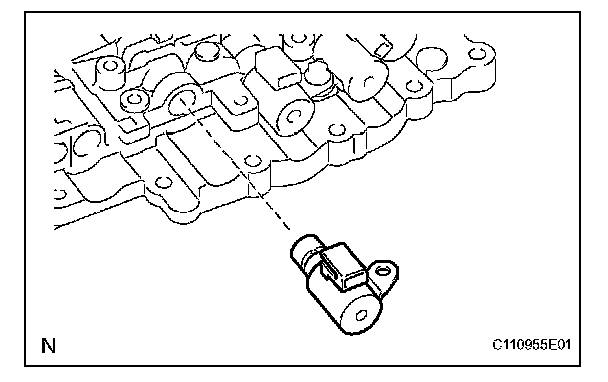

6. REMOVE SHIFT SOLENOID VALVE (S1)
(a) Remove the shift solenoid valve.

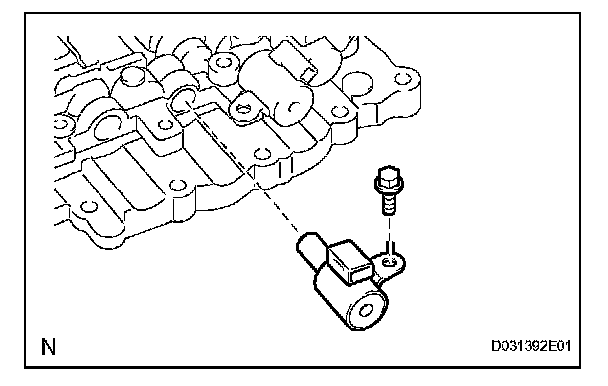

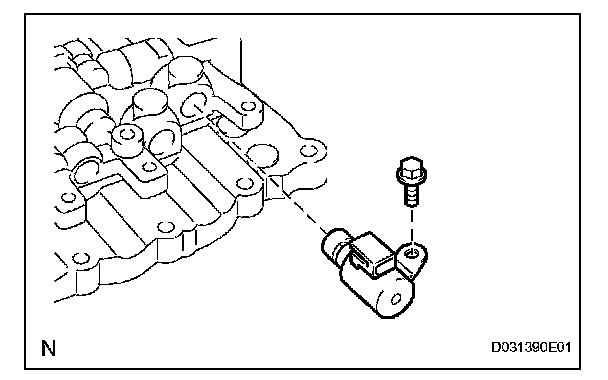

7. REMOVE SHIFT SOLENOID VALVE (S4)
(a) Remove the bolt and the shift solenoid valve.

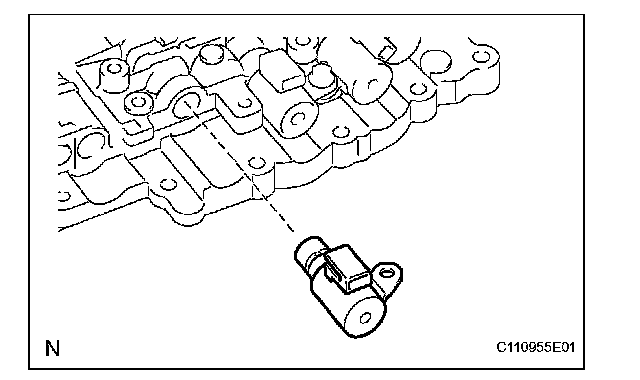

8. REMOVE SHIFT SOLENOID VALVE (S2)
(a) Remove the shift solenoid valve.

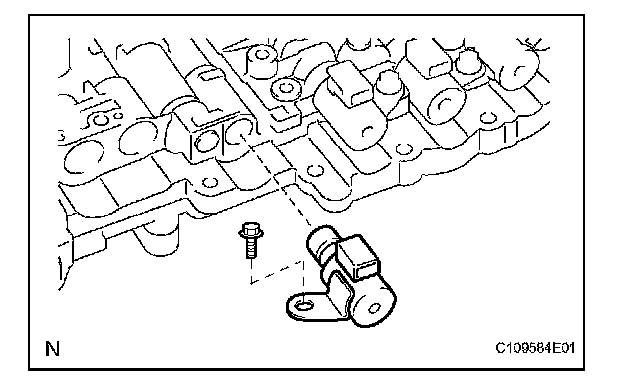

9. REMOVE SHIFT SOLENOID VALVE (S3)
(a) Remove the bolt and the shift solenoid valve.

REASSEMBLY

1. INSTALL SHIFT SOLENOID VALVE (S3)
(a) Install the shift solenoid valve with the bolt.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

2. INSTALL SHIFT SOLENOID VALVE (S2)
(a) Install the shift solenoid valve.

3. INSTALL SHIFT SOLENOID VALVE (S4)
(a) Install the shift solenoid valve with the bolt.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

4. INSTALL SHIFT SOLENOID VALVE (S1)
(a) Install the shift solenoid valve.

5. INSTALL SHIFT SOLENOID VALVE (SR)
(a) Install the shift solenoid valve with the bolt.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

6. INSTALL SHIFT SOLENOID VALVE (SL1)
(a) Install the shift solenoid valve.

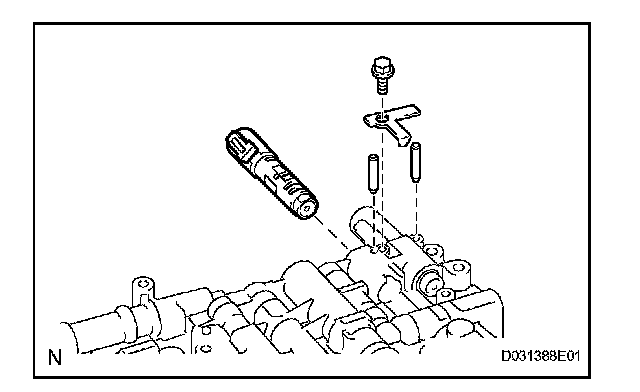

7. INSTALL SHIFT SOLENOID VALVE (SLT)
(a) Install the shift solenoid valve.
(b) Install the 2 straight pins and the lock plate with the bolt.
Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

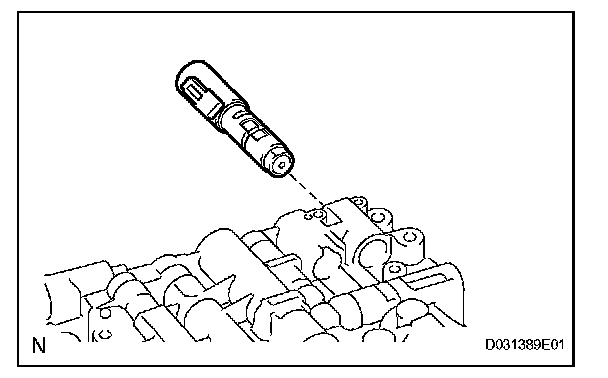

8. INSTALL SHIFT SOLENOID VALVE (SLU)
(a) Install the shift solenoid valve.

9. INSTALL SHIFT SOLENOID VALVE (SL2)
(a) Install the shift solenoid valve.
(b) Install the 2 straight pins and the lock plate with the bolt.
Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

INSTALLATION
1. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

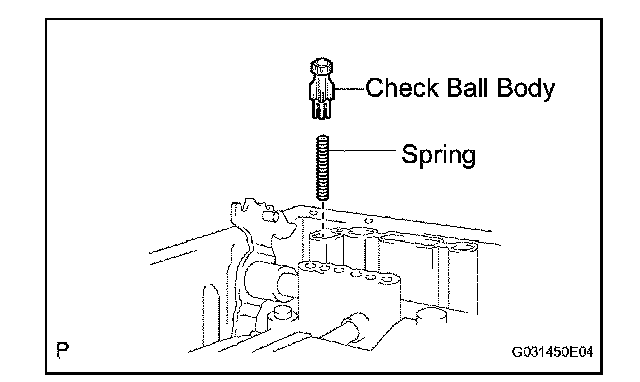

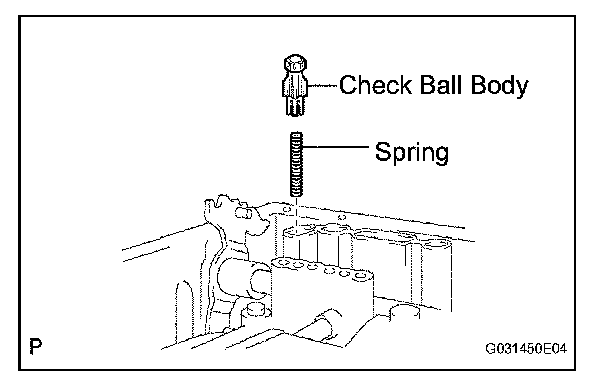

(a) Install the check ball body and spring.

NOTICE: Do not drop the check ball body and spring.

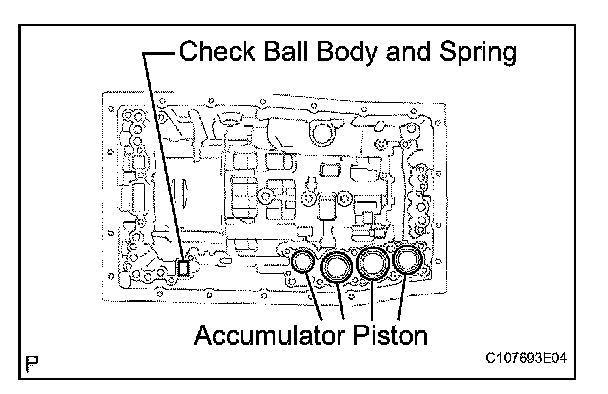

(b) Check the accumulator pistons, check ball body and spring as shown in the illustration.

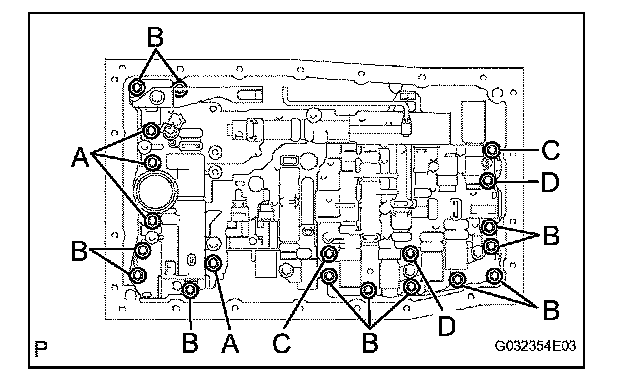

(d) Install the 20 bolts.
Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)
Bolt length:
36 mm (1.42 in.) for bolt A
25 mm (0.98 in.) for bolt B
45 mm (1.77 in.) for bolt C
50 mm (1.97 in.) for bolt D
2. CONNECT TRANSMISSION WIRE
3. INSTALL VALVE BODY OIL STRAINER ASSEMBLY
4. INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. ADD AUTOMATIC TRANSMISSION FLUID
(a) Add automatic transmission fluid.
7. INSTALL NO. 2 ENGINE UNDER COVER
8. PERFORM RESET MEMORY
(a) Perform the RESET MEMORY procedures (A/T initialization).
9. PERFORM INITIALIZATION
(a) Perform initialization.

NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
