Transmission Wire Inspection

INSPECTION

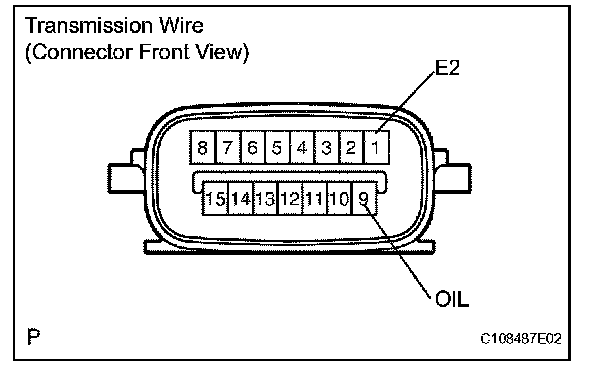

1. INSPECT TRANSMISSION WIRE (ATF TEMPERATURE SENSOR)





(a) Using an ohmmeter, measure the resistance between the terminals.

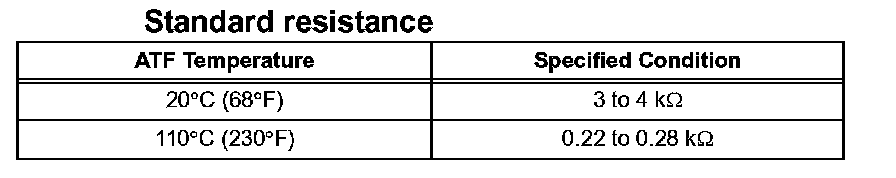

Standard resistance:
