Seals and Gaskets: Service and Repair

EXTENSION HOUSING REAR OIL SEAL

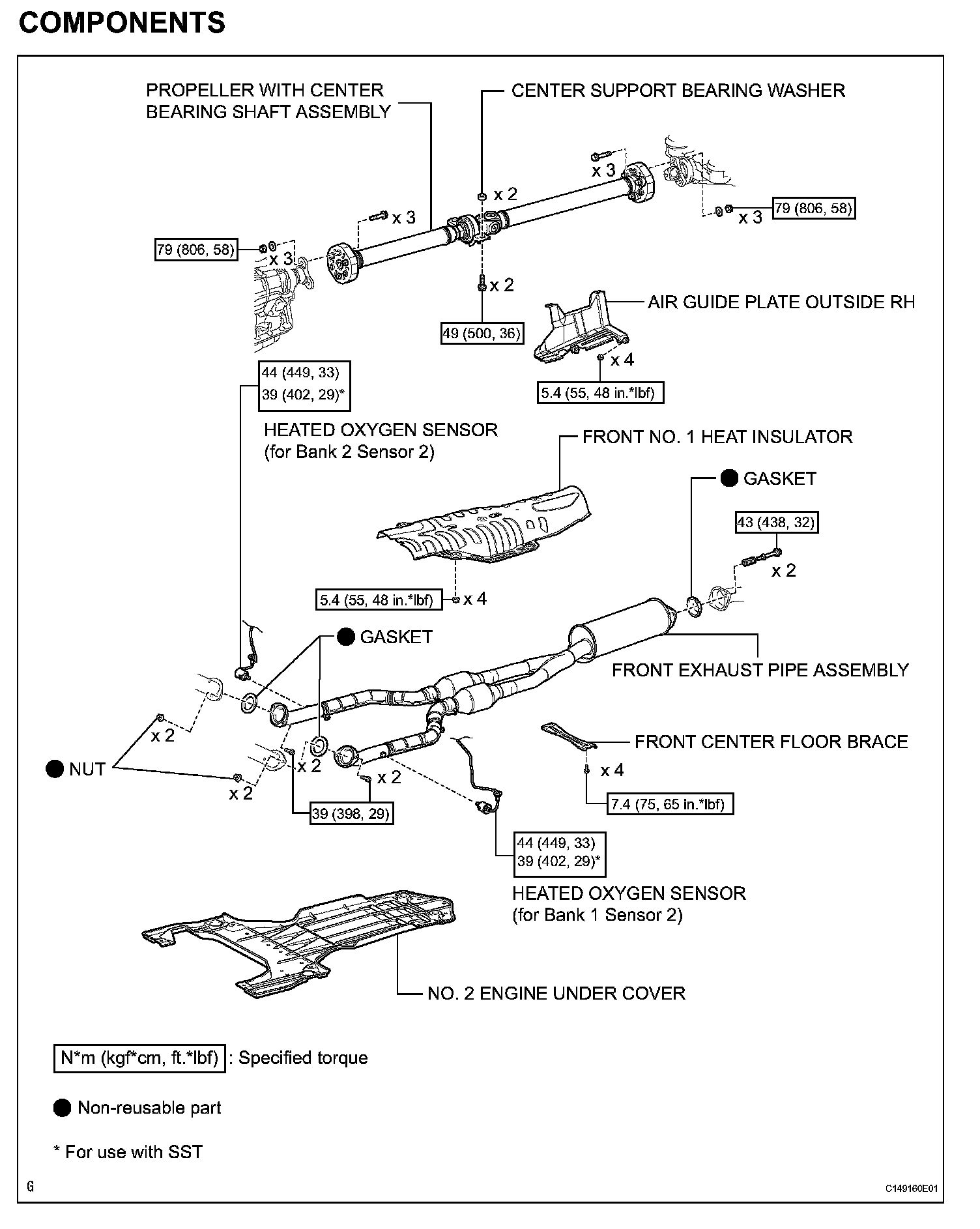

COMPONENTS (Part 1):

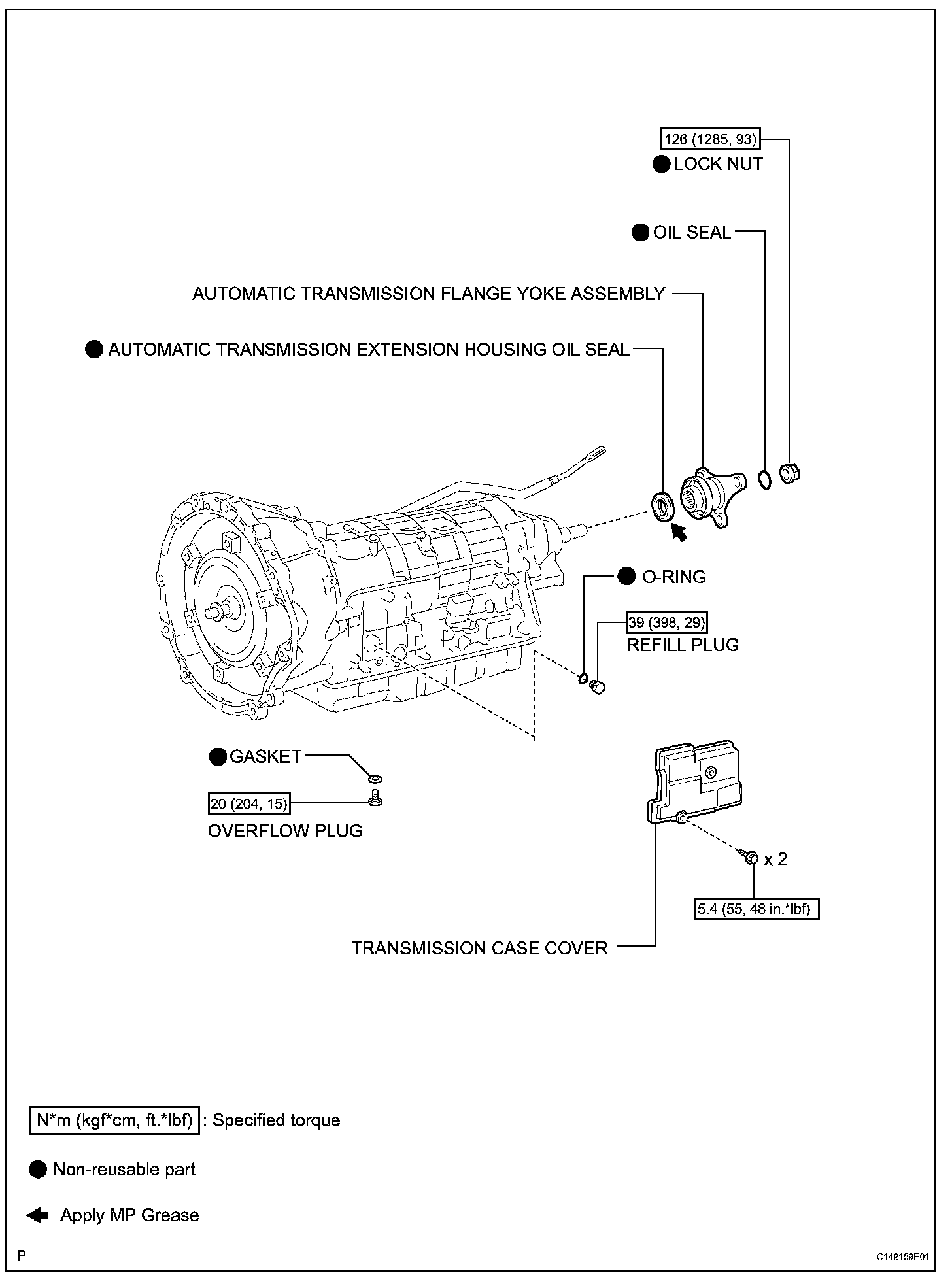

COMPONENTS (Part 2):

REPLACEMENT
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
(a) Remove the propeller with center bearing shaft.
3. REMOVE AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY

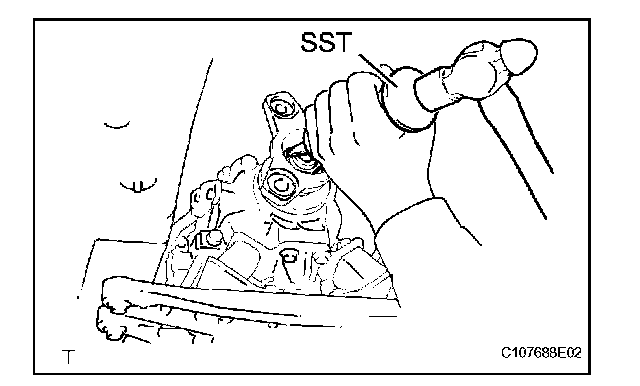

(a) Using SST and a hammer, loosen the staked part of the nut.
SST 09930-00010

HINT: Move the shift lever to the P position.

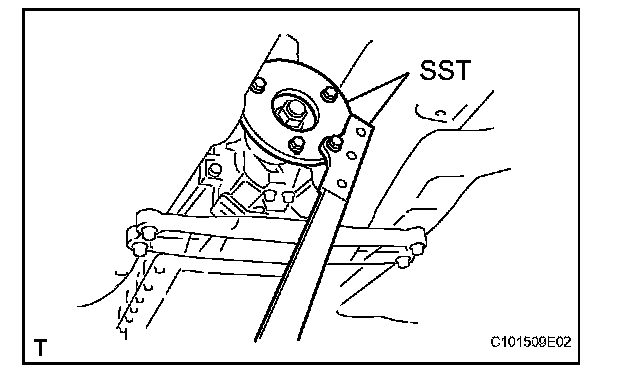

(b) Set SST.
SST 09330-00021, 09950-30012 (09955-03040)

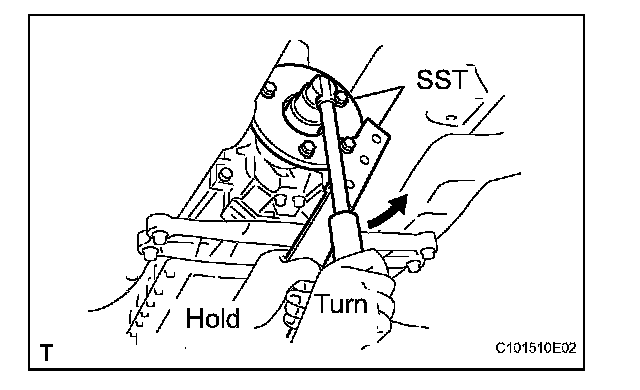

(c) Using SST and a 30 mm socket wrench, remove the nut.
(d) Remove SST.
(e) Tap the output flange with a plastic-faced hammer to remove it.





(f) Using a screwdriver, pry out the oil seal from the automatic transmission flange yoke.





4. REMOVE AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL
(a) Using SST, tap out the oil seal.
SST 09308-00010
5. INSTALL AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL
(a) Coat the lip of a new oil seal with MP grease.

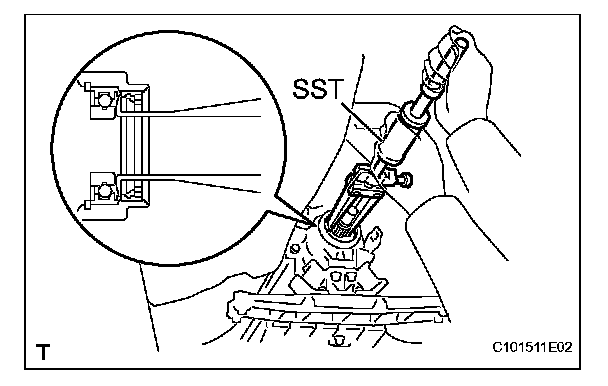

(b) Using SST and a hammer, tap in the oil seal with the lip facing inside of the automatic transmission.
SST 09316-60011 (09316-00011, 09316-00051)

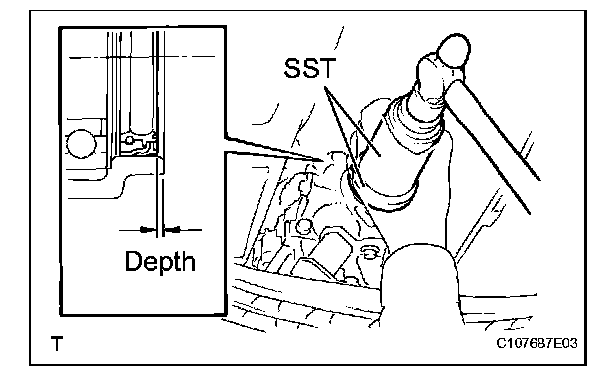

Standard depth: 2.0 ± 0.2 mm (0.079 ± 0.008 in.)
6. INSTALL AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY

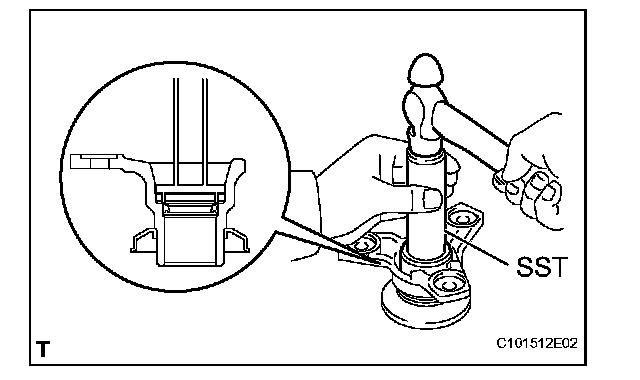

(a) Using SST and a hammer, tap in a new oil seal.
SST 09517-36010
(b) Install the automatic transmission flange yoke.





(c) Set SST.
SST 09330-00021, 09950-30012 (09955-03040)
(d) Using SST and a 30 mm socket wrench, install and tighten a new nut.
Torque: 126 N*m (1285 kgf*cm, 93 ft.*lbf)
(e) Using a chisel and hammer, securely stake the nut.
7. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
(a) Install the propeller with center bearing shaft.
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
9. ADJUST AUTOMATIC TRANSMISSION FLUID
(a) Add automatic transmission fluid.
10. PERFORM INITIALIZATION
(a) Perform initialization.

NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
