Shift Solenoid: Testing and Inspection
SHIFT SOLENOID VALVEINSPECTION

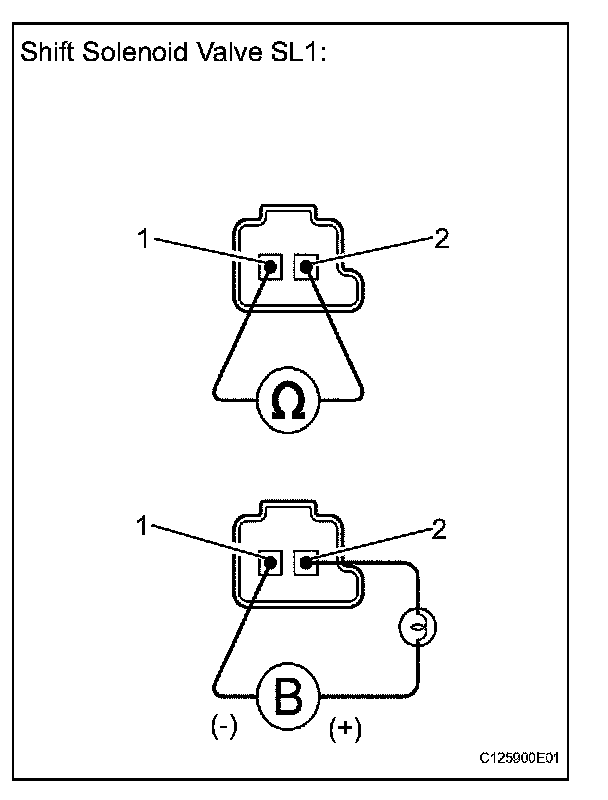

1. INSPECT SHIFT SOLENOID VALVE (SL1)
(a) Measure the resistance according to the value(s) in the table.

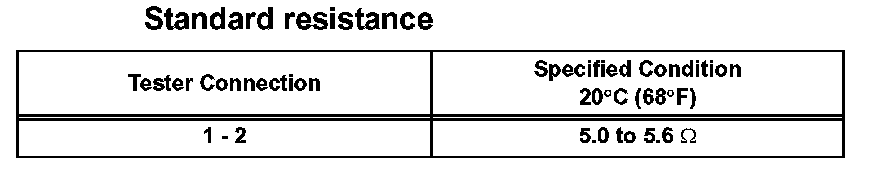

Standard resistance:
(b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, and check operation of the valve.
NOTICE: While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
OK: The solenoid makes an operating sound.

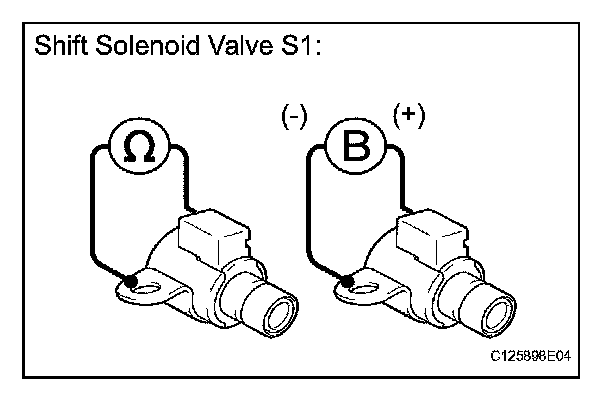

2. INSPECT SHIFT SOLENOID VALVE (S1)
(a) Measure the resistance according to the value(s) in the table.

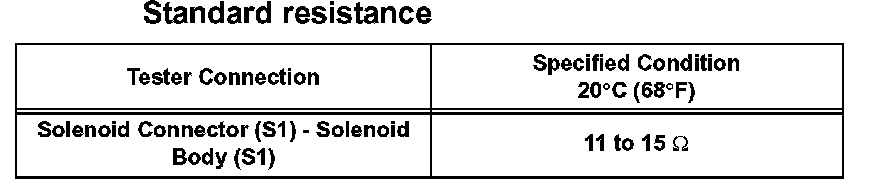

Standard resistance:

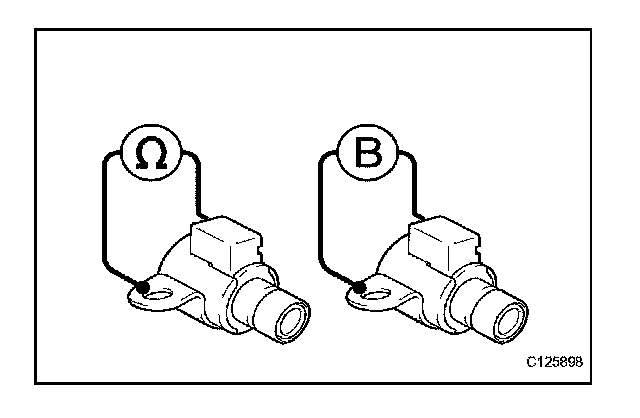

(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body, and check operation of the valve.
NOTICE: While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
OK: The solenoid makes an operating sound.

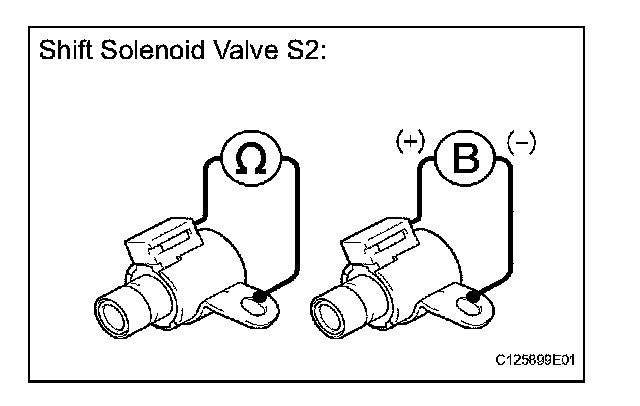

3. INSPECT SHIFT SOLENOID VALVE (S2)
(a) Measure the resistance according to the value(s) in the table.

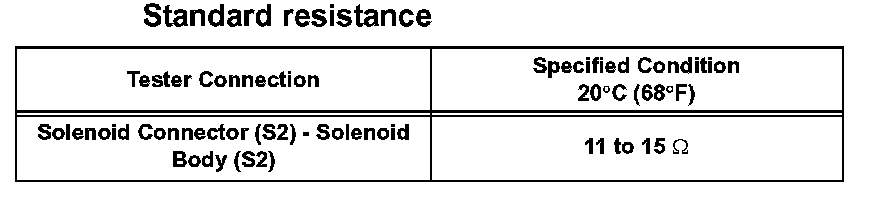

Standard resistance:
(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body, and check operation of the valve.
NOTICE: While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
OK: The solenoid makes an operating sound.

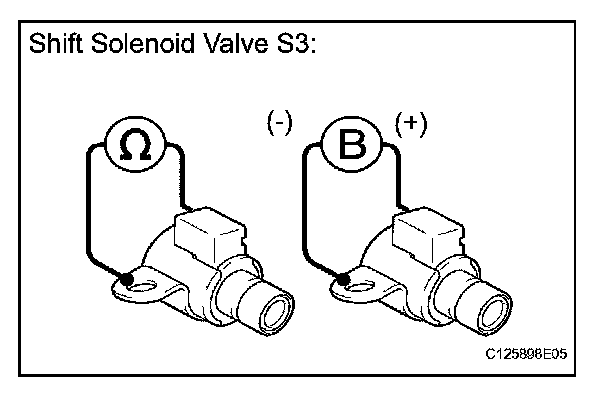

4. INSPECT SHIFT SOLENOID VALVE (S3)
(a) Measure the resistance according to the value(s) in the table.

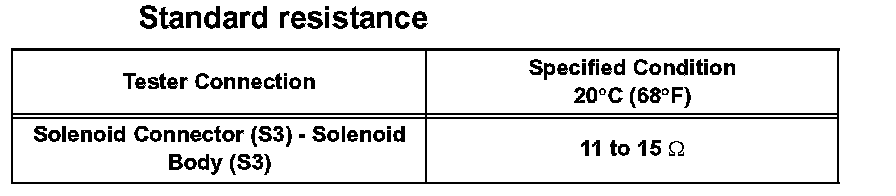

Standard resistance:
(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body, and check operation of the valve.
NOTICE: While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
OK: The solenoid makes an operating sound.
5. INSPECT SHIFT SOLENOID VALVE (S4)

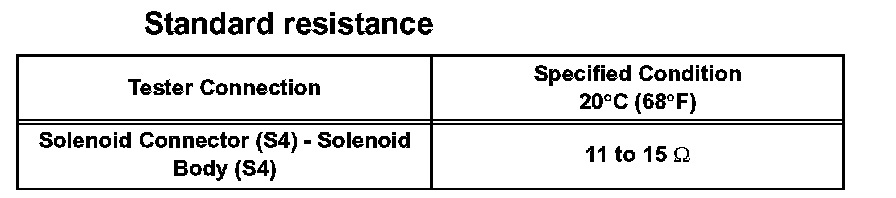

(a) Measure the resistance according to the value(s) in the table.
(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body, and check operation of the valve.
NOTICE: While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
OK: The solenoid makes an operating sound.

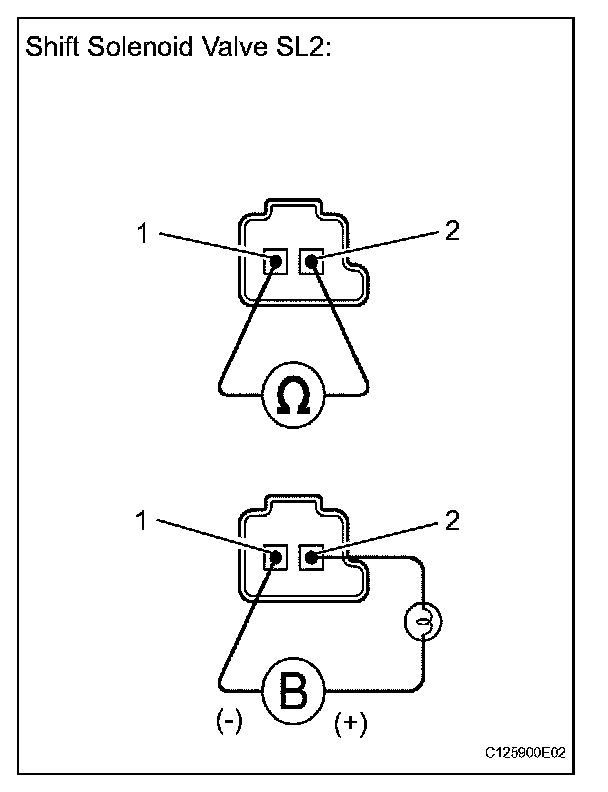

6. INSPECT SHIFT SOLENOID VALVE (SL2)
(a) Measure the resistance according to the value(s) in the table.
Standard resistance:
(b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, and check operation of the valve.
NOTICE: While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
OK: The solenoid makes an operating sound.

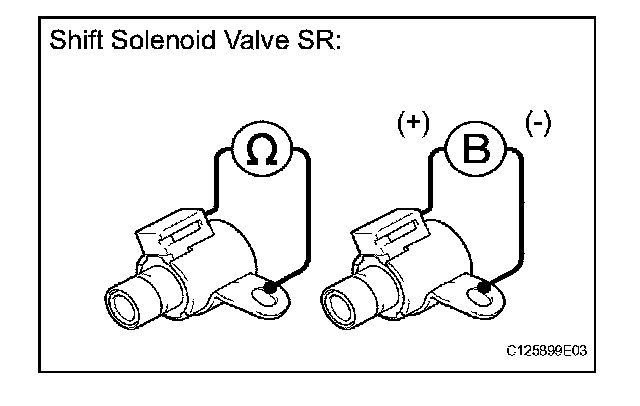

7. INSPECT SHIFT SOLENOID VALVE (SR)
(a) Measure the resistance according to the value(s) in the table.

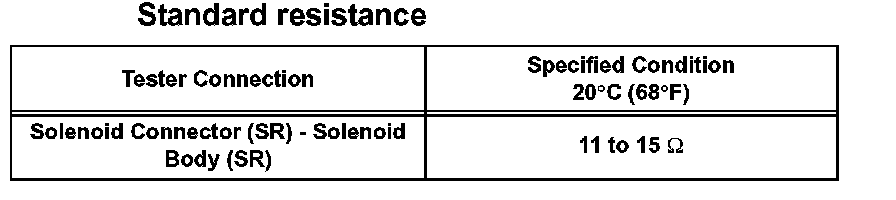

Standard resistance:
(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body, and check operation of the valve.
NOTICE: While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
OK: The solenoid makes an operating sound.

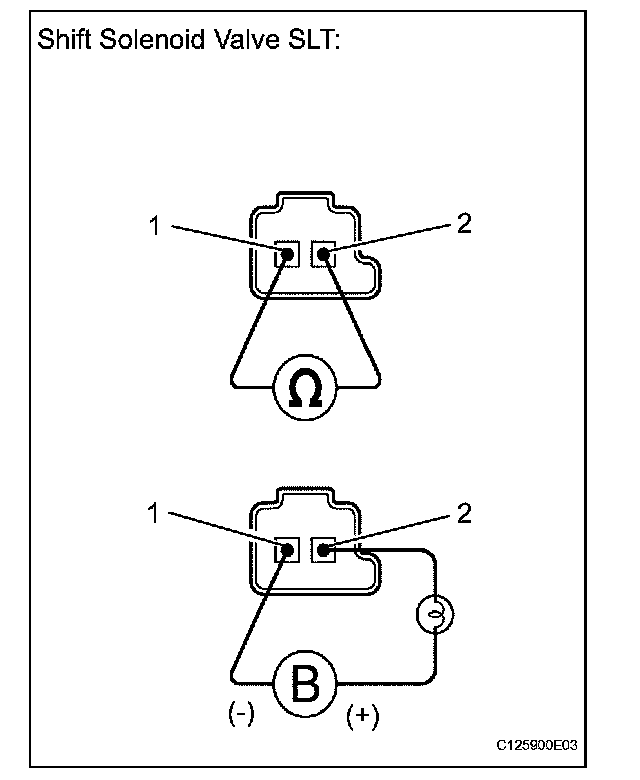

8. INSPECT SHIFT SOLENOID VALVE (SLT)
(a) Measure the resistance according to the value(s) in the table.
Standard resistance:
(b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, and check operation of the valve.
NOTICE: While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
OK: The solenoid makes an operating sound.

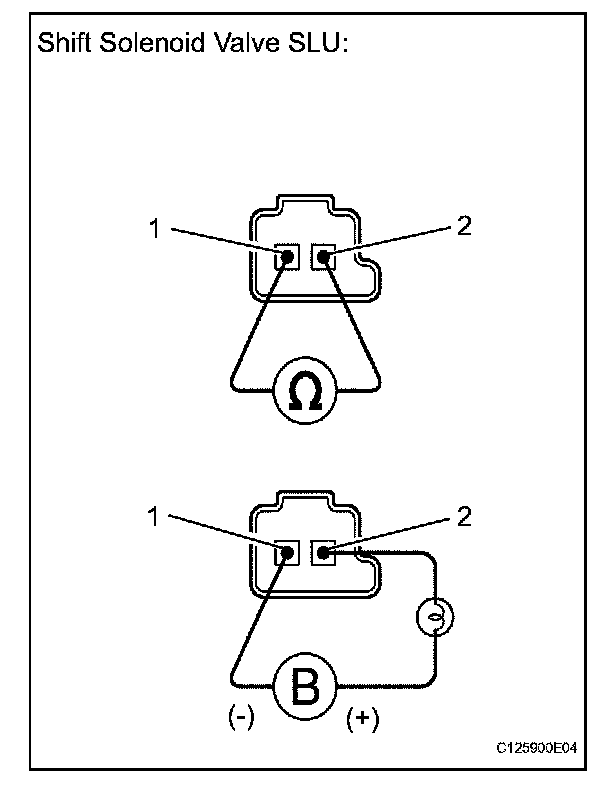

9. INSPECT SHIFT SOLENOID VALVE (SLU)
(a) Measure the resistance according to the value(s) in the table.
Standard resistance:
(b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, and check operation of the valve.
NOTICE: While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
OK: The solenoid makes an operating sound.
