Front Acceleration Sensor

INSPECTION

1. INSPECT FRONT ACCELERATION SENSOR

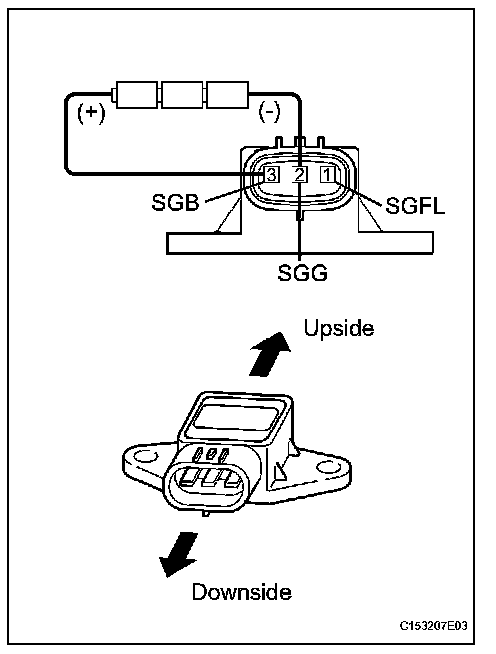

a. Connect 31.5 V dry batteries in series.
b. Connect terminal 3 (SGB) to the battery's positive (+) terminal, and terminal 2 (SGG) to the battery's negative (-) terminal.

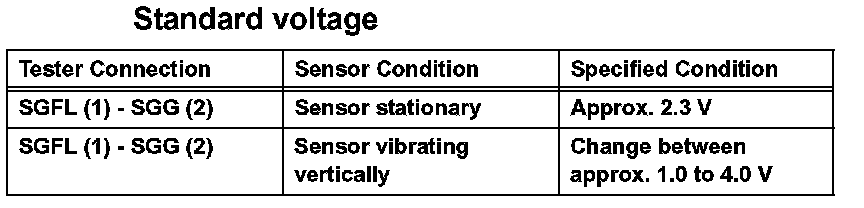

c. Measure the voltage of the sensor.

NOTE: Do not apply a voltage of more than 6 V.

HINT: When the acceleration sensor is tilted, it may output a different value.
