Front Speed Sensor (For 2WD)
REMOVALHINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are the LH side.
1. REMOVE FRONT WHEEL
2. DISCONNECT SPEED SENSOR FRONT LH

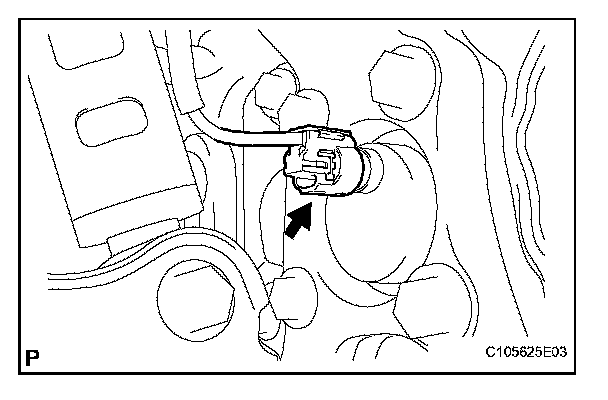

a. Disconnect the speed sensor connector from the speed sensor front LH.
NOTE:
- Be careful not to damage the speed sensor.
- Prevent foreign matter from adhering to the speed sensor.
3. REMOVE FRONT DISC BRAKE CALIPER ASSEMBLY LH
4. REMOVE FRONT AXLE HUB SUB-ASSEMBLY LH
5. REMOVE SPEED SENSOR FRONT LH
a. Install the 3 hub bolts. Placing an aluminum plate below the hub and bearing assembly, hold them in a vise.
NOTE: Replace the hub and bearing assembly if it is dropped or receives a strong shock.
b. Remove the 2 pins from the SST (09520-00031) and separate the attachment (09521-00010) using a pin punch (3 mm) or hammer.
SST 09520-00031

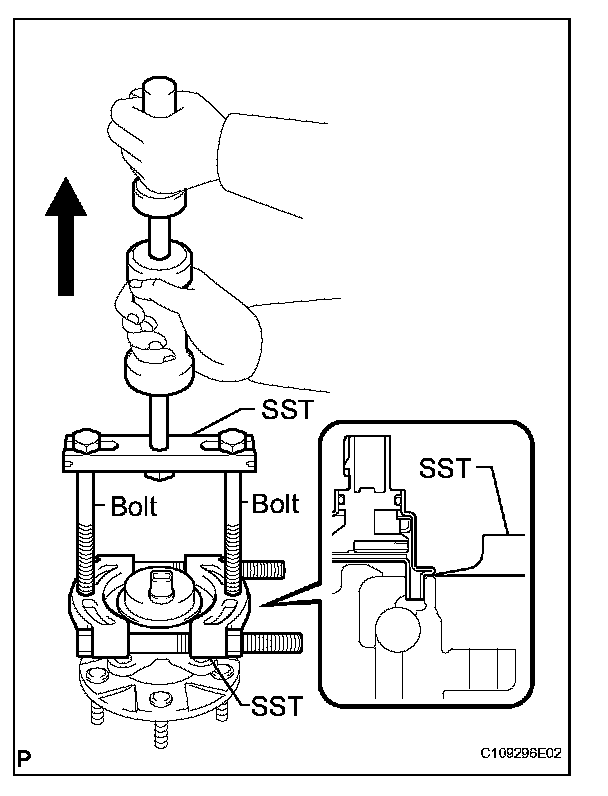

c. Remove the skid control sensor from the hub and bearing assembly using the SST and 2 bolts (90101-12007).
SST 09520-00031 (09520-00040), 09521-00020, 09950-00020
NOTE:
- Keep the sensor away from magnets.
- Pull the skid control sensor off straight, taking care not to make contact with the skid control sensor rotor.
- If the speed sensor rotor is damaged or deformed, replace the hub and bearing assembly.
- Do not scratch the area where the skid control sensor contacts the hub and bearing assembly.
- Do not attach foreign matter to the speed sensor rotor.
INSTALLATION
1. INSTALL SPEED SENSOR FRONT LH
a. Wipe off sealant attached to the skid control sensor's fitting surface with white gasoline.
NOTE: Prevent foreign matter from attaching to the sensor rotor.

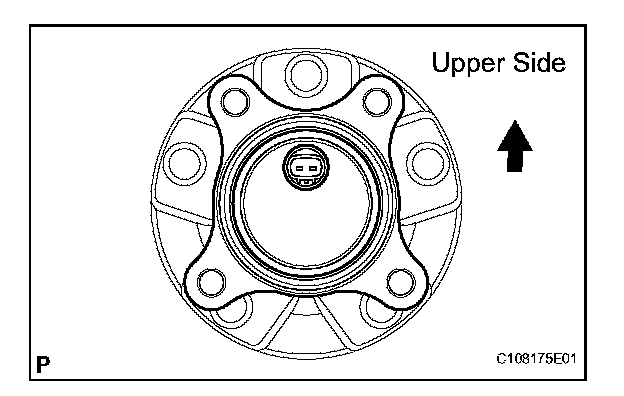

b. Install a new skid control sensor to the hub and bearing assembly. The skid control sensor connector should be placed in the upper position.

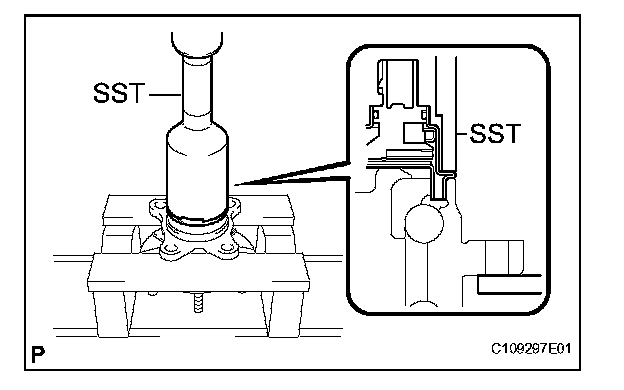

c. Press the skid control sensor or the it becomes flat with the hub and bearing using the SST and press.
NOTE:
- Keep the sensor away from magnets.
- Do not use a hammer on the skid control sensor.
- Check that there is no foreign matter such as iron chips on the skid control sensor's detecting portion.
- Slowly press the skid control sensor straight.
2. INSTALL FRONT AXLE HUB SUB-ASSEMBLY LH
3. INSPECT FRONT AXLE HUB BEARING LOOSENESS
4. INSTALL FRONT AXLE HUB RUNOUT
5. INSTALL FRONT DISC
6. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY LH
7. CONNECT SPEED SENSOR FRONT LH

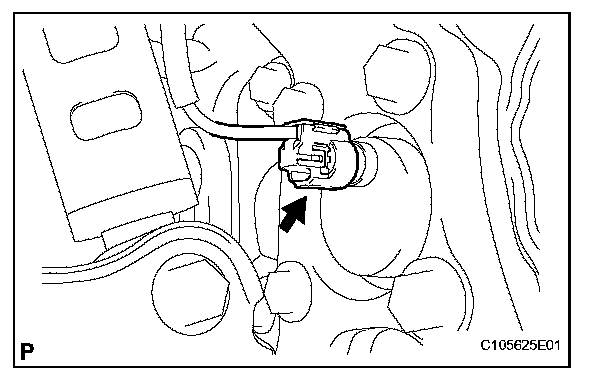

a. Connect the speed sensor connector to the speed sensor front.
NOTE: Do not twist the sensor wire.
8. INSTALL FRONT WHEEL
9. INSPECT SPEED SENSOR SIGNAL
