Power Seat Switch

INSPECTION

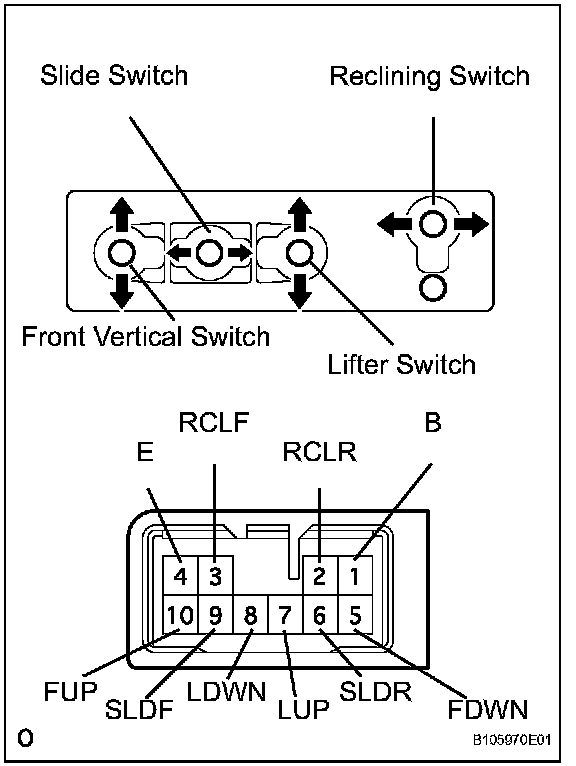

1. INSPECT FRONT POWER SEAT SWITCH RH

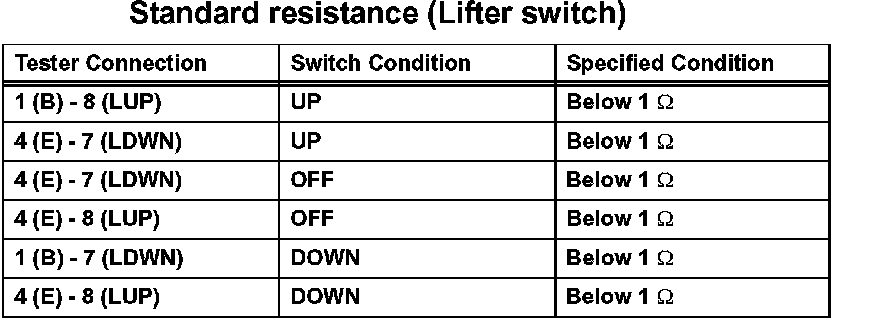

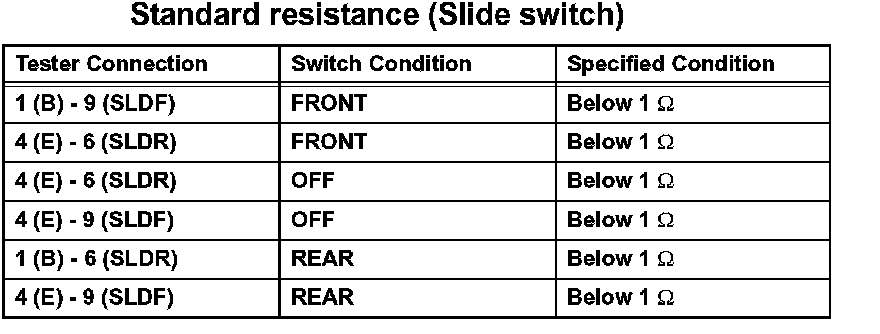

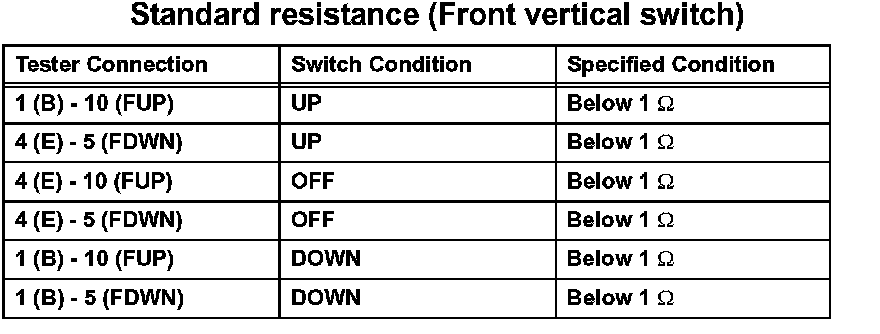

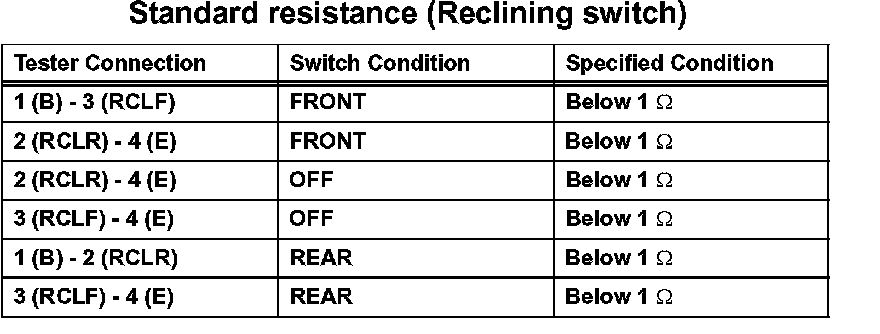

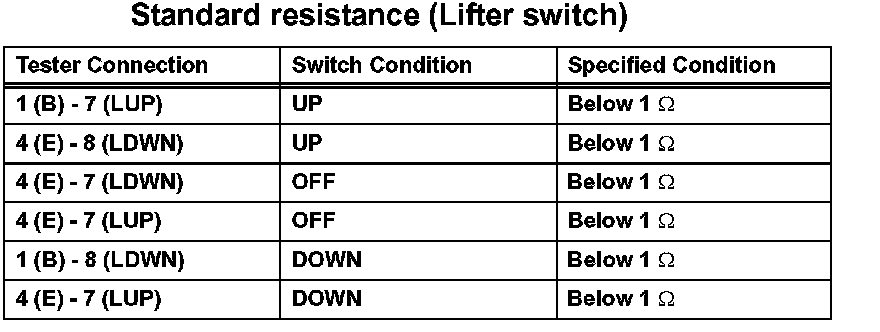

a. Measure the resistance between the terminals when each switch is operated.














If the result is not as specified, replace the switch.

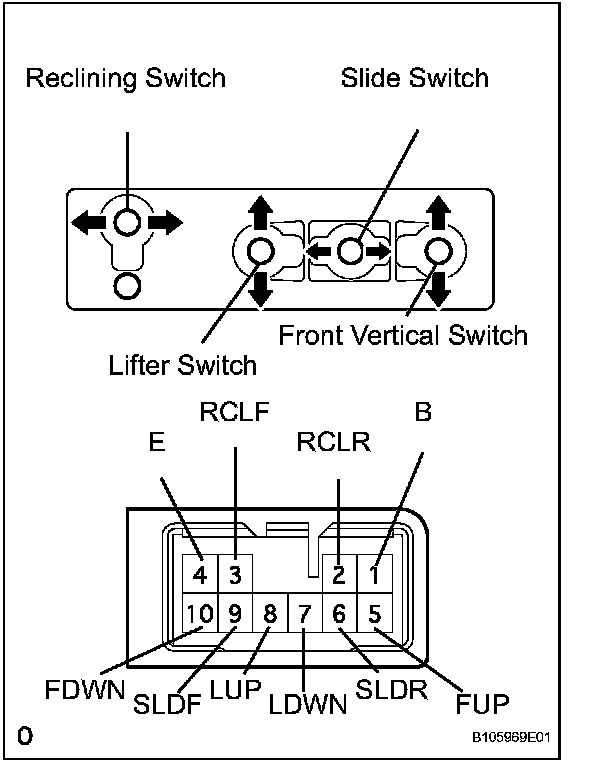

2. INSPECT FRONT POWER SEAT SWITCH LH

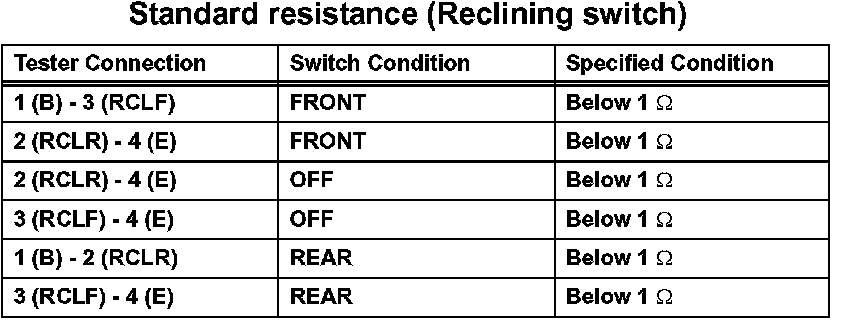

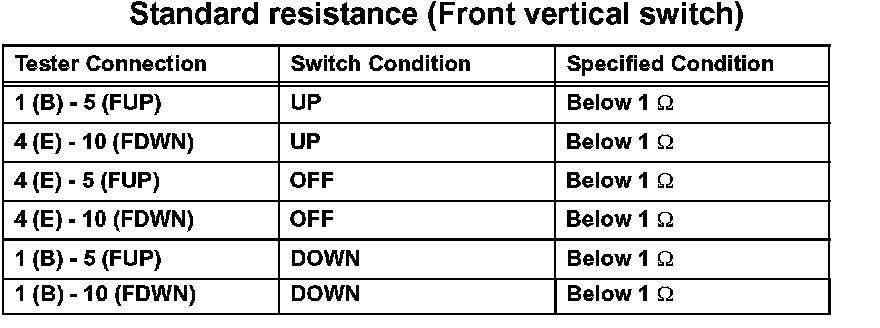

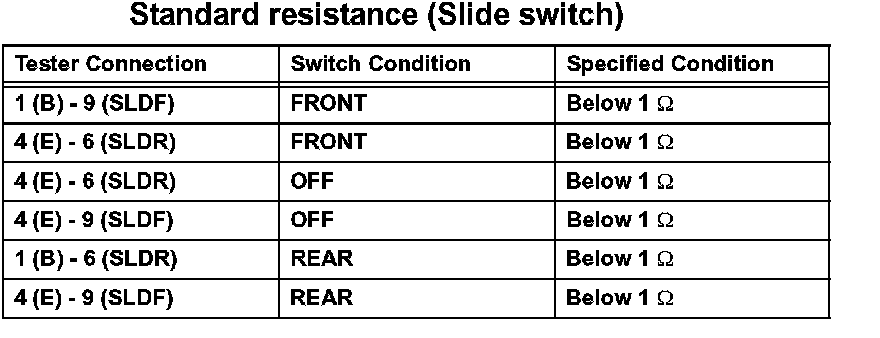

a. Measure the resistance between the terminals when each switch is operated.














If the result is not as specified, replace the switch.
