Front Power Seat Lumbar Switch

INSPECTION

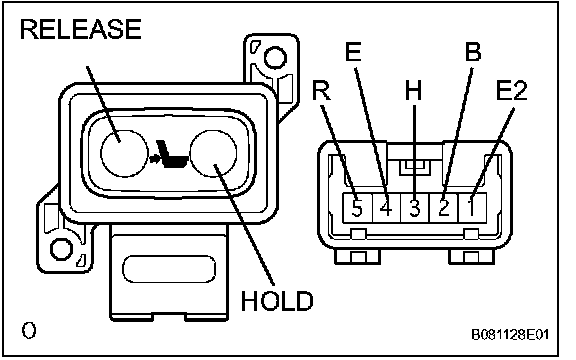

1. INSPECT FRONT POWER SEAT LUMBAR SWITCH RH

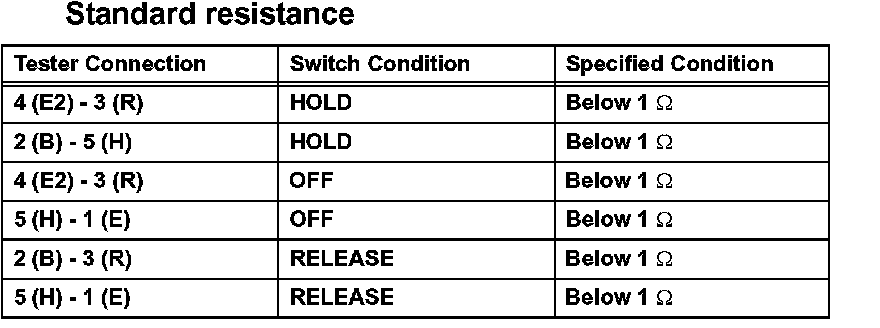

a. Measure the resistance between the terminals when the switch is operated.





If the result is not as specified, replace the switch.

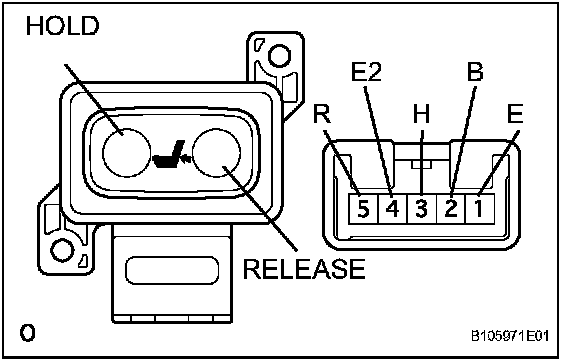

2. INSPECT FRONT POWER SEAT LUMBAR SWITCH LH





Measure the resistance between the terminals when the switch is operated.





If the result is not as specified, replace the switch.
