Home >> Lexus >> 2007 >> GS 350 RWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Accessories and Optional Equipment >> Remote Switch >> Testing and Inspection >> Steering Pad Switch Cable

Steering Pad Switch Cable

INSPECTION

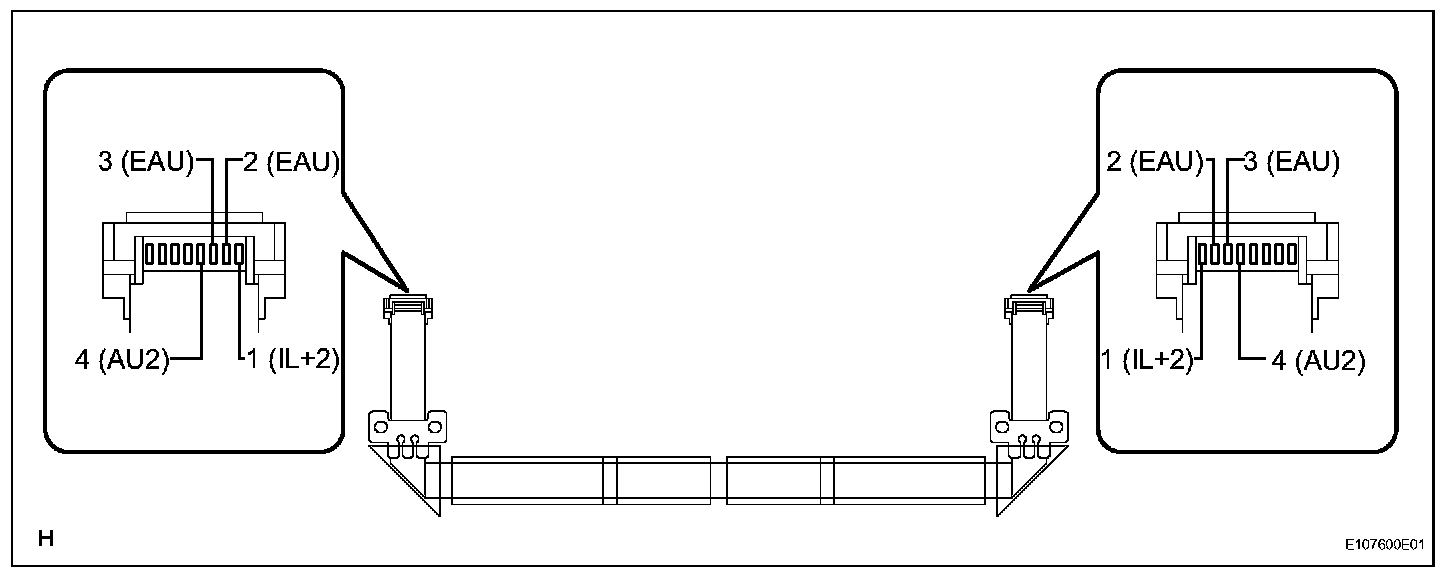

1. INSPECT STEERING PAD SWITCH CABLE SUB-ASSEMBLY

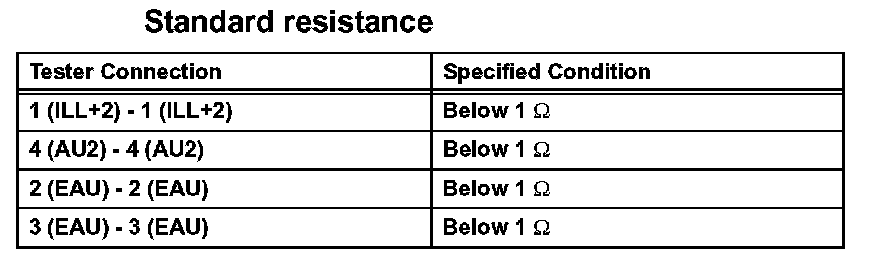

a. Measure the resistance of the cable.

If the result is not as specified, replace the cable.
