Inspection

INSPECTION

1. INSPECT THROTTLE BODY

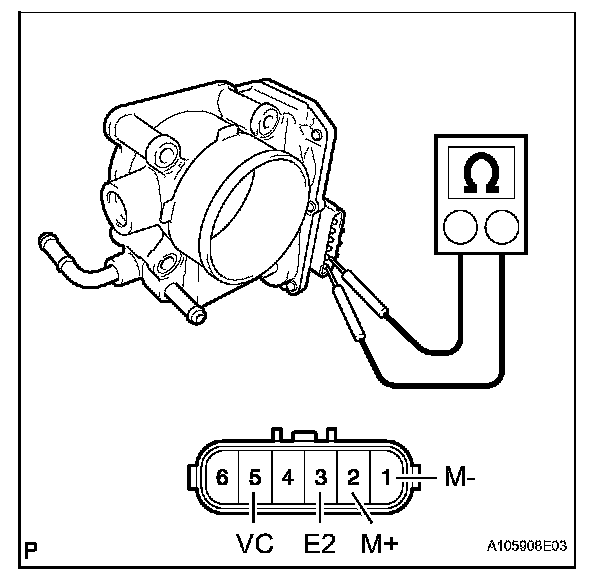

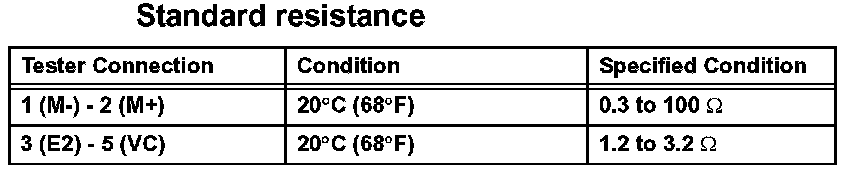

a. Measure the resistance between the terminals.

If the result is not as specified, replace the throttle body.
