Fuel Pump Ballast Resistor: Testing and Inspection

INSPECTION

1. INSPECT FUEL PUMP RESISTOR

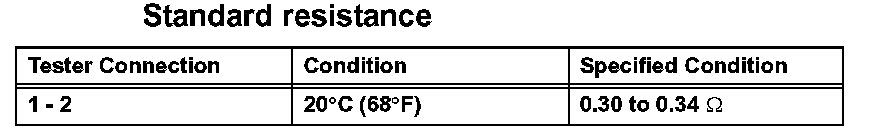

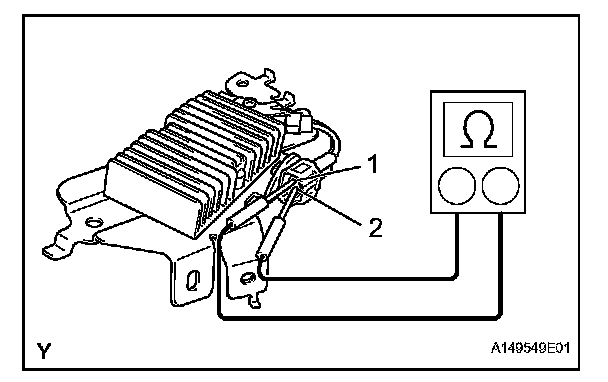

a. Measure the resistance of the resistor.

If the result is not as specified, replace the fuel pump resistor.
