Accelerator Pedal: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

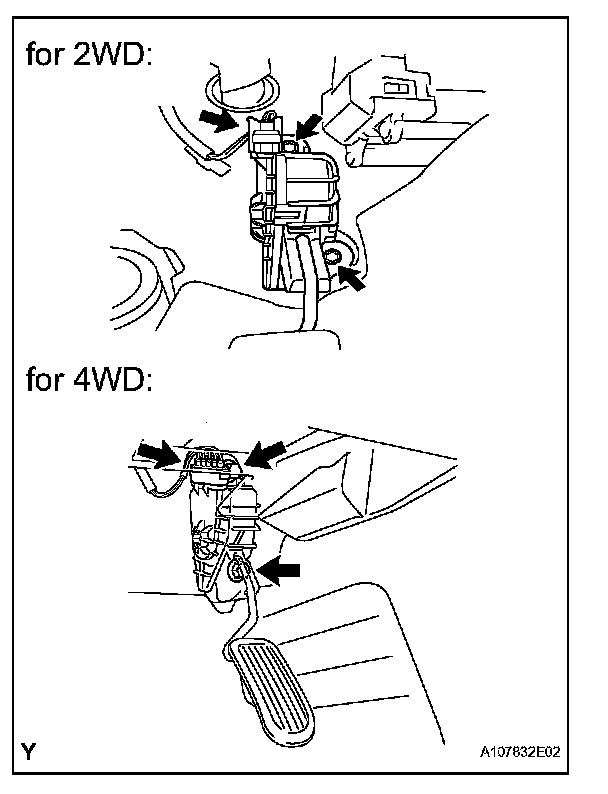

2. REMOVE ACCELERATOR PEDAL
a. Disconnect the accelerator pedal position sensor connector.
b. Remove the 2 bolts and accelerator pedal.
NOTE:
- Avoid physical shock to the accelerator pedal.
- Do not disassemble the accelerator pedal assembly.
INSTALLATION
NOTE:
- Avoid physical shock to the accelerator pedal.
- Do not disassemble the accelerator pedal assembly.

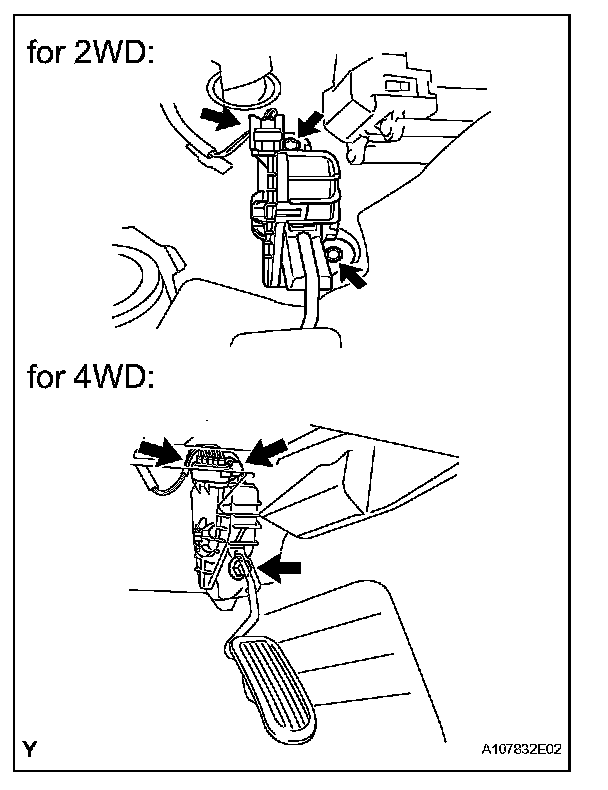

1. INSTALL ACCELERATOR PEDAL
a. Install the accelerator pedal with the 2 bolts.
Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)
b. Connect the accelerator pedal position sensor connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
