Fail-Safe Chart

FAIL-SAFE CHART

1. FAIL-SAFE FUNCTION
a. When communication fails in any of the CAN bus lines (communication line) due to a short circuit or other causes, the fail-safe function, which is specified for each system, operates to prevent the system from malfunctioning.

Part 1:

Part 2:

Part 1:

Part 2:

Part 3:

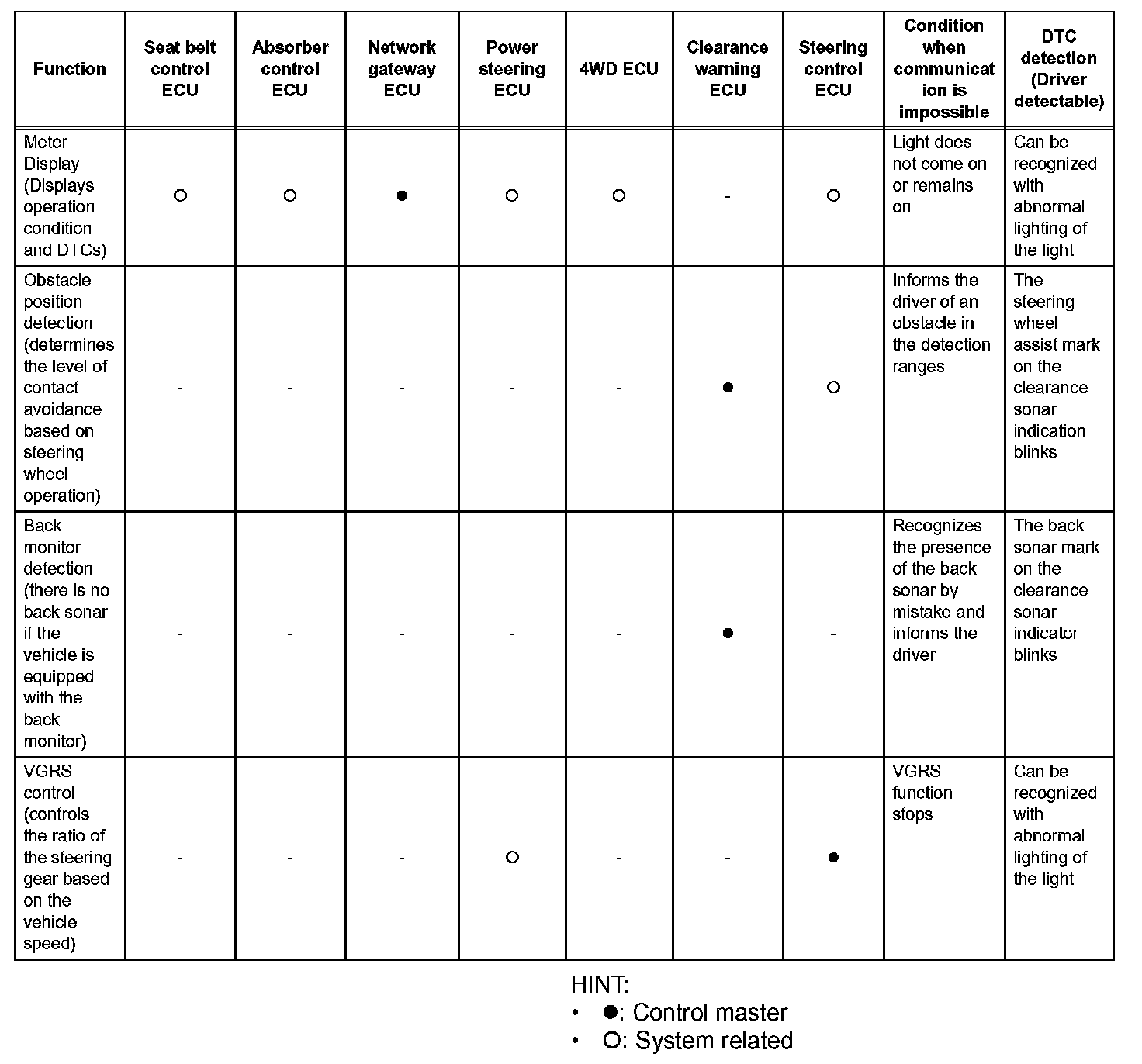

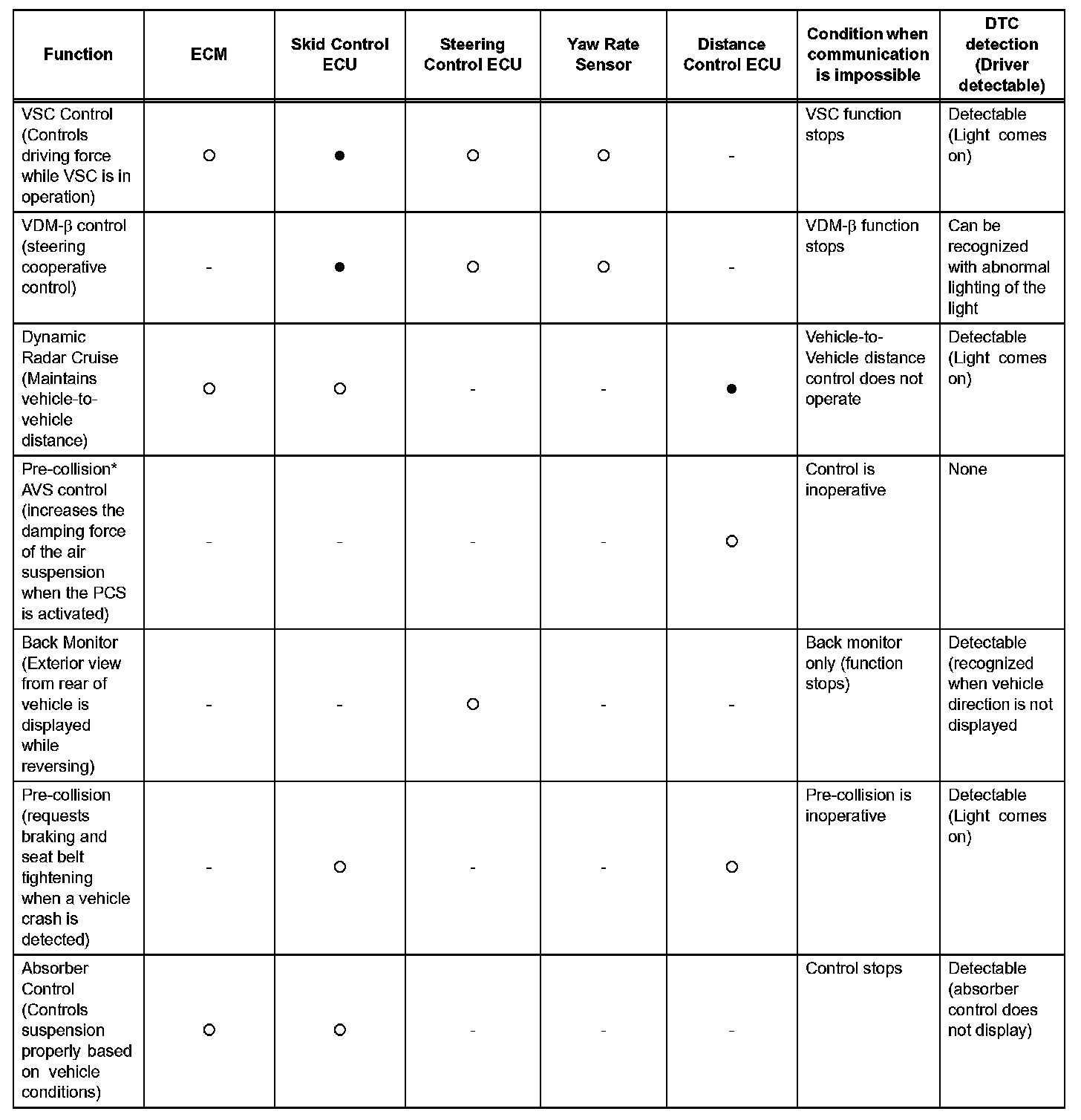

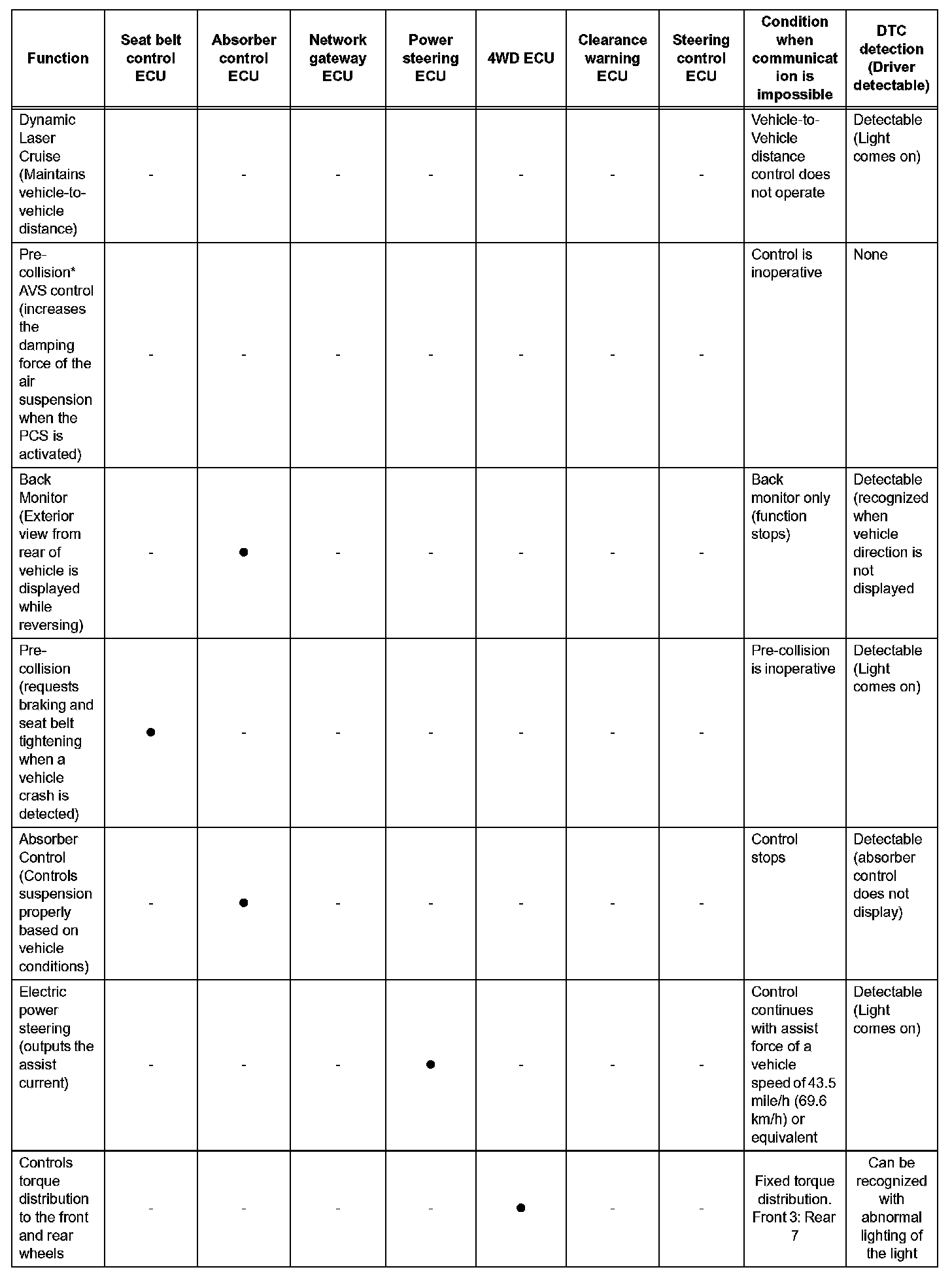

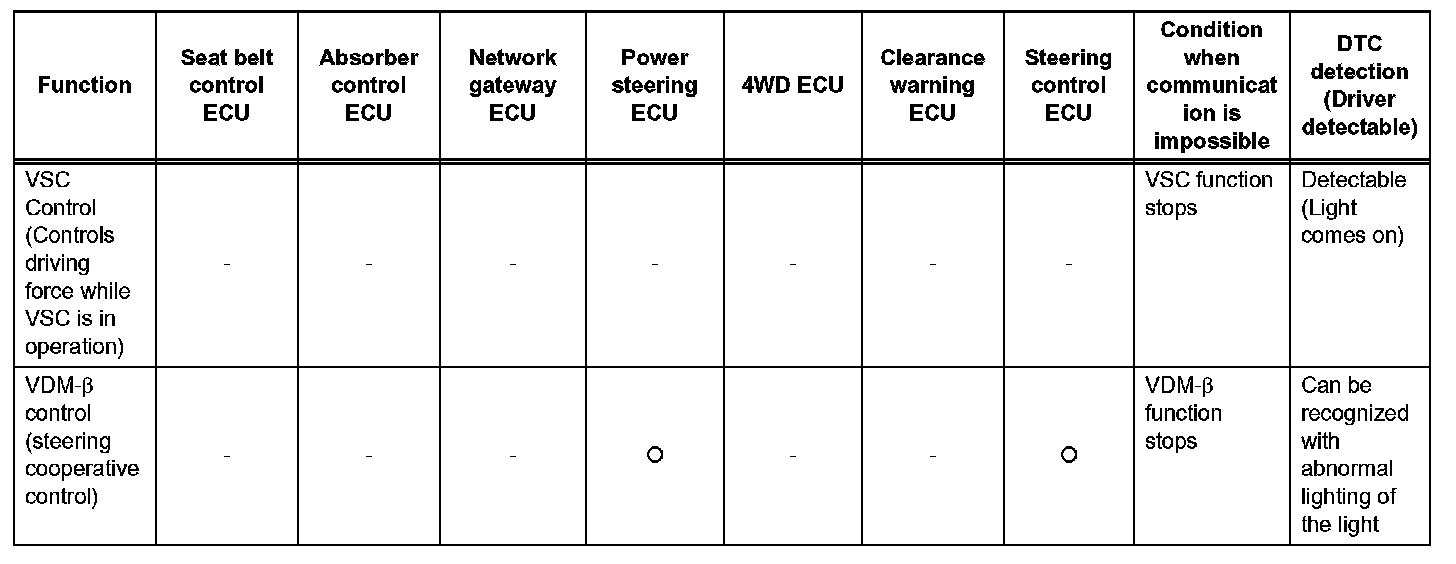

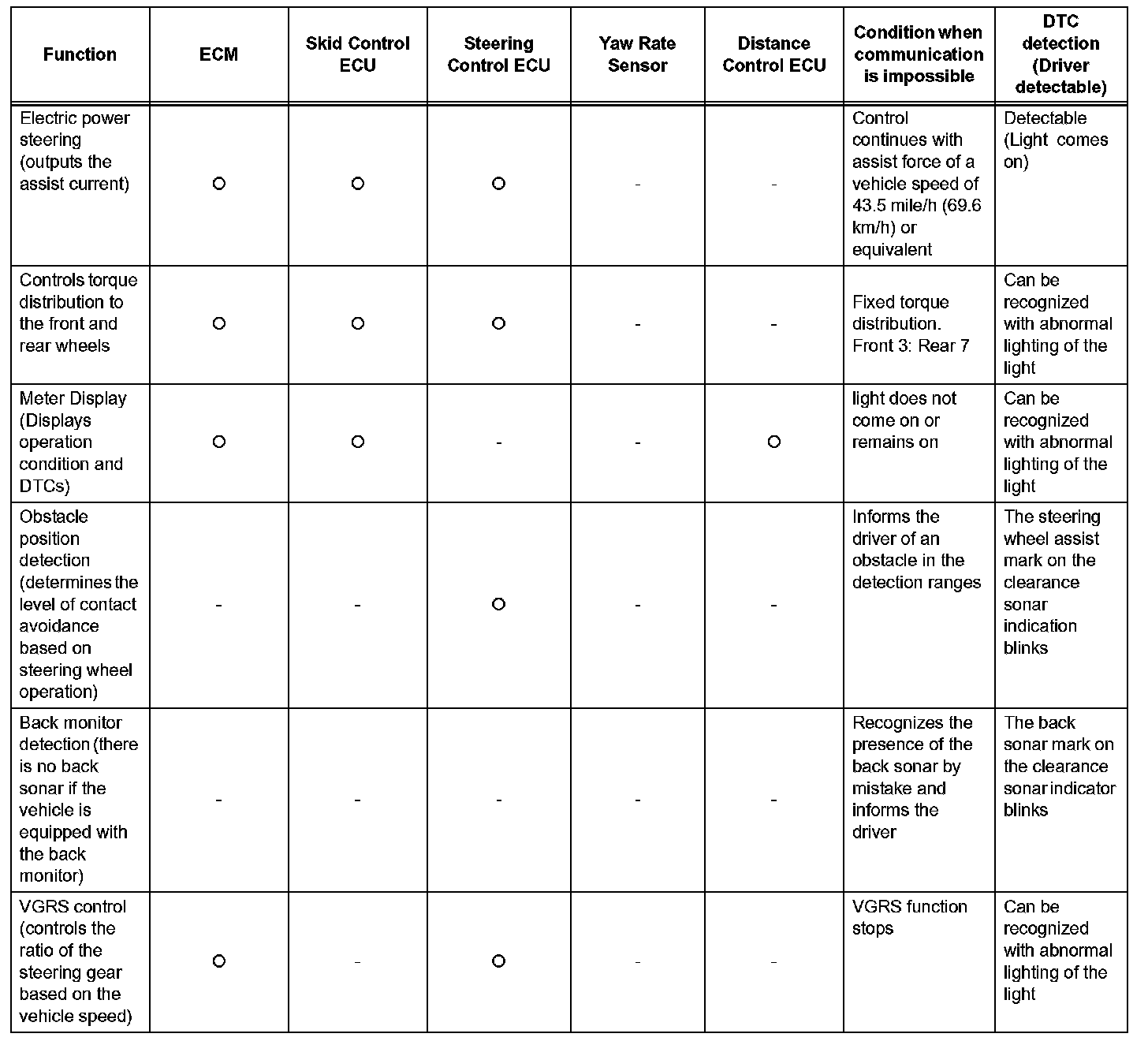

b. Effects on each system when communication is impossible. (For further details, see the each system.)
