Skid Control ECU With Actuator Communication Stop Mode

Skid Control ECU with Actuator Communication Stop Mode

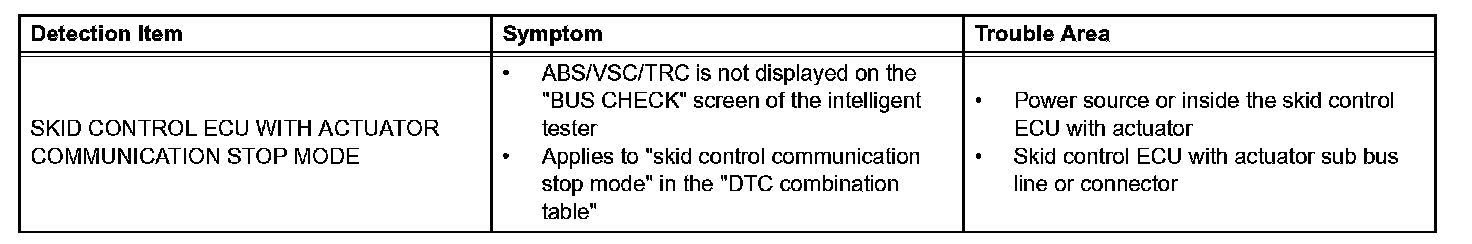

Symptom:




DESCRIPTION

HINT: For vehicles with 2GR-FSE only.

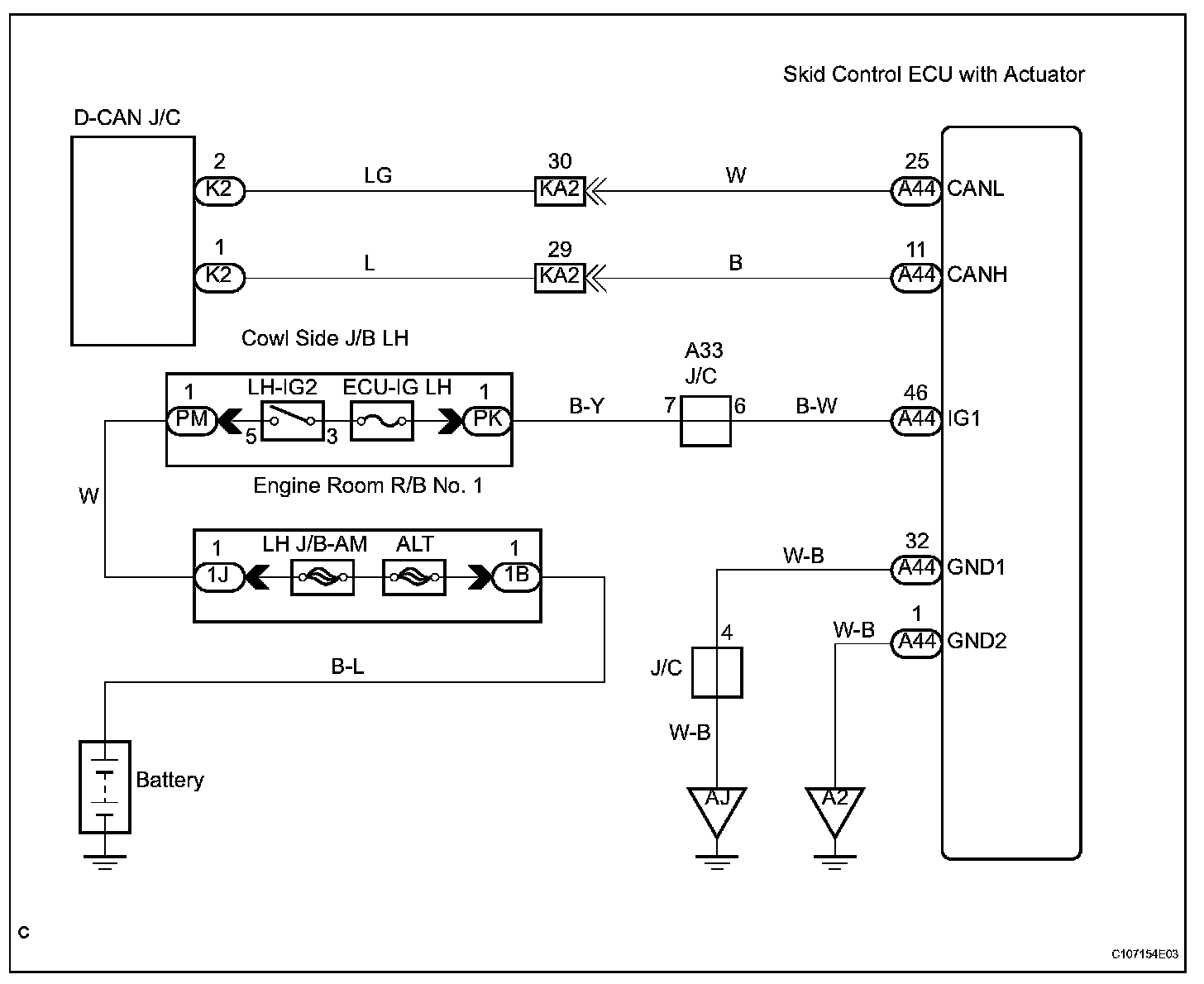

Wiring Diagram:

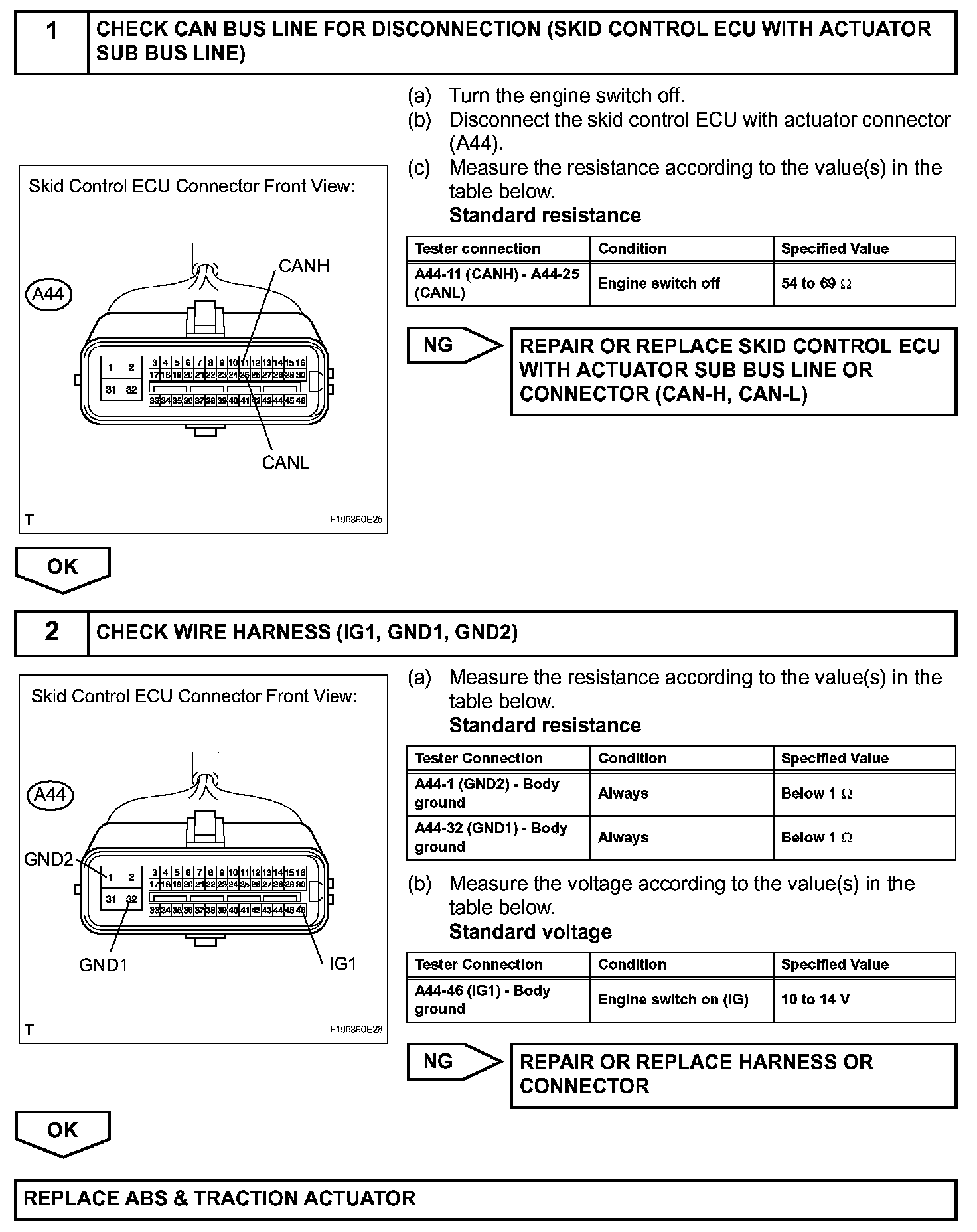

Step 1-2:




INSPECTION PROCEDURE
