Short in CAN Bus Lines
Short in CAN Bus LinesDESCRIPTION

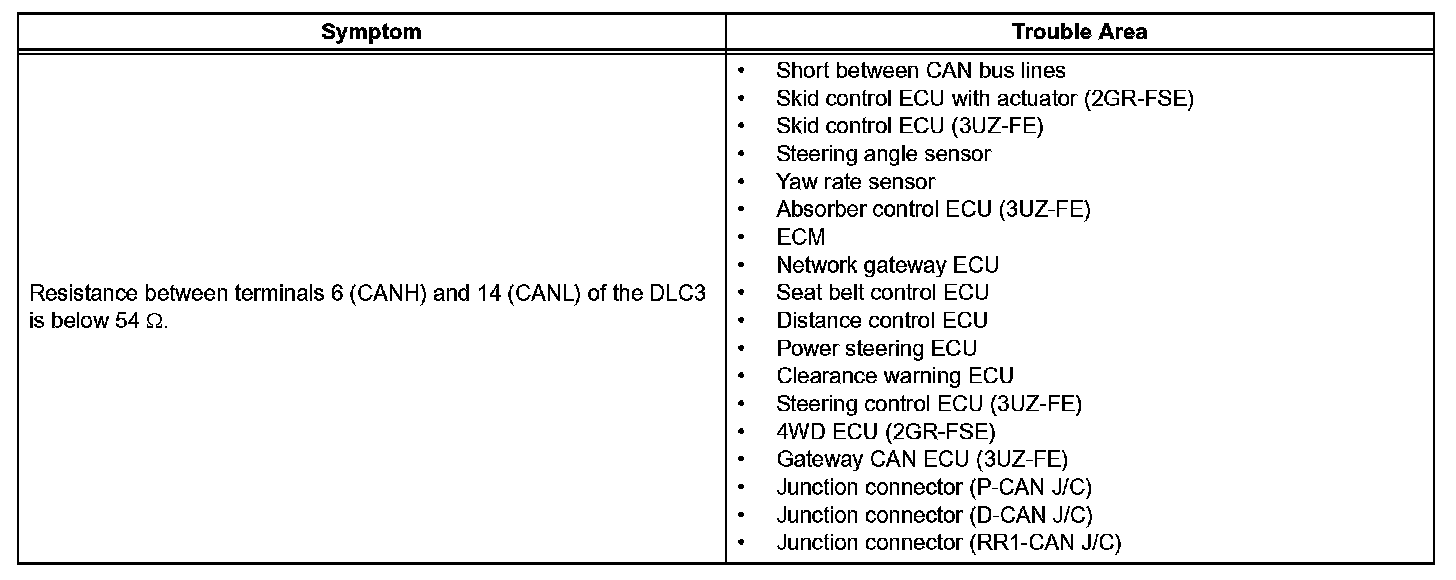

There may be a short circuit between the CAN bus line when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54 ohms.

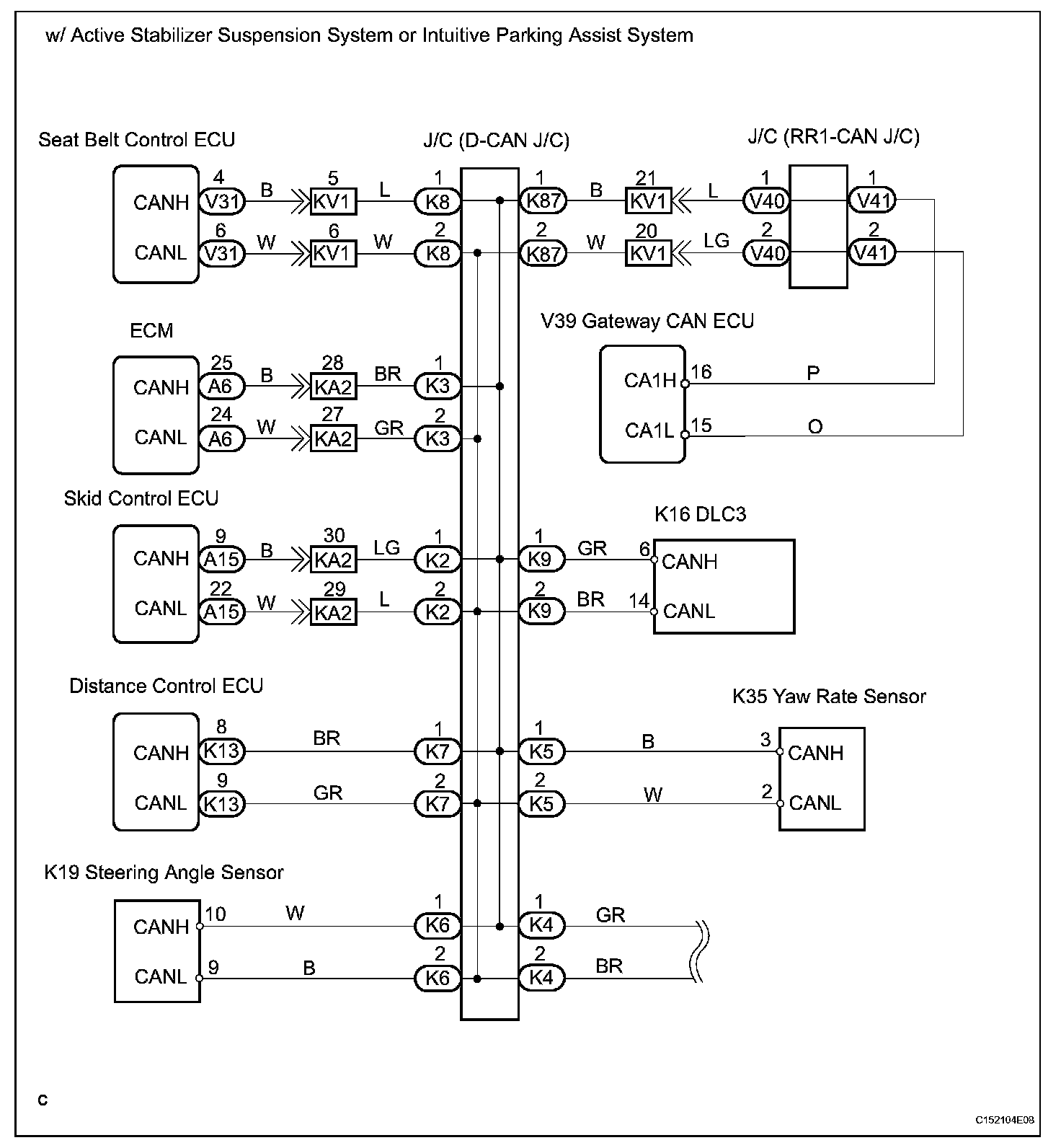

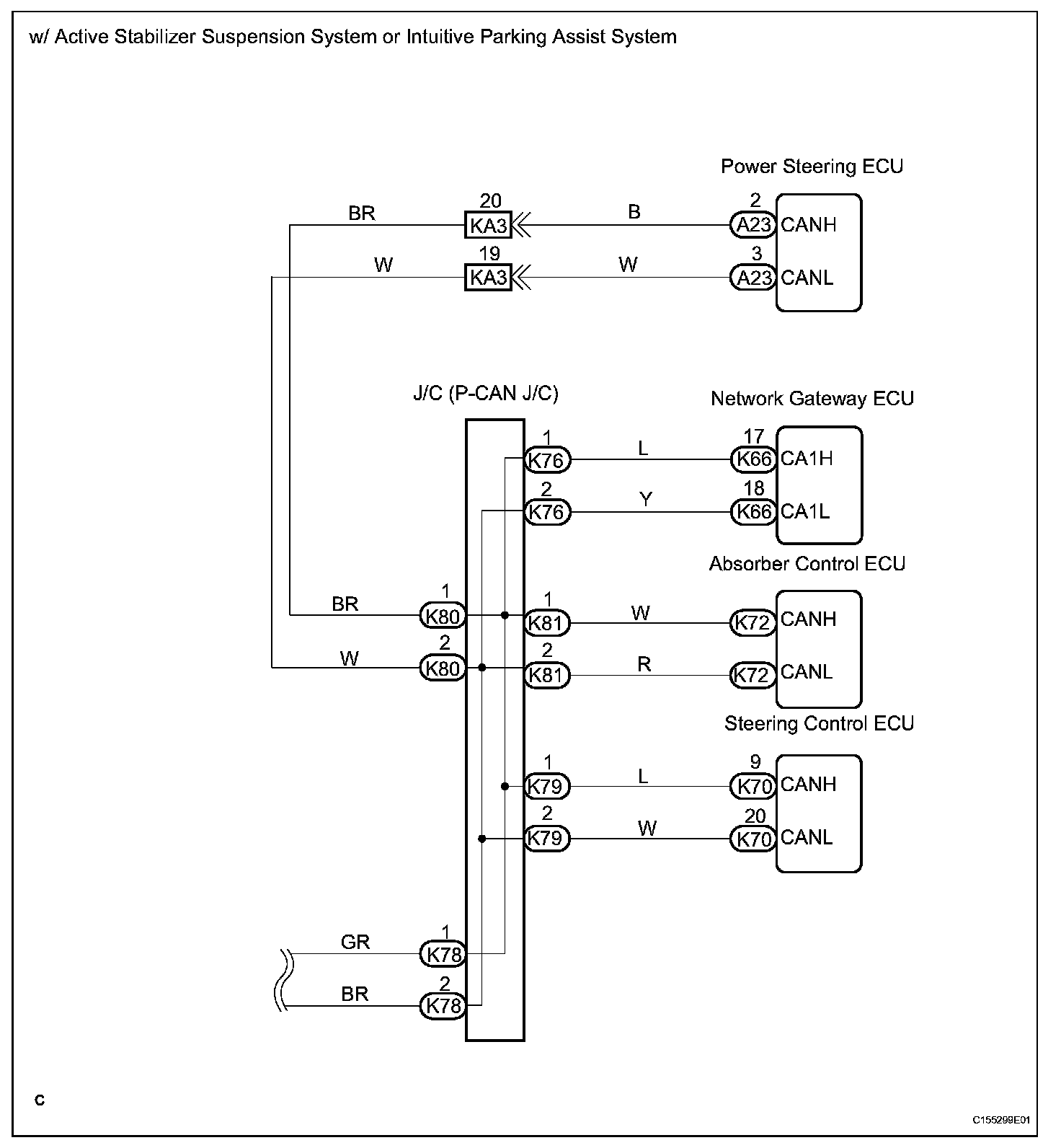

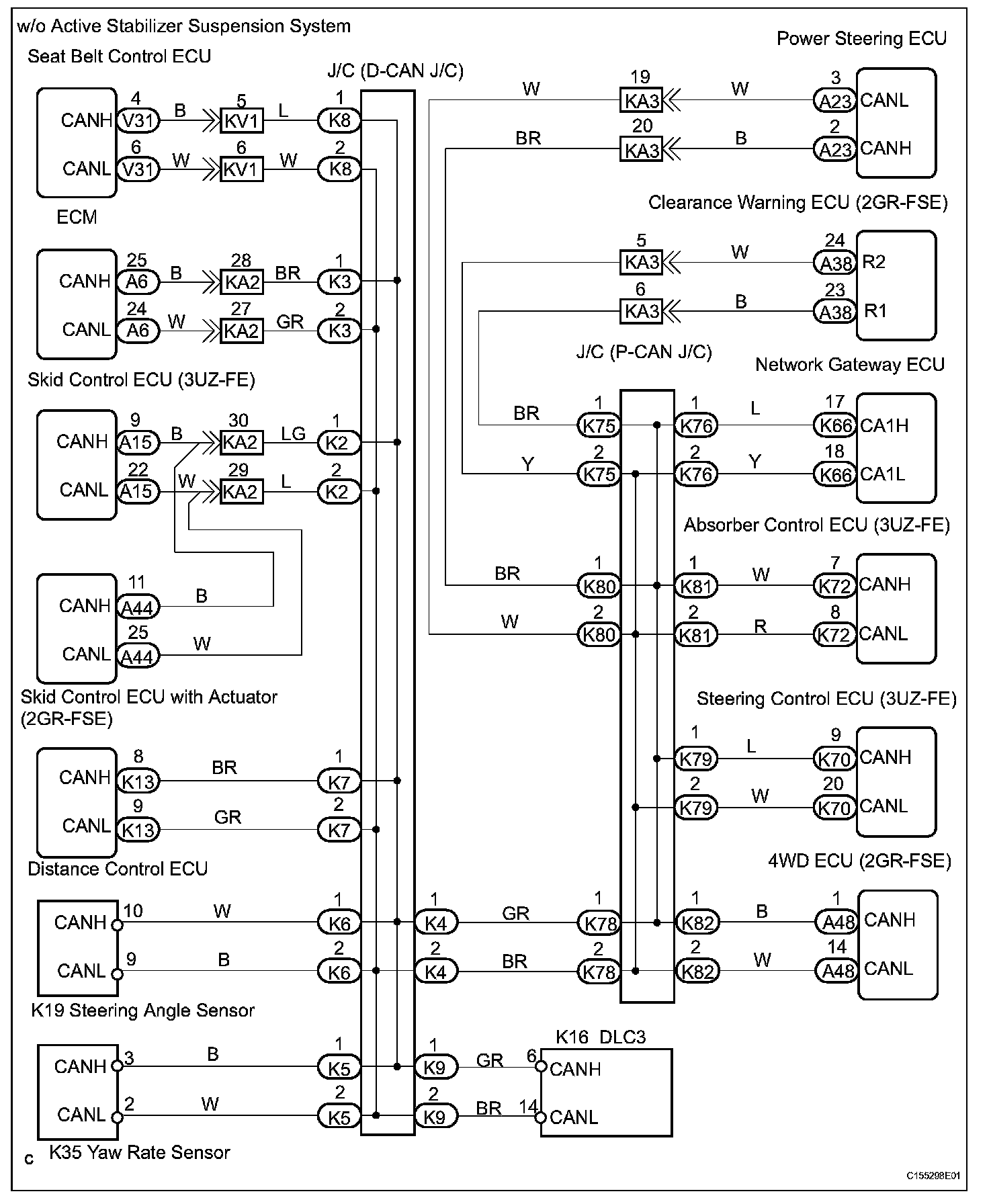

Wiring Diagram (Part 1):
Wiring Diagram (Part 2):
Wiring Diagram (Part 3):

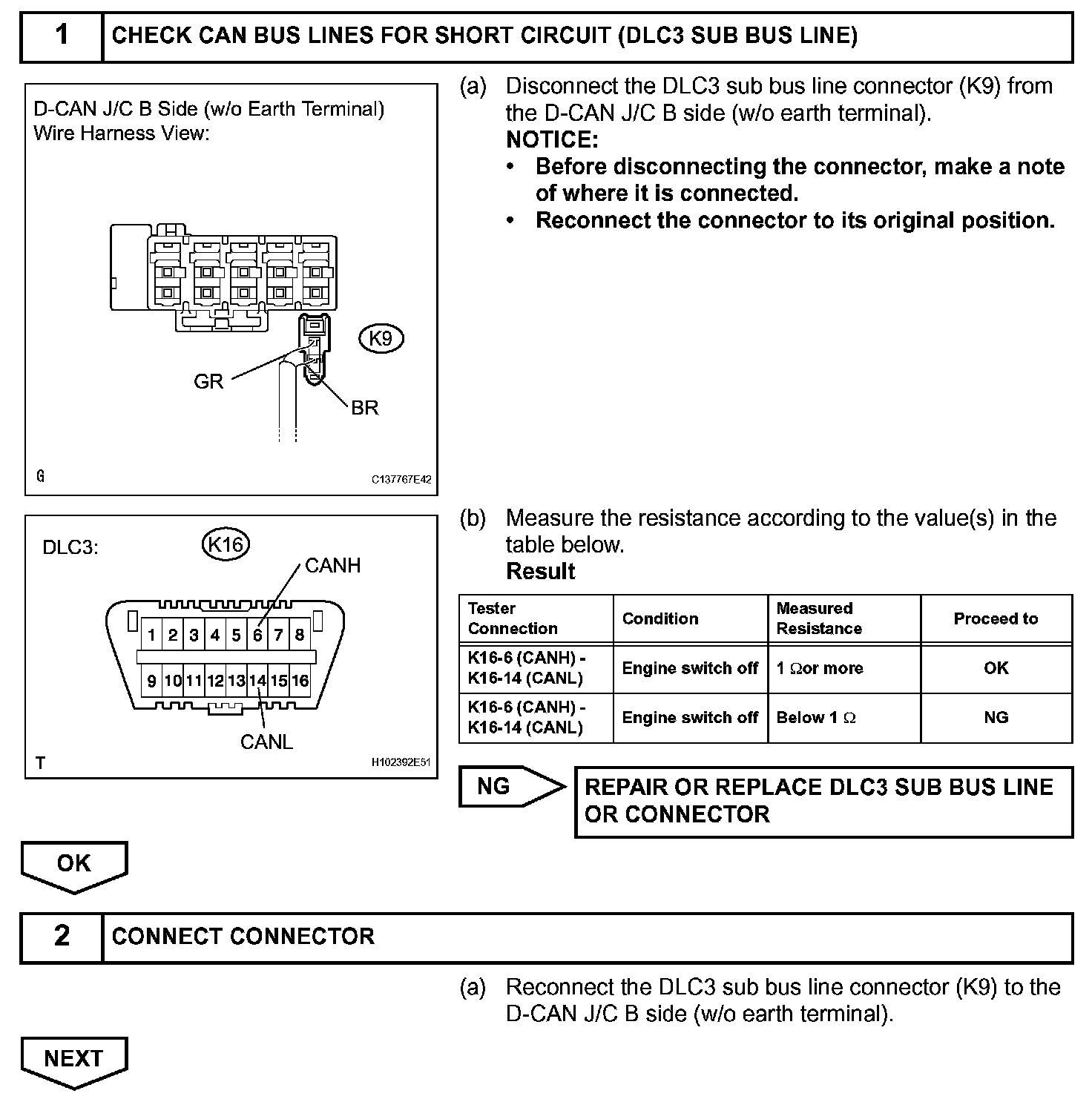

Step 1-2:

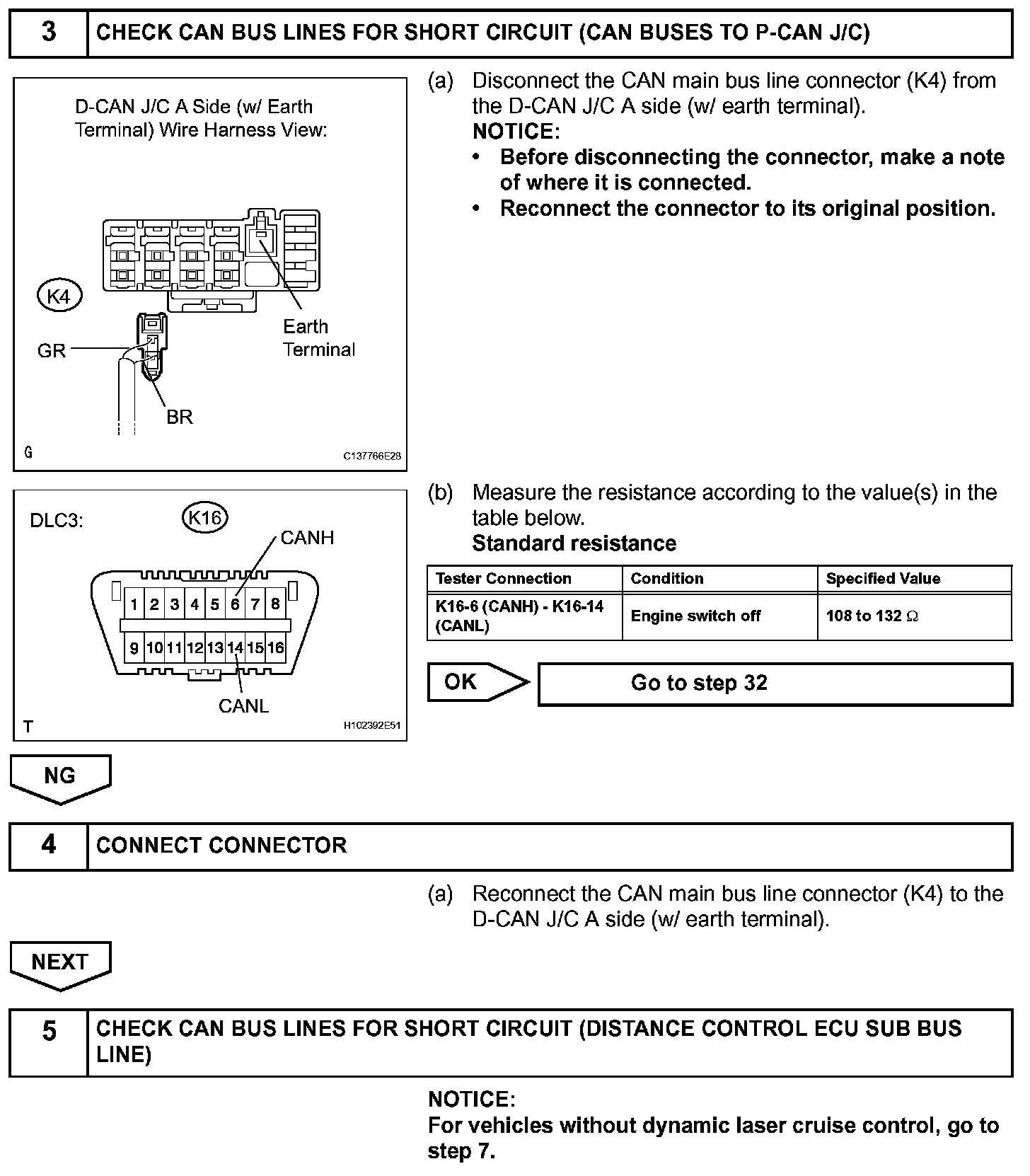

Step 3-5:

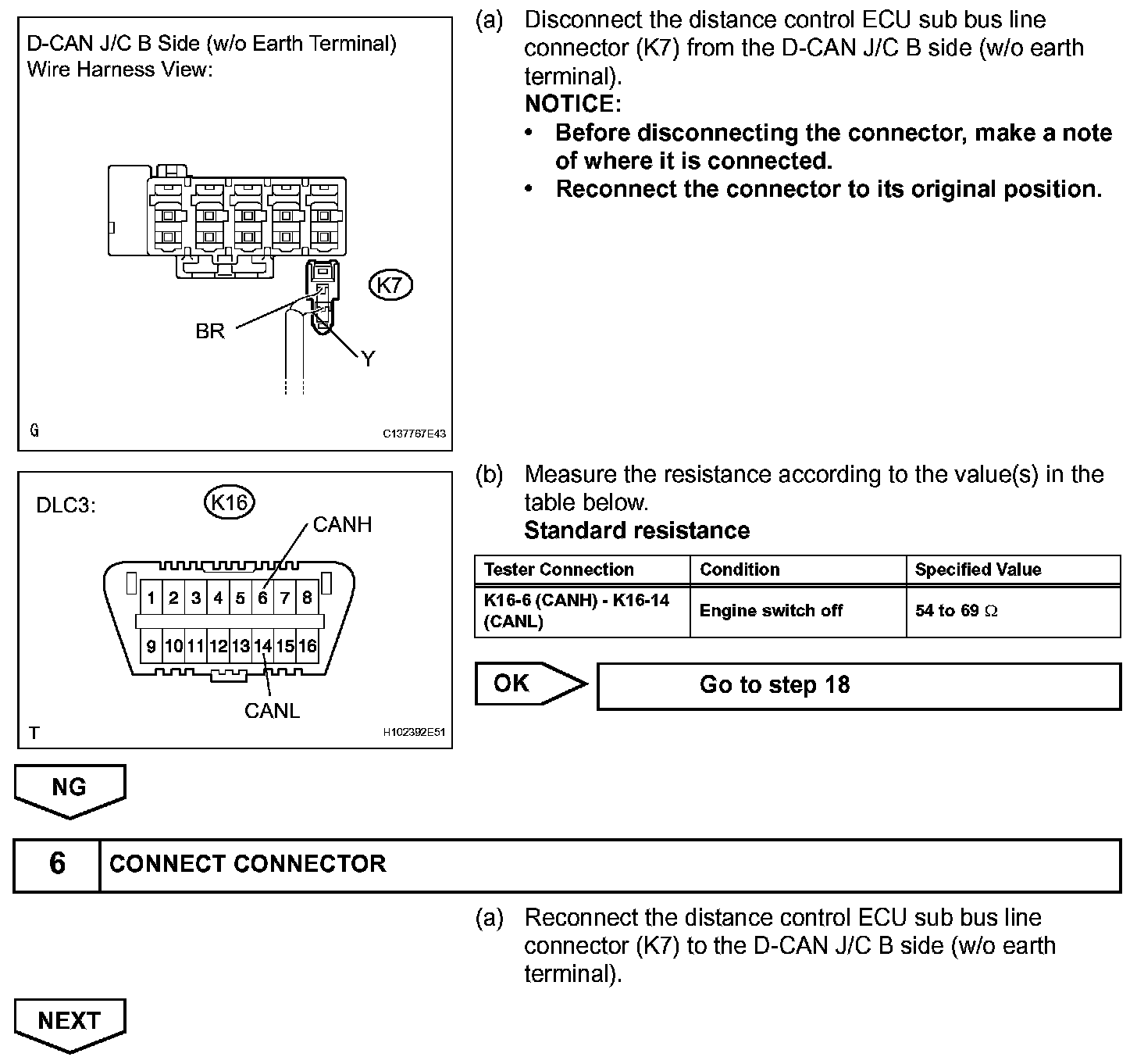

Step 5 (Continued)-6:

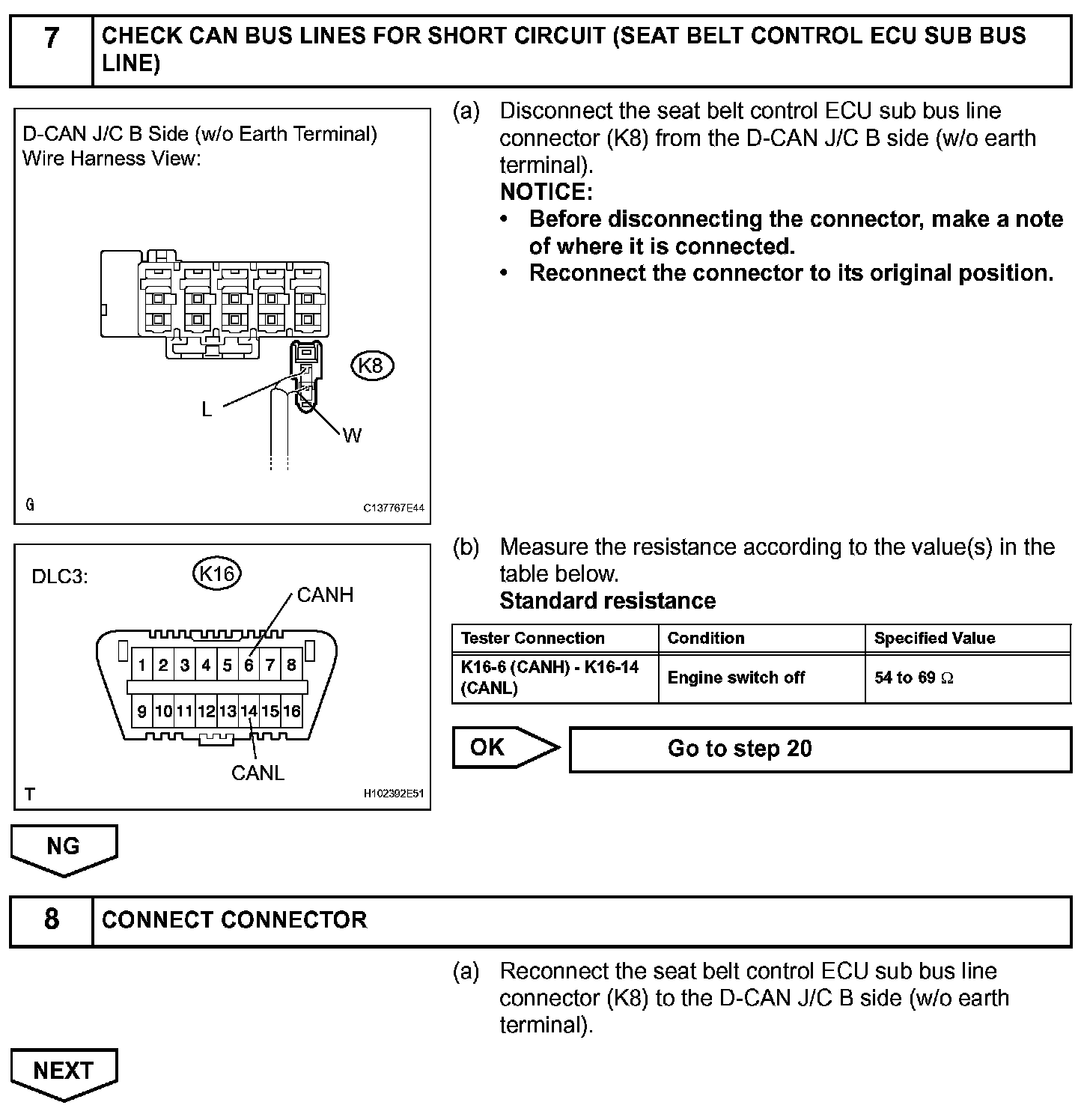

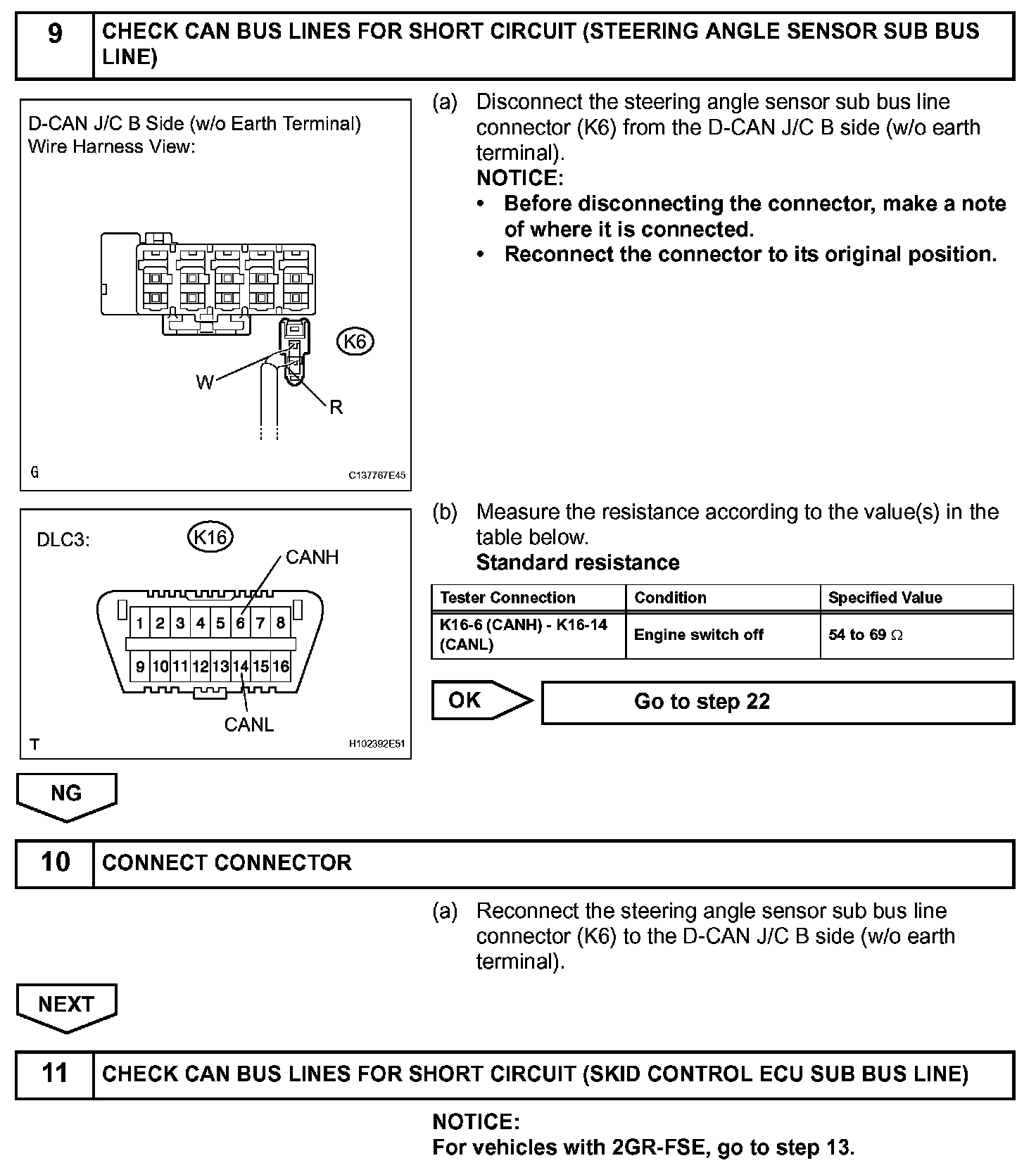

Step 7-8:
Step 9-11:

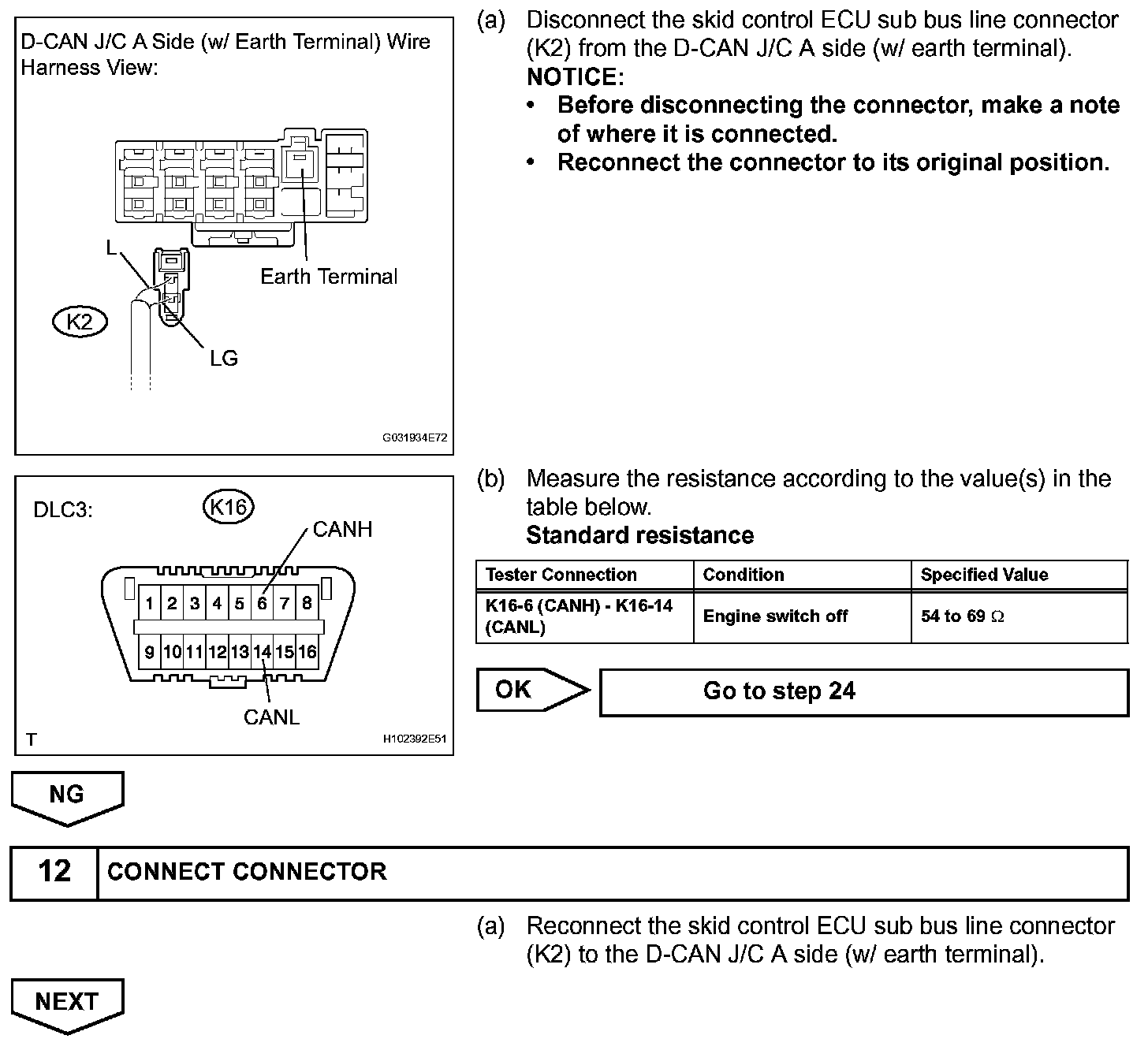

Step 11 (Continued)-12:

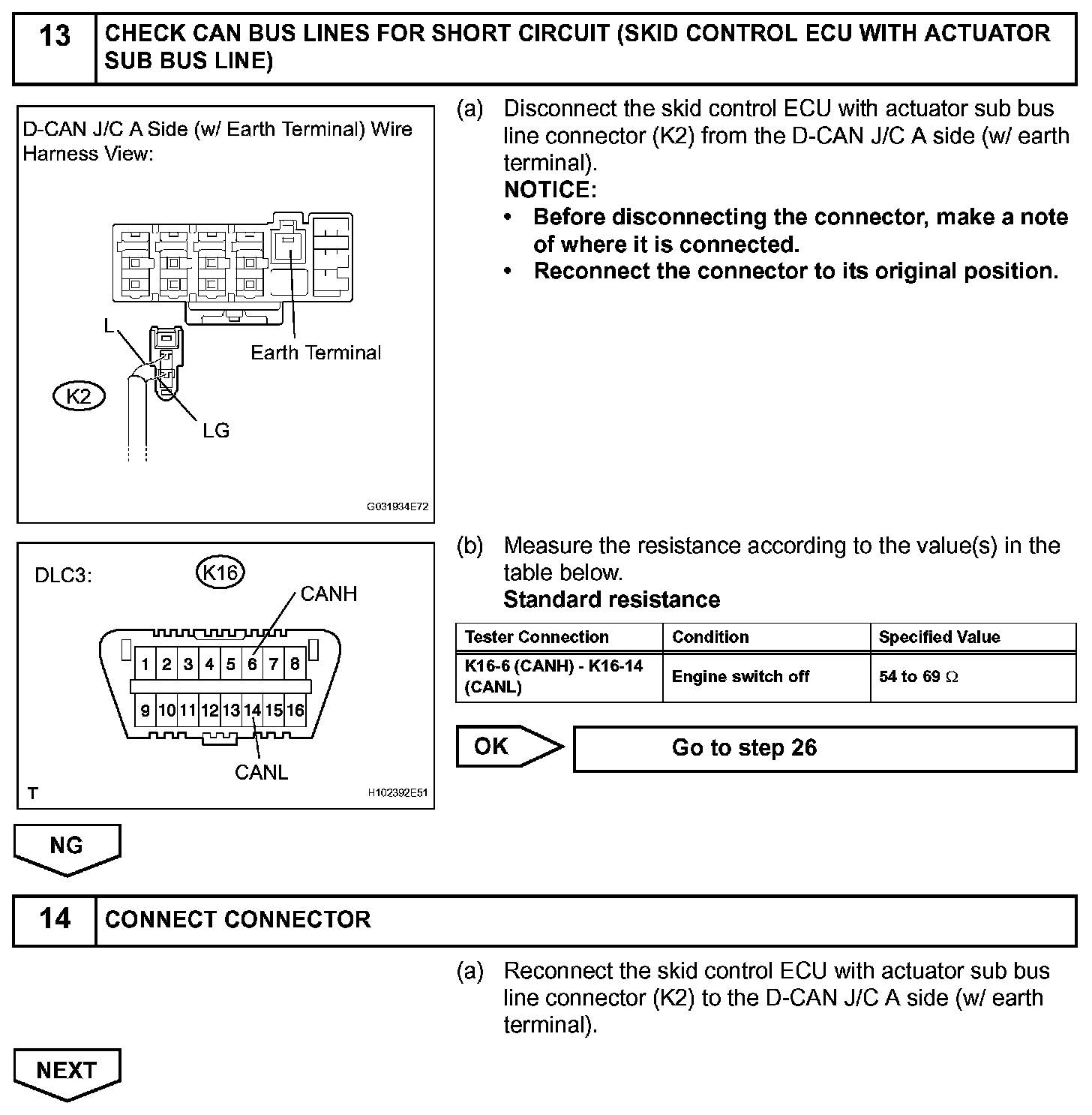

Step 13-14:

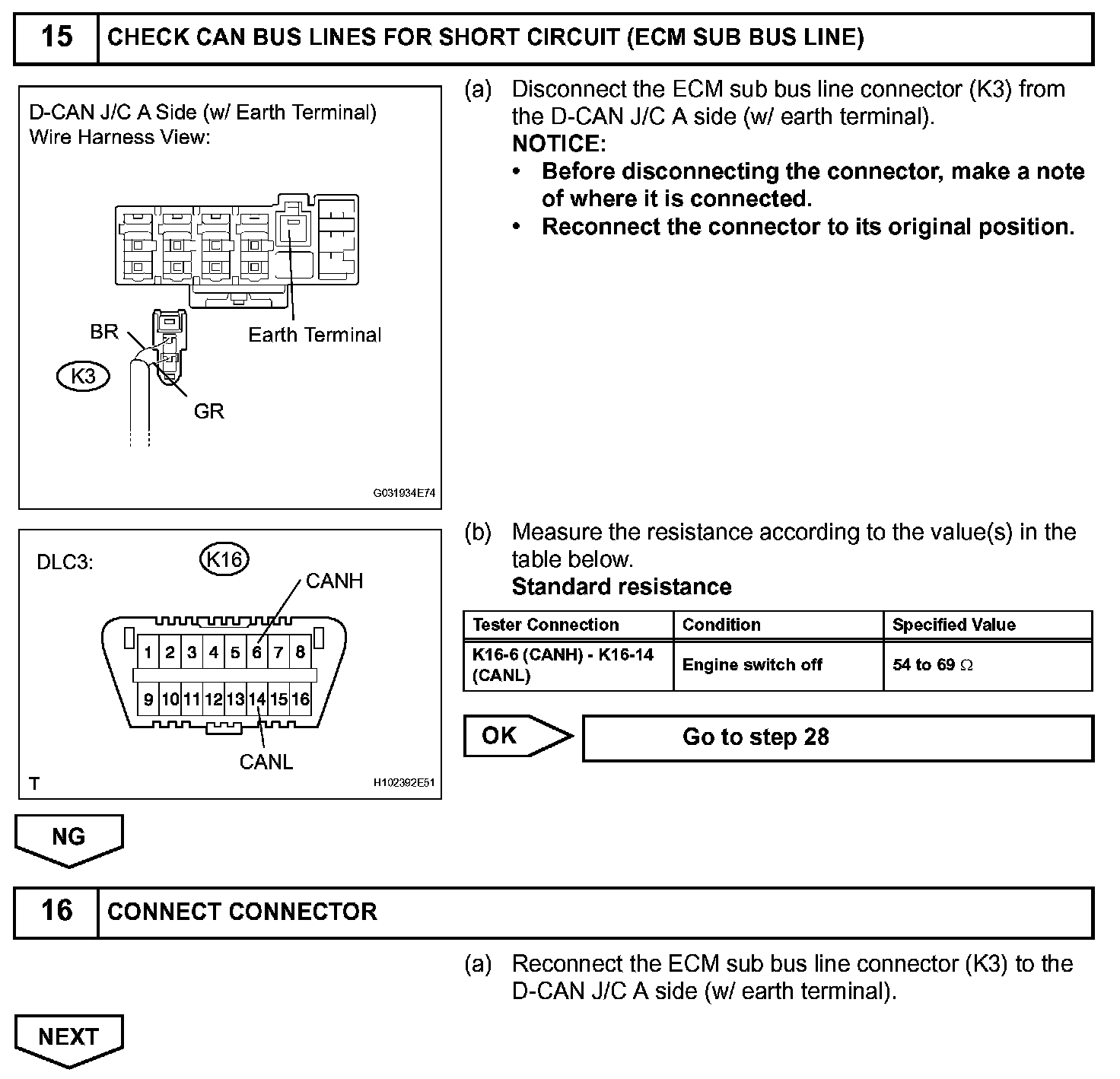

Step 15-16:

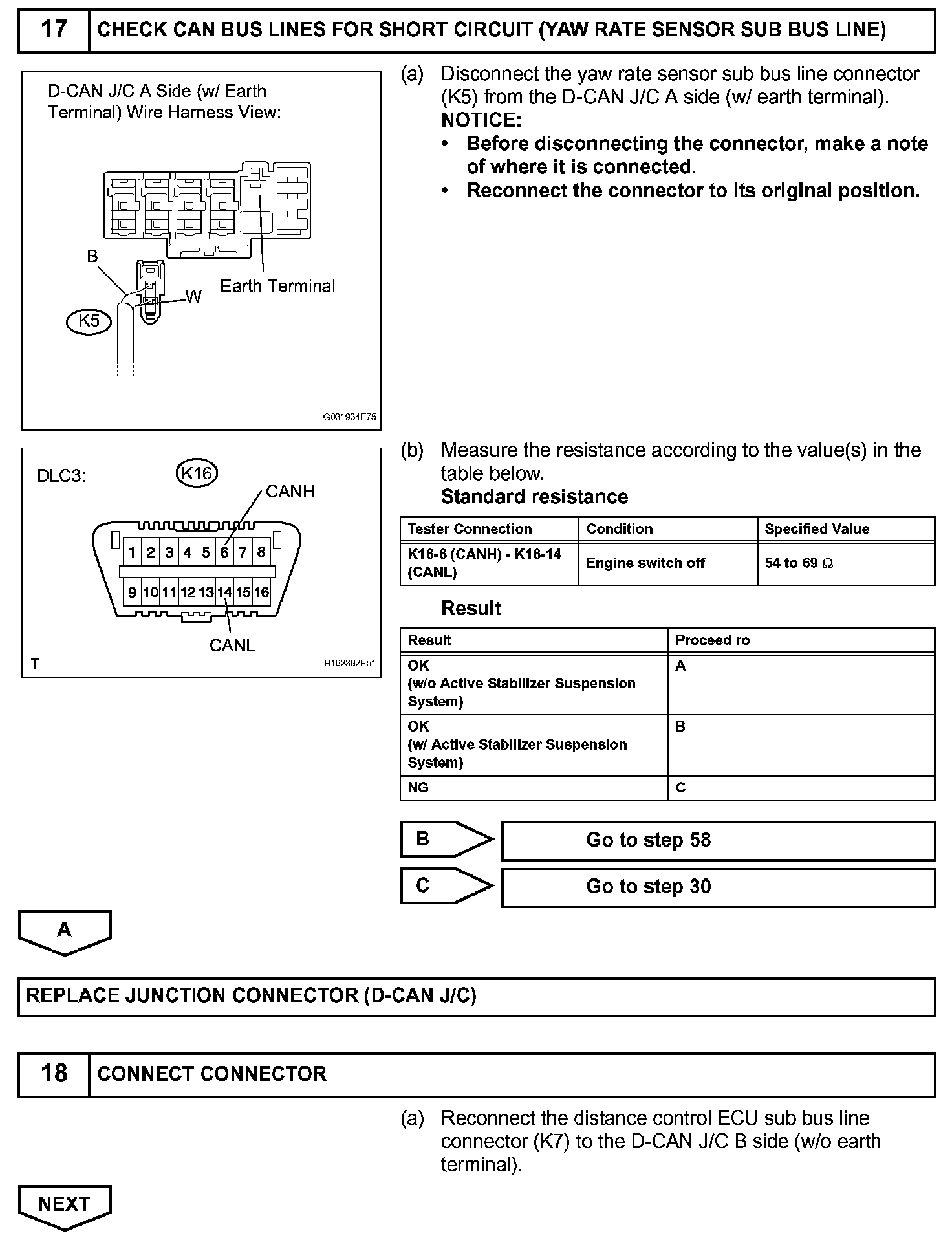

Step 17-18:

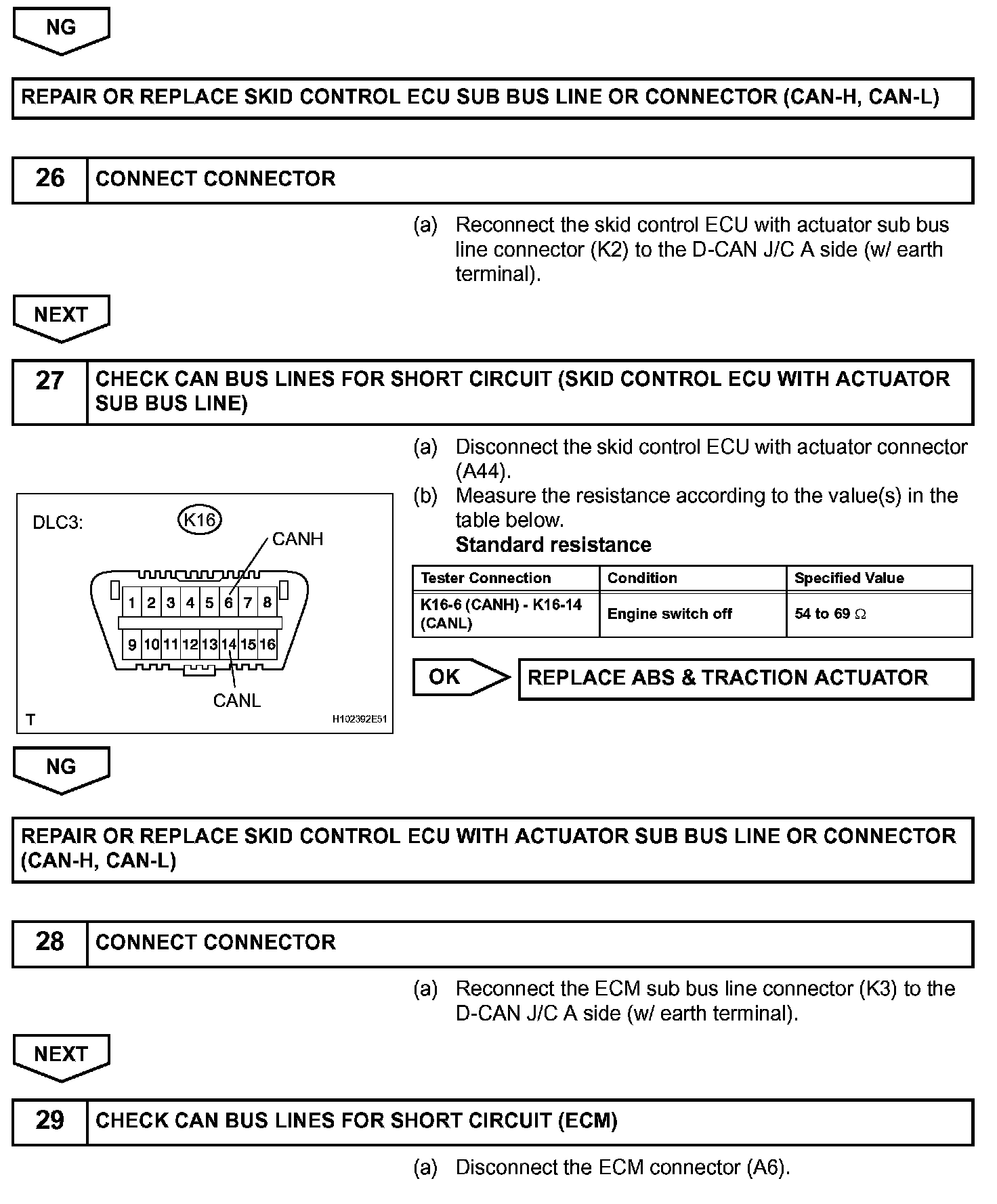

Step 19-21:

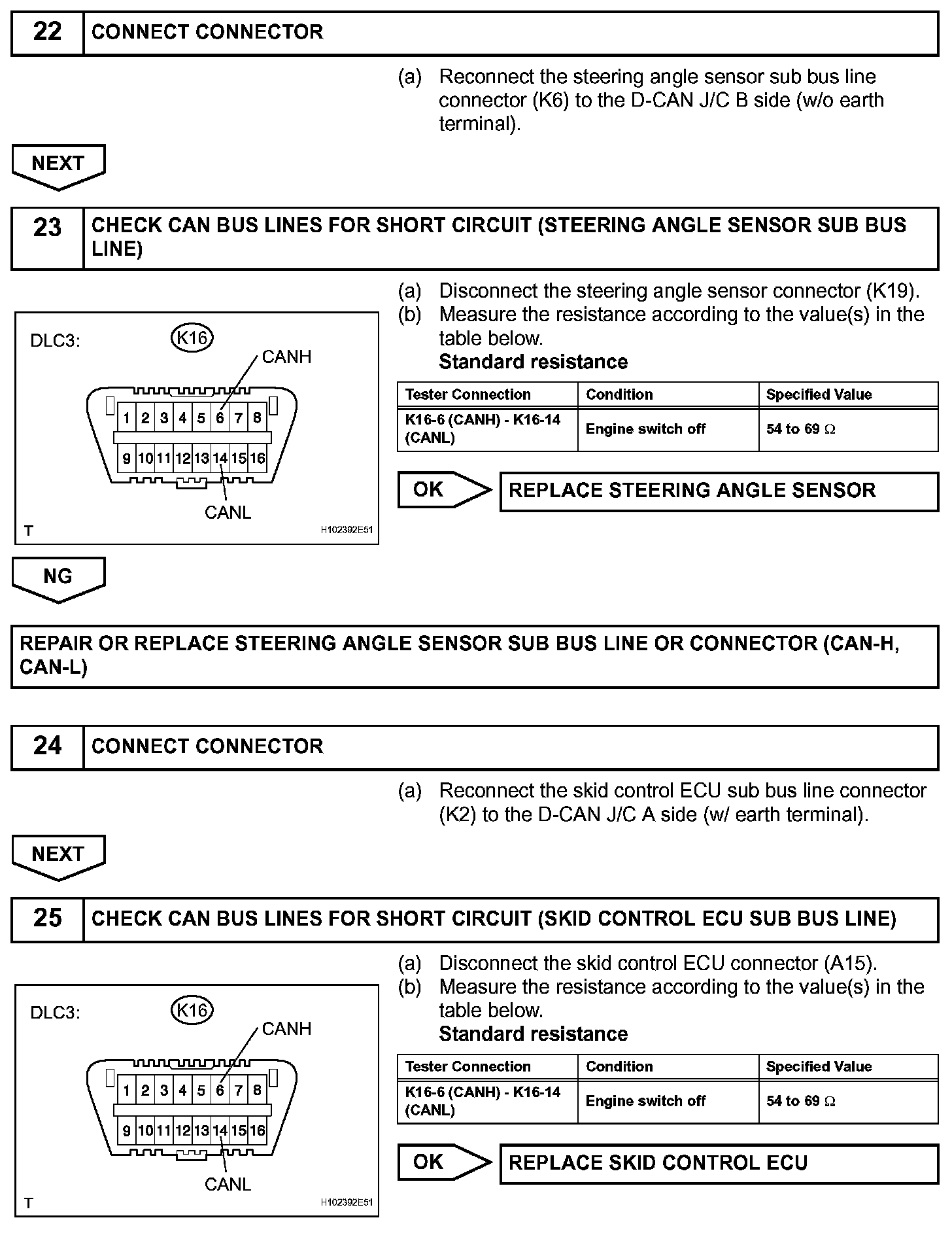

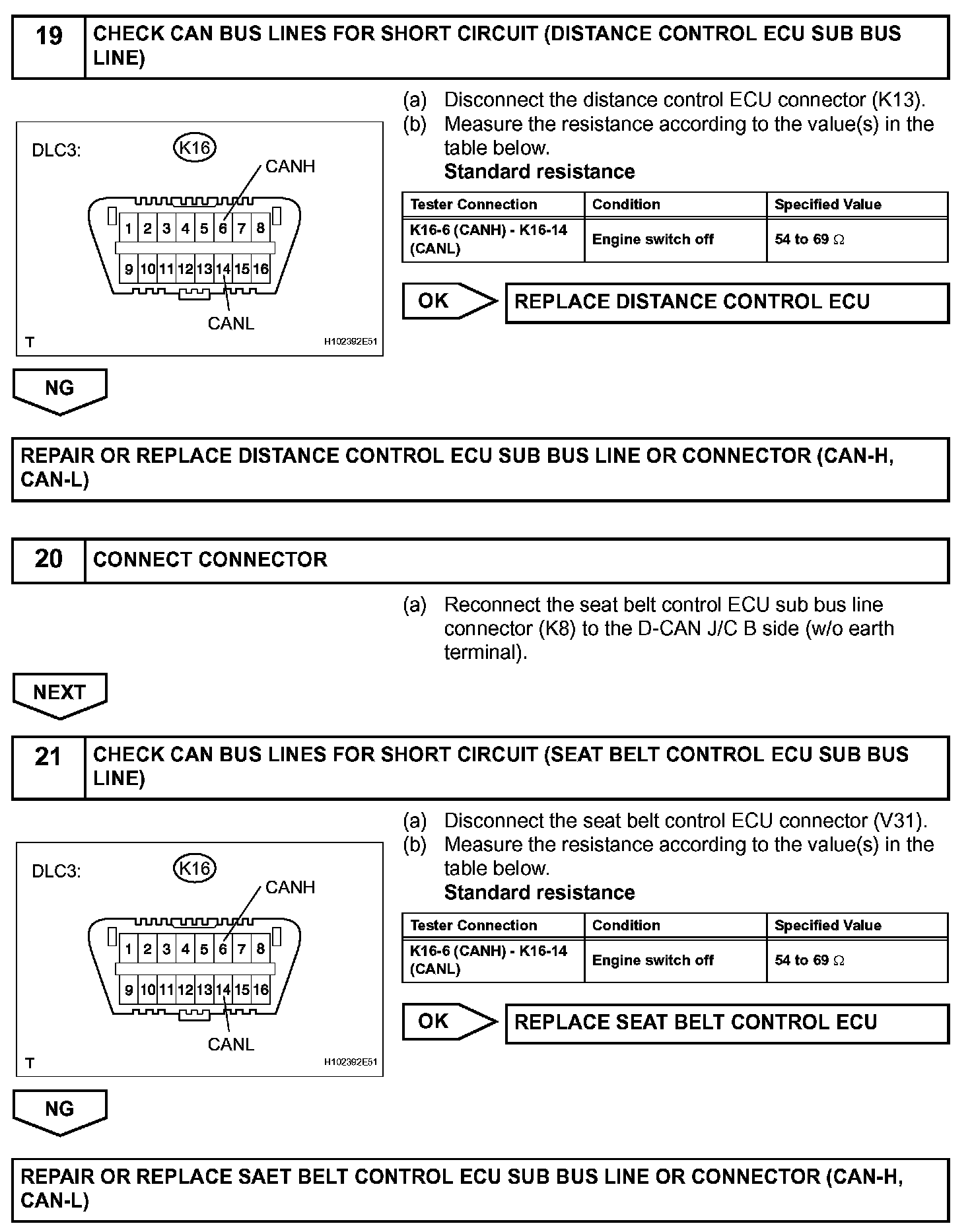

Step 22-25:

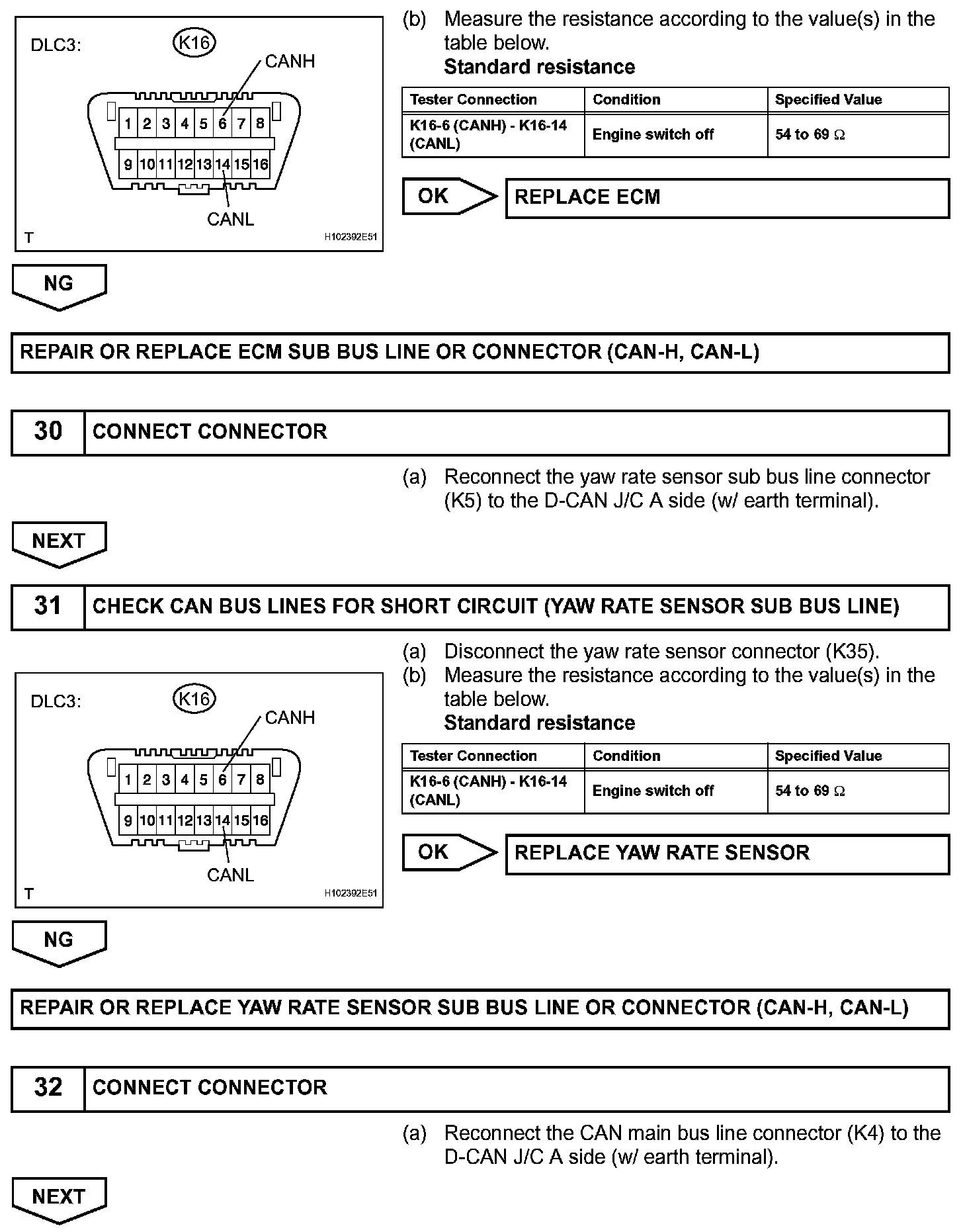

Step 25 (Continued)-29:
Step 29 (Continued)-32:

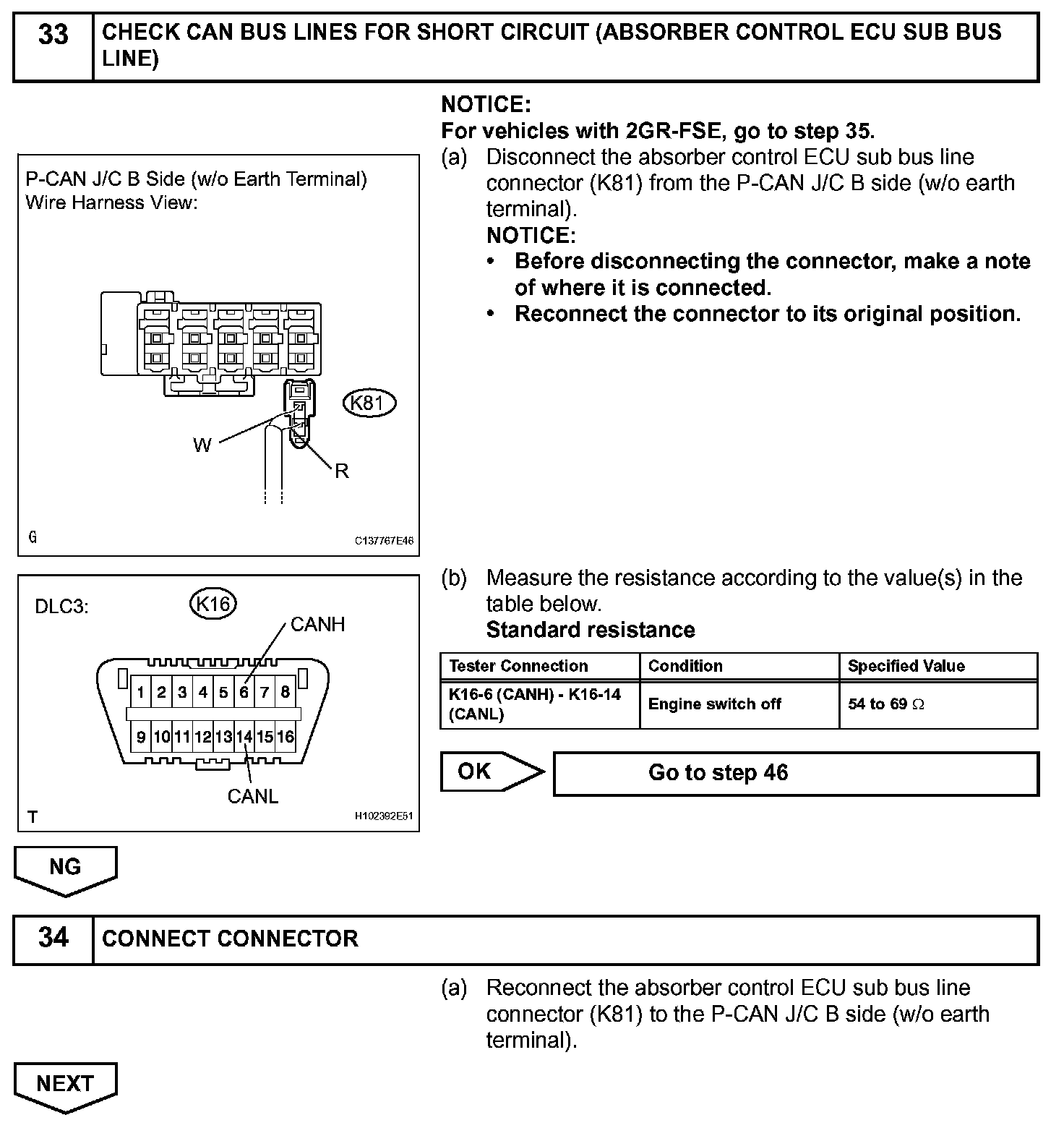

Step 33-34:

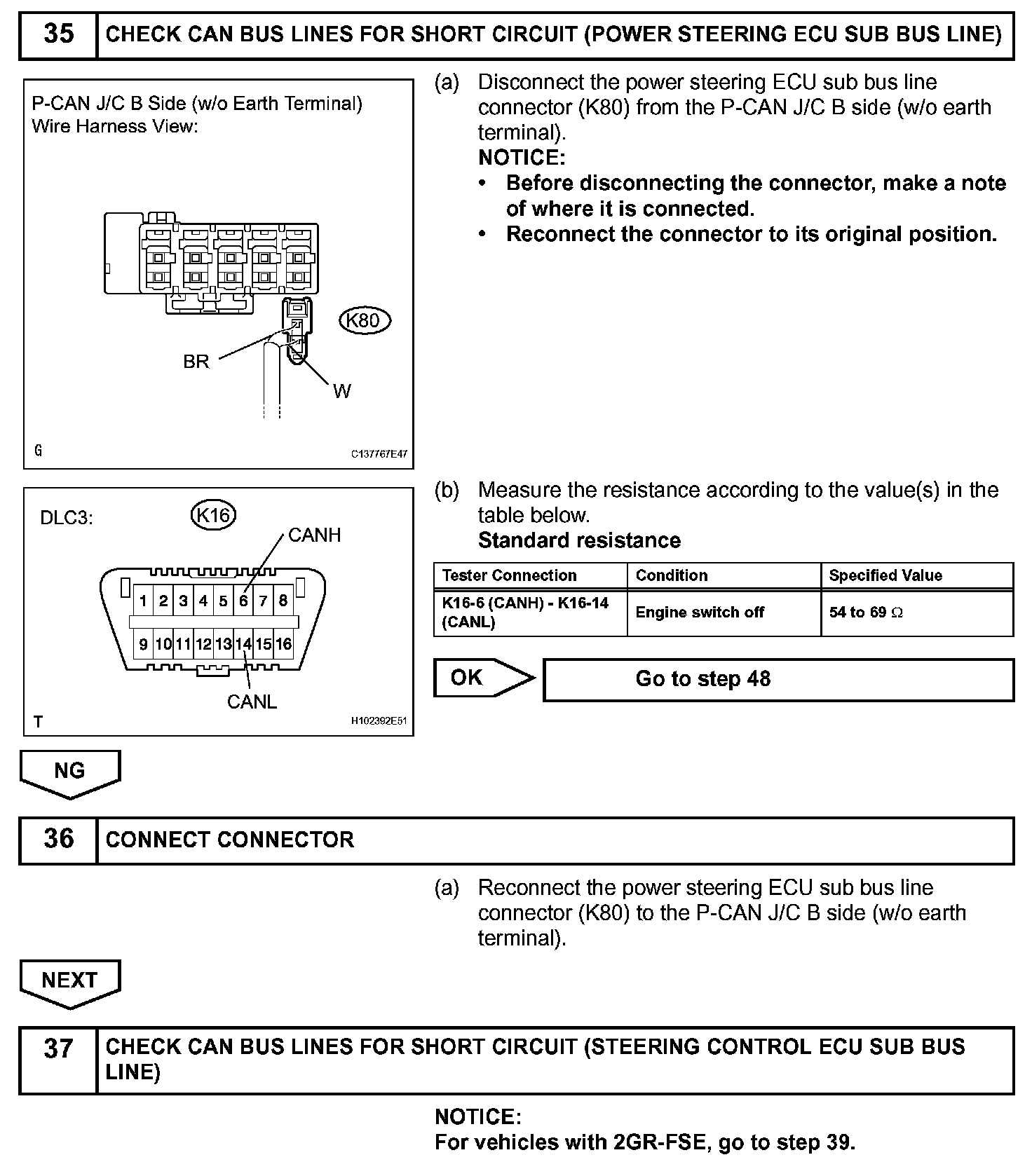

Step 35-37:

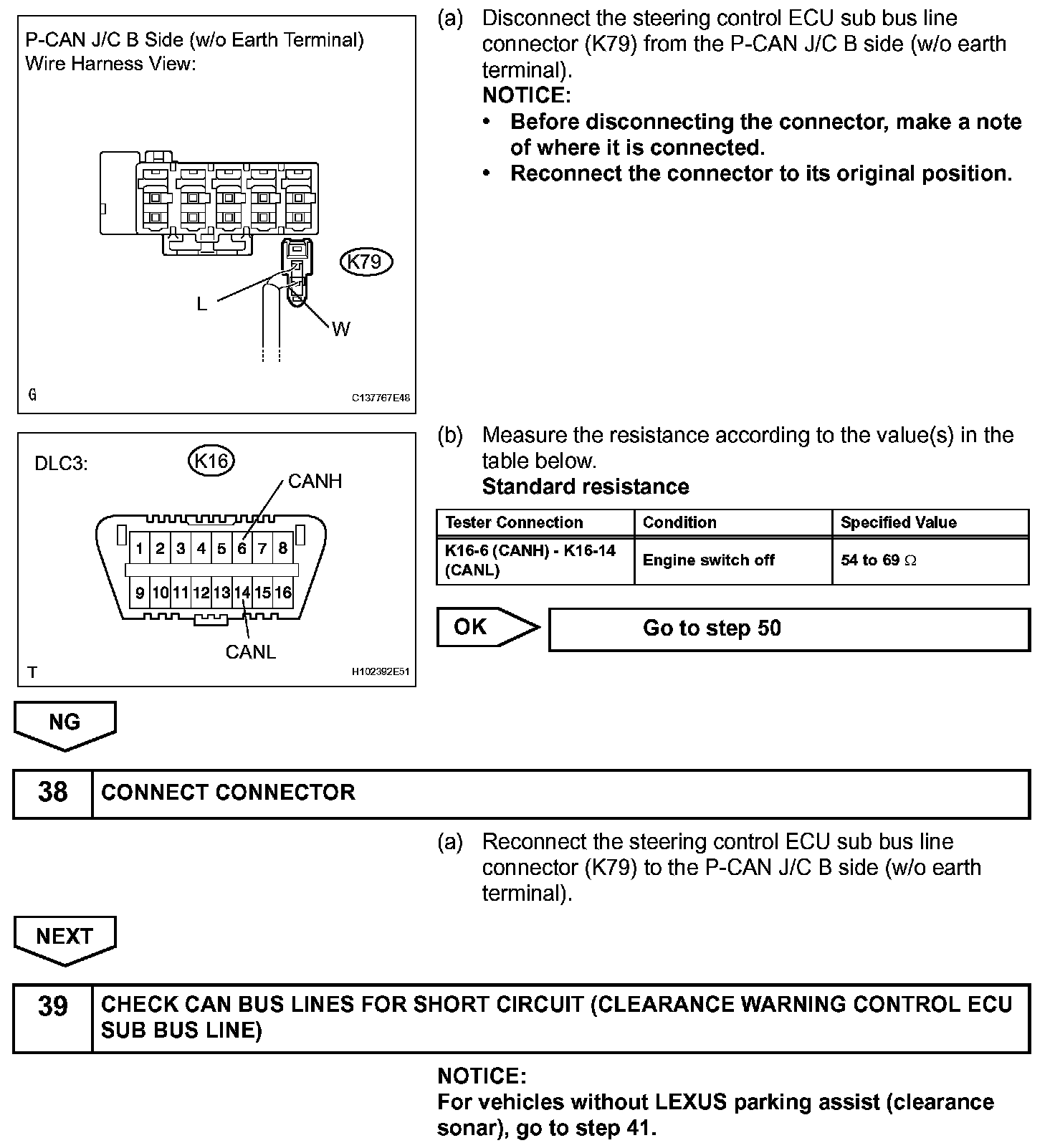

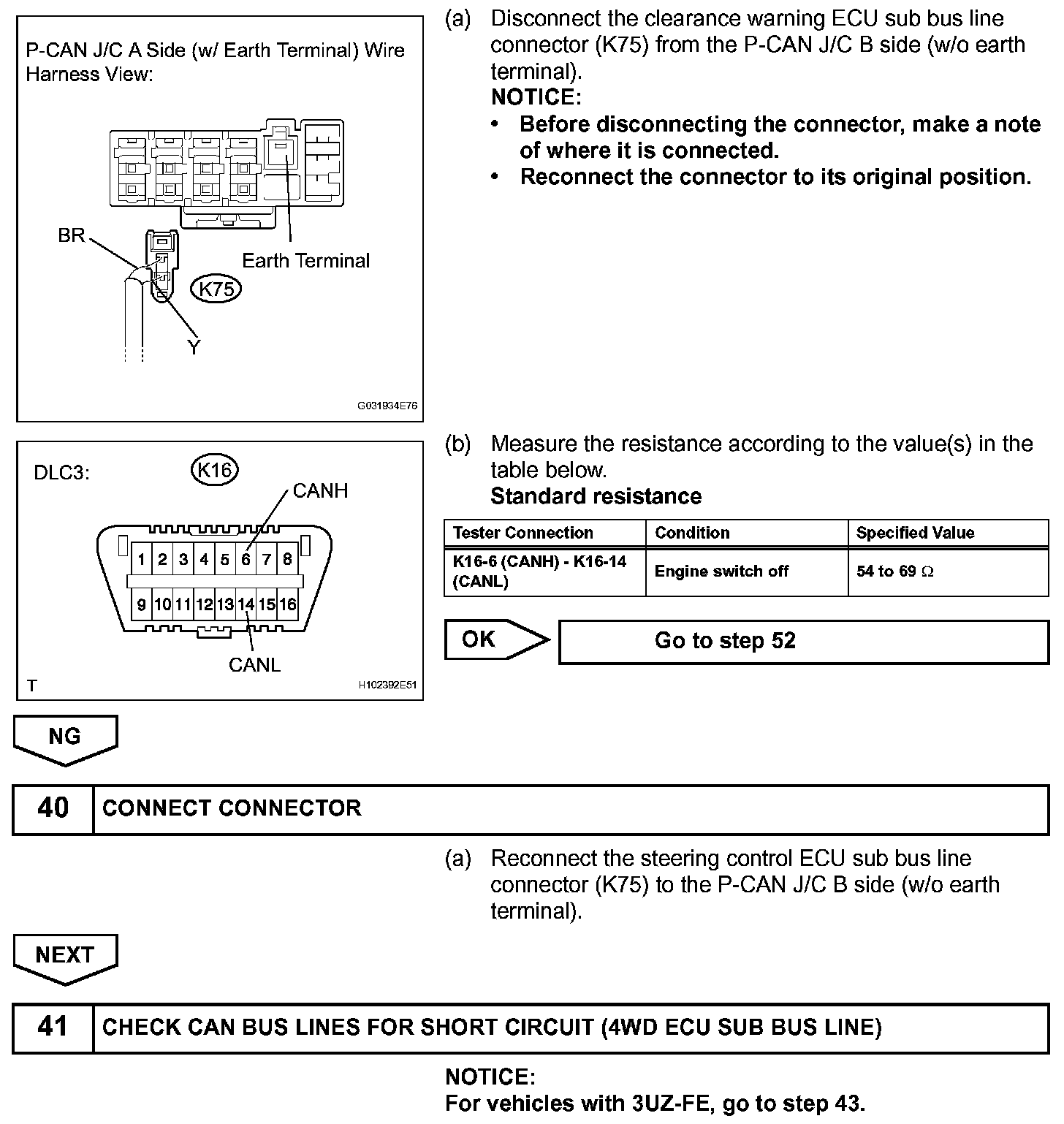

Step 37 (Continued)-39:
Step 39 (Continued)-41:

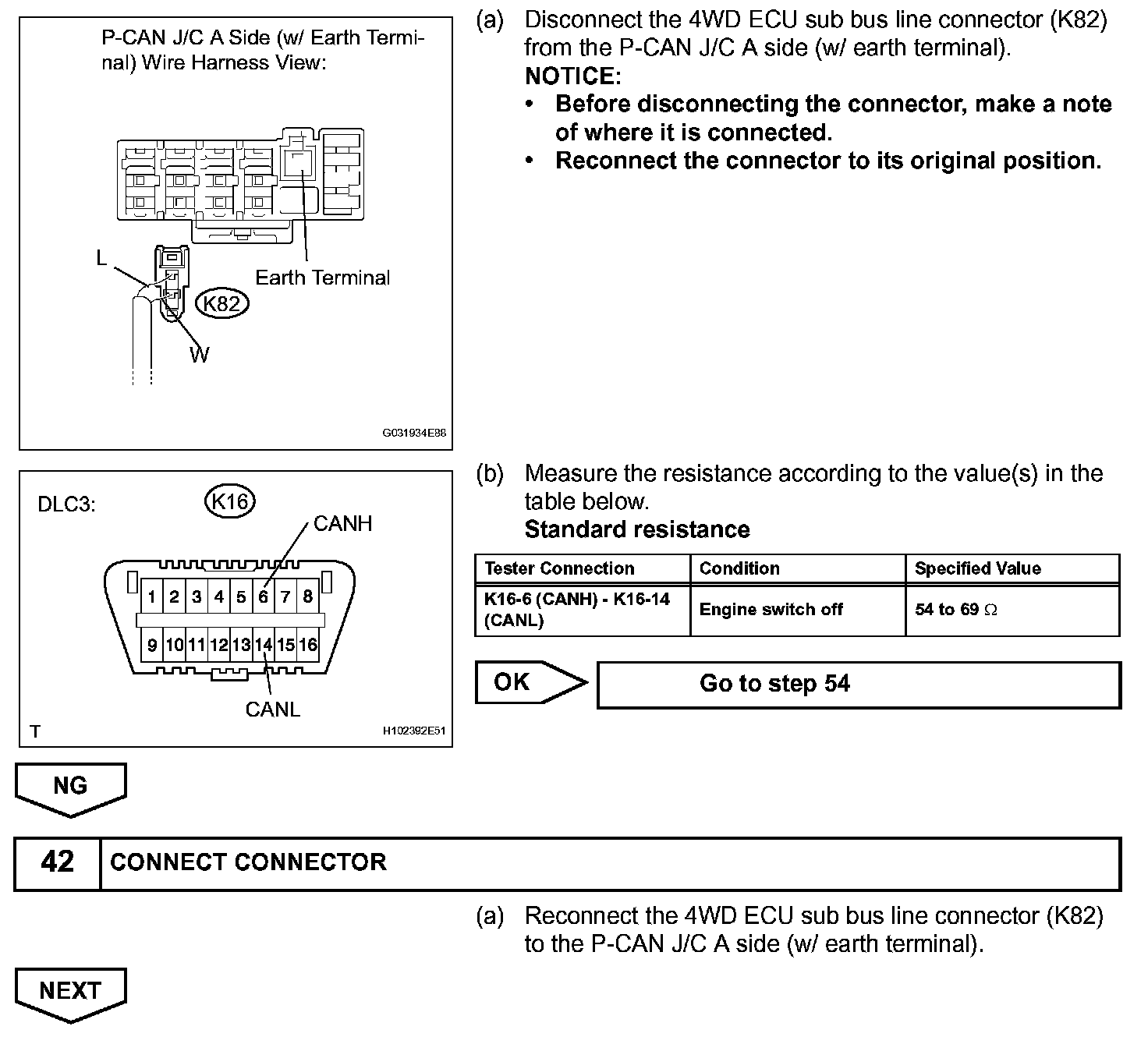

Step 41 (Continued)-42:

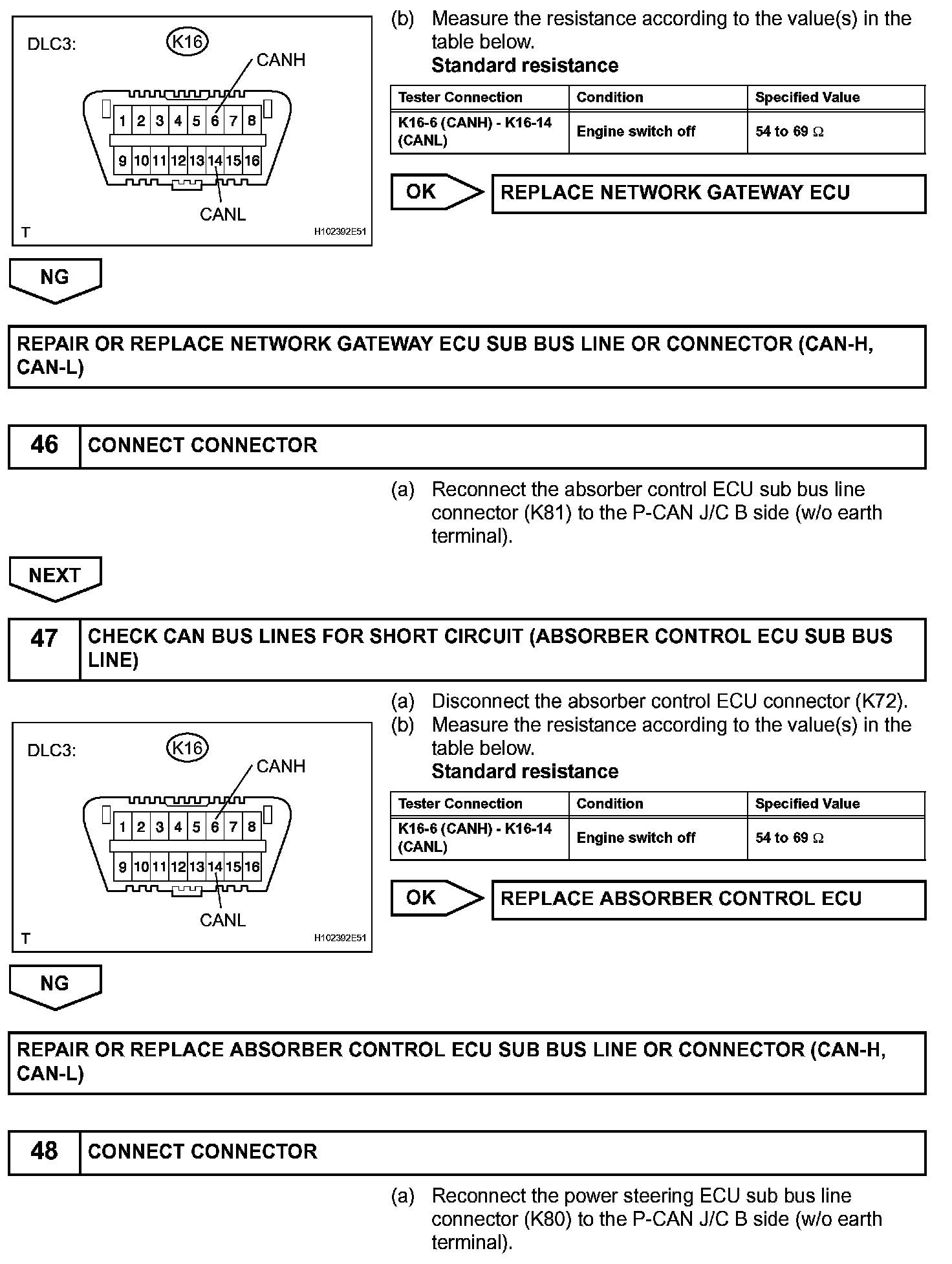

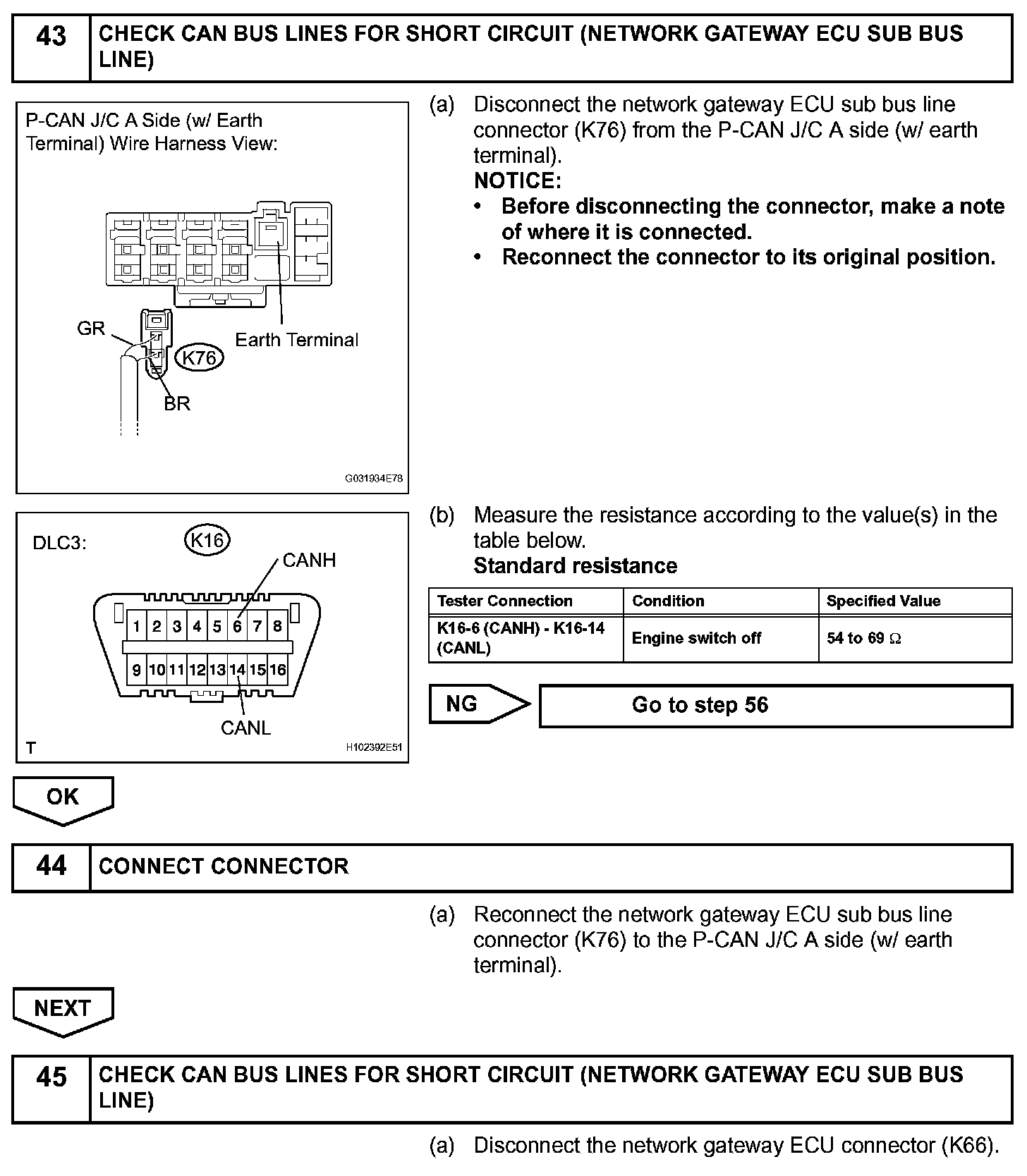

Step 43-45:
Step 45 (Continued)-48:

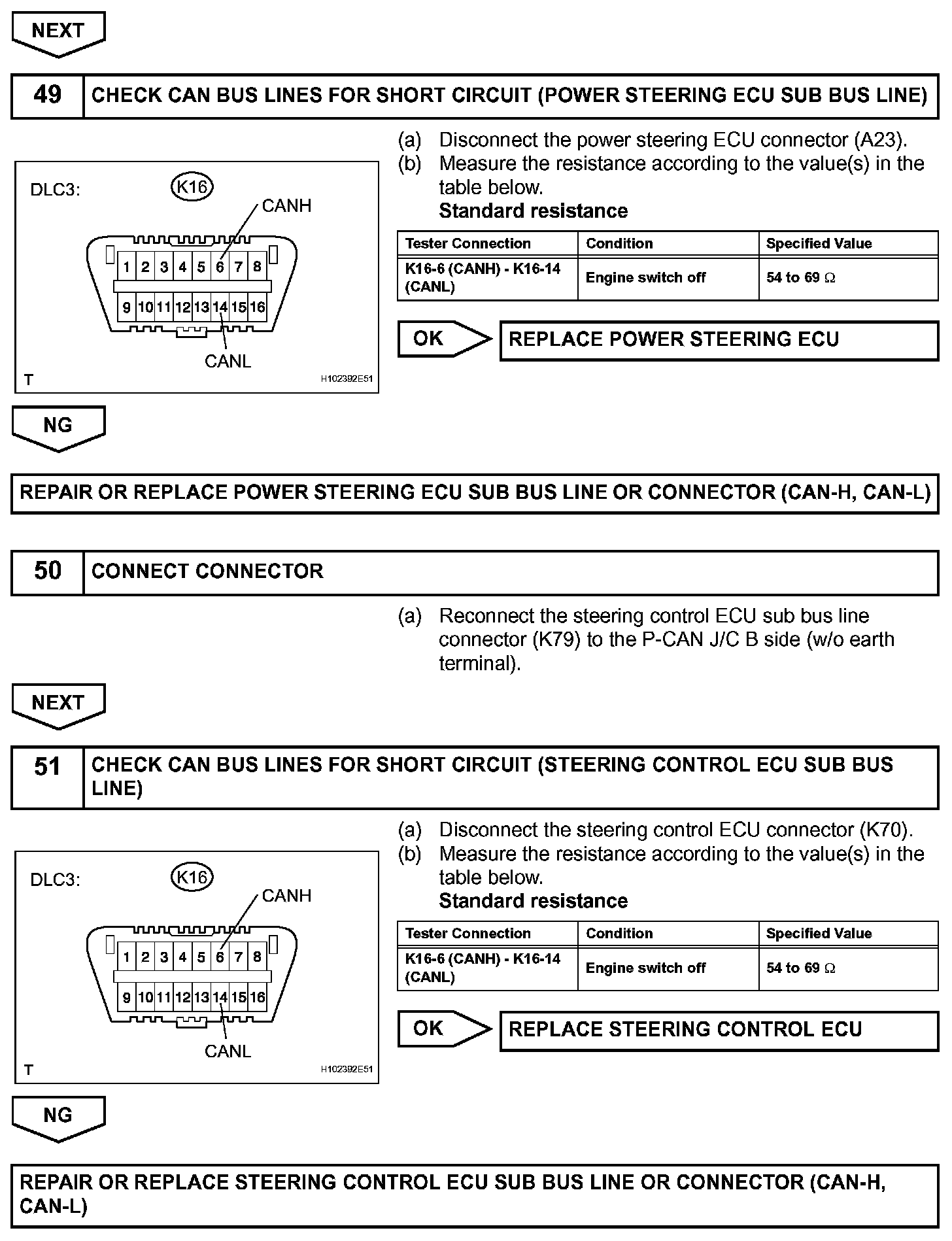

Step 48 (Continued)-51:

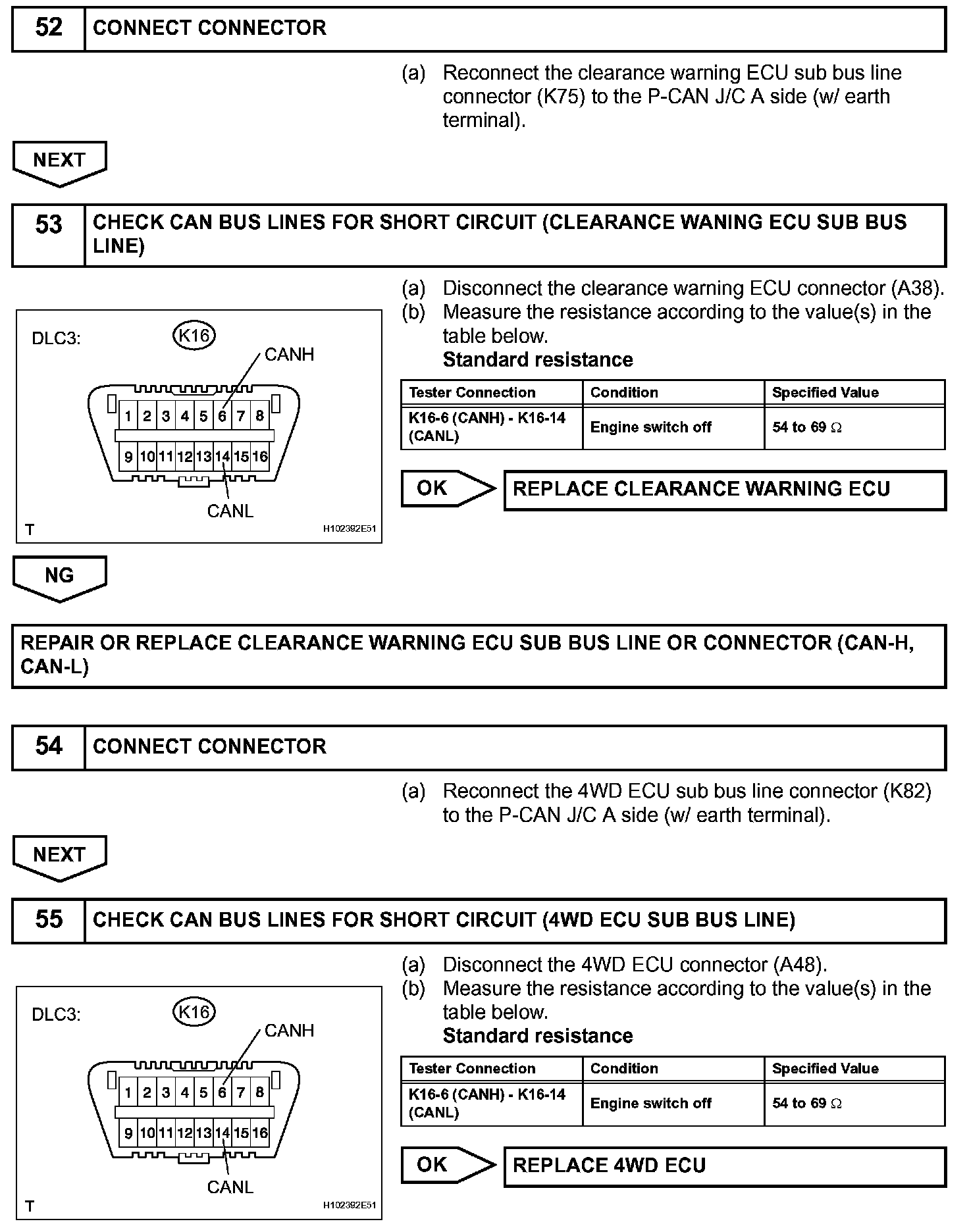

Step 52-55:

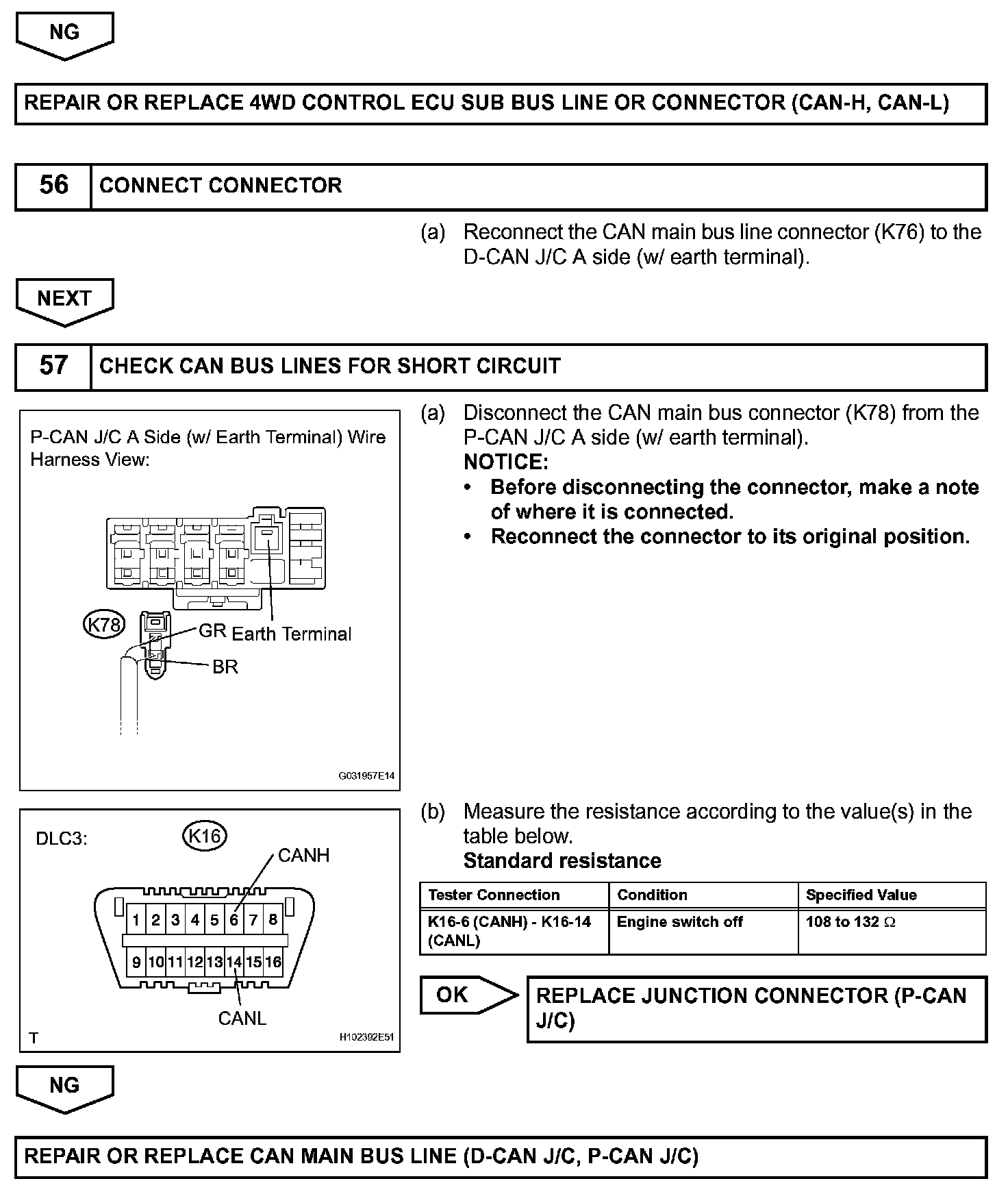

Step 55 (Continued)-57:

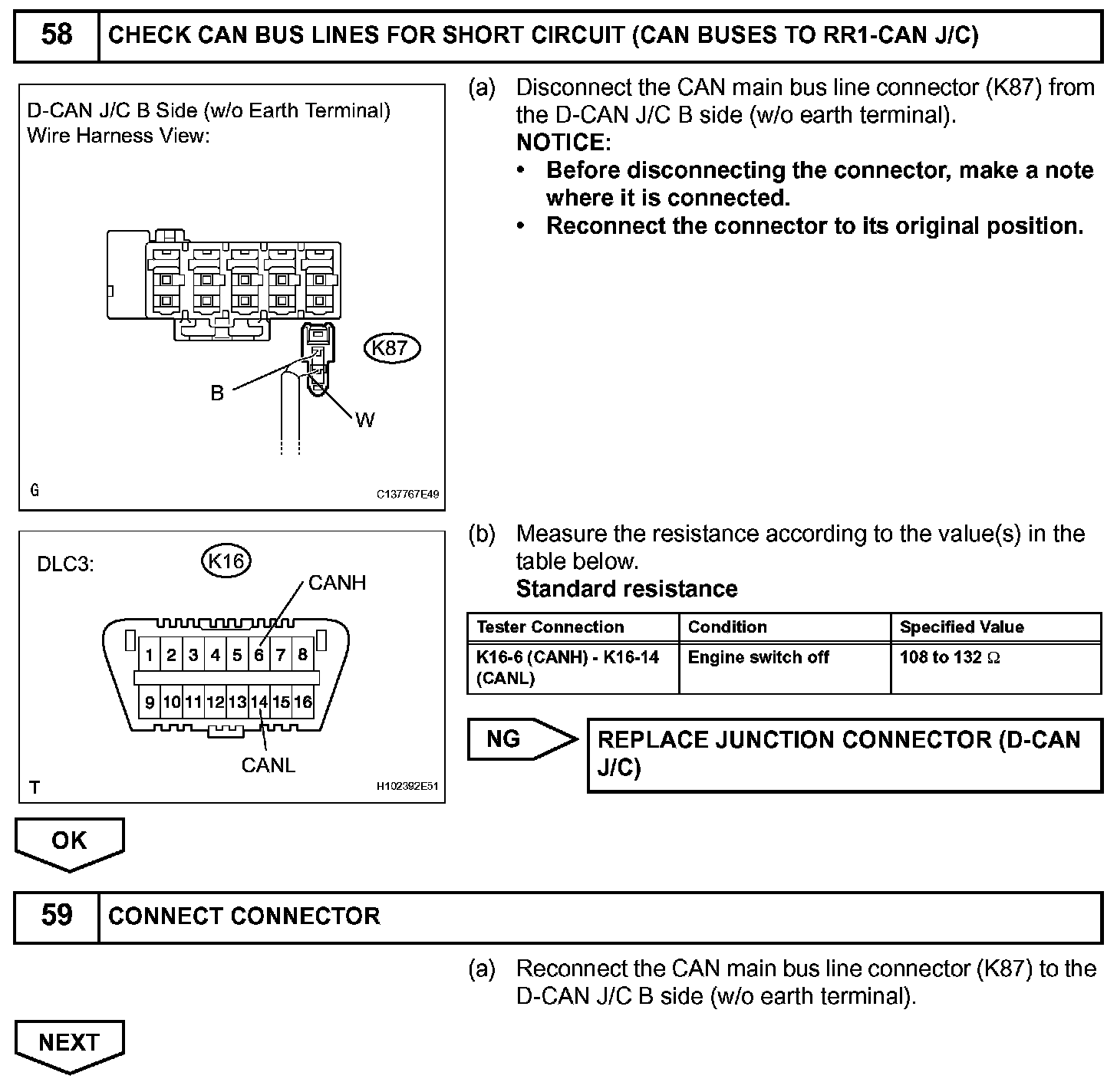

Step 58-59:

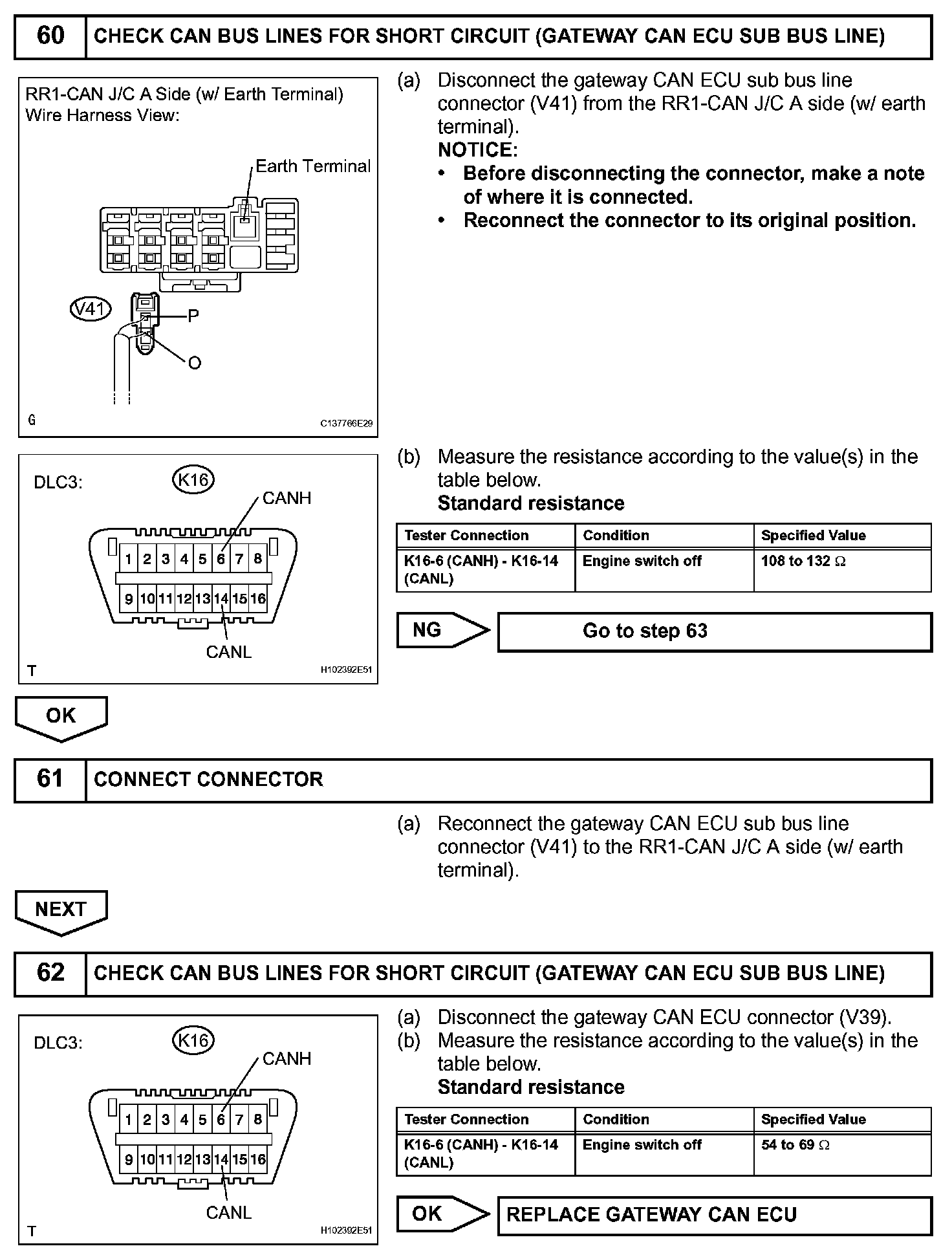

Step 60-62:

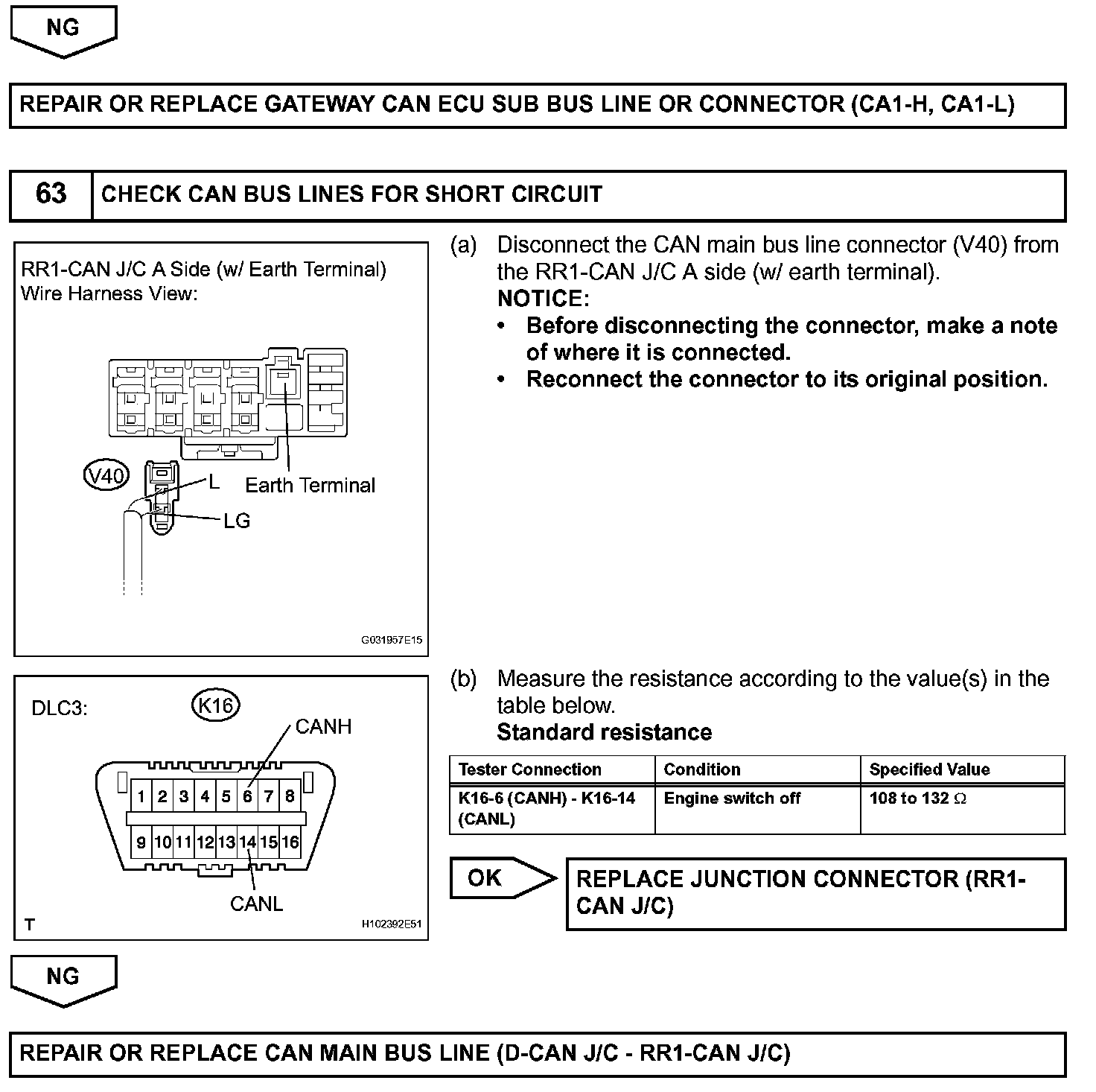

Step 62 (Continued)-63:
INSPECTION PROCEDURE
