Open in CAN Main Bus Line
Open in CAN Main Bus LineDESCRIPTION

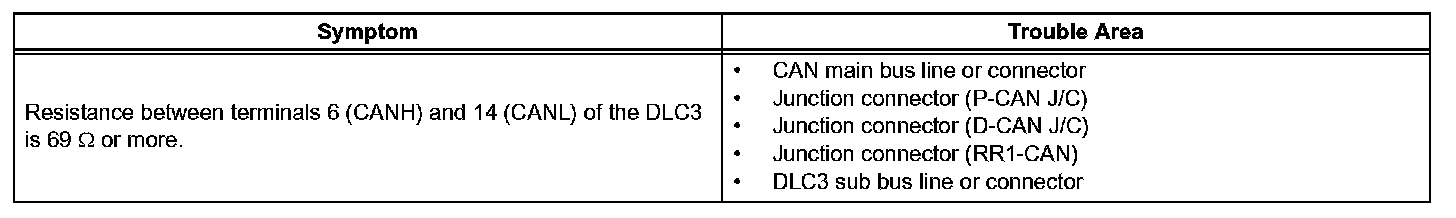

There may open circuit in the CAN main bus line and/or the DLC3 sub bus line when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is 69 ohms or more.

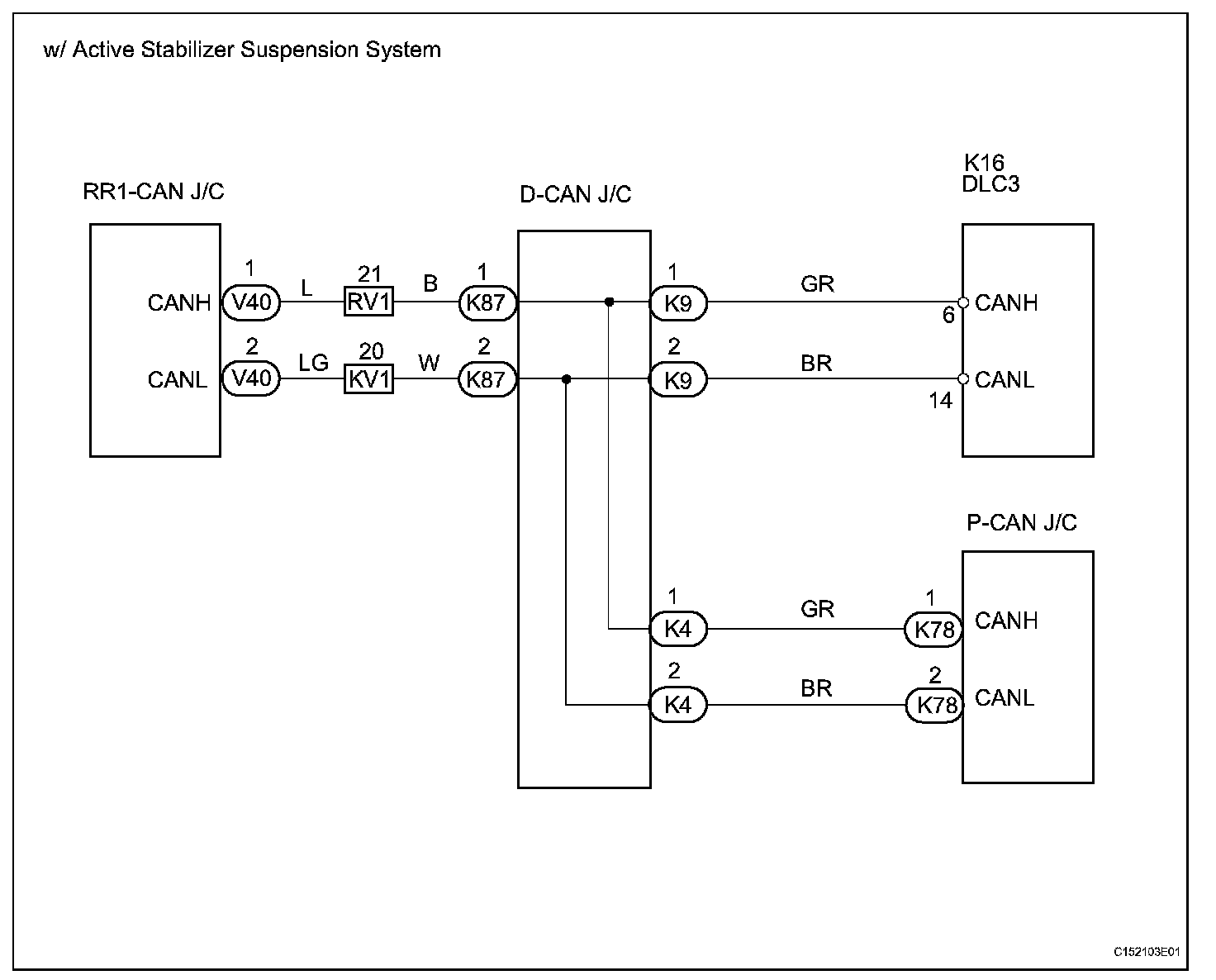

Wiring Diagram (Part 1):

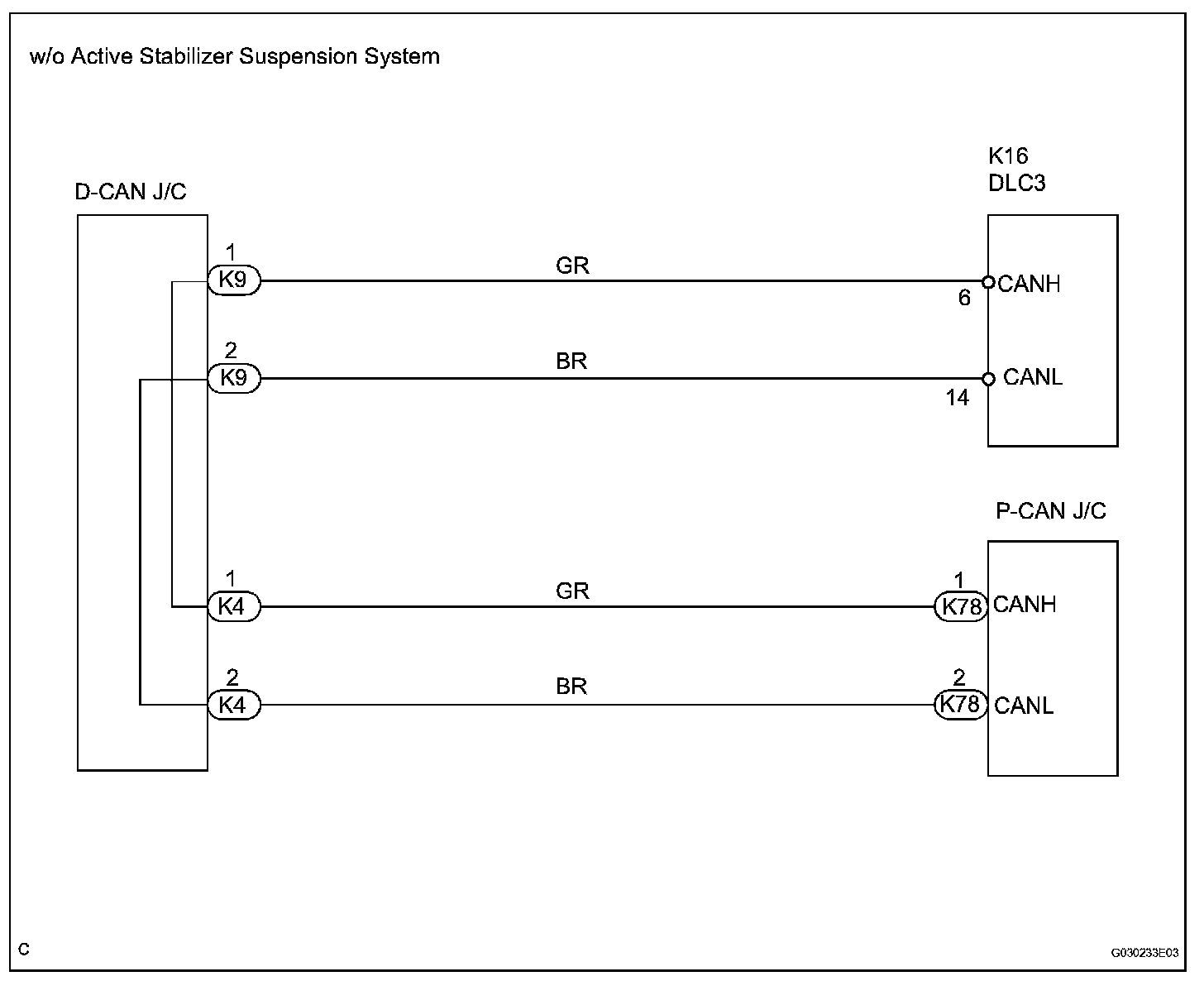

Wiring Diagram (Part 2):

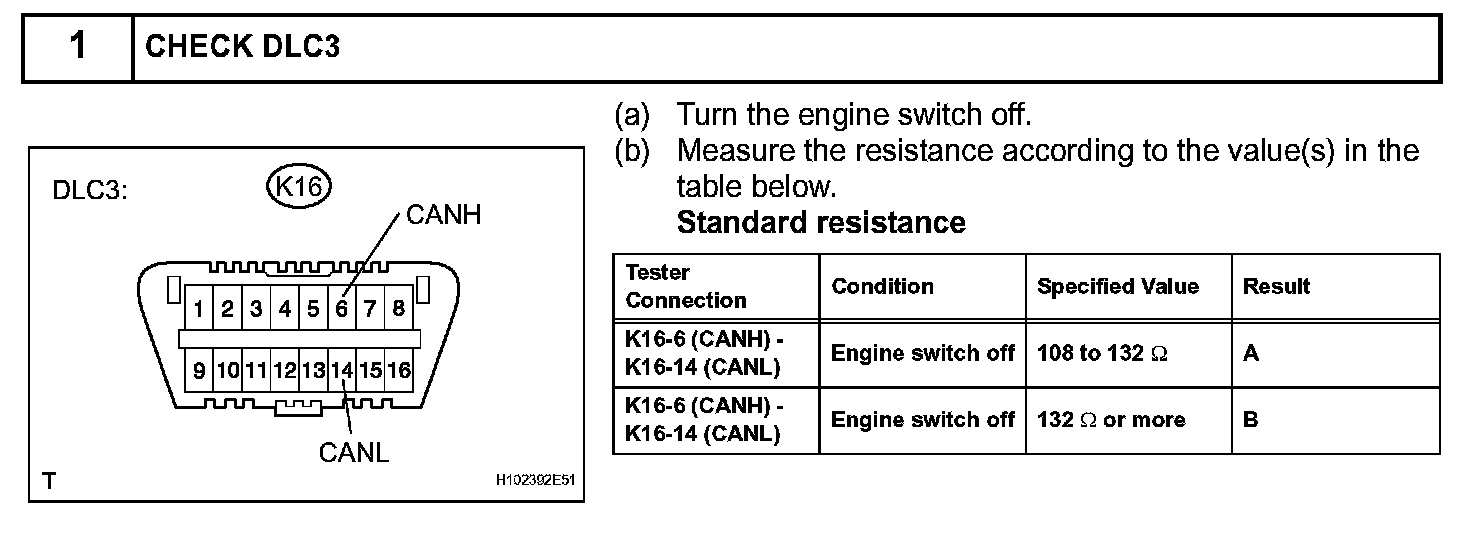

Step 1:

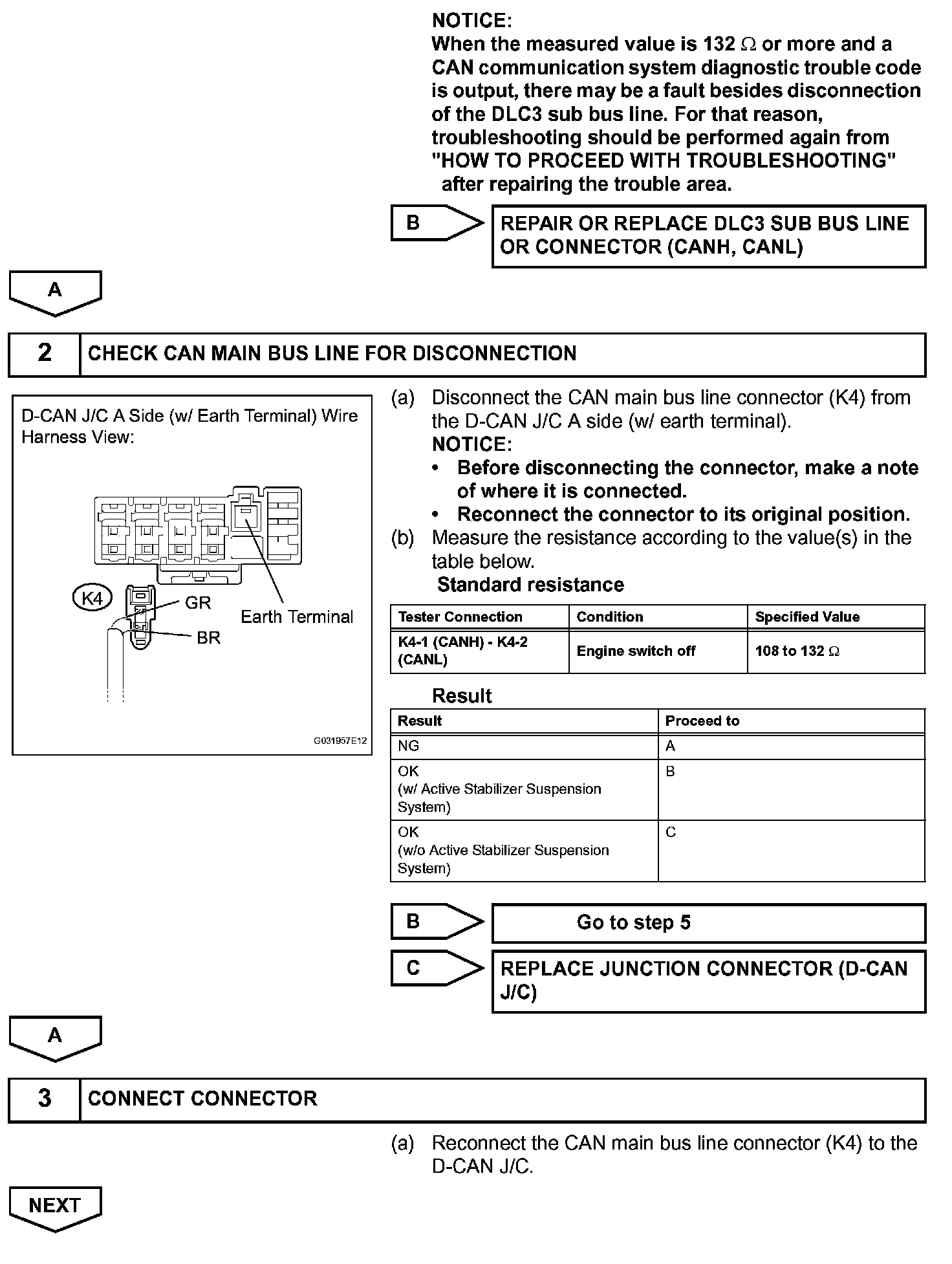

Step 1 (Continued)-3:

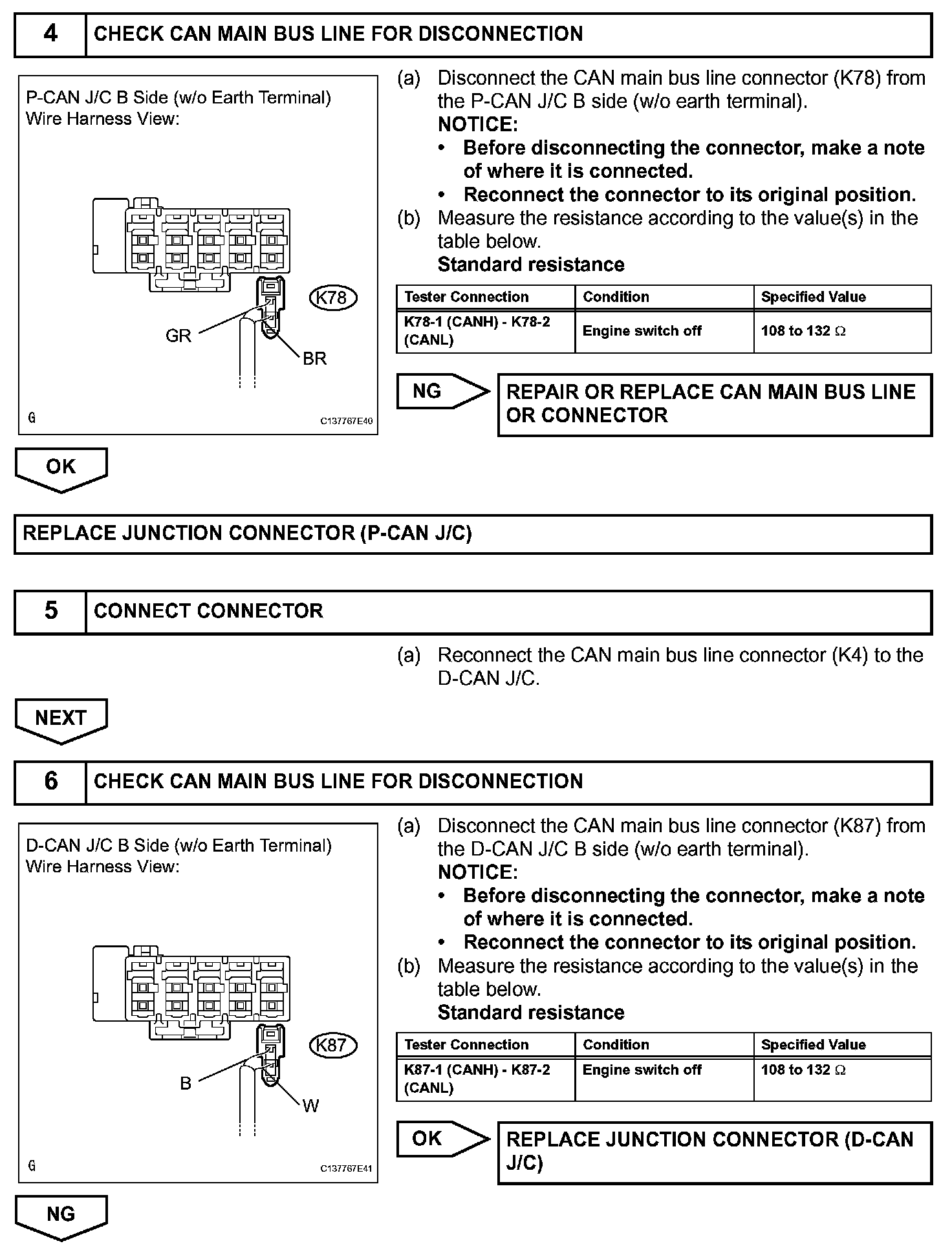

Step 4-6:

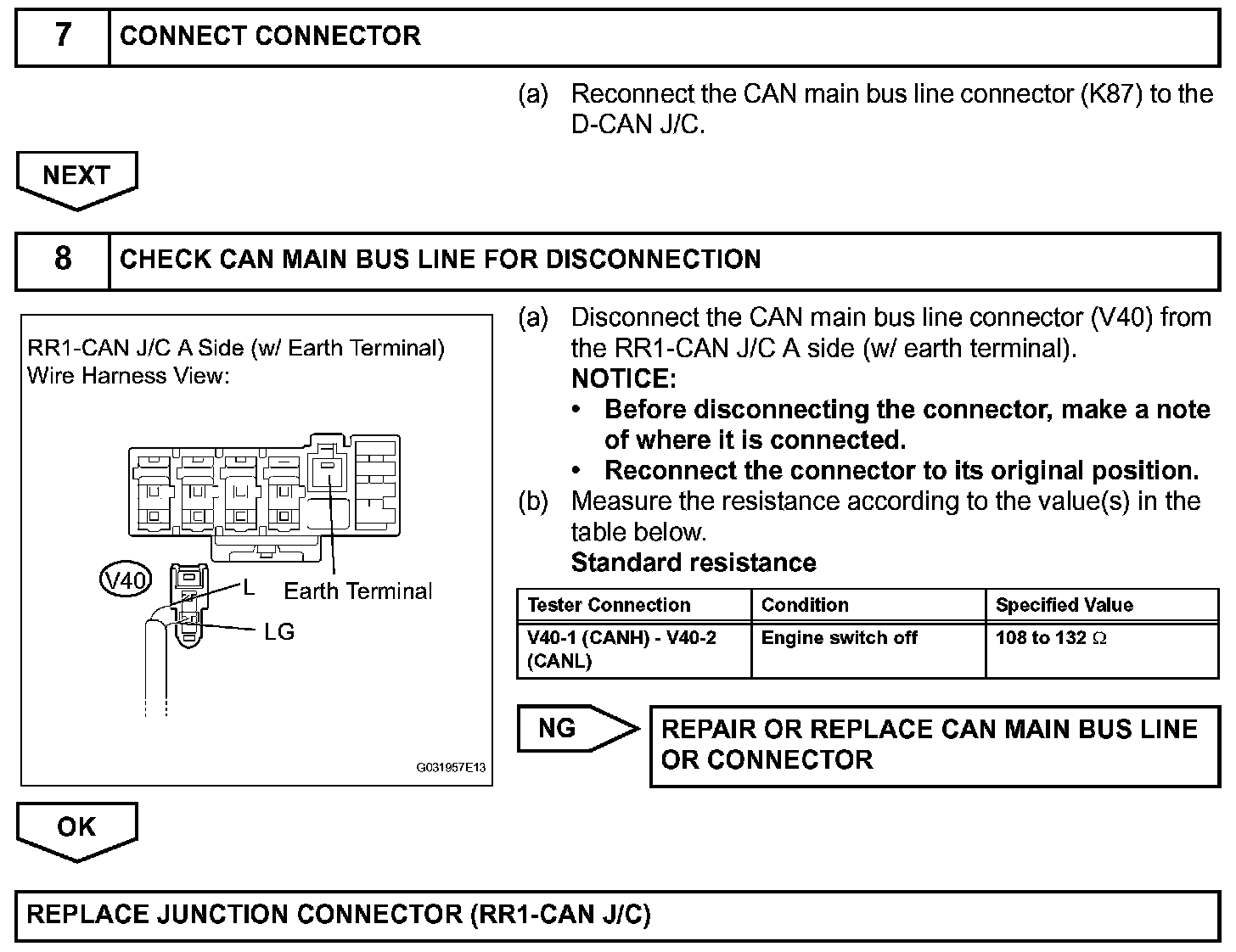

Step 7-8:
INSPECTION PROCEDURE
