Gateway CAN ECU Communication Stop Mode

Gateway CAN ECU Communication Stop Mode

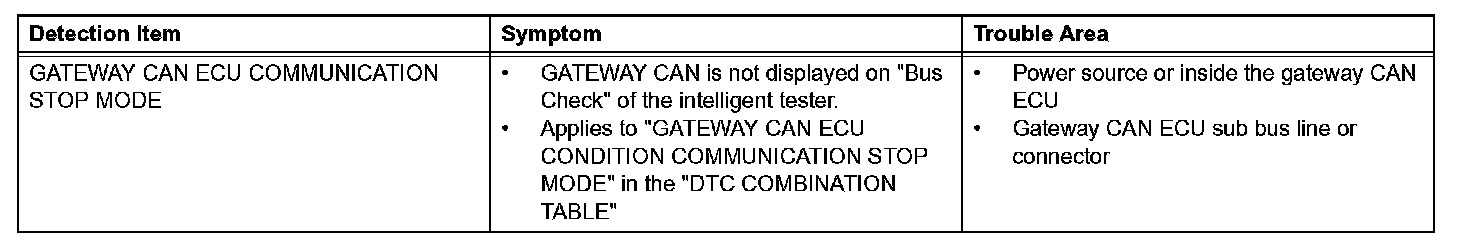

Symptom:




DESCRIPTION

HINT: For vehicles with Active Stabilizer Suspension System only.

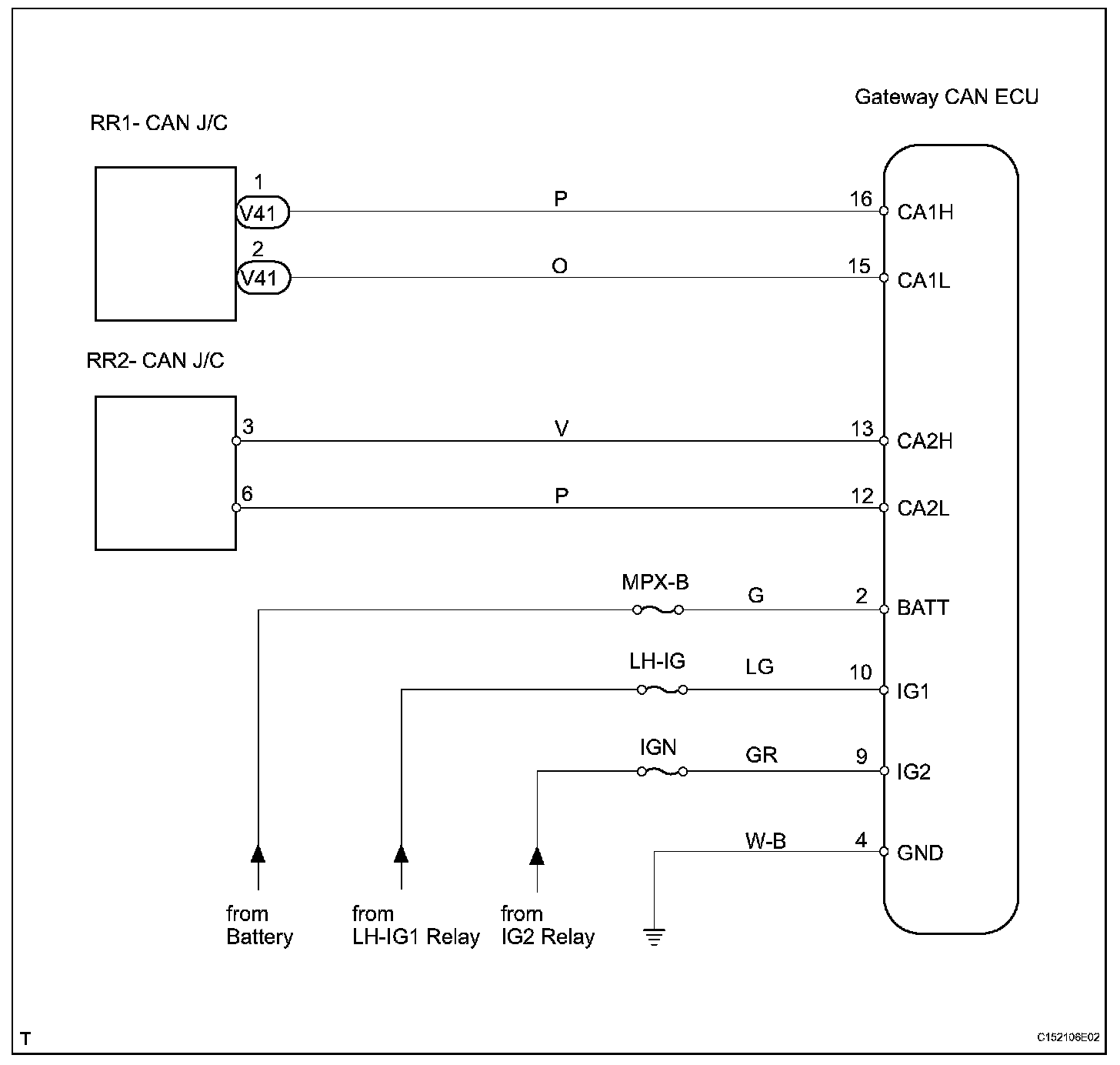

Wiring Diagram:

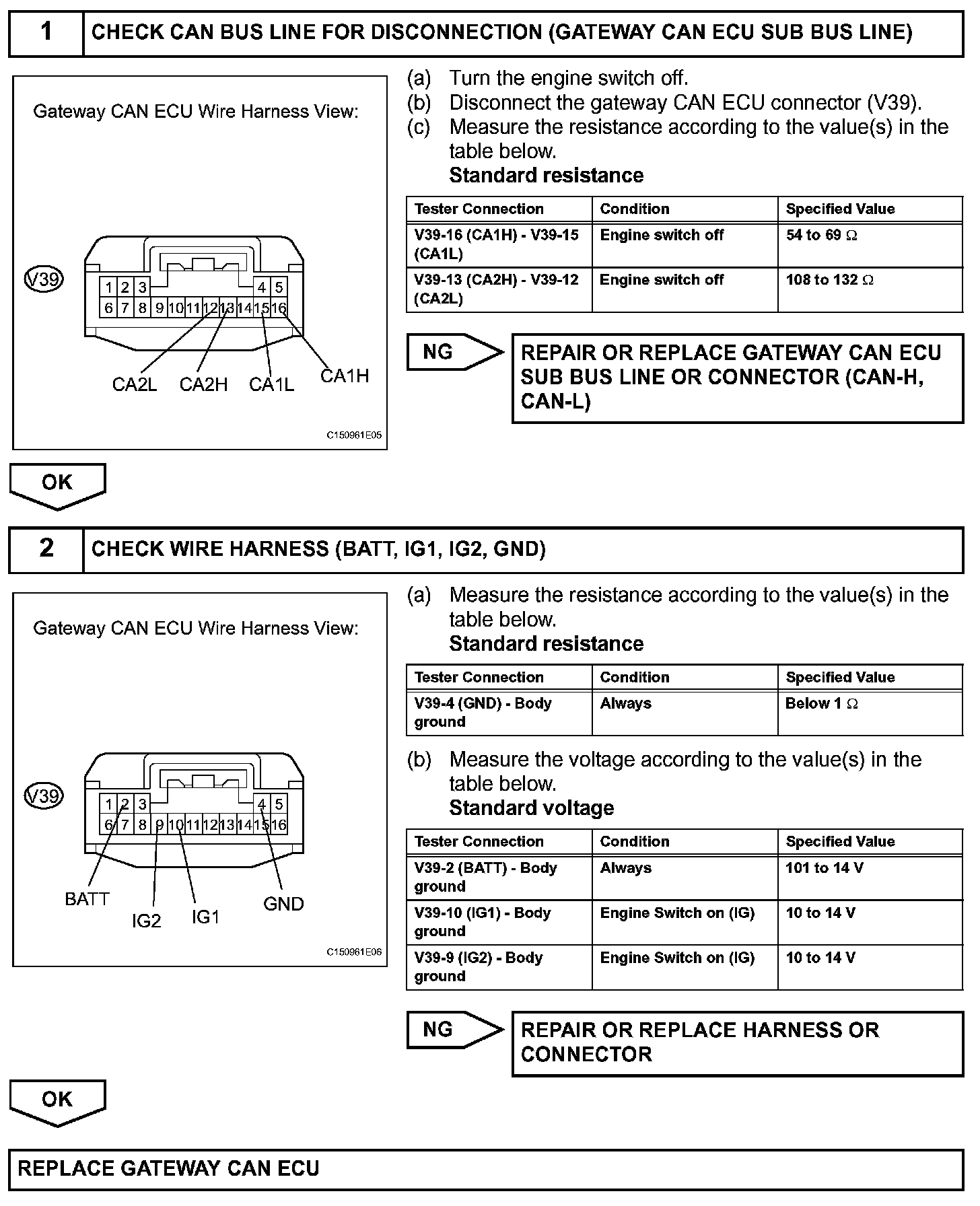

Step 1-2:




INSPECTION PROCEDURE
