4WD Control ECU Communication Stop Mode

4WD Control ECU Communication Stop Mode

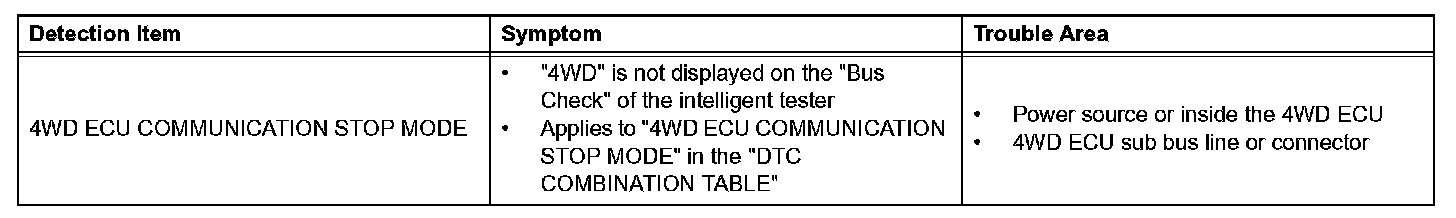

DESCRIPTION

HINT: With vehicles with 2GR-FSE only.

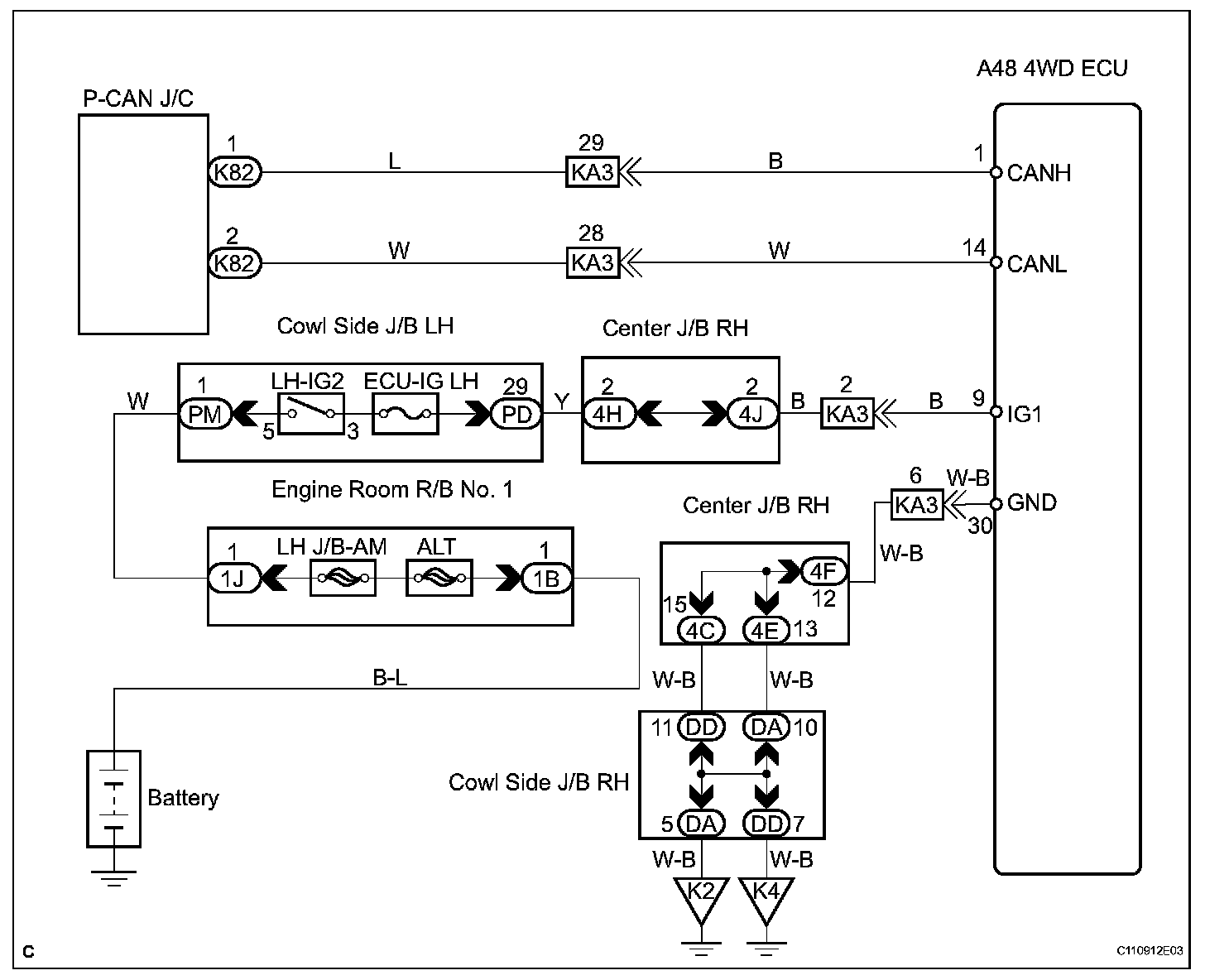

Wiring Diagram:






Step 1:




Step 1 (Continued)-2:

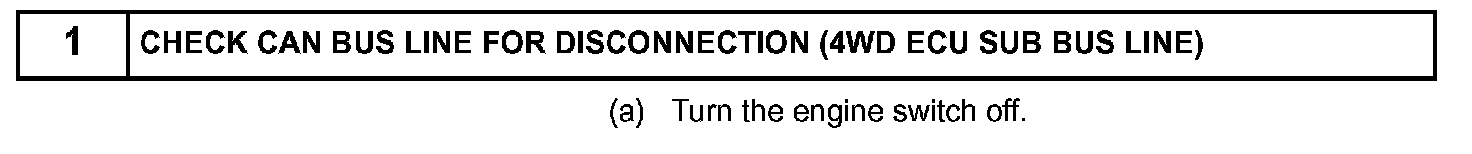

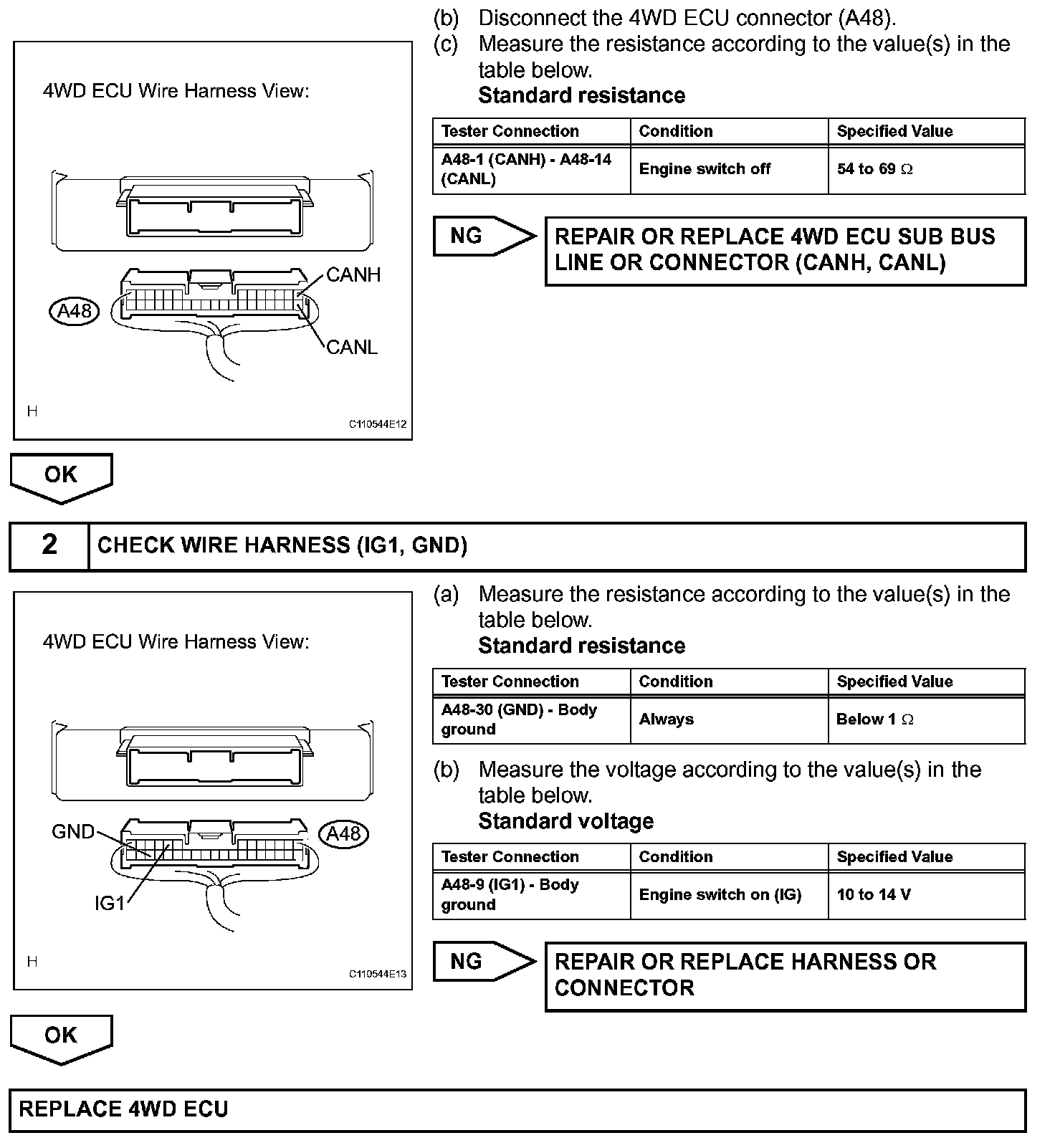

INSPECTION PROCEDURE
