Luggage Room Lamp Circuit
Luggage Room Light CircuitDESCRIPTION
The No. 1 junction block assembly receives luggage room door information, and turns on the luggage compartment lights.

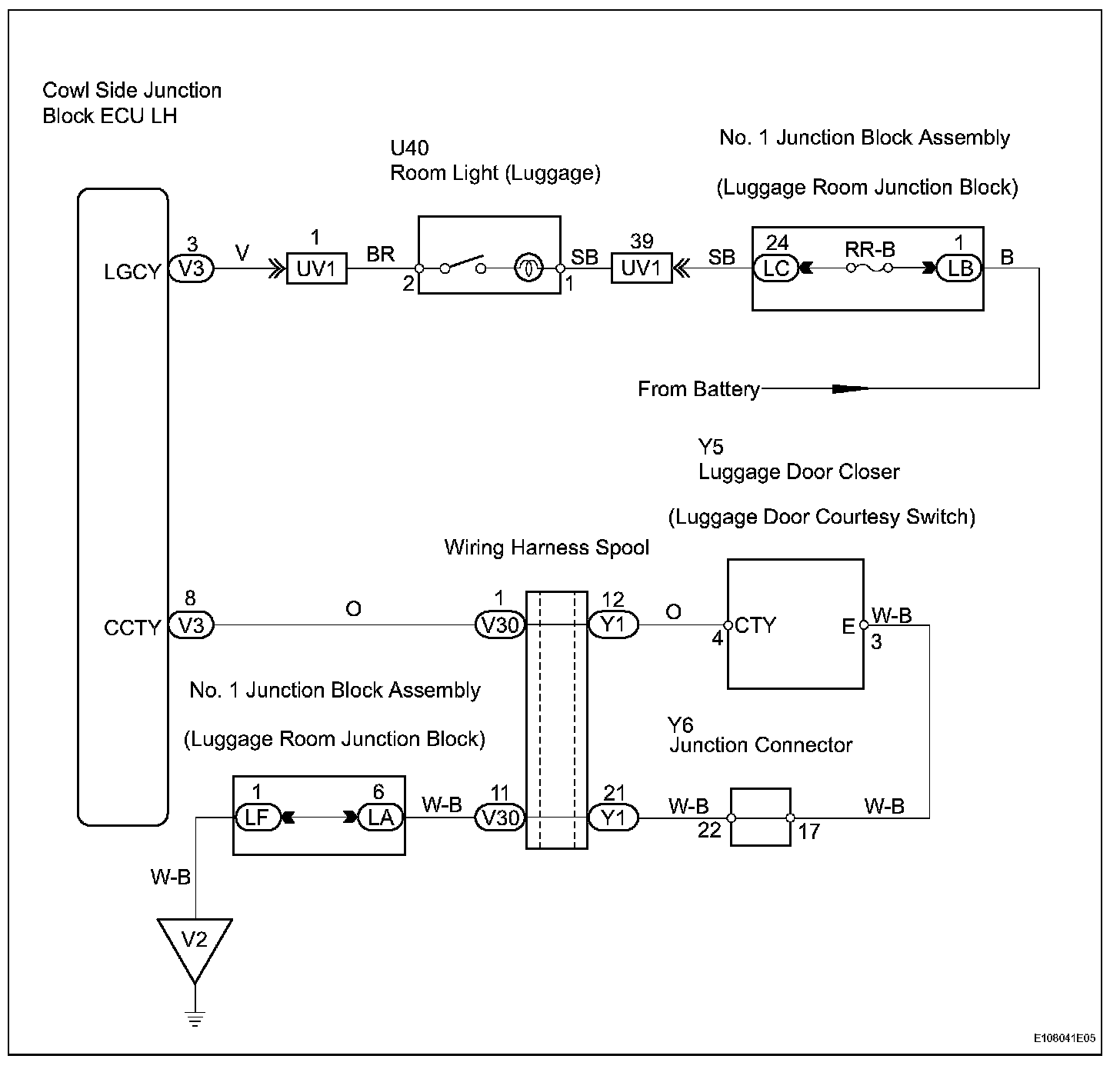

Wiring Diagram:
INSPECTION PROCEDURE

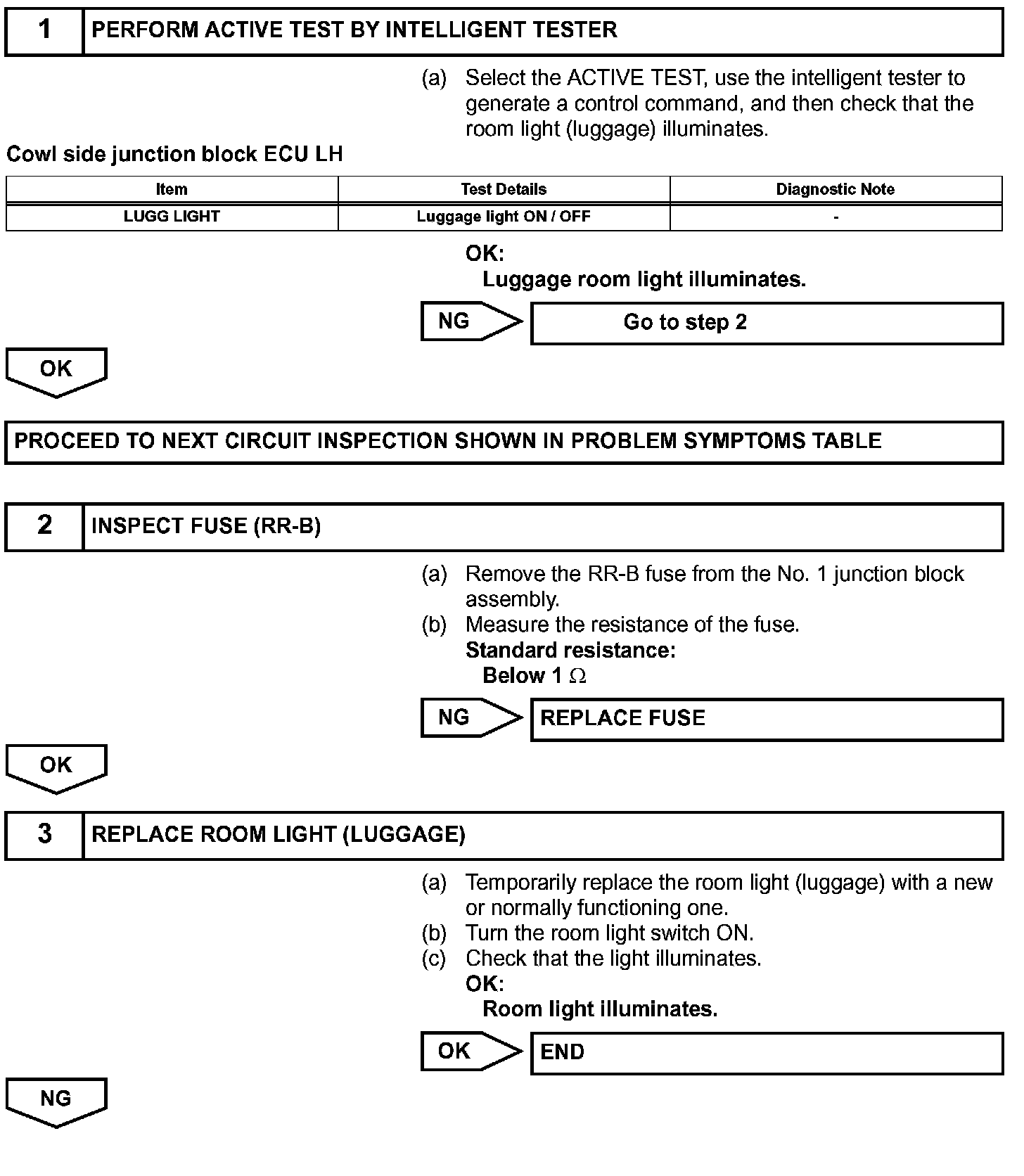

Step 1-3:

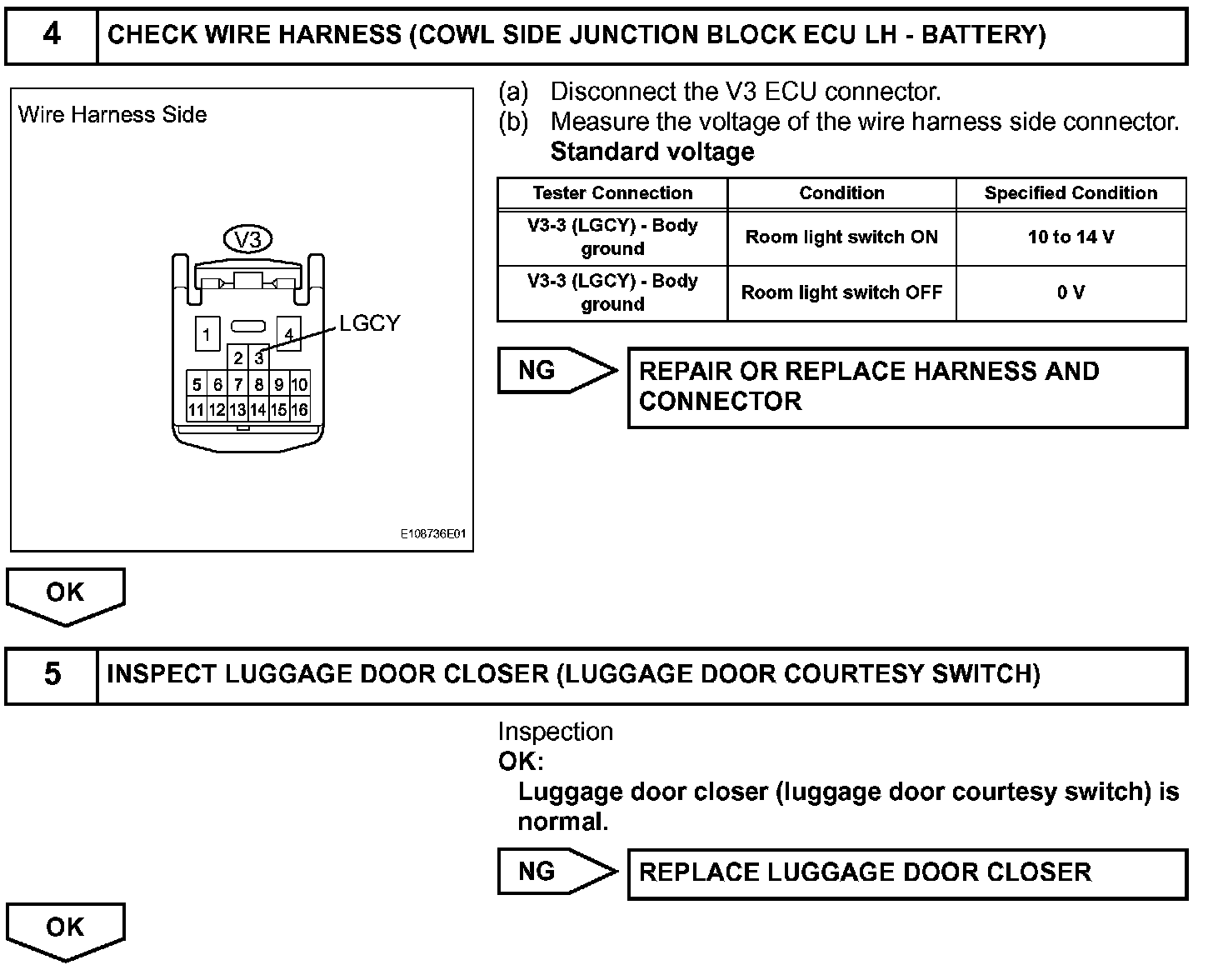

Step 4-5:

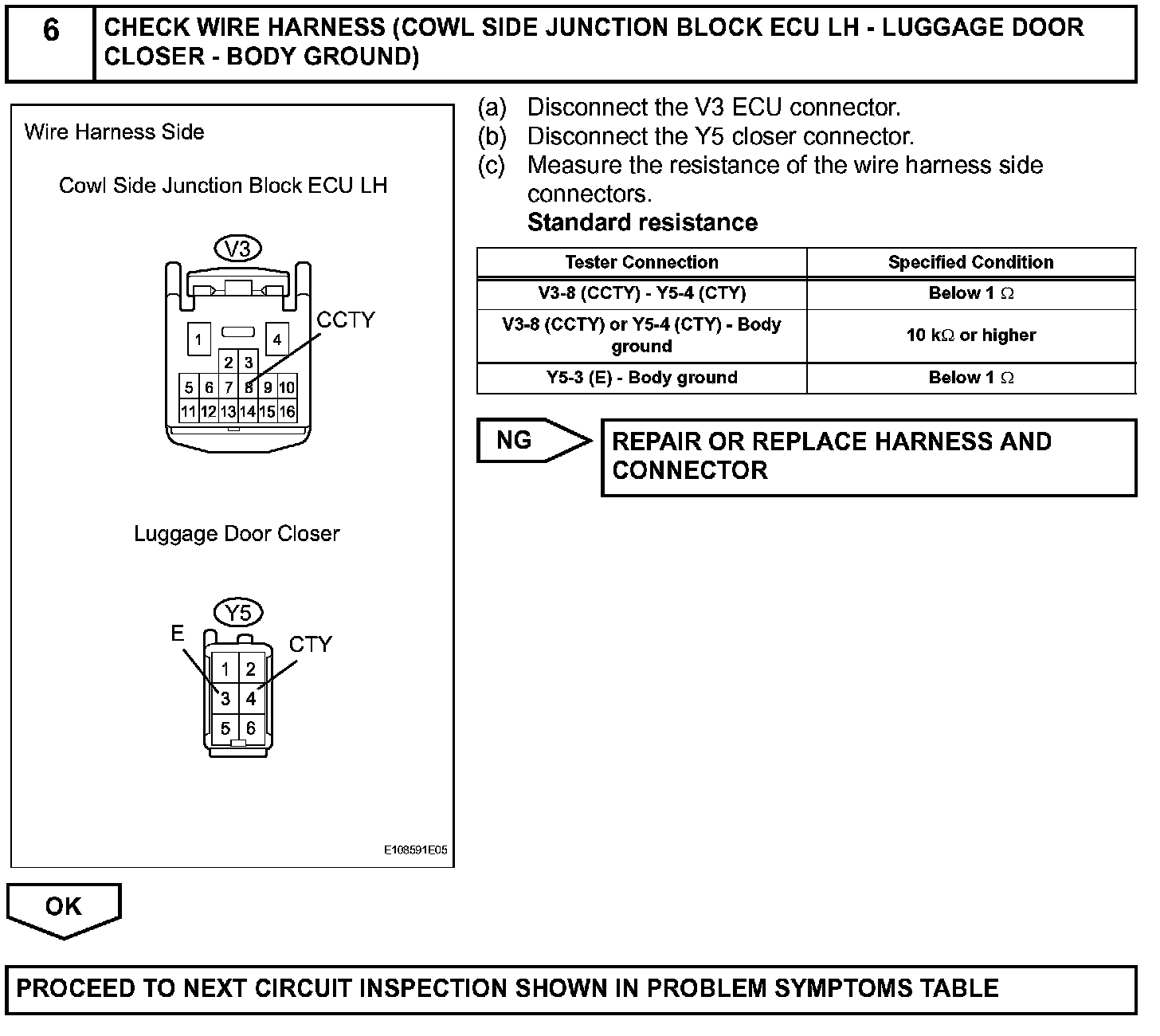

Step 6:
DESCRIPTION
The No. 1 junction block assembly receives luggage room door information, and turns on the luggage compartment lights.
INSPECTION PROCEDURE
