Light Control Switch Circuit

Light Control Switch Circuit

DESCRIPTION

The combination switch receives the information of the light control switch, and sends it to each ECU via the multiplex communication system.

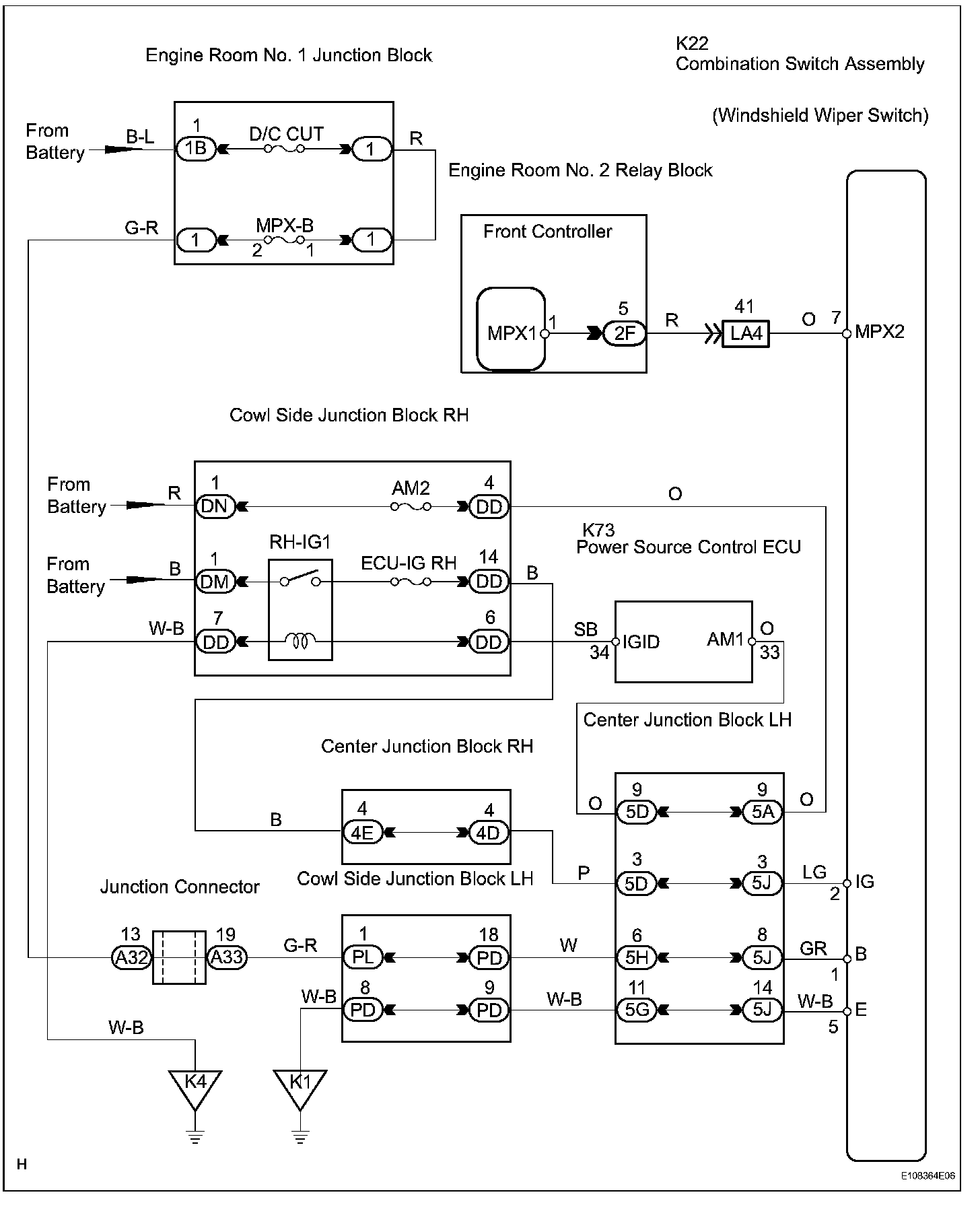

Wiring Diagram:





INSPECTION PROCEDURE

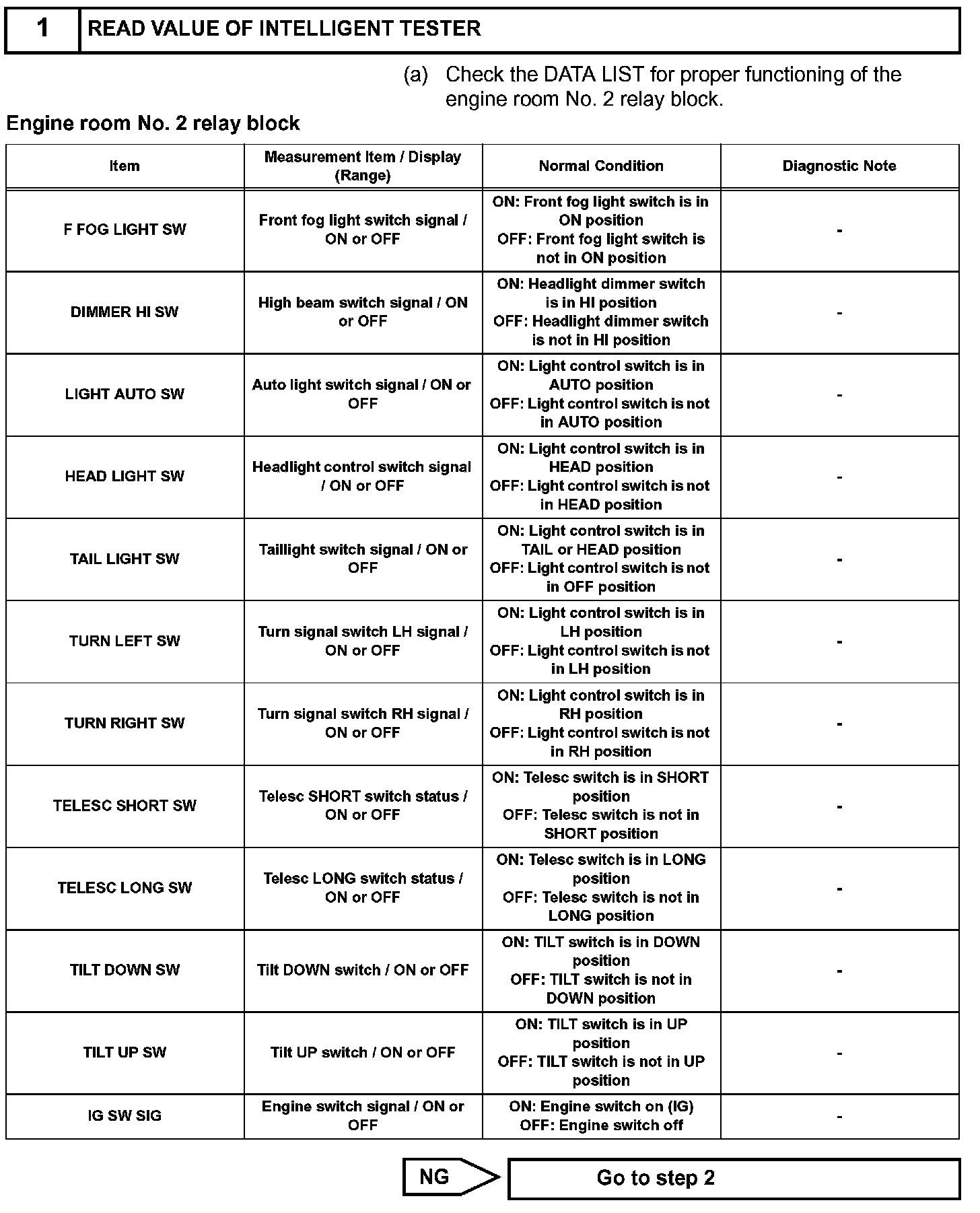

Step 1:

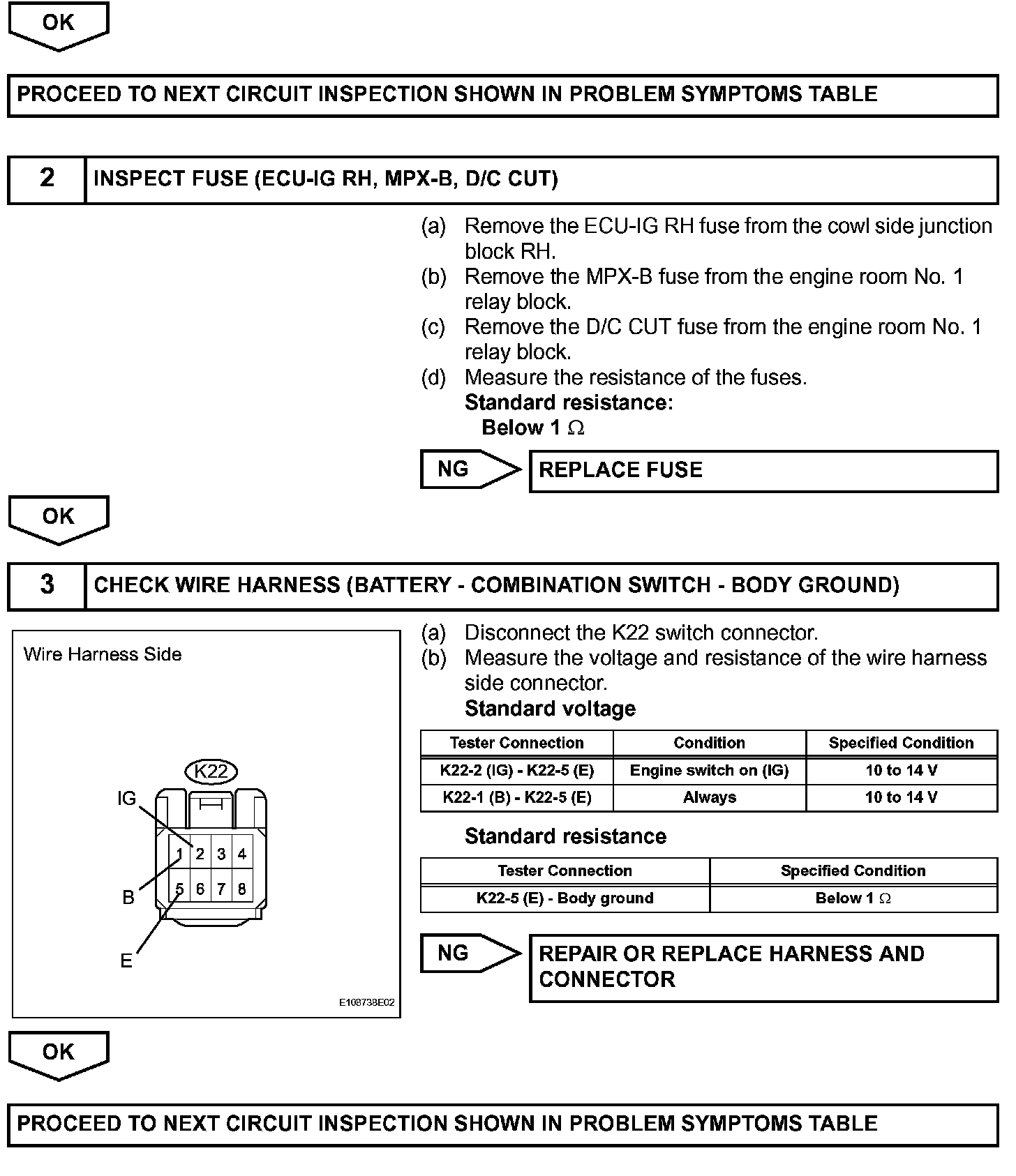

Step 1 (Continued)-3:
